Hayward PoolVac, Suction Cleaner, w/V-Flex™ Technology

Product Description · Parts · V-Flex Upgrade Kit · V-Flex Upgrade Kit Plus · Not Pictured

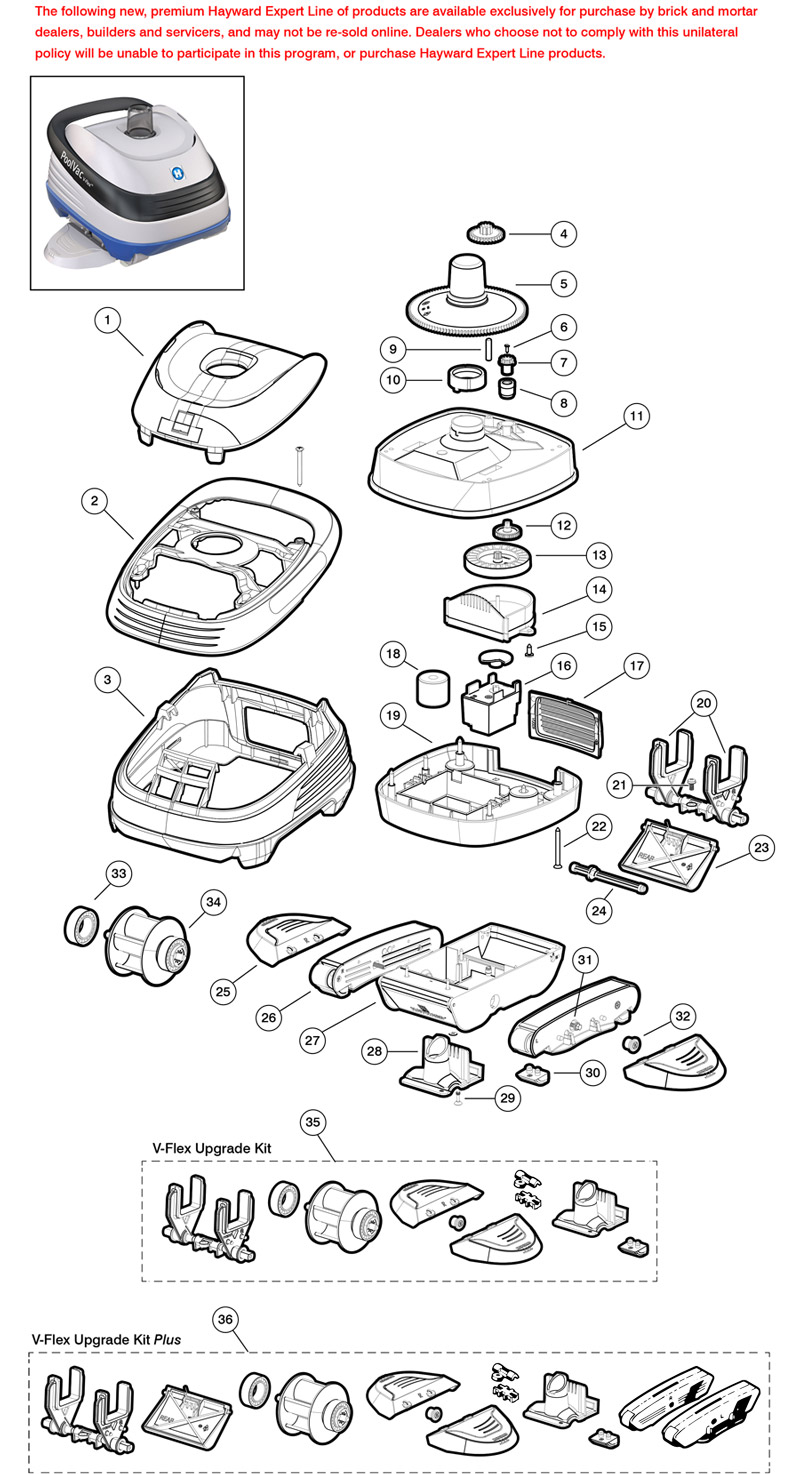

Parts

Key	Horizon #	Description		Qty
Key 1	Horizon # 87-150-1182	Description Cover Assembly, Hayward PoolVac V-Flex	Price	Qty	RecItem
Key 2	Horizon # 87-150-1181	Description Handle Assembly, Hayward PoolVac V-Flex	Price	Qty	RecItem
Key 3	Horizon # 87-150-1180	Description Shell and Skirt Assembly, Hayward PoolVac V-Flex	Price	Qty	RecItem
Key 4	Horizon # 87-150-1106	Description Intermediate Gear, Hayward Pool Cleaners	Price	Qty	RecItem
Key 5	Horizon # 87-150-1105	Description Cone Gear,Hayward AquaBug/Diver Dave/Navigator/Pool Vac Clnr	Price	Qty	RecItem
Key 6	Horizon # 87-150-1108	Description Screw, Hayward Pool Cleaners, Spindle Gear	Price	Qty	RecItem
Key 7	Horizon # 87-150-1109	Description Spindle Gear, Hayward Pool Cleaners	Price	Qty	RecItem
Key 8	Horizon # 87-150-1110	Description Bushing, Hayward Pool Cleaners, Spindle Gear	Price	Qty	RecItem
Key 9	Horizon # 87-150-1107	Description Intermediate Gear Shaft, Hayward Pool Cleaners	Price	Qty	RecItem
Key 10	Horizon # 87-150-1111	Description Bushing, Hayward Pool Cleaners, Cone Gear	Price	Qty	RecItem
Key 11	Horizon # 87-150-1151	Description Middle Body, Hayward Navigator/PoolVac V-Flex, Upper Housing	Price	Qty	RecItem
Key 12	Horizon # 87-150-1114	Description Drive Gear, Hayward Pool Cleaners, Medium Turbine	Price	Qty	RecItem
Key 13	Horizon # 87-150-1115	Description Medium Turbine, Hayward Pool Cleaners	Price	Qty	RecItem
Key 14	Horizon # 87-150-1116	Description Medium Turbine Case, Hayward Pool Cleaners, with Axle	Price	Qty	RecItem
Key 15	Horizon # 87-150-1220	Description Screw, Hayward Pool Cleaners, Upper Body, Quantity 6	Price	Qty	RecItem
Key 16	Horizon # 87-150-1117	Description Gear Box Assembly, Hayward Pool Cleaners	Price	Qty	RecItem
Key 17	Horizon # 87-150-1155	Description Screen Kit, Hayward Navigator/PoolVac V-Flex	Price	Qty	RecItem
Key 18	Horizon # 87-150-1162	Description Float Kit, Hayward PoolVac & Navigator V-Flex/Pro	Price	Qty	RecItem
Key 19	Horizon # 87-150-1159	Description Lower Body, Hayward Navigator/PoolVac V-Flex, Housing, Gray	Price	Qty	RecItem
Key 20	Horizon # 87-150-1161	Description A-Frame/Turbine Kit, Hayward Navigator/PoolVac V-Flex	Price	Qty	RecItem
Key 21	Horizon # 87-150-1127	Description Screw, Hayward Pool Cleaners, Lower Body	Price	Qty	RecItem
Key 22	Horizon # 87-150-1126	Description Screw, Hayward Pool Cleaners, Middle Body, Quantity 6	Price	Qty	RecItem
Key 23	Horizon # 87-150-1163	Description Flap Kit, Hayward Navigator/PoolVac V-Flex, qty 2, w/Springs	Price	Qty	RecItem
Key 24	Horizon # 87-150-1128	Description Flap Adjuster, Hayward AquaDroid/Navigator/Pool Vac Cleaners	Price	Qty	RecItem
Key 25	Horizon # 87-150-1170	Description Wing Kit, Hayward Navigator/PoolVac V-Flex	Price	Qty	RecItem
Key 26	Horizon # 87-150-1167	Description Pod Kit, Hayward Navigator/PoolVac V-Flex	Price	Qty	RecItem
Key 27	Horizon # 87-150-1165	Description Lower Body, Hayward Navigator/PoolVac V-Flex, Open	Price	Qty	RecItem
Key 28	Horizon # 87-150-1171	Description Access Cover Assy, Hayward Navigator/PoolVac V-Flex,Concrete	Price	Qty	RecItem
Key 28	Horizon # Discontinued	Description Access Cover Assy, Hayward Navigator/PoolVac V-Flex, Vinyl	Price	Qty	RecItem
Key 28	Horizon # Discontinued	Description Access Cover Assy, Hywd Nav/PoolVac V-Flex,Concrete,Lg Skids	Price	Qty	RecItem
Key 29	Horizon # 87-150-1141	Description Captive Screw, Hayward AquaDroid/Navigator/Pool Vac Cleaners	Price	Qty	RecItem
Key 30	Horizon # 87-150-1137	Description Pod Shoe, Hayward Navigator/Pool Vac Cleaners, Gunite, qty 4	Price	Qty	RecItem
Key 30	Horizon # 87-150-1138	Description Pod Shoe, Hayward Navigator/Pool Vac Cleaners, Vinyl, qty 4	Price	Qty	RecItem
Key 31	Horizon # Discontinued	Description Pod Screw Kit, Hayward PoolVac/Navigator,qty 2 Screw/Washer	Price	Qty	RecItem
Key 32	Horizon # Discontinued	Description Pod Plug, Hayward Navigator/PoolVac V-Flex, qty 6	Price	Qty	RecItem
Key 33	Horizon # Discontinued	Description Turbine Bearing, Hayward Navigator/PoolVac V-Flex,qty 2	Price	Qty	RecItem
Key 34	Horizon # 87-150-1174	Description Turbine Kit, Hywd Nav/PoolVac V-Flex, w/Turbine & Bearings	Price	Qty	RecItem
Key	Horizon # 87-150-4016	Description Turbine Kit, Hayward, 5-Vane, 2 Shaft Retainers	Price	Qty	RecItem

V-Flex Upgrade Kit

Key	Horizon #	Description		Qty
Key 35	Horizon # 87-150-1184	Description V-Flex Upgrade Kit, Hayward Navigator/PoolVac,Concrete,Black	Price	Qty	RecItem
Key 35	Horizon # 87-150-1186	Description V-Flex Upgrade Kit, Hayward Navigator/PoolVac,Concrete,White	Price	Qty	RecItem
Key 35	Horizon # 87-150-1188	Description V-Flex Upgrade Kit, Hayward Navigator/PoolVac,Vinyl,White	Price	Qty	RecItem

V-Flex Upgrade Kit Plus

Key	Horizon #	Description		Qty
Key 36	Horizon # Discontinued	Description V-Flex Upgrade Kit Plus, Hayward Navgtr/PoolVac,Concrete,Blk	Price	Qty	RecItem
Key 36	Horizon # 87-150-1192	Description V-Flex Upgrade Kit Plus, Hayward Navgtr/PoolVac,Concrete,Wht	Price	Qty	RecItem
Key 36	Horizon # 87-150-1194	Description V-Flex Upgrade Kit Plus, Hayward Navigator/PoolVac,Vinyl,Wht	Price	Qty	RecItem

Not Pictured

Key	Horizon #	Description		Qty
Key	Horizon # 87-150-1177	Description A-Frame & Pod Tune Up Kit, Hayward Navigator/PoolVac V-Flex	Price	Qty	RecItem
Key	Horizon # 87-150-1178	Description Propulsion & Wing Rebuild Kit, Hywd Nav/PoolVac V-Flex,Con	Price	Qty	RecItem
Key	Horizon # Discontinued	Description Propulsion & Wing Rebuild Kit, Hywd Nav/PoolVac V-Flex,Vinyl	Price	Qty	RecItem
Key	Horizon # 87-150-1183	Description Shoe & Wing Maintenance Kit, Hayward PoolVac V-Flex	Price	Qty	RecItem
Key	Horizon # 87-150-1168	Description Shaft Retainer, 2 Pack, Hayward PoolVac V-Flex, Turbine	Price	Qty	RecItem
