Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Pool Cleaners  >  86-130-W037

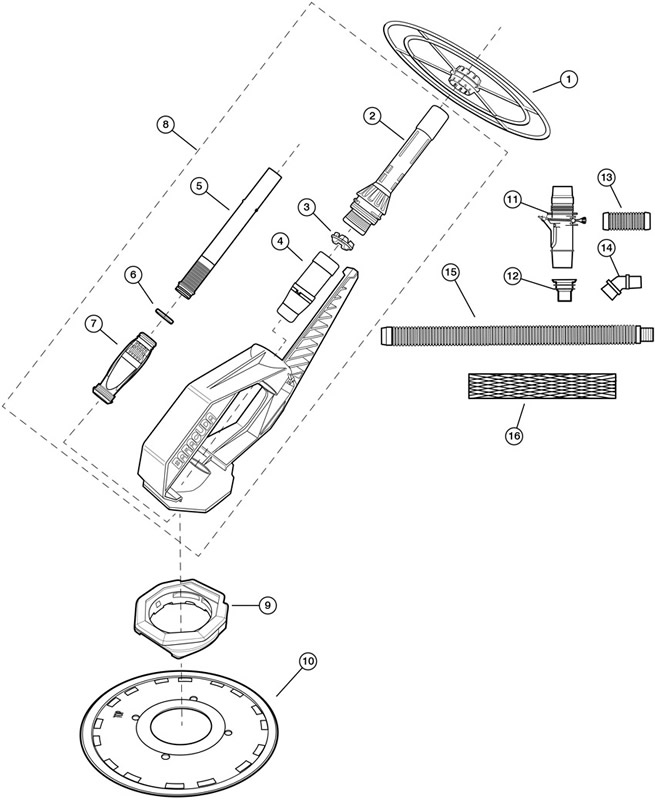

Zodiac Baracuda 1500, Suction Cleaner

Product Description  ·  Parts

Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Wheel Deflector, Zodiac Baracuda 1500, 16", US/Mexico Only Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Cassette Pipe, Zodiac Baracuda 1500, w/Handnut Price Qty RecItem View recommended items
Key 3 Horizon # 87-130-1009 Description Compression Ring, Zodiac Cleaners Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Diaphragm Chamber, Zodiac Baracuda 1500 Price Qty RecItem View recommended items
Key 5 Horizon # 87-130-1207 Description Pipe, Zodiac Baracuda G3 Cleaner, Inner Extension Price Qty RecItem View recommended items
Key 6 Horizon # 87-130-1015 Description Retaining Ring, Zodiac Cleaners, Diaphragm Price Qty RecItem View recommended items
Key 7 Horizon # 87-130-1520 Description Diaphragm, Zodiac Ranger/Baracuda 1500, Bone Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Cassette Assy, Zodiac Baracuda 1500 Price Qty RecItem View recommended items
Key 9 Horizon # 87-130-1940 Description Foot Pad, Zodiac Baracuda 1500, Dark Blue Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Slotted Disc, Zodiac Baracuda 1500, Dark Blue Price Qty RecItem View recommended items
Key 11 Horizon # 87-130-2012 Description Flowkeeper Valve, Zodiac Baracuda G2/G3/Ranger Price Qty RecItem View recommended items
Key 12 Horizon # 87-130-2015 Description Valve Cuff, Zodiac Ranger/Zoom Cleaners, Above Ground Price Qty RecItem View recommended items
Key 13 Horizon # 87-130-2016 Description Hose Connecter, Zodiac Ranger/Zoom Cleaners, 4-1/2" Price Qty RecItem View recommended items
Key 14 Horizon # 87-130-2002 Description 45 Elbow, Zodiac Alpha/Baracuda/Pacer/Ranger Cleaner Hose Price Qty RecItem View recommended items
Key 15 Horizon # 87-130-1024 Description Hose, Zodiac Zoom AG Cleaner, 1 Meter, White Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Hose Protector, Zodiac Cleaners Price Qty RecItem View recommended items
Back to Top  ·  Product Description  ·  Parts
