Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Pool Cleaners  >  86-130-W029

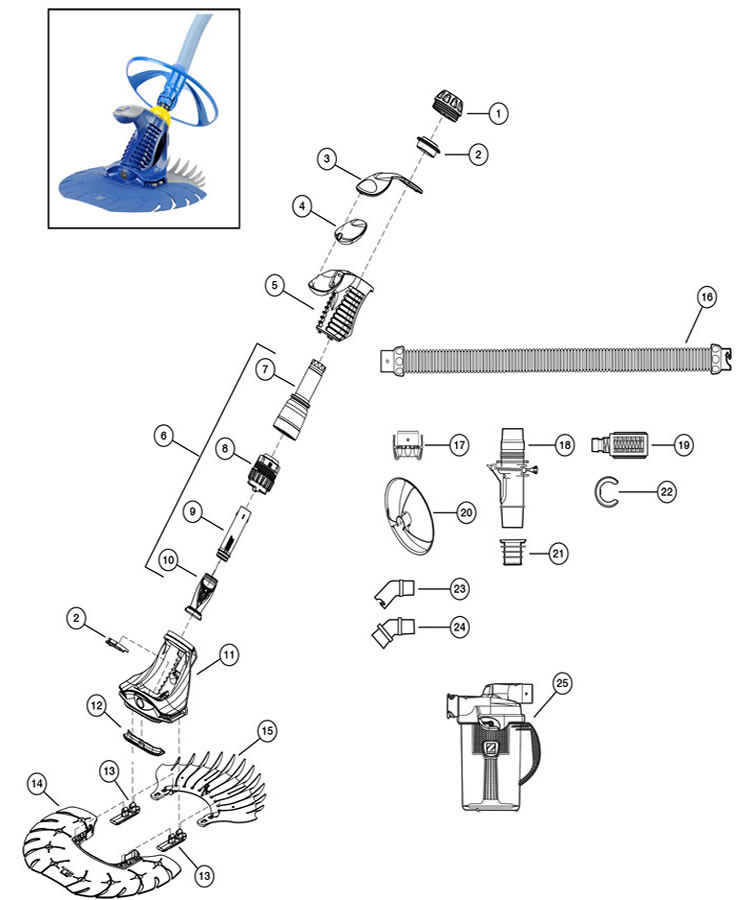

Zodiac T5 Duo, Suction Side Cleaner

Product Description  ·  Parts

Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 87-130-2188 Description Handnut, Zodiac T5 Duo, Yellow Price Qty RecItem View recommended items
Key 2 Horizon # 87-130-2198 Description Thrust Washers, Zodiac T5 Duo Price Qty RecItem View recommended items
Key 3 Horizon # 87-130-2200 Description Main Body Cap, Zodiac T5 Duo, Silver Price Qty RecItem View recommended items
Key 4 Horizon # 87-130-2190 Description Float, Zodiac T5 Duo Price Qty RecItem View recommended items
Key 5 Horizon # 87-130-2202 Description Main Body Cover, Zodiac T5 Duo, Blue Price Qty RecItem View recommended items
Key 6 Horizon # 87-130-2186 Description Engine Assy, Zodiac T5 Duo/TR2D/T3 Price Qty RecItem View recommended items
Key 7 Horizon # 87-130-2204 Description Outer Extension Pipe, Zodiac T5 Duo Price Qty RecItem View recommended items
Key 8 Horizon # 87-130-2206 Description Cup Assy, Zodiac T5 Duo/TR2D/T3 Price Qty RecItem View recommended items
Key 9 Horizon # 87-130-2208 Description Inner Extension Pipe, Zodiac T5 Duo/TR2D/T3 Price Qty RecItem View recommended items
Key 10 Horizon # 87-130-1605 Description TT Diaphragm, Zodiac Baracuda X7 Quattro Price Qty RecItem
Key 11 Horizon # 87-130-2210 Description Body Assy, Zodiac T5 Duo, w/Bumper, Blue Price Qty RecItem View recommended items
Key 12 Horizon # 87-130-2212 Description Skid Plate, Zodiac T5 Duo, Silver Price Qty RecItem View recommended items
Key 13 Horizon # 87-130-2196 Description Foot Pads, Zodiac T5 Duo Price Qty RecItem View recommended items
Key 14 Horizon # 87-130-2194 Description Rear Disc, Zodiac T5 Duo, Z Logo, Textured Price Qty RecItem View recommended items
Key 15 Horizon # 87-130-2192 Description Front Disc, Zodiac T5 Duo, Textured, Silver Price Qty RecItem View recommended items
Key 16 Horizon # _R0527700 Description Zodiac Twist Lock Hose-1 Meter Replacement Kit, Blue/Gray Price Qty RecItem
Key 16 Horizon # 87-130-2146 Description Twist Lock Hose, Zodiac MX8, 1 Meter, Blue/Gray, qty 12 Price Qty RecItem View recommended items
Key 17 Horizon # 87-130-2216 Description Quick Connecter, Zodiac T5 Duo, Blue Price Qty RecItem View recommended items
Key 18 Horizon # 87-130-2147 Description Valve, Zodiac, Flowkeeper™ Price Qty RecItem View recommended items
Key 19 Horizon # 87-130-2214 Description Flow Gauge, Zodiac T5 Duo Price Qty RecItem View recommended items
Key 20 Horizon # 87-130-2218 Description Wheel Deflector, Zodiac T5 Duo, Hose Mount, Blue Price Qty RecItem View recommended items
Key 21 Horizon # 87-130-2148 Description In-Ground Valve Cuff, Zodiac MX8/MX6/T5 Duo/TR2D/T3 Price Qty RecItem View recommended items
Key 22 Horizon # 87-130-1617 Description Hose Weight, Zodiac Baracuda X7 Quattro, Blue Price Qty RecItem View recommended items
Key 23 Horizon # 87-130-1621 Description Elbow, Zodiac Baracuda X7 Quattro, Twist Lock Price Qty RecItem View recommended items
Key 24 Horizon # 87-130-2149 Description 45 Elbow, Zodiac MX8/MX6/T5 Duo/TR2D/T3 Price Qty RecItem View recommended items
Key 25 Horizon # 87-130-2220 Description Cyclonic Leaf Catcher, Zodiac T5 Duo Price Qty RecItem View recommended items
Key Horizon # 87-130-2242 Description Relief Valve, Zodiac Cyclonic Leaf Catcher Price Qty RecItem View recommended items
Key Horizon # 87-130-2022 Description Manual Vac Head Hose Adapter, Zodiac Cleaner Accessories Price Qty RecItem View recommended items
