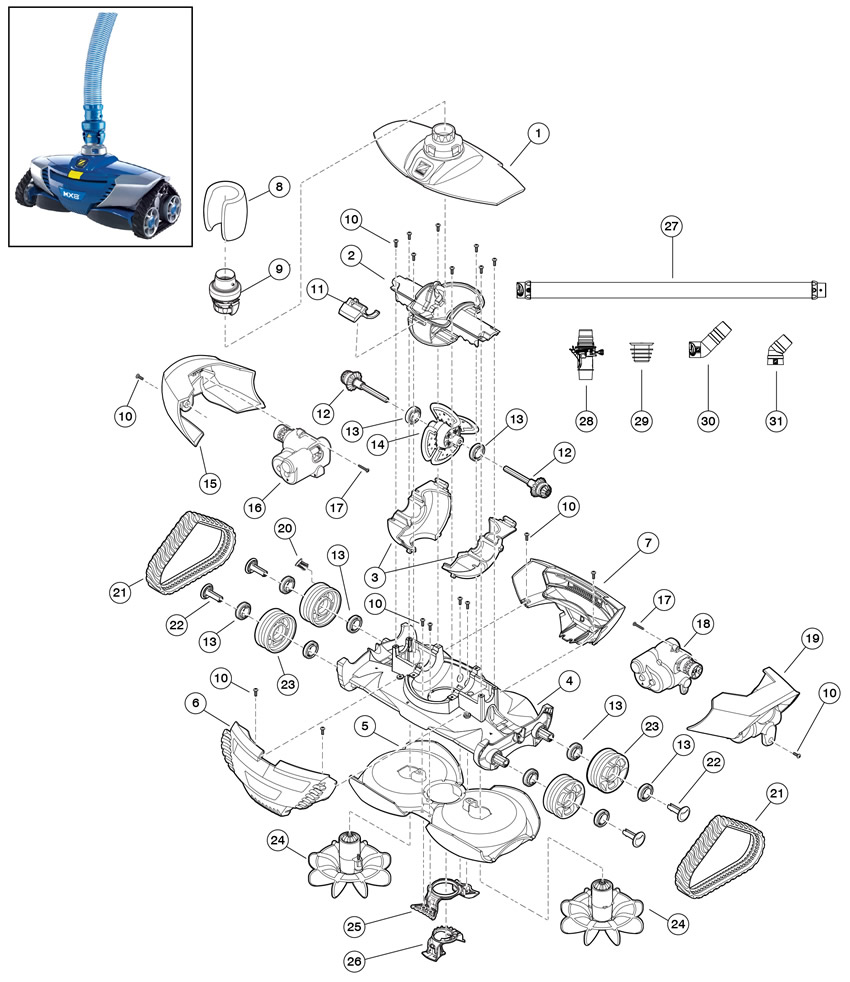

Zodiac MX8/MX8 Elite, Suction Side Cleaner

Product Description  ·  Parts  ·  Not Shown  ·  Complete Cleaner

Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 87-130-2129 Description Top Cover, Zodiac MX8, w/Swivel Assy Price Qty RecItem View recommended items
Key 2 Horizon # 87-130-2131 Description Middle Engine Housing, Zodiac MX8, w/Ramp & 2 Seals Price Qty RecItem View recommended items
Key 3 Horizon # 87-130-2135 Description Lower Engine Housing, Zodiac MX6/MX8 Price Qty RecItem View recommended items
Key 4 Horizon # 87-130-2141 Description Chassis Assembly, Zodiac MX8 Price Qty RecItem View recommended items
Key 5 Horizon # 87-130-2142 Description Lower Body Housing, Zodiac MX8 Price Qty RecItem View recommended items
Key 6 Horizon # 87-130-2143 Description Body Panel, Zodiac MX8, Front (C) Price Qty RecItem View recommended items
Key 7 Horizon # 87-130-2137 Description Body Panel, Zodiac MX8, Rear (D) Price Qty RecItem View recommended items
Key 8 Horizon # 87-130-2127 Description Hose Float, Zodiac MX6/MX8 Price Qty RecItem View recommended items
Key 9 Horizon # 87-130-2128 Description Flow Regulator Valve, Zodiac MX6/MX8 Price Qty RecItem View recommended items
Key 10 Horizon # 87-130-2130 Description Screw, Zodiac MX6/MX8, Phillips #2 Pan Head, M4x12mm Price Qty RecItem View recommended items
Key 11 Horizon # 87-130-2132 Description Cover Latch, Zodiac MX8 Price Qty RecItem View recommended items
Key 12 Horizon # 87-130-2134 Description Drive Shaft Assy, Zodiac MX6/MX8 Price Qty RecItem View recommended items
Key 13 Horizon # 87-130-2152 Description Bearing, Zodiac MX6/MX8, Wheel/Engine Price Qty RecItem View recommended items
Key 14 Horizon # 87-100-2300 Description Engine Assembly, Zodiac MX8™ Price Qty RecItem View recommended items
Key 15 Horizon # 87-130-2133 Description Body Panel, Zodiac MX8, Right (B) Price Qty RecItem View recommended items
Key 16 Horizon # 87-130-2138 Description Direction Control Device, Zodiac MX8, Side B Price Qty RecItem View recommended items
Key 17 Horizon # 87-130-2136 Description Screw, Zodiac MX6/MX8,#6-18 7/8" Type A,Phillips #2 Pan Head Price Qty RecItem View recommended items
Key 18 Horizon # 87-130-2139 Description Direction Control Device, Zodiac MX8, Side A Price Qty RecItem View recommended items
Key 19 Horizon # 87-130-2140 Description Body Panel, Zodiac MX8, Left (A) Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Wheel Speed Indicator, Zodiac MX6/MX8 Price Qty RecItem View recommended items
Key 21 Horizon # 87-130-2154 Description Track, Zodiac MX6/MX8, Black Price Qty RecItem View recommended items
Key 22 Horizon # 87-130-2156 Description Wheel Pin R2, Zodiac MX8 Price Qty RecItem View recommended items
Key 23 Horizon # 87-130-2158 Description Wheel, Zodiac MX6/MX8, Gray Price Qty RecItem View recommended items
Key 24 Horizon # 87-130-2160 Description Cyclonic Turbine, Zodiac MX6/MX8, Gray/Blue Price Qty RecItem View recommended items
Key 25 Horizon # 87-130-2144 Description Inlet Assembly, Zodiac MX8 Price Qty RecItem View recommended items
Key 26 Horizon # 87-130-2145 Description Regular Opening, Zodiac MX8 Price Qty RecItem View recommended items
Key 27 Horizon # _R0527700 Description Zodiac Twist Lock Hose-1 Meter Replacement Kit, Blue/Gray Price Qty RecItem
Key 27 Horizon # 87-130-2146 Description Twist Lock Hose, Zodiac MX8, 1 Meter, Blue/Gray, qty 12 Price Qty RecItem View recommended items
Key 28 Horizon # 87-130-2147 Description Valve, Zodiac, Flowkeeper™ Price Qty RecItem View recommended items
Key 29 Horizon # 87-130-2148 Description In-Ground Valve Cuff, Zodiac MX8/MX6/T5 Duo/TR2D/T3 Price Qty RecItem View recommended items
Key 30 Horizon # 87-130-1621 Description Elbow, Zodiac Baracuda X7 Quattro, Twist Lock Price Qty RecItem View recommended items
Key 31 Horizon # 87-130-2149 Description 45 Elbow, Zodiac MX8/MX6/T5 Duo/TR2D/T3 Price Qty RecItem View recommended items

Not Shown

Key Horizon # Description Qty
Key Horizon # 87-130-2155 Description Cyclonic Scrubbing Brush, Zodiac Polaris MX8 Elite, Qty 4 Price Qty RecItem View recommended items

Complete Cleaner

Key Horizon # Description Qty
Key Horizon # 86-100-1180 Description Pool Cleaner, Zodiac MX8 Baracuda, Suction-Side Price Qty RecItem View recommended items
