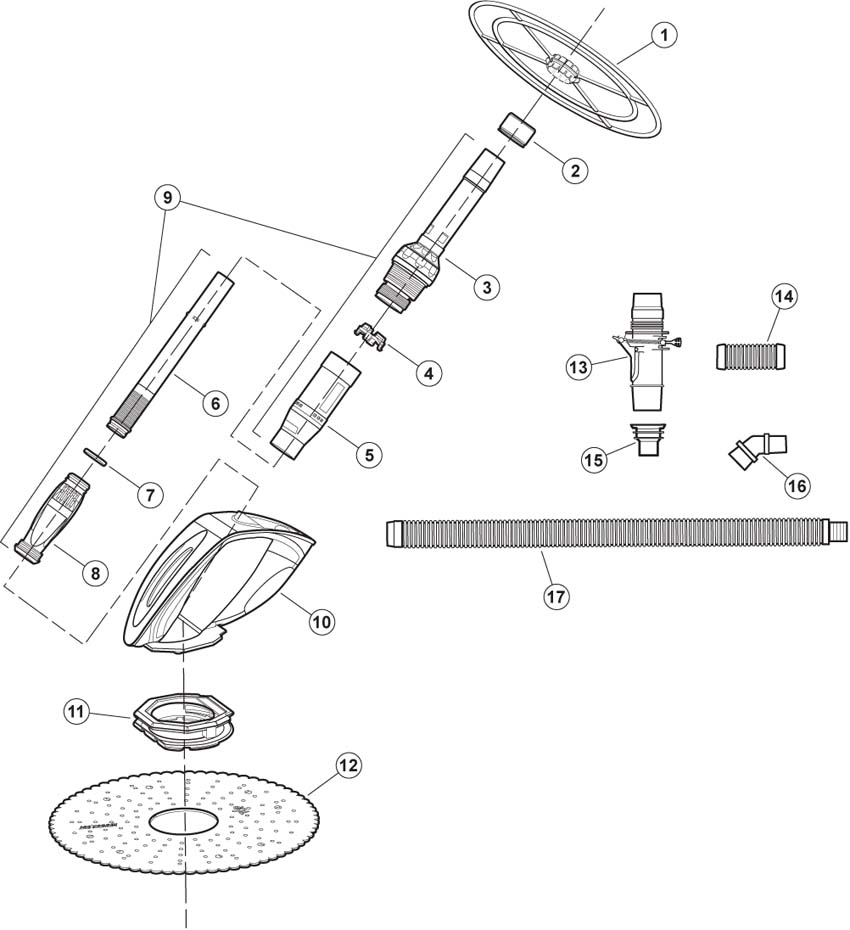

Zodiac Zoom Above Ground Cleaner

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Wheel Deflector, Zodiac Zoom AG Cleaner Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Wheel Adapter, Zodiac Zoom AG Cleaner Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Cassette Pipe, Zodiac Zoom AG Cleaner, with Hand Nut Price Qty RecItem View recommended items
Key 4 Horizon # 87-130-1009 Description Compression Ring, Zodiac Cleaners Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Diaphragm Chamber, Zodiac Zoom AG Cleaner Price Qty RecItem View recommended items
Key 6 Horizon # 87-130-1120 Description Pipe, Zodiac Baracuda 2500 Cleaner, Inner Extension Price Qty RecItem View recommended items
Key 7 Horizon # 87-130-1015 Description Retaining Ring, Zodiac Cleaners, Diaphragm Price Qty RecItem View recommended items
Key 8 Horizon # 87-130-1122 Description Cassette Diaphragm, Zodiac Baracuda 2500/G3/Ranger/Zoom Clnr Price Qty RecItem View recommended items
Key 8 Horizon # 87-605-1080 Description Cassette Diaphragm,Zod Baracuda 2500/G3/Ranger/Zoom Clnr,Gen Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Cassette Assembly, Zodiac Zoom AG Cleaner Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Hull Assembly, Zodiac Zoom AG Cleaner Price Qty RecItem View recommended items
Key 11 Horizon # Discontinued Description Footpad, Zodiac Zoom AG Cleaner Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Disc, Zodiac Zoom AG Cleaner, Scalloped Price Qty RecItem View recommended items
Key 13 Horizon # 87-130-2012 Description Flowkeeper Valve, Zodiac Baracuda G2/G3/Ranger Price Qty RecItem View recommended items
Key 14 Horizon # 87-130-2016 Description Hose Connecter, Zodiac Ranger/Zoom Cleaners, 4-1/2" Price Qty RecItem View recommended items
Key 15 Horizon # 87-130-2015 Description Valve Cuff, Zodiac Ranger/Zoom Cleaners, Above Ground Price Qty RecItem View recommended items
Key 16 Horizon # 87-130-2002 Description 45 Elbow, Zodiac Alpha/Baracuda/Pacer/Ranger Cleaner Hose Price Qty RecItem View recommended items
Key 17 Horizon # 87-130-1024 Description Hose, Zodiac Zoom AG Cleaner, 1 Meter, White Price Qty RecItem View recommended items
