Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Pool Cleaners  >  86-130-W017

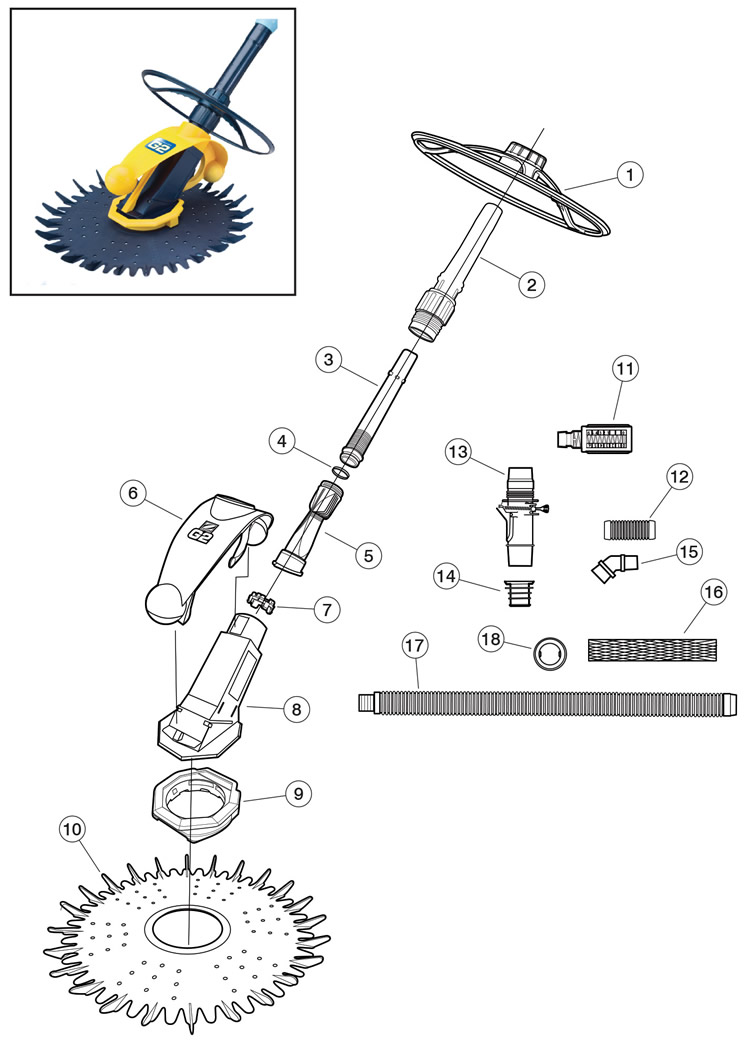

Zodiac Baracuda G2 Automatic Suction Cleaner

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 87-130-1210 Description Wheel Deflector, Zodiac Baracuda G3/G2 Cleaners, 12" Price Qty RecItem View recommended items
Key 2 Horizon # 87-130-1025 Description Pipe, Zodiac Baracuda G2 Cleaner, Outer Extension Price Qty RecItem View recommended items
Key 3 Horizon # 87-130-1120 Description Pipe, Zodiac Baracuda 2500 Cleaner, Inner Extension Price Qty RecItem View recommended items
Key 4 Horizon # 87-130-1015 Description Retaining Ring, Zodiac Cleaners, Diaphragm Price Qty RecItem View recommended items
Key 5 Horizon # 87-130-1016 Description Diaphragm, Zodiac Alpha 3/Baracuda G3/Pacer Cleaners Price Qty RecItem View recommended items
Key 6 Horizon # 87-130-1026 Description Weight/Float Assembly, Zodiac Baracuda G2 Cleaner Price Qty RecItem View recommended items
Key 7 Horizon # 87-130-1009 Description Compression Ring, Zodiac Cleaners Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Body, Zodiac Baracuda G2 Price Qty RecItem
Key 9 Horizon # 87-130-1012 Description Footpad, Zodiac Alpha 3/Baracuda G3/G2 Cleaners Price Qty RecItem View recommended items
Key 10 Horizon # 87-130-1028 Description Disc, Zodiac Baracuda G2 Cleaner, Finned Price Qty RecItem View recommended items
Key 11 Horizon # 87-130-1618 Description Flow Gauge, Zodiac Cleaners/Accessories Price Qty RecItem View recommended items
Key 12 Horizon # 87-130-2005 Description Hose Connecter, Zodiac Cleaners, 4-1/2" Price Qty RecItem View recommended items
Key 13 Horizon # 87-130-2012 Description Flowkeeper Valve, Zodiac Baracuda G2/G3/Ranger Price Qty RecItem View recommended items
Key 14 Horizon # 87-130-1620 Description Valve Cuff, Zodiac Baracuda G2/X7 Cleaners, In-Ground Price Qty RecItem View recommended items
Key 15 Horizon # 87-130-2002 Description 45 Elbow, Zodiac Alpha/Baracuda/Pacer/Ranger Cleaner Hose Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Hose Protector, Zodiac Cleaners Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Hose Kit, Zodiac Baracuda/Pacer, Aqua Blue, Single Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Hose Kit, Zodiac Baracuda/Pacer, Aqua Blue, Quantity 12 Price Qty RecItem View recommended items
Key 18 Horizon # 87-130-2006 Description Hose Weight, Zodiac Alpha/Baracuda Cleaners Price Qty RecItem View recommended items
