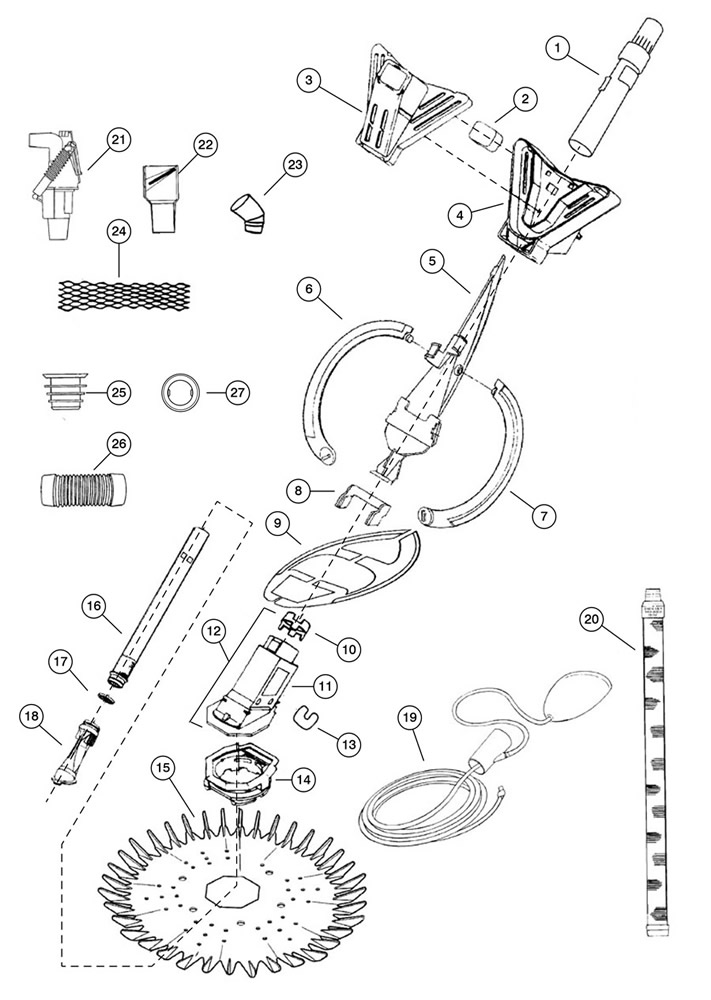

Zodiac Alpha 3 & Alpha 3 Plus Cleaner

Product Description  ·  Parts  ·  Factory Kits
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Pipe, Zodiac Alpha 3, Outer Extension Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Float, Zodiac Alpha 3 Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Top, Zodiac Alpha 3, Outer Body, Metallic Blue Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Bottom, Zodiac Alpha 3, Outer Body, Metallic Blue Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Bumper Fin, Zodiac Alpha 3 Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Wing, Zodiac Alpha 3, Side A Price Qty RecItem
Key 7 Horizon # Discontinued Description Wing, Zodiac Alpha 3, Side B Price Qty RecItem
Key 8 Horizon # Discontinued Description Bracket, Zodiac Alpha 3, Outer Body Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Bumper Bottom, Zodiac Alpha 3 Price Qty RecItem View recommended items
Key 10 Horizon # 87-130-1009 Description Compression Ring, Zodiac Cleaners Price Qty RecItem View recommended items
Key 11 Horizon # Discontinued Description Inner Body, Zodiac Alpha 3 Price Qty RecItem
Key 12 Horizon # Discontinued Description Inner Body, Zodiac Alpha 3, w/Compensation Ring Price Qty RecItem
Key 13 Horizon # Discontinued Description Belly Weight, Zodiac Alpha 3 Price Qty RecItem
Key 14 Horizon # Discontinued Description Foot Pad, Zodiac Alpha 3, Teal Price Qty RecItem
Key 15 Horizon # 87-130-1013 Description Disc, Zodiac Alpha 3/Baracuda G3 Cleaners, Finned Price Qty RecItem View recommended items
Key 16 Horizon # 87-130-1120 Description Pipe, Zodiac Baracuda 2500 Cleaner, Inner Extension Price Qty RecItem View recommended items
Key 17 Horizon # 87-130-1015 Description Retaining Ring, Zodiac Cleaners, Diaphragm Price Qty RecItem View recommended items
Key 18 Horizon # 87-130-1506 Description AboveGround Diaphragm AIB, Zodiac Wahoo, Bone Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Side Wing, Zodiac Alpha 3 Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Hose Kit, Zodiac Baracuda/Pacer, Aqua Blue, Single Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Hose Kit, Zodiac Baracuda/Pacer, Aqua Blue, Quantity 12 Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Hose, Zodiac Pacer, 1 Meter, Quantity 12 Price Qty RecItem
Key 21 Horizon # 87-130-2012 Description Flowkeeper Valve, Zodiac Baracuda G2/G3/Ranger Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Pool Pulse, Zodiac Alpha 3/Baracuda 2500/Pacer Price Qty RecItem View recommended items
Key 23 Horizon # 87-130-2002 Description 45 Elbow, Zodiac Alpha/Baracuda/Pacer/Ranger Cleaner Hose Price Qty RecItem View recommended items
Key 24 Horizon # Discontinued Description Hose Protector, Zodiac Cleaners Price Qty RecItem View recommended items
Key 25 Horizon # Discontinued Description Universal Valve Cuff, Zodiac Alpha 3 Price Qty RecItem
Key 26 Horizon # 87-130-2005 Description Hose Connecter, Zodiac Cleaners, 4-1/2" Price Qty RecItem View recommended items
Key 27 Horizon # 87-130-2006 Description Hose Weight, Zodiac Alpha/Baracuda Cleaners Price Qty RecItem View recommended items

Factory Kits

Key Horizon # Description Qty
Key Horizon # Discontinued Description Bumper Kit, Zodiac Alpha 3 Price Qty RecItem View recommended items
