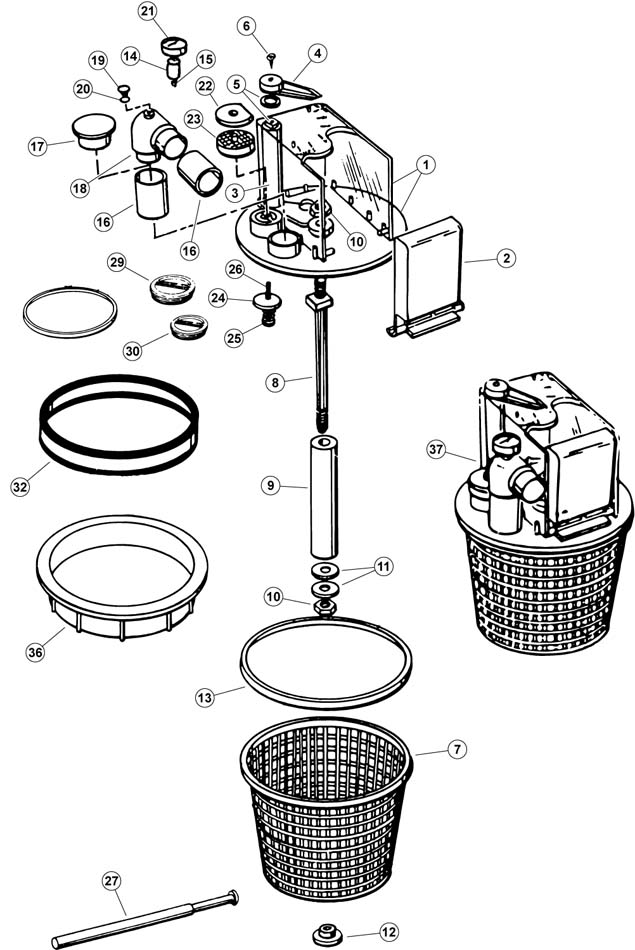

Pentair Vac-Mate Multifunction Vacuum Skimmer Attachment

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 87-110-2000 Description Top Housing Assembly, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 2 Horizon # 87-110-2001 Description Weir Assembly, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Control Shaft Assembly, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 4 Horizon # 87-110-2003 Description Control Handle, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 5 Horizon # 87-110-2004 Description Washer, Pentair Vac-Mate Skimmer, Control Shaft Assembly Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Control Handle Screw, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 7 Horizon # 87-110-2006 Description Basket, Skimmer, OEM Rainbo with Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 7 Horizon # 87-110-2007 Description Basket, Skimmer, OEM Pentair Vac-Mate Hywd style 1075-1086 Price Qty RecItem View recommended items
Key 7 Horizon # 87-110-2008 Description Basket, Skimmer, OEM Rainbow/Pentair Vac-Mate 501021-1022 Price Qty RecItem View recommended items
Key 8 Horizon # 87-110-2009 Description Basket Shaft, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 9 Horizon # 87-110-2011 Description Lead Weight, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 10 Horizon # 87-110-2012 Description Nut, Pentair Vac-Mate Skimmer, 3/8 x 16 Price Qty RecItem View recommended items
Key 11 Horizon # Discontinued Description Spacer Washer, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 12 Horizon # 87-110-2014 Description Knob, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 13 Horizon # 87-110-2015 Description Gasket, Pentair Vac-Mate, Basket, 7-1/4"ID, 8-1/4"OD Price Qty RecItem View recommended items
Key 13 Horizon # 87-110-2016 Description Gasket, Pentair Vac-Mate, Hayward Style Basket,6-1/2"ID,7"OD Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Vacuum Gauge Coupling, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Vacuum Gauge Nipple, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 16 Horizon # 87-110-2019 Description Cuff, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 17 Horizon # 87-110-2020 Description Cap Plug, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 18 Horizon # 87-110-2021 Description 90 Elbow, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 19 Horizon # 43-196-1094 Description Access Plug, Pentair Rainbow Auto. Feeder 300-29X, 1/4MPT Price Qty RecItem View recommended items
Key 20 Horizon # 90-423-7014 Description O-Ring, 1/2" ID, 1/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 21 Horizon # 87-110-2023 Description Vacuum Gauge, Pentair Vac-Mate Skimmer, 0-30psi, Back Mount Price Qty RecItem View recommended items
Key 22 Horizon # 87-110-2024 Description Anti-Vortex Plate, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 23 Horizon # Discontinued Description Bypass Screen, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 24 Horizon # 87-110-2026 Description Bypass Disc, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 25 Horizon # 87-110-2027 Description Bypass Spring, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 26 Horizon # 87-110-2028 Description Adjustment Screw, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 27 Horizon # 87-110-2029 Description Retainer Bar, Pentair Vac-Mate Skimmer, Long Price Qty RecItem View recommended items
Key 29 Horizon # 87-110-2030 Description Plug, Pentair Vac-Mate Skimmer, 2", Threaded Price Qty RecItem View recommended items
Key 30 Horizon # 87-110-2031 Description Plug, Pentair Vac-Mate Skimmer, 1-1/2", Threaded Price Qty RecItem View recommended items
Key 32 Horizon # 87-110-2032 Description Gasket, Pentair Vac-Mate, Basket, 7-3/4"ID, 8-5/8"OD Price Qty RecItem View recommended items
Key 36 Horizon # Discontinued Description Adapter Kit, Pentair Vac-Mate Skimmer Price Qty RecItem View recommended items
Key 37 Horizon # 87-110-2034 Description Vac-Mate, Pentair Vac-Mate Skimmer Complete Price Qty RecItem View recommended items
