Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Pool Cleaners  >  86-110-W023

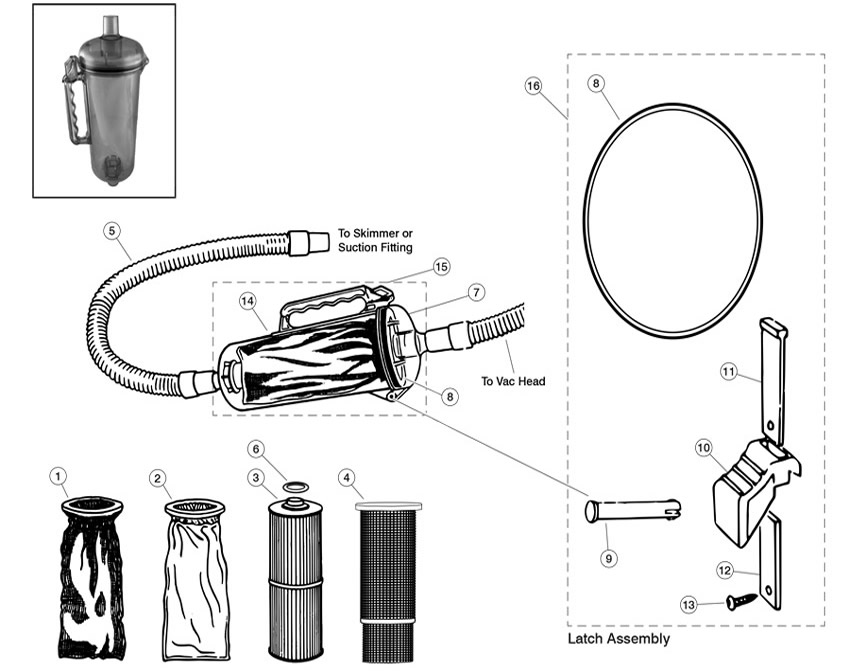

Pentair Leaf Trap, Model 186

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 87-110-1550 Description Leaf Bag, Pentair Leaf Traps, Mesh Price Qty RecItem View recommended items
Key 2 Horizon # 87-110-1551 Description Leaf Bag, Pentair Leaf Traps, Canvas Price Qty RecItem View recommended items
Key 2 Horizon # 87-110-1552 Description Sand/Silt Bag, Pentair Leaf Traps Price Qty RecItem View recommended items
Key 3 Horizon # 87-110-1554 Description Cartridge, Pentair Leaf Trap Model 186, w/Plug, 25 sqft Price Qty RecItem View recommended items
Key 3 Horizon # 87-110-1555 Description Cartridge, 50 sqft, Pentair Leaf Trap Model 186, w/Plug Price Qty RecItem View recommended items
Key 4 Horizon # 87-605-1052 Description Basket, Leaf Trap, Generic Rainbow Model 186, HD Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Basket, Leaf Trap, Rainbow Model 186, Val-Pak, Generic Price Qty RecItem View recommended items
Key 5 Horizon # 87-110-1557 Description Vacuum Hose, Pentair Leaf Traps, 1-1/2" x 3 foot Price Qty RecItem View recommended items
Key 5 Horizon # 87-110-1558 Description Vacuum Hose, Pentair Leaf Traps, 2" x 3 foot Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Cartridge Gasket, Pentair Leaf Traps Price Qty RecItem View recommended items
Key 7 Horizon # 87-110-1559 Description Lid, Pentair Leaf Trap Model 186, 1-1/2" Price Qty RecItem View recommended items
Key 7 Horizon # 87-110-1560 Description Lid, Pentair Leaf Trap Model 186, 2" Price Qty RecItem View recommended items
Key 8 Horizon # 90-423-5360 Description O-Ring, 5-7/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 8 Horizon # 90-423-5360V Description O-Ring, Viton, 5-7/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 9 Horizon # 87-110-1569 Description Hinge Pin, Pentair Leaf Trap Model 186 Price Qty RecItem View recommended items
Key 10 Horizon # 87-110-1562 Description Latch Handle, Pentair Leaf Trap Model 186 Price Qty RecItem View recommended items
Key 11 Horizon # 87-110-1563 Description Latch Spring, Pentair Leaf Trap Model 186 Price Qty RecItem View recommended items
Key 12 Horizon # 87-110-1564 Description Retainer, Pentair Leaf Trap Model 186, Latch Spring Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Screw, Pentair Leaf Trap Model 186, Retainer Latch, 6 x 1/2" Price Qty RecItem View recommended items
Key 14 Horizon # 87-110-1567 Description Cannister Body, Pentair Leaf Trap Model 186, 2" Price Qty RecItem View recommended items
Key 14 Horizon # 87-110-1568 Description Cannister Body, Pentair Leaf Trap Model 186, 1-1/2" Price Qty RecItem View recommended items
Key 15 Horizon # 86-110-1015 Description Leaf Trap, Pentair Model 186B, 2", w/ Bag, No Hose Price Qty RecItem View recommended items
Key 15 Horizon # 86-110-1020 Description Leaf Trap, Pentair Kreepy Kadet/Model 186, with Handle Price Qty RecItem View recommended items
Key 15 Horizon # 86-110-1025 Description Leaf Trap, Pentair Model 186B, 2", with Handle Price Qty RecItem View recommended items
Key 16 Horizon # 87-110-1566 Description Latch Kit, Pentair Leaf Trap Model 186 Price Qty RecItem View recommended items
