Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Pool Cleaners  >  86-102-W019

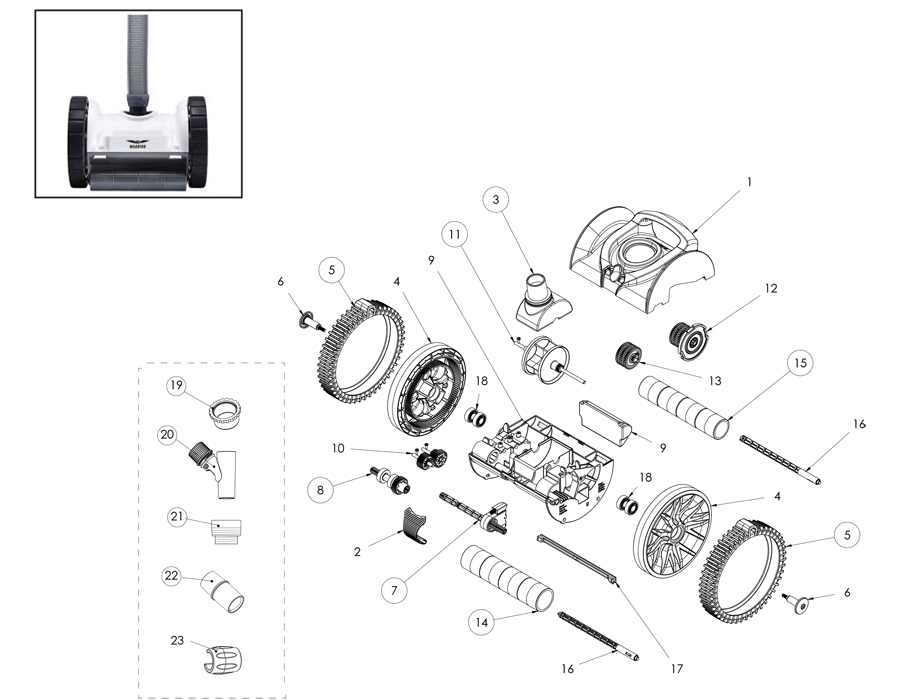

Pentair Kreepy Krauly Warrior

Product Description  ·  Parts  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 3 Horizon # 87-102-1314 Description Swivel Kit, Pentair Lil Rebel Price Qty RecItem
Key 5 Horizon # 87-102-1404 Description Tire Kit, Pentair Rebel/Warrior, After 2018 Price Qty RecItem
Key 7 Horizon # 87-102-1072 Description Left Drive Kit, Pentair Rebel/Kreepy Krauly Warrior Price Qty RecItem View recommended items
Key 8 Horizon # 87-102-1073 Description Right Drive Kit, Pentair Rebel/Kreepy Krauly Warrior Price Qty RecItem View recommended items
Key 11 Horizon # 87-102-1077 Description Turbine Kit, Penair Rebel/Kreepy Krauly Warrior Price Qty RecItem View recommended items
Key 14 Horizon # 87-102-1074 Description Front Roller Kit, Pentair Rebel Price Qty RecItem View recommended items
Key 15 Horizon # 87-102-1076 Description Rear Roller Kit, Pentair Rebel Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Regulator Cap, Pentair Kreepy Krauly Kruiser Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Regulator Valve, Pentair Sta-Rite GW9500/GW7500 Cleaners Price Qty RecItem View recommended items
Key 21 Horizon # 87-110-1043 Description Compression Adapter, Pentair Kreepy Krauly Hose Accessories Price Qty RecItem View recommended items
Key 22 Horizon # 87-102-1115 Description Flow Gauge, Pentair Sta-Rite GW9500/GW7500 Cleaners Price Qty RecItem

Not Pictured

Key Horizon # Description Qty
Key Horizon # 87-102-1101 Description Vacuum Port, Pentair Sta-Rite GW9500/GW7500 Cleaners Price Qty RecItem View recommended items
Key Horizon # 87-110-1710 Description Diverter Eyeball, Pentair Kreepy Kruiser Cleaner Price Qty RecItem View recommended items
Key Horizon # 87-110-1716 Description Hose Protector, Pentair Kreepy Kruiser Cleaner Price Qty RecItem View recommended items
Key Horizon # 87-102-1086 Description Tune-Up Pack, Pentair Warrior Model 360474 Price Qty RecItem
Key Horizon # 87-102-1402 Description Tire, Pentair Rebel/Warrior, Large Hump, After 2018 Price Qty RecItem
