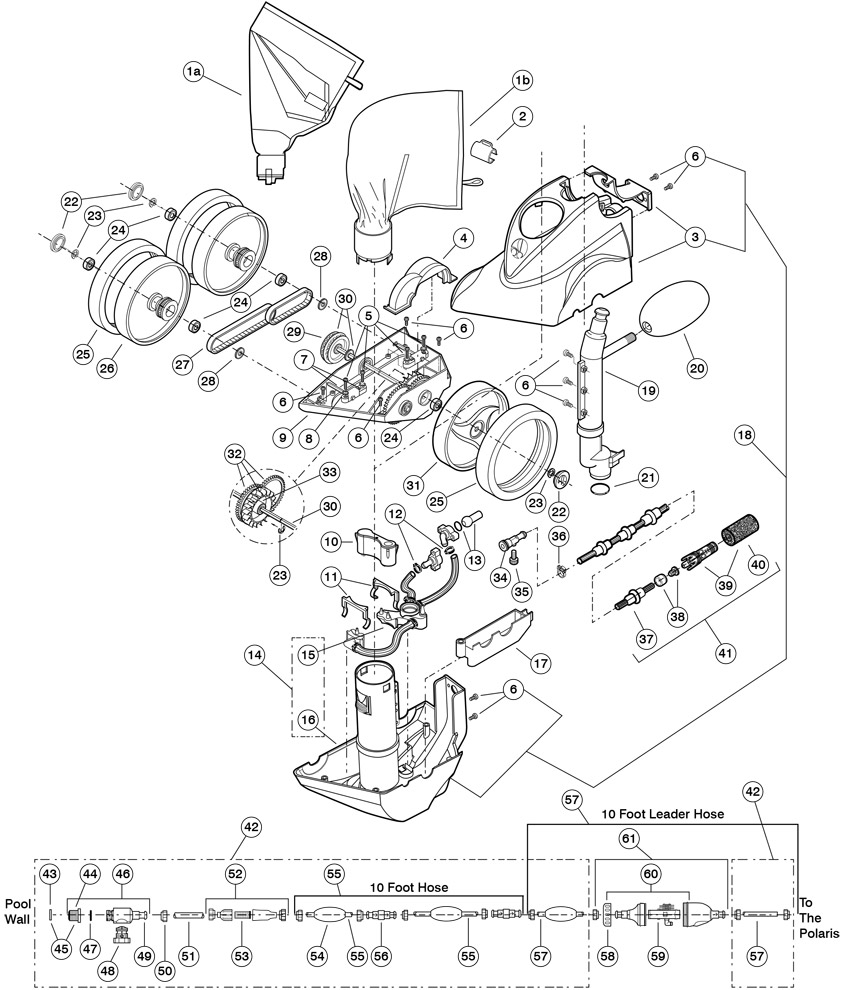

Zodiac Polaris TR35P, Pressure Side Cleaner

Product Description  ·  Bag Parts  ·  Body Parts  ·  Wheel Parts  ·  Hose Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Bag Parts

Key Horizon # Description Qty
Key 1a Horizon # 87-100-1600 Description Leaf Bag, Zodiac Polaris 360/380 Price Qty RecItem View recommended items
Key 1a Horizon # 87-100-1630 Description All Purpose Bag, Zodiac Polaris 360/380 Price Qty RecItem View recommended items
Key 1a Horizon # 87-605-1118 Description All Purpose Bag, 360/380 Generic Price Qty RecItem View recommended items
Key 1b Horizon # 87-100-1460 Description All Purpose Bag, Zodiac Polaris 380/360 Black Max, Zippered Price Qty RecItem View recommended items
Key 2 Horizon # 87-100-1511 Description Bag Collar, Zodiac Polaris 280/380 Black Max, Black Price Qty RecItem View recommended items

Body Parts

Key Horizon # Description Qty
Key 3 Horizon # 87-100-1567 Description Shroud, Zodiac Polaris 360/380/380 Black Max, Blue Price Qty RecItem View recommended items
Key 4 Horizon # 87-100-1614 Description Turbine Housing, Zodiac Polaris 360/380, Upper Price Qty RecItem View recommended items
Key 5 Horizon # 87-100-1618 Description Screw, Zodiac, 340/ATV/360/380, Axle Block, 8-32 x 3/4", 5pk Price Qty RecItem View recommended items
Key 6 Horizon # 87-100-1619 Description Screw, Zodiac Polaris 380, Body, 8-32 x 1/2" Price Qty RecItem View recommended items
Key 6 Horizon # 87-100-1619P Description Screw, Zodiac Polaris, 5 Pack, 360/380, Body, 8-32 x 1/2" Price Qty RecItem View recommended items
Key 7 Horizon # 87-100-1613 Description Axle Block Assembly, Zodiac Polaris 360/380 Price Qty RecItem View recommended items
Key 8 Horizon # 87-100-1620 Description Lock Washer, Zodiac Polaris 340/ATV/360/380, Quantity 4 Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Frame, Zodiac Polaris 380/360, By Warranty Only Price Qty RecItem View recommended items
Key 10 Horizon # 87-100-1640 Description Base Weight, Zodiac Polaris 380 Price Qty RecItem View recommended items
Key 11 Horizon # 87-100-1624 Description Jet Retainer, Zodiac Polaris 360/380 Price Qty RecItem View recommended items
Key 12 Horizon # 87-100-1517 Description Zip Tie, Zodiac Polaris 180/280/360/380, Quantity 6 Price Qty RecItem View recommended items
Key 13 Horizon # 87-100-1538 Description Thrust Jet Assembly, Zodiac Polaris 180/280/360/380 Price Qty RecItem View recommended items
Key 14 Horizon # 87-100-2426 Description Water Management Assy, Zodiac Polaris TR35P, Silver Price Qty RecItem View recommended items
Key 15 Horizon # 87-100-1625 Description Water Management Assembly, Zodiac Polaris 380 Price Qty RecItem View recommended items
Key 16 Horizon # 87-100-2424 Description Base Assy, Zodiac Polaris TR35P, Silver Price Qty RecItem View recommended items
Key 17 Horizon # 87-100-1615 Description Turbine Housing, Zodiac Polaris 360/380, Lower Price Qty RecItem View recommended items
Key 18 Horizon # 87-100-2422 Description Top and Base Assy, Zodiac Polaris TR35P Price Qty RecItem View recommended items
Key 19 Horizon # 87-100-1639 Description Feed Pipe Assembly, Zodiac Polaris 380, Black Price Qty RecItem View recommended items
Key 20 Horizon # 87-100-1522 Description Hose Float, Zodiac Polaris 180/280/360/380, Black Price Qty RecItem View recommended items
Key 21 Horizon # 87-100-1621 Description O-Ring, Zodiac Polaris 360/380,Feed Pipe Price Qty RecItem View recommended items
Key 21 Horizon # 90-423-7023 Description O-Ring, 1-1/16"ID, 1/16"Cross Section, Generic Price Qty RecItem View recommended items

Wheel Parts

Key Horizon # Description Qty
Key 22 Horizon # 87-100-2416 Description Hub Cap, Zodiac Polaris TR35P, Silver Price Qty RecItem View recommended items
Key 23 Horizon # Discontinued Description E-Clip, Zodiac Polaris 340/ATV/360/380 Price Qty RecItem View recommended items
Key 24 Horizon # 87-100-1609 Description Ball Bearing, Zodiac Polaris 340/ATV/360/380,Wheels,8 Reqd Price Qty RecItem View recommended items
Key 24 Horizon # 87-605-1120 Description Ball Bearing, 340/ATV/360/380, Wheels, Generic, 8 Required Price Qty RecItem View recommended items
Key 25 Horizon # 87-100-1534 Description Tire, Zodiac Polaris 180/280/360/380 MaxTrax®, Black Price Qty RecItem View recommended items
Key 26 Horizon # 87-100-2418 Description Wheel, Zodiac Polaris TR35P, Double-Sided, Silver Price Qty RecItem View recommended items
Key 27 Horizon # 87-100-1607 Description Belt Kit, Zodiac Polaris 360/380 Price Qty RecItem View recommended items
Key 28 Horizon # 87-100-1626 Description Bearing Shield, Zodiac Polaris 340/ATV/360/380 Price Qty RecItem View recommended items
Key 29 Horizon # 87-100-1606 Description Belt Divider, Zodiac Polaris 360/380 Price Qty RecItem View recommended items
Key 30 Horizon # 87-100-1604 Description Drive Shaft Assembly, Zodiac Polaris 360/380 Price Qty RecItem View recommended items
Key 31 Horizon # 87-100-2420 Description Wheel, Zodiac Polaris TR35P, Single-Sided, Silver Price Qty RecItem View recommended items
Key 32 Horizon # 87-100-1612 Description Drive Train Gear Assy, Zodiac Polaris 360/380, w/Bearing Price Qty RecItem View recommended items
Key 33 Horizon # 87-100-1608 Description Turbine Wheel, Zodiac Polaris 360/380, with Bearing Price Qty RecItem View recommended items

Hose Parts

Key Horizon # Description Qty
Key 34 Horizon # 87-100-1623 Description Sweep Hose Barb, Zodiac Polaris 360/380 Price Qty RecItem View recommended items
Key 35 Horizon # 87-100-1528 Description Adjustment Screw, Zodiac Polaris 180/280/360/380 Price Qty RecItem View recommended items
Key 36 Horizon # 87-100-1526 Description Tubing Clamp,Zodiac Polaris180/280/360/380,9/16"od,Black, EA Price Qty RecItem View recommended items
Key 37 Horizon # 87-100-1827 Description Wear Ring, Zodiac Polaris 3900, Sweep Hose Price Qty RecItem View recommended items
Key 38 Horizon # 87-100-1529 Description Orifice Tip, Zodiac Polaris 180/280/380/3900, with Guard Price Qty RecItem View recommended items
Key 39 Horizon # 87-100-1001 Description Tailsweep PRO, Zodiac/Polaris, Bulk Pack Price Qty RecItem View recommended items
Key 39 Horizon # 87-100-1003 Description Tailsweep PRO, Zodiac/Polaris, Strip Clip, 12 Pack Price Qty RecItem View recommended items
Key 39 Horizon # 87-100-1005 Description Tailsweep PRO, Zodiac/Polaris, Single Price Qty RecItem View recommended items
Key 40 Horizon # 87-100-1513 Description Sweep Hose Scrubber, Zodiac Polaris 180/280/360/380/3900 Price Qty RecItem View recommended items
Key 40 Horizon # 87-605-1108 Description Sweep Hose Scrubber, 180/280/360/380/3900, Generic Price Qty RecItem View recommended items
Key 41 Horizon # 87-100-1828 Description Sweep Hose, Zodiac Polaris 3900 Price Qty RecItem View recommended items
Key 42 Horizon # 87-100-1656 Description Feed Hose, Zodiac Polaris 180/280/380, with Wall Fitting Price Qty RecItem View recommended items
Key 43 Horizon # 87-100-1502 Description Wall Fitting Restrictor Disks, Zod Polaris Pressure Cleaners Price Qty RecItem View recommended items
Key 44 Horizon # 87-100-1267 Description Universal Wall Fitting, Zodiac Polaris 280/360/380, Black Price Qty RecItem View recommended items
Key 45 Horizon # 87-100-1501 Description Wall Fitting Restrictor Kit,Zodiac Polaris Pressure Cleaners Price Qty RecItem View recommended items
Key 46 Horizon # 87-100-1660 Description Connecter Assembly, Polaris/Zodiac 280/380, Black Price Qty RecItem View recommended items
Key 47 Horizon # 90-423-5320 Description O-Ring, 1-1/8" ID, 3/16" Cross Section,Generic,O-114 Price Qty RecItem View recommended items
Key 48 Horizon # 87-100-1476 Description Pressure Relief Assy, Zodiac Polaris 380/280 Black Max, Blk Price Qty RecItem View recommended items
Key 49 Horizon # 87-100-1646 Description Quick Disconnect, Zodiac Polaris 180/280/380/3900, Black Price Qty RecItem View recommended items
Key 50 Horizon # 87-100-1642 Description Feed Hose Nut, Zodiac Polaris 180/280/360/380/3900, Black Price Qty RecItem View recommended items
Key 51 Horizon # 87-100-1758 Description Adapter Hose, Zodiac Polaris 380/Quattro P40, 8-1/2" Price Qty RecItem View recommended items
Key 52 Horizon # 87-100-1474 Description Filter Assy, Zod Polrs 480/380/280 Black Max, In-Line, Black Price Qty RecItem View recommended items
Key 53 Horizon # 87-100-1831 Description Screen, Zodiac Polaris 380/3900/Quattro P40, In-Line Filter Price Qty RecItem View recommended items
Key 54 Horizon # 87-100-1564 Description Feed Hose Float, Zodiac Polaris 180/280/360/380/3900, Black Price Qty RecItem View recommended items
Key 55 Horizon # 87-100-1648 Description Feed Hose, Zodiac Polaris 180/280/360/380/3900, 10ft, Black Price Qty RecItem View recommended items
Key 56 Horizon # 87-100-1644 Description Swivel, Zodiac Polaris 180/280/380/3900, Black Price Qty RecItem View recommended items
Key 57 Horizon # 87-100-1650 Description Leader Hose, Zodiac Polaris 180/280/360/380/3900, Black Price Qty RecItem View recommended items
Key 58 Horizon # 87-100-1662 Description Backup Valve Collar, Polaris/Zodiac 180/280/360/380, Black Price Qty RecItem View recommended items
Key 59 Horizon # 87-100-1576 Description Backup Valve Mechanism, Zodiac Polaris 180/280/380/3900 Price Qty RecItem View recommended items
Key 60 Horizon # 87-100-1655 Description Backup Valve Case, Zodiac Polaris 180/280/380, Black Price Qty RecItem View recommended items
Key 61 Horizon # 87-100-1654 Description Backup Valve, Zodiac Polaris 180/280/380, Black Price Qty RecItem View recommended items
