Polaris 480 PRO Cleaner

Product Description  ·  480 PRO Bag Parts  ·  480 PRO Black Max Bag Parts  ·  480 PRO Body Parts  ·  480 PRO Black Max Body Parts  ·  480 PRO Wheel Parts  ·  480 PRO Black Max Wheel Parts  ·  480 PRO Hose Parts  ·  480 PRO Black Max Hose Parts  ·  Factory Kits  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

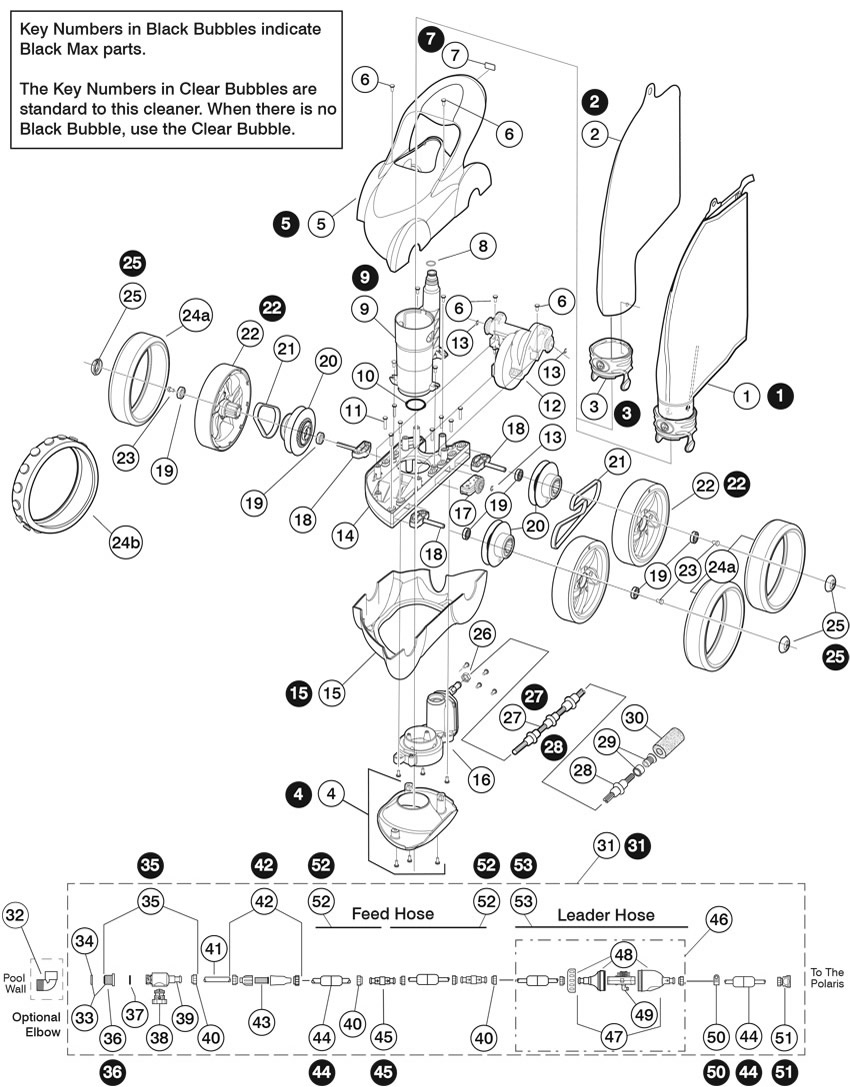

Key Numbers in Black Bubbles indicate Black Max parts. The Key Numbers in Clear Bubbles are standard to this cleaner. When there is no Black Bubble, use the Clear Bubble.

For hose connectors and fittings, see exploded diagram 86-100-W012 - Polaris Connectors and Fittings.

For miscellaneous cleaner parts, see exploded diagram 86-100-W003 - Polaris Miscellaneous Cleaner Parts.

480 PRO Bag Parts

Key Horizon # Description Qty
Key 1 Horizon # 87-100-1777 Description Superbag, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Disposable Bag, Polaris/Zodiac 480 PRO, Quantity 3 Price Qty RecItem View recommended items
Key 3 Horizon # 87-100-1757 Description Bag Clip Assembly, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items

480 PRO Black Max Bag Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Superbag, Polaris/Zodiac 480 PRO Black Max Price Qty RecItem View recommended items
Key 1 Horizon # Discontinued Description Zippered Bag, Polaris/Zodiac 480 PRO Black Max, Quantity 4 Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Disposable Bag, Polaris/Zodiac 480 PRO Black Max, Quantity 3 Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Disposable Bag, Polaris/Zodiac 480 PRO Black Max, w/Collar Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Disposable Bag, Polaris/Zodiac 480 PRO Black Max, Quantity 3 Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Disposable Bag, Polaris/Zodiac 480 PRO Black Max, w/Collar Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Bag Clip Assembly, Polaris/Zodiac 480 PRO Black Max Price Qty RecItem

480 PRO Body Parts

Key Horizon # Description Qty
Key 4 Horizon # Discontinued Description Vacuum Plate Assembly, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Shroud and Handle Assembly, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 6 Horizon # 87-100-1547 Description Screw,Gearbox,Zodiac Polaris 180/280/3900, 10-32 x 3/8",10PK Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description License Plate with Logo, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 8 Horizon # 87-100-1745 Description O-Ring, Polaris/Zodiac 480 PRO/3900, Feed Hose Connecter Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Vacuum Tube/Feed Pipe, Zodiac Polaris 480 PRO, w/O-rings Price Qty RecItem View recommended items
Key 10 Horizon # 87-100-1749 Description Upper WMS to Feedpipe O-Ring, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 11 Horizon # 87-100-1820 Description Screw, Zodiac Polaris 3900, Front Axle,w/Washer,10-32 x 7/8" Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Gearbox Assembly, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description E-Clip, Zodiac Polaris 340/ATV/360/380 Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Frame, Zodiac Polaris 480 PRO, By Exchange Only Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Body, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description WMS Assembly, Polaris/Zodiac 480 PRO, with O-ring Price Qty RecItem View recommended items

480 PRO Black Max Body Parts

Key Horizon # Description Qty
Key 4 Horizon # Discontinued Description Vacuum Plate Assembly, Polaris/Zodiac 480 PRO Black Max Price Qty RecItem
Key 5 Horizon # Discontinued Description Upper Housing and Handle Assembly, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description License Plate with Logo, Polaris/Zodiac 480 PRO Black Max Price Qty RecItem
Key 9 Horizon # Discontinued Description Vacuum Tube & Feed Pipe,Polaris/Zod 480 PRO,w/O-ring,black Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Body, Polaris/Zodiac 480 PRO Black Max Price Qty RecItem

480 PRO Wheel Parts

Key Horizon # Description Qty
Key 17 Horizon # Discontinued Description Idler Tensioner Assembly, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Axle Block, Polaris/Zodiac 480 PRO, Wheel Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Wheel Bushing, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Wheel Sprocket Kit, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 21 Horizon # 87-100-1780 Description Chain Kit, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 22 Horizon # 87-100-1771 Description Wide Wheel, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 23 Horizon # 87-100-1810 Description Screw, Zodiac Polaris 3900/480, Wheel, Quantity 3 Price Qty RecItem View recommended items
Key 24a Horizon # 87-100-1809 Description Tire, Zodiac Polaris Wide Trax®, Black Price Qty RecItem View recommended items
Key 24b Horizon # 87-100-1772 Description Tire, Polaris/Zodiac 480 PRO PosiTrax®, Fiberglass/Tile Price Qty RecItem View recommended items
Key 25 Horizon # Discontinued Description Hub Cap, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 26 Horizon # Discontinued Description Nut, Zodiac Polaris 3900, Sweep Hose Price Qty RecItem View recommended items

480 PRO Black Max Wheel Parts

Key Horizon # Description Qty
Key 22 Horizon # Discontinued Description Wide Wheel, Polaris/Zodiac 480 PRO Black Max Price Qty RecItem View recommended items
Key 25 Horizon # Discontinued Description Hub Cap, Polaris/Zodiac 480 PRO Black Max Price Qty RecItem View recommended items

480 PRO Hose Parts

Key Horizon # Description Qty
Key 27 Horizon # 87-100-1531 Description Sweep Hose, Zodiac Polaris 180/280/380 Price Qty RecItem View recommended items
Key 28 Horizon # 87-100-1524 Description Wear Ring, Zodiac Polaris 180/280/360/380 Price Qty RecItem View recommended items
Key 28 Horizon # 87-605-1524 Description Sweep Hose Wear Ring, 180/280/360/380, White, Generic B10 Price Qty RecItem View recommended items
Key 29 Horizon # 87-100-1529 Description Orifice Tip, Zodiac Polaris 180/280/380/3900, with Guard Price Qty RecItem View recommended items
Key 30 Horizon # 87-100-1513 Description Sweep Hose Scrubber, Zodiac Polaris 180/280/360/380/3900 Price Qty RecItem View recommended items
Key 30 Horizon # 87-605-1108 Description Sweep Hose Scrubber, 180/280/360/380/3900, Generic Price Qty RecItem View recommended items
Key 31 Horizon # 87-100-1783 Description Feed Hose Assembly, Polaris/Zodiac 480 PRO, 32 foot Price Qty RecItem View recommended items
Key 32 Horizon # 87-100-1520 Description Elbow, Zodiac Polaris 180/280/360/380, 1-1/2"mpt x 1-1/2"fpt Price Qty RecItem View recommended items
Key 33 Horizon # 87-100-1501 Description Wall Fitting Restrictor Kit,Zodiac Polaris Pressure Cleaners Price Qty RecItem View recommended items
Key 34 Horizon # 87-100-1502 Description Wall Fitting Restrictor Disks, Zod Polaris Pressure Cleaners Price Qty RecItem View recommended items
Key 35 Horizon # 87-100-1518 Description Connecter Assy, Zodiac Polaris 65/165/180/280/380/3900 Price Qty RecItem View recommended items
Key 36 Horizon # 87-100-1506 Description Univ Wall Fitting,Zodiac Polaris 65/165/180/280/360/380/3900 Price Qty RecItem View recommended items
Key 36 Horizon # 87-605-1114 Description Univ Wall Fitting, 65/165/180/280/360/380, Generic Price Qty RecItem View recommended items
Key 37 Horizon # 90-423-5322 Description O-Ring, 1-1/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 38 Horizon # 87-100-1519 Description Pressure Relief Valve, Zod Polrs 65/165/180/280/380/3900 Price Qty RecItem View recommended items
Key 39 Horizon # 87-100-1645 Description Quick Disconnect UWF, Zodiac Polaris 180/280/380/3900 Price Qty RecItem View recommended items
Key 40 Horizon # 87-100-1641 Description Feed Hose Nut, Zodiac Polaris 180/280/380/3900, Gray Price Qty RecItem View recommended items
Key 41 Horizon # 87-100-1758 Description Adapter Hose, Zodiac Polaris 380/Quattro P40, 8-1/2" Price Qty RecItem View recommended items
Key 42 Horizon # 87-100-1504 Description Filter Assy, Zod Polrs 380/280/3900/Quattro P40,In-Line,Wht Price Qty RecItem View recommended items
Key 43 Horizon # 87-100-1831 Description Screen, Zodiac Polaris 380/3900/Quattro P40, In-Line Filter Price Qty RecItem View recommended items
Key 44 Horizon # 87-100-1563 Description Feed Hose Float, Zodiac Polaris 180/280/380/3900, White Price Qty RecItem View recommended items
Key 45 Horizon # 87-100-1643 Description Swivel, Zodiac Polaris 180/280/380/3900/Quattro P40 Price Qty RecItem View recommended items
Key 45 Horizon # 87-605-1112 Description Swivel, 180/280/380/3900, Generic Price Qty RecItem View recommended items
Key 46 Horizon # 87-100-1654 Description Backup Valve, Zodiac Polaris 180/280/380, Black Price Qty RecItem View recommended items
Key 47 Horizon # 87-100-1575 Description Backup Valve Kit, Zodiac Polaris 180/280/380/3900 Price Qty RecItem View recommended items
Key 48 Horizon # 87-100-1655 Description Backup Valve Case, Zodiac Polaris 180/280/380, Black Price Qty RecItem View recommended items
Key 49 Horizon # 87-100-1576 Description Backup Valve Mechanism, Zodiac Polaris 180/280/380/3900 Price Qty RecItem View recommended items
Key 50 Horizon # Discontinued Description Bag Clasp, Polaris/Zodiac 480 PRO Gray Max Price Qty RecItem View recommended items
Key 51 Horizon # 87-100-1832 Description Connecter Assembly, Zodiac Polaris 3900, Feed Hose Price Qty RecItem View recommended items
Key 52 Horizon # 87-100-1647 Description Feed Hose, Zodiac Polaris 180/280/380/3900, 10ft, White Price Qty RecItem View recommended items
Key 52 Horizon # 87-605-1647 Description Leader Hose, 180/280/380/3900, 10ft, White, Generic D50 Price Qty RecItem View recommended items
Key 53 Horizon # 87-100-1649 Description Leader Hose, Zodiac Polaris 180/280/360/380/3900 Price Qty RecItem View recommended items
Key 53 Horizon # 87-605-1649 Description Feed Hose, 180/280/360/380/3900, 10ft, Generic D45 Price Qty RecItem View recommended items

480 PRO Black Max Hose Parts

Key Horizon # Description Qty
Key 27 Horizon # Discontinued Description Sweep Hose, Zodiac Polaris 180/280/360/380, Black Price Qty RecItem View recommended items
Key 28 Horizon # 87-100-1472 Description Wear Ring, Zodiac Polaris 380/360 Black Max, Black Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description Feed Hose Assembly, Polaris/Zodiac 480 PRO Black Max, 10ft Price Qty RecItem View recommended items
Key 35 Horizon # 87-100-1660 Description Connecter Assembly, Polaris/Zodiac 280/380, Black Price Qty RecItem View recommended items
Key 36 Horizon # 87-100-1267 Description Universal Wall Fitting, Zodiac Polaris 280/360/380, Black Price Qty RecItem View recommended items
Key 42 Horizon # 87-100-1474 Description Filter Assy, Zod Polrs 480/380/280 Black Max, In-Line, Black Price Qty RecItem View recommended items
Key 44 Horizon # 87-100-1564 Description Feed Hose Float, Zodiac Polaris 180/280/360/380/3900, Black Price Qty RecItem View recommended items
Key 45 Horizon # 87-100-1644 Description Swivel, Zodiac Polaris 180/280/380/3900, Black Price Qty RecItem View recommended items
Key 50 Horizon # Discontinued Description Bag Clasp, Polaris/Zodiac 480 PRO Black Max Price Qty RecItem View recommended items
Key 51 Horizon # 87-100-1759 Description Feed Hose Connecter Assembly, Polaris/Zodiac 480 PRO Price Qty RecItem View recommended items
Key 52 Horizon # 87-100-1648 Description Feed Hose, Zodiac Polaris 180/280/360/380/3900, 10ft, Black Price Qty RecItem View recommended items
Key 53 Horizon # 87-100-1650 Description Leader Hose, Zodiac Polaris 180/280/360/380/3900, Black Price Qty RecItem View recommended items

Factory Kits

Key Horizon # Description Qty
Key Horizon # Discontinued Description TankTrax Conversion Kit, Polaris/Zodiac 480 PRO Price Qty RecItem
Key Horizon # Discontinued Description Trax Tune-Up Kit, Polaris/Zodiac 480 PRO Price Qty RecItem
Key Horizon # Discontinued Description Tune-Up Kit, Polaris/Zodiac 480 PRO Price Qty RecItem
Key Horizon # Discontinued Description Tune-Up Kit, Polaris/Zodiac 480 PRO Black Max Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # Discontinued Description Hose Weight, Zodiac Polaris 180/280/360/380, Black Price Qty RecItem View recommended items
