Polaris 340/ATV Cleaner Black Max Pressure-side Cleaners

Product Description  ·  340/ATV Body Parts  ·  340/ATV Body Black Max Parts  ·  340/ATV Wheel Parts  ·  340/ATV Wheel Black Max Parts  ·  340/ATV Hose Parts  ·  340/ATV Hose Black Max Parts  ·  Factory Kits  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

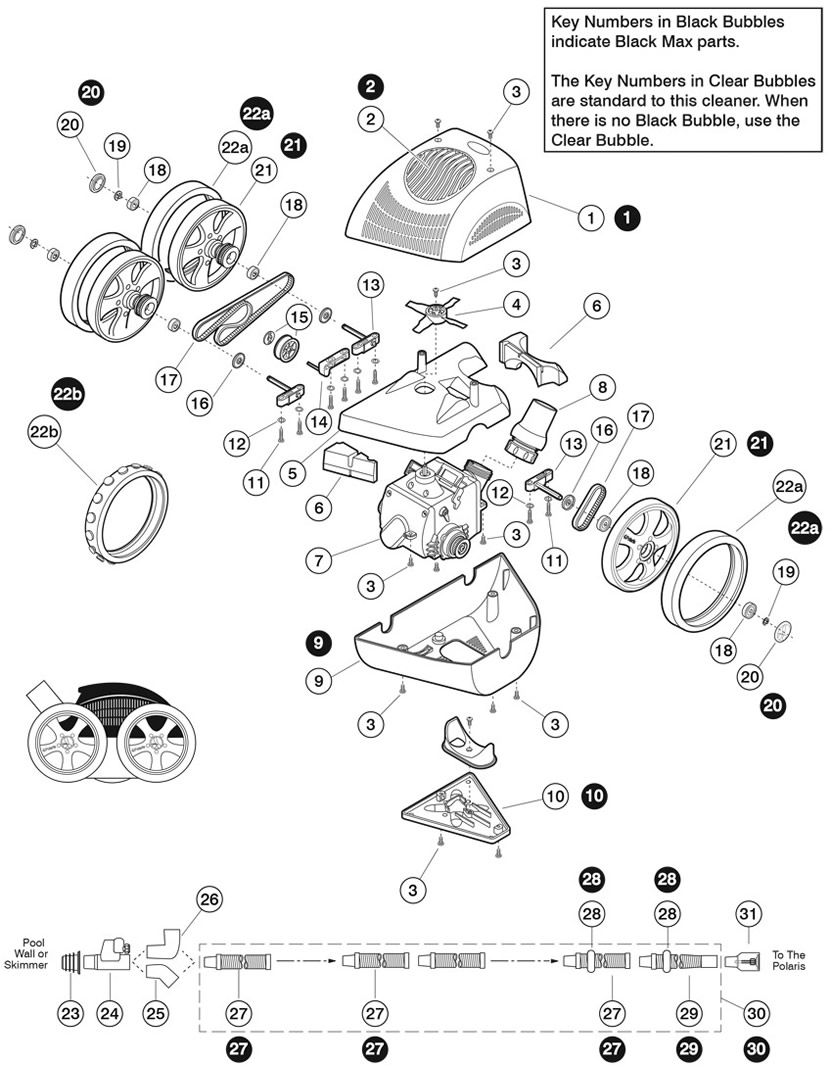

Key Numbers in Black Bubbles indicate Black Max parts. The Key Numbers in Clear Bubbles are standard to this cleaner. When there is no Black Bubble, use the Clear Bubble.

For hose connectors and fittings, see exploded diagram 86-100-W012 - Polaris Connectors and Fittings.

For miscellaneous cleaner parts, see exploded diagram 86-100-W003 - Polaris Miscellaneous Cleaner Parts.

340/ATV Body Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Top Housing Assembly, Zodiac/Polaris 340/ATV Price Qty RecItem View recommended items
Key 1 Horizon # Discontinued Description Shroud, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Propeller Grid, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key 2 Horizon # 87-100-1409 Description Propeller Grid, Zodiac/Polaris 340/ATV Price Qty RecItem
Key 3 Horizon # Discontinued Description Screw, Zodiac Polaris 140/180/340/ATV,Body,8-32 x 3/8", 5 pk Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Propeller, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Frame, Zodiac/Polaris 340/ATV Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Float Assembly, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Power Module Assembly, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Swivel Assembly, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key 9 Horizon # 87-100-1410 Description Body, Zodiac Polaris 340/ATV, White Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Bottom Plate, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key 11 Horizon # 87-100-1618 Description Screw, Zodiac, 340/ATV/360/380, Axle Block, 8-32 x 3/4", 5pk Price Qty RecItem View recommended items
Key 12 Horizon # 87-100-1620 Description Lock Washer, Zodiac Polaris 340/ATV/360/380, Quantity 4 Price Qty RecItem View recommended items

340/ATV Body Black Max Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Shroud, Zodiac Polaris 340/ATV, Black Price Qty RecItem View recommended items
Key 2 Horizon # 87-100-1407 Description Propeller Grid, Zodiac Polaris 340/ATV, Black Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Body, Zodiac Polaris 340/ATV, Black Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Bottom Plate, Zodiac Polaris 340/ATV, Black Price Qty RecItem View recommended items

340/ATV Wheel Parts

Key Horizon # Description Qty
Key 13 Horizon # Discontinued Description Axle Block Assembly, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Belt Tensioner, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Pulley, Zodiac Polaris 340/ATV, with Retainer Clip Price Qty RecItem View recommended items
Key 16 Horizon # 87-100-1626 Description Bearing Shield, Zodiac Polaris 340/ATV/360/380 Price Qty RecItem View recommended items
Key 17 Horizon # 87-100-1428 Description Belt Kit, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key 18 Horizon # 87-100-1609 Description Ball Bearing, Zodiac Polaris 340/ATV/360/380,Wheels,8 Reqd Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description E-Clip, Zodiac Polaris 340/ATV/360/380 Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description E-Clip, Zodiac Polaris 340/ATV/360/380, Quantity 25 Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Hub Cap, Zodiac/Polaris 340/ATV, Quantity 3 Price Qty RecItem View recommended items
Key 20 Horizon # 87-100-1634 Description Hub Cap, Zodiac Polaris 340/ATV/360/380, 3 req Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Wheel Assembly, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Wheel Assembly, Zodiac/Polaris 340/ATV Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Tire, Zodiac Polaris 340/ATV, MaxTrax® Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Tire, Zodiac Polaris 340/ATV, MaxTrax® Price Qty RecItem View recommended items
Key 22a Horizon # Discontinued Description Tire, Zodiac Polaris 340/ATV, MaxTrax® Price Qty RecItem View recommended items
Key 22a Horizon # Discontinued Description Tire, Zodiac Polaris 340/ATV, MaxTrax® Price Qty RecItem View recommended items
Key 22b Horizon # Discontinued Description Tire, Zodiac Polaris 340/ATV, PosiTrax®,Fiberglass/Tile Only Price Qty RecItem View recommended items
Key 22b Horizon # Discontinued Description Tire,Zodiac/Polaris 340/ATV,PosiTrax®,Fiberglass/Tile Only Price Qty RecItem View recommended items

340/ATV Wheel Black Max Parts

Key Horizon # Description Qty
Key 20 Horizon # Discontinued Description Hub Cap, Zodiac/Polaris 340/ATV Black Max, Quantity 3 Price Qty RecItem View recommended items
Key 20 Horizon # 87-100-1635 Description Hub Cap, Zodiac Polaris 340/ATV/360/380, Quantity 3, Black Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Wheel Assembly, Zodiac Polaris 340/ATV, Black Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Wheel Assembly, Zodiac/Polaris 340/ATV Black Max Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Tire, Zodiac Polaris 340/ATV, MaxTrax®, Black Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Tire, Zodiac/Polaris 340/ATV MaxTrax®, Black Price Qty RecItem View recommended items
Key 22a Horizon # Discontinued Description Tire, Zodiac Polaris 340/ATV, MaxTrax®, Black Price Qty RecItem View recommended items
Key 22a Horizon # Discontinued Description Tire, Zodiac/Polaris 340/ATV MaxTrax®, Black Price Qty RecItem View recommended items
Key 22b Horizon # Discontinued Description Tire, Zodiac/Polaris 340/ATV PosiTrax®, Black Price Qty RecItem View recommended items
Key 22b Horizon # Discontinued Description Tire, Zodiac/Polaris 340/ATV PosiTrax®, Black Price Qty RecItem View recommended items

340/ATV Hose Parts

Key Horizon # Description Qty
Key 23 Horizon # Discontinued Description Universal Adapter, Zodiac Polaris 140/340/ATV Price Qty RecItem
Key 24 Horizon # Discontinued Description Flow Regulator, Zodiac Polaris 140/340/ATV Price Qty RecItem
Key 25 Horizon # 87-100-1452 Description 45 Elbow, Zodiac Polaris 140/340/ATV Cleaner Hose Price Qty RecItem
Key 26 Horizon # Discontinued Description 90 Elbow, Zodiac Polaris 140/340/ATV Price Qty RecItem
Key 27 Horizon # 87-100-1438 Description Suction Hose, Zodiac Polaris 140/340/ATV, Gray Price Qty RecItem
Key 27 Horizon # Discontinued Description Suction Hose, Zodiac Polaris 140/340/ATV, Bulk, qty 28, Gray Price Qty RecItem
Key 28 Horizon # Discontinued Description Hose Weight, Zodiac Polaris 140/340/ATV Price Qty RecItem
Key 29 Horizon # Discontinued Description Leader Hose, Zodiac Polaris 340/ATV, Bulk, Quantity 14, Gray Price Qty RecItem
Key 29 Horizon # Discontinued Description Leader Hose, Zodiac Polaris 340/ATV, Gray Price Qty RecItem
Key 30 Horizon # Discontinued Description Hose Kit, Zodiac Polaris 340/ATV, 1 Leader, 12 Suction, Gray Price Qty RecItem
Key 31 Horizon # Discontinued Description Flow Indicator, Zodiac Polaris 340/ATV Price Qty RecItem

340/ATV Hose Black Max Parts

Key Horizon # Description Qty
Key 27 Horizon # Discontinued Description Suction Hose, Zodiac Polaris 340/ATV, Black Price Qty RecItem
Key 28 Horizon # Discontinued Description Hose Weight, Zodiac/Polaris 340/ATV Black Max Price Qty RecItem View recommended items
Key 29 Horizon # Discontinued Description Leader Hose, Zodiac Polaris 340/ATV, Black Price Qty RecItem
Key 30 Horizon # Discontinued Description Hose Kit, Zodiac Polaris 340/ATV, 1 Leader, 12 Suction, Blk Price Qty RecItem

Factory Kits

Key Horizon # Description Qty
Key Horizon # Discontinued Description Timer Cross Shaft Replacement Kit, Zodiac/Polaris 340/ATV Price Qty RecItem
Key Horizon # Discontinued Description Tune-Up Kit, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Rebuild Kit, Zodiac Polaris 340/ATV Price Qty RecItem View recommended items
Key Horizon # Discontinued Description ATV Rebuild Kit, Zodiac/Polaris 340/ATV Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Power Module Gear Set, Zodiac/Polaris 340/ATV Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # Discontinued Description Reverse Drive Mechanism, Zodiac Polaris 340/ATV, 2 required Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Timer Gear, Zodiac/Polaris 340/ATV, Power Module Price Qty RecItem View recommended items
