Polaris 165 & Super Turtle Pressure-side Cleaners

Product Description  ·  Body Parts  ·  Hose and Bag Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

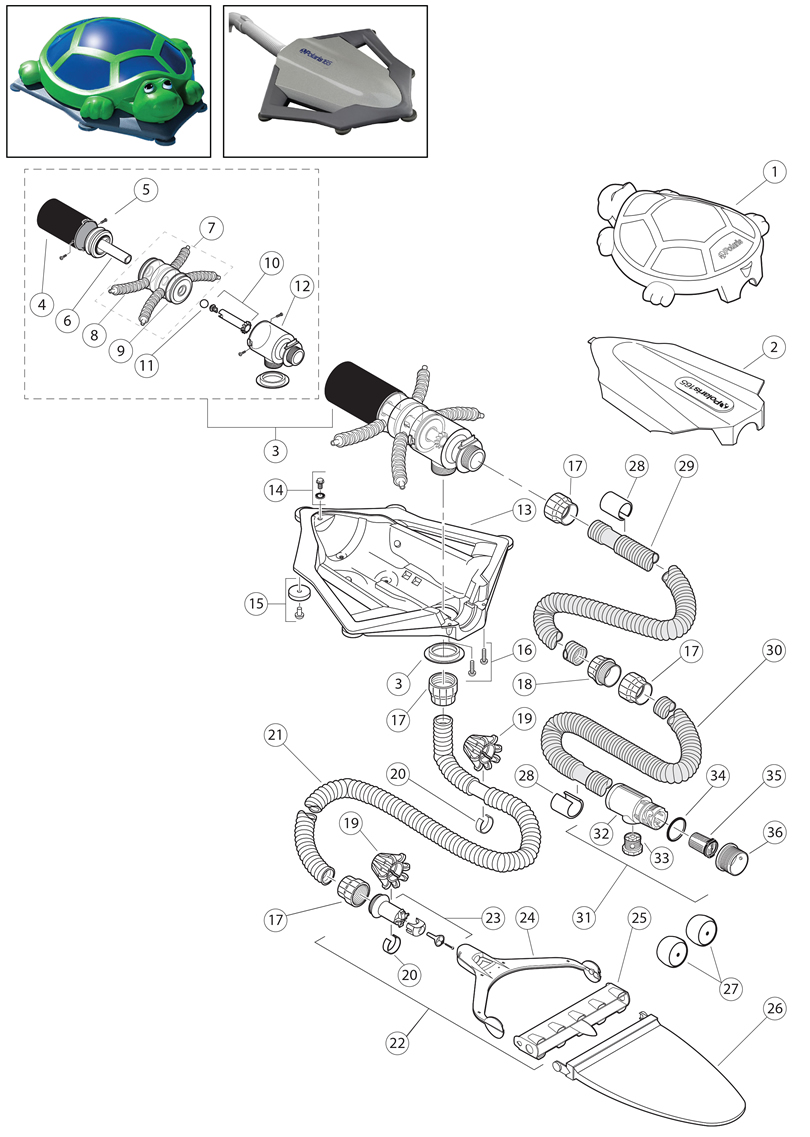

Body Parts

Key Horizon # Description Qty
Key 1 Horizon # 87-100-1010 Description Shroud, Zodiac Polaris Turbo/Super Turtle, Turtle Top Price Qty RecItem View recommended items
Key 2 Horizon # 87-100-1210 Description Shroud, Zodiac Polaris 165, Granite Price Qty RecItem View recommended items
Key 3 Horizon # 87-100-1212 Description Mechanism, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 4 Horizon # 87-100-1218 Description Cylinder, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 5 Horizon # 87-100-1230 Description Screw,Zod Polrs 65/165/Turbo/Super Turtle,Mechanism,6 x 5/16 Price Qty RecItem View recommended items
Key 6 Horizon # 87-100-1226 Description Piston Assembly, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 7 Horizon # 87-100-1222 Description Center Chamber Assy,Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 8 Horizon # 87-100-1224 Description Nozzle Hose Assy, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 9 Horizon # 87-100-1228 Description O-Ring, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 9 Horizon # 90-423-5150 Description O-Ring, Buna-N, 2-7/8" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 10 Horizon # 87-100-1216 Description Randomizer Tube Kit,Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 11 Horizon # 87-100-1214 Description Randomizer Ball, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 12 Horizon # 87-100-1220 Description Connecter Chamber, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 13 Horizon # 87-100-1208 Description Body Assembly, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 14 Horizon # 87-100-1232 Description Drain Plug, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 15 Horizon # 87-100-1204 Description Wheel Kit, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 16 Horizon # 87-100-1206 Description Screw,Zod Polrs 65/165/Turbo/Super Turtle,Shroud,10 x 3/4" Price Qty RecItem View recommended items

Hose and Bag Parts

Key Horizon # Description Qty
Key 17 Horizon # 87-100-1236 Description Hose Connecter, Zod Polaris 65/165/Turbo/Super Turtle,Female Price Qty RecItem View recommended items
Key 18 Horizon # 87-100-1234 Description Hose Connecter,Zodiac Polaris 65/165/Turbo/Super Turtle,Male Price Qty RecItem View recommended items
Key 19 Horizon # 87-100-1238 Description Wheel Cage Assy, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 20 Horizon # 87-100-1240 Description Hose Weight, Zodiac Polaris 65/165/Turbo/Super Turtle, Qty 2 Price Qty RecItem View recommended items
Key 21 Horizon # 87-100-1242 Description Sweep Hose, Zodiac Polrs 65/165/Turbo/Super Turtle, w/o Cage Price Qty RecItem View recommended items
Key 21 Horizon # 87-100-1244 Description Sweep Hose, Zodiac Polaris 65/165/Turbo/Super Turtle, 10ft Price Qty RecItem View recommended items
Key 22 Horizon # 87-100-1254 Description Jet Sweep Assembly, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 23 Horizon # 87-100-1246 Description Jet Body Assembly, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 23 Horizon # 87-100-1248 Description Jet Body Ball Kit, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 24 Horizon # 87-100-1252 Description Jet Sweep Harness, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 25 Horizon # 87-100-1250 Description Jet Sweep Head, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 26 Horizon # 87-100-1200 Description All Purpose Bag, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 26 Horizon # 87-100-1202 Description Leaf Bag, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 27 Horizon # 87-100-1276 Description Eyeball Regulator, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 28 Horizon # 87-100-1258 Description Float, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 29 Horizon # 87-100-1256 Description Float Hose Extension,Zod Polrs 65/165/Turbo/Super Turtle,8ft Price Qty RecItem View recommended items
Key 30 Horizon # 87-100-1260 Description Float Hose, Zodiac Polaris 65/165/Turbo/Super Turtle, 24ft Price Qty RecItem View recommended items
Key 31 Horizon # 87-100-1262 Description Quick Disconnect, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 32 Horizon # 87-100-1266 Description Connecter Assembly, Zodiac Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 33 Horizon # 87-100-1264 Description Pressure Relief Valve, Zod Polaris 65/165/Turbo/Super Turtle Price Qty RecItem View recommended items
Key 34 Horizon # 90-423-5320 Description O-Ring, 1-1/8" ID, 3/16" Cross Section,Generic,O-114 Price Qty RecItem View recommended items
Key 35 Horizon # 87-100-1507 Description Filter Screen, Zodiac Polaris 65/165/180/280/360 Price Qty RecItem View recommended items
Key 36 Horizon # 87-100-1506 Description Univ Wall Fitting,Zodiac Polaris 65/165/180/280/360/380/3900 Price Qty RecItem View recommended items
Key 36 Horizon # 87-605-1114 Description Univ Wall Fitting, 65/165/180/280/360/380, Generic Price Qty RecItem View recommended items
Back to Top  ·  Product Description  ·  Body Parts  ·  Hose and Bag Parts
