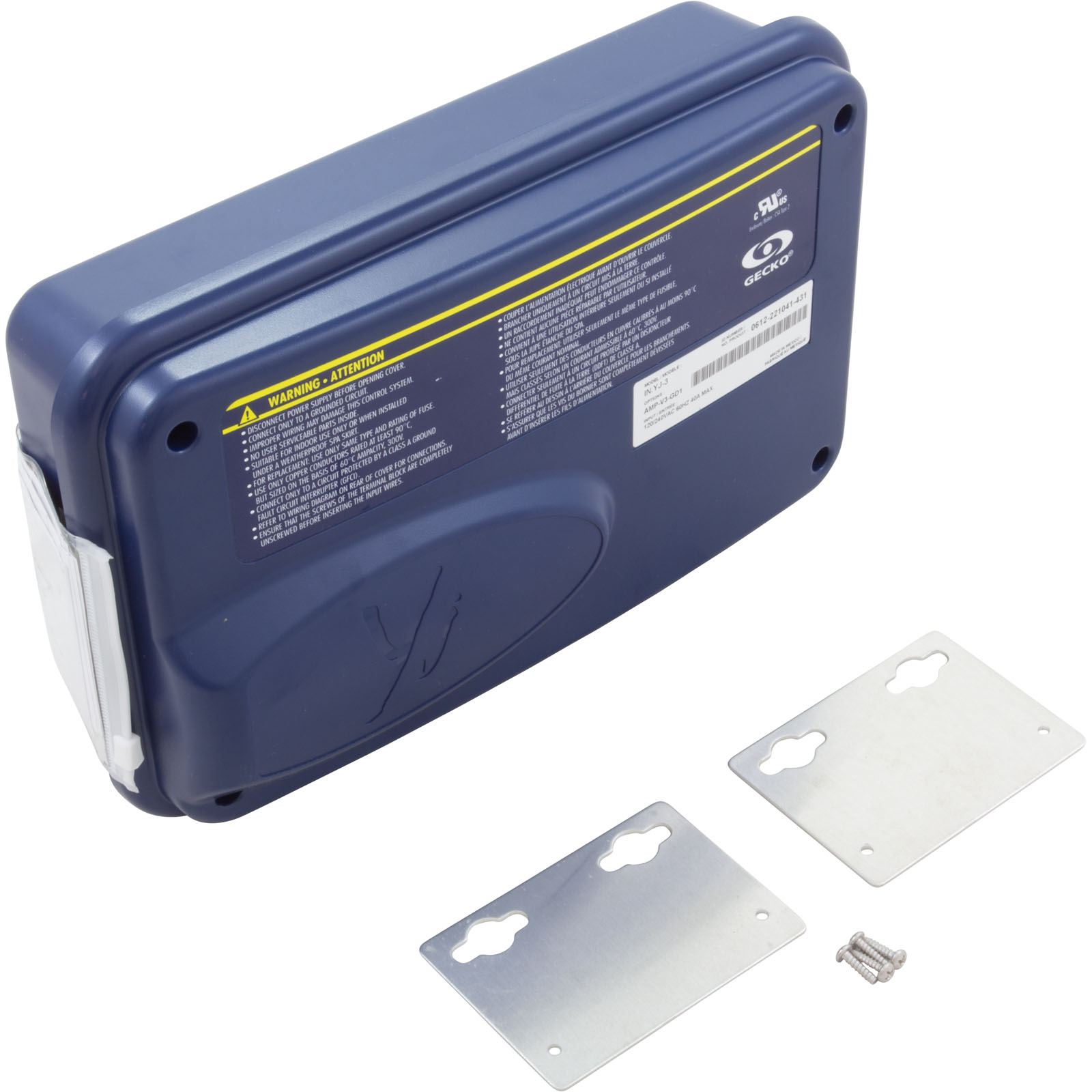

Control Box Only, Gecko in.yj-3, P1 (2) , P2, Oz, Lt, V3

Control Box Only, Gecko in.yj-3,P1(2),P2,Oz,Lt, V3 59-402-1005

Multiple Views:

main 1-reverse 2-front 3-open 4-back 5-top

Horizon # 59-402-1005

Looking for alternate/substitute items, identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Add To Cart
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add


Detailed Product Info

Back To Top ^

The in.yj's size makes it easy to install in your small footprint spa, without losing out on functionality and options. Like all Y Series packs, the in.yj is compatible with in.k series keypads, in.touch 2 and in.touch 3. Please refer to the Tech Book or Flyer in the documentation tab for more detailed information.


    Features:
  • Operates one 2-speed pump, or two 1-speed pumps (alternate topside needed to operate 2 pumps NOT INCLUDED)
  • Solid-state water flow detection: No pressure switch to adjust
  • IPX5 rated waterproof design
  • Preloaded configuration allows fast and easy installation
  • Each output voltage can be configured to 115v or 230v
  • Can control a circulation pump (optional)
Box Dimensions
Length Depth Height
12" 3-3/4" 7-3/8"

This Control System is WiFi Compatible, please see Tech Tips for information.
Document TypeDescription
Quick Start Guide Gecko in.yj3 version 3 Quick Start Guide
Schematic Gecko in.yj3 wiring diagram (Latest-9/16/2021)
Troubleshooting Gecko in.yj Tech Book (Latest-9/16/2021)
Search Using These Specs Partsology ©
Number Of Appliances 1, 2
Manufacturer Gecko
Model in.yj-3
Supply Voltage 115v, 230v - 4 Wire
Heater Type Not Included
Heater Wattage N/A
Topside Included None
Circ Pump Ready Optional 115v, Optional 115v/230v
Auxiliary Topside Ready Yes
Fiber Optic No
Accessory Ready Yes
Wi-Fi Compatible Yes
50/60 HZ 60Hz

Note: 2-Speed pumps use two outputs, therefore, pump 1 must be 1-speed in order to operate a circ pump, blower or pump as the second output.


Note: This pack will operate two 1-speed pumps by programming to the proper configuration. If using with a 2 pump system, a 2 pump topiside will be needed and can be found as a 'Recommended Item' to the right of the screen.

The remote heater has a 48" cord to attach it to the control box.

In order for this Control System to become Wi-Fi Capable, you must use it with the Wi-Fi module 59-402-1030. Please see Recommended Items for quick and easy access to this part.

Looking for the description, tech tips, exploded diagram, available styles, documentation, specifications, kit components, and other information? Log in now to access to all this information and more!
