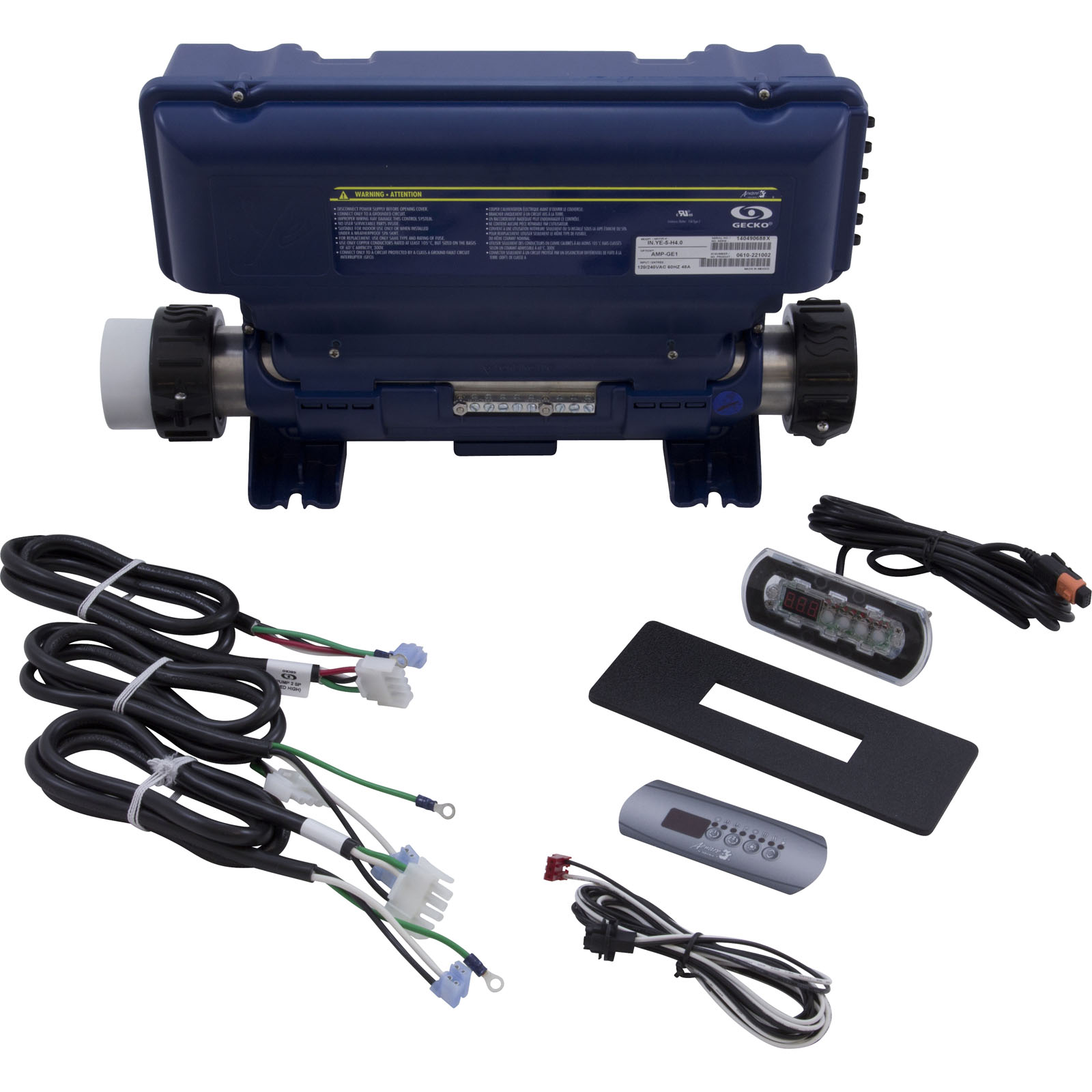

Ctrl, Gecko in.ye-5, P1, P2 (2) , Bl, Cp, Oz, 4.0kW, 115v/230v, in.K200

Ctrl,Gecko in.ye-5,P1,P2(2),Bl,Cp,Oz,4.0kW,115v/230v,in.K200 58-337-1452

Multiple Views:

main 1-heater 2-heater-reverse 3-control_straight-on 4-control 5-control-assembled 6-wires

Horizon # 58-337-1452

Looking for alternate/substitute items, identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Add To Cart
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add


Detailed Product Info

Back To Top ^

This Control System is WiFi Compatible, please see Tech Tips for information.



The Gecko in.ye-5 Control System is a great alternative to the Gecko S-Class and SSPA Control Systems
Features:
  • Supports topside, heater, and 5 configurable relays
  • Solid-state water flow detection: No pressure switch to adjust
  • IPX5 rated waterproof design
  • Preloaded configuration allows fast and easy installation
  • in.touch WiFi module compatible
  • 115v/230v Convertible
  • Each output voltage can be configured to 115v or 230v
  • Standard 2" heater
  • in.k200 Topside Control 58-337-1575
Control Box Dimensions

Height Width Depth
10-3/4" 19-5/8" 5"
Document TypeDescription
Diagram Gecko in.ye-5 Wiring Diagram
Flyer Gecko Pimp Your Spa Flyer Y Series
Instructions in.touch: Set Up Guide
Quick Reference Card Gecko in.ye5 Quick Start Card
Quick Reference Card in.k200 Quick Reference Card
Techbook Gecko in.k200 Techbook
Techbook Gecko Y Series Tech Book
Techbook in.touch: TechBook
Search Using These Specs Partsology ©
Number Of Appliances 3
Manufacturer Gecko
Model in.ye-5
Supply Voltage 115v, 230v - 4 Wire
Heater Type Fixed - Bottom
Heater Wattage 1.0kW, 4.0kW
Topside Included in.k200
Circ Pump Ready Yes 115v, Yes 115v/230v
Auxiliary Topside Ready Yes
Fiber Optic No
Accessory Ready Yes
Wi-Fi Compatible Yes
50/60 HZ 60Hz

Note: 2-Speed pumps use two outputs.

In order for this Control System to become Wi-Fi Capable, you must use it with the Wi-Fi module 59-337-1000. Please see Recommended Items for quick and easy access to this part.
46-337-1012 Heater, Gecko heat.wav, 15" x 2", 230v, 4kW, in.xe/ye/yt
Add
59-355-1117 PCB, HQ-Gecko, Y Series ye-5
Add
47-555-2525 Flow Thru Element, 4.0kW, Generic, 10", 230v, Titanium
Add
59-337-1151 Cord, Gecko, MTA-156, 3 Pins, 8Ft
Add
60-320-1060 Pump Cord, H-Q, 14/4 x 31, AMP-4 Male (R/B/W with G)
Add
60-138-1100 Cord, BWG, 14/3 x 60", White, Amp-4, Male, (G, B, W)
Add
57-402-1000 Light Harness Adapter, Gecko IN.YJ/IN.YE, 3-pin to 2-pin, 3"
Add
60-555-1134 Fuse, Buss, AGC Fast Acting, 250V 500MA, 1/4" x 1-1/4"
Add
