Home  >  Control Systems & Topsides  >  Spa Controls  >  Electronic

Control Only, Balboa Water Group BP7, 4.0kW, w/ Plug-n-Click

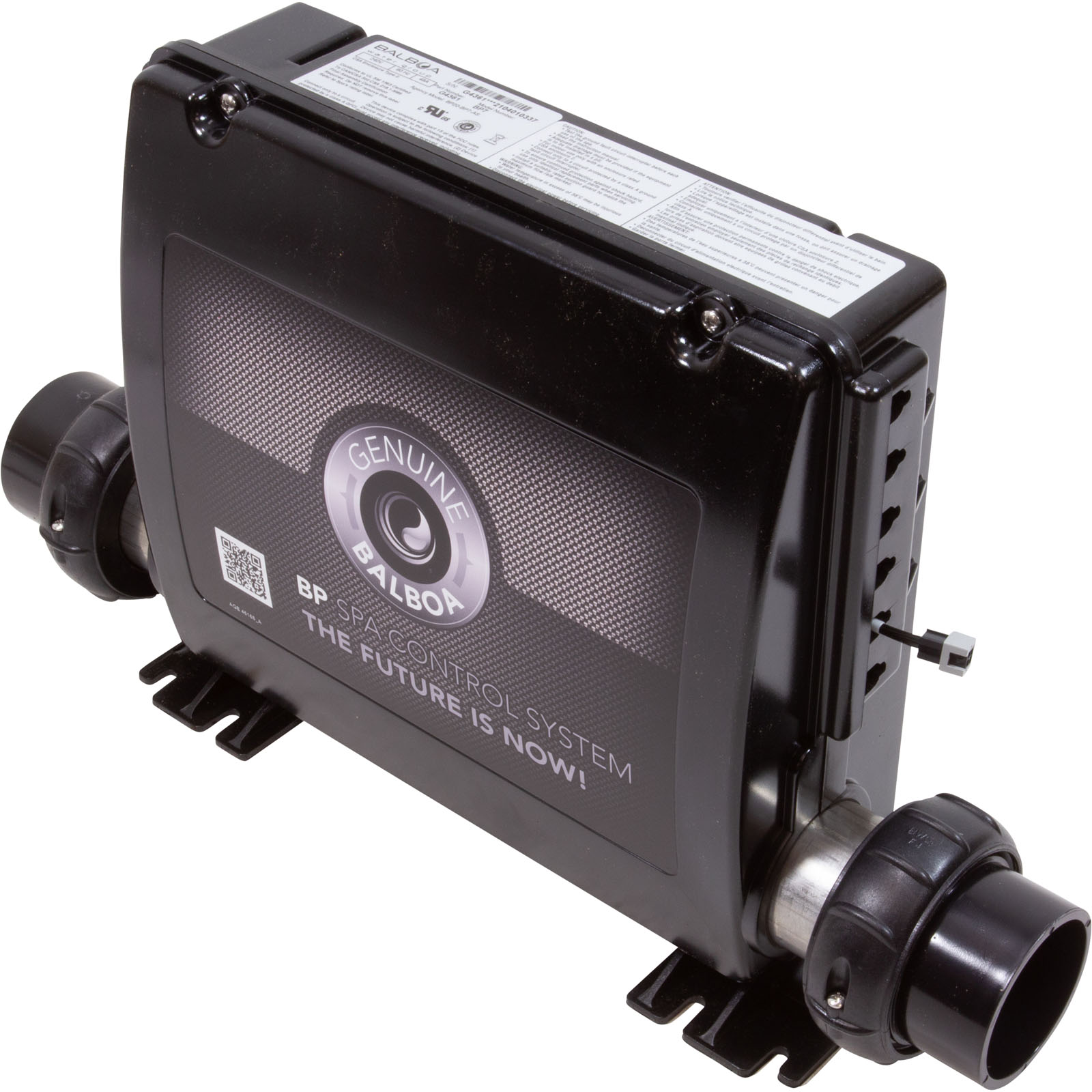

Control Only, Balboa Water Group BP7, 4.0kW, w/ Plug-n-Click 58-138-3220

Multiple Views:

main 1-reverse 2-manlabel 3-front 4-open 5-diagram 6-unions

Horizon # 58-138-3220

Looking for alternate/substitute items, identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Add To Cart
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add


Detailed Product Info

Back To Top ^
Balboa BP7 Control System Only

FEATURES:
  • 7 relays allow BP7 to operate in 32 different setups, which can power a spa with 1-4 pumps
  • BP7 can replace any Balboa BP System while using the existing topside that is already installed on the spa (some exceptions may apply)
  • BP7 can replace any Balboa VS or EL System when you match it with any TP or SpaTouch topside panel (some exceptions may apply)
  • BP7 can replace any Balboa or other brand's non-low flow system when you match it with amy TP or SpaTouch topside panel (some exceptions may apply)
  • Supports - ControlMySpa, Balboa Bluetooth Audio, Chromozon3, and Status Pro
  • Dimensions: 17"L x 4.75"W x 11.5"H


Compatible topsides for this system can be found in the 'Commonly Replaced Items' tab and to the right of the screen as a 'Recommended Item'
Document TypeDescription
Tech Sheet Balboa BP7 Tech Sheet - Hardware Setup
Tech Sheet Balboa BP7 Tech Sheet - Programming
Search Using These Specs Partsology ©
Number Of Appliances 4
Manufacturer Balboa Water Group
Model BP7
Supply Voltage 230v - 3 Wire, 230v - 4 Wire
Heater Type Fixed - Bottom
Heater Wattage 4.0kW
Topside Included None
Circ Pump Ready Optional 115v/230v
Auxiliary Topside Ready Yes
Fiber Optic No
Accessory Ready Yes
Wi-Fi Compatible Yes
50/60 HZ 50Hz, 60Hz
System (and any replacement board) is typically shipped in Setup 21

Both the Circ pump and Ozone can be converted to 115V, however they will be the same voltage after conversion. (Both 115V or both 230V.)

BP systems automatically detect 50Hz vs 60Hz.
