HydroAir Convertassage

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Convertassage&trade
Convertassage Jets are true to their name. They can be easily converted from a directionally adjustable jet to a rotating jet. Stainless steel escutcheons available for both types. A 2-1/2" hole is required for mounting. Standard color is white and gray-other colors available by special order. Jet is rated at 13gpm at 12 psi

Parts

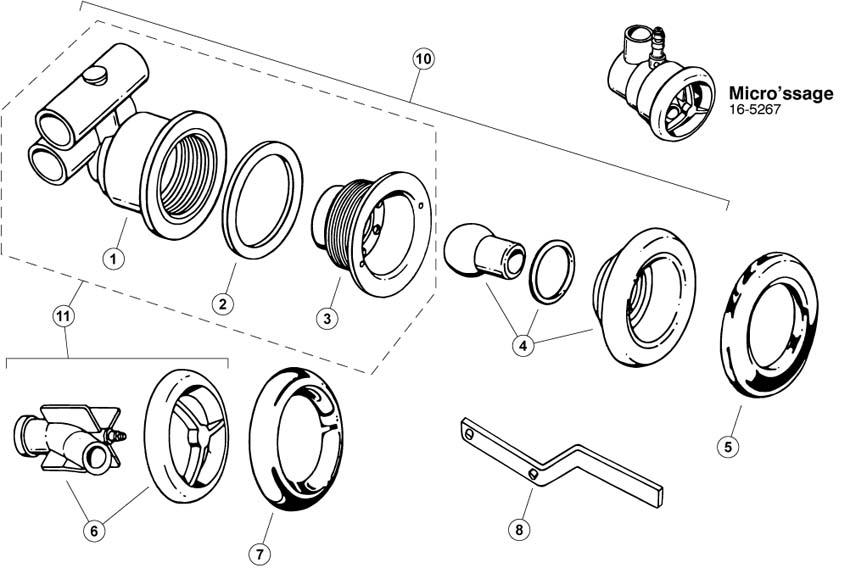

Key Horizon # Description Qty
Key 1 Horizon # 55-470-1220 Description Jet Body, BWG/HAI Convertassage, 2-1/2"hs, a1"s, w1"s Price Qty RecItem View recommended items
Key 1 Horizon # 55-470-1225 Description Jet Body, BWG/HAI Convertassage, 2-1/2"hs, a1"s, w1-1/2"s Price Qty RecItem View recommended items
Key 2 Horizon # 55-470-1610 Description Gasket,Wall Fitting,BWG/HAI AF/Magna/Freedom/Convertassage Price Qty RecItem View recommended items
Key 3 Horizon # _56-5215GRY Description Mcrsg Fitt With Bearing Price Qty RecItem View recommended items
Key 3 Horizon # 55-470-1235 Description Wall Fitting, BWG/HAI Convertassage, 2-1/2"hs Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Escutcheon, BWG/HAI Convertassage, Smooth, w/o Eyeball,Wht Price Qty RecItem View recommended items
Key 4 Horizon # 55-470-1245 Description Escutcheon, BWG Convertassage, w/Dir Eyeball, Smth, White Price Qty RecItem View recommended items
Key 4 Horizon # 55-470-1246 Description Escutcheon,BWG/HAI Convertassage,w/Dir Eyeball,Smth,Bone Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Escutcheon,BWG/HAI Convertassage,w/Dir Eyeball,Smth,Gry Price Qty RecItem
Key 5 Horizon # Discontinued Description Jet Intl, BWG/HAI Convertassage, Dir, Smth, Chr Price Qty RecItem
Key 6 Horizon # Discontinued Description Jet Internal, BWG Convertassage, Directional, Gray Price Qty RecItem View recommended items
Key 6 Horizon # _16-5274GRAY Description Jet Assy, Gunite MicroSsage, Gray Price Qty RecItem View recommended items
Key 6 Horizon # 55-138-1054 Description Jet Internal, BWG Convertassage,Directional, White Price Qty RecItem View recommended items
Key 6 Horizon # 55-470-1250 Description Jet Intl, BWG/HAI Microssage, 3-9/16"fd, Roto, Smth, White Price Qty RecItem View recommended items
Key 6 Horizon # 55-470-1251 Description Jet Intl, BWG/HAI Microssage, 3-9/16"fd, Roto, Smth, Gry Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Jet Intl, BWG/HAI Microssage, 3-9/16"fd, Roto, Smth, Blk Price Qty RecItem View recommended items
Key 6 Horizon # 55-470-1253 Description Jet Intl, BWG/HAI Microssage, 3-9/16"fd, Roto, Smth, Bone Price Qty RecItem View recommended items
Key 6 Horizon # 55-470-7025 Description Wall Fitting Assy, BWG Microssage, Roto, Smth,White, Gunite Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Escutcheon, Balboa Water Group/HAI Convertassage, Stainless Price Qty RecItem View recommended items
Key 8 Horizon # 55-470-2133 Description Tool, Wall Fitting, BWG/HAI Butterfly/Magna/Super Magna Price Qty RecItem View recommended items
Key 10 Horizon # 54-470-1100 Description Jet Cmplt,BWG/HAI Convertassage,2-1/2"hs,Eye,White,a1"s,w1"s Price Qty RecItem View recommended items
Key 10 Horizon # 54-470-1110 Description Jet Cmplt,BWG/HAI Convertassage,2-1/2"hs,Eye,a1"s,w1-1/2"s Price Qty RecItem View recommended items
Key 11 Horizon # 54-470-1130 Description Jet Cmplt, BWG/HAI Microssage, 2-1/2"hs, Roto, Wht,a1"s,w1"s Price Qty RecItem View recommended items
Key 11 Horizon # Discontinued Description Jet Cmplt,BWG/HAI Microssage,2-1/2"hs,Roto,Wht,a3/8"s,w3/8"b Price Qty RecItem
Key 11 Horizon # 54-470-1140 Description Jet Cmplt,BWG/HAI Microssage,2-1/2"hs,Roto,Wht,a1"s,w1-1/2"s Price Qty RecItem View recommended items
Key Horizon # 90-423-7218 Description O-Ring, Buna-N, 1-1/4" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
