HydroAir Micro Jet

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to ViewClick to View

Product Description

Microjet
Popular in bathtub environments and smaller spas. Rated 13gpm at 14psi. Standard color white. Other colors available. Hole size, 1-3/4"

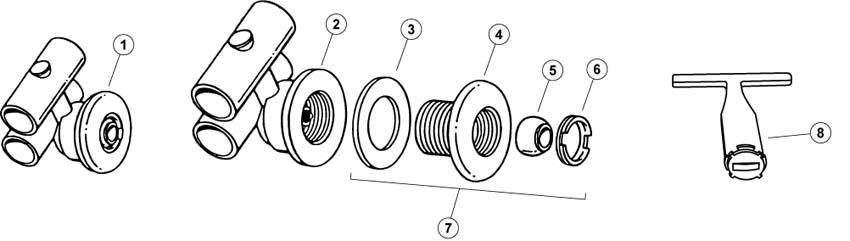

Parts

Key Horizon # Description Qty
Key 1 Horizon # 54-470-1900 Description Jet Cmplt,BWG/HAI Micro Jet,1-3/4"hs,Eye,Smth,Wht,a1"s,w1"s Price Qty RecItem
Key 1 Horizon # 54-470-1905 Description Jet Cmplt,BWG/HAI Micro Jet,1-3/4"hs,Eye,Smth,Gry,a1"s,w1"s Price Qty RecItem
Key 2 Horizon # 55-470-3300 Description Jet Body, BWG/HAI Micro Jet, 1-3/4"hs, a1"s, w1"s Price Qty RecItem View recommended items
Key 3 Horizon # 55-470-5300 Description Gasket, BWG/HAI Slimline/MicroJet/Micro Magna/Top Draw, Stem Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Wall Fitting, BWG/HAI Micro Jet, 1-3/4"hs, Bone Price Qty RecItem View recommended items
Key 4 Horizon # 55-470-3310 Description Wall Fitting, BWG/HAI Micro Jet, 1-3/4"hs Price Qty RecItem View recommended items
Key 5 Horizon # 55-470-3330 Description Eyeball, Balboa Water Group/HAI Micro Jet, White Price Qty RecItem View recommended items
Key 6 Horizon # 55-470-3340 Description Retaining Ring, Balboa Water Group/HAI Micro Jet, White Price Qty RecItem View recommended items
Key 7 Horizon # 55-470-3400 Description Jet Intl, BWG/HAI Micro Jet, 2-11/16"fd, Dir, Smth, White Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Jet Intl, BWG/HAI Micro Jet, 2-11/16"fd, Dir, Smth, Bone Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Jet Intl, BWG/HAI Micro Jet, 2-11/16"fd, Dir, Smth, Blk Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Wall Fitting, BWG/HAI Micro Jet, 1-3/4"hs, Extended, White Price Qty RecItem
Key 8 Horizon # 55-470-7210 Description Tool, Wall Fitting, Balboa Water Group/HAI MicroJet/Slimline Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Extension, Nozzle, BWG/HAI Micro Jet, Extended, 2" Price Qty RecItem
Key Horizon # Discontinued Description Jet Internal, Balboa Water Group/HAI Micro Jet, Chr Price Qty RecItem
Key Horizon # Discontinued Description Jet Intl, BWG/HAI Micro Jet, Polished Brass Price Qty RecItem
Key Horizon # Discontinued Description Jet Intl, BWG/HAI Micro Jet, Antiqued Brass Price Qty RecItem
Key Horizon # _10-3710WHT Description Micro Eye & Ring White Price Qty RecItem View recommended items
