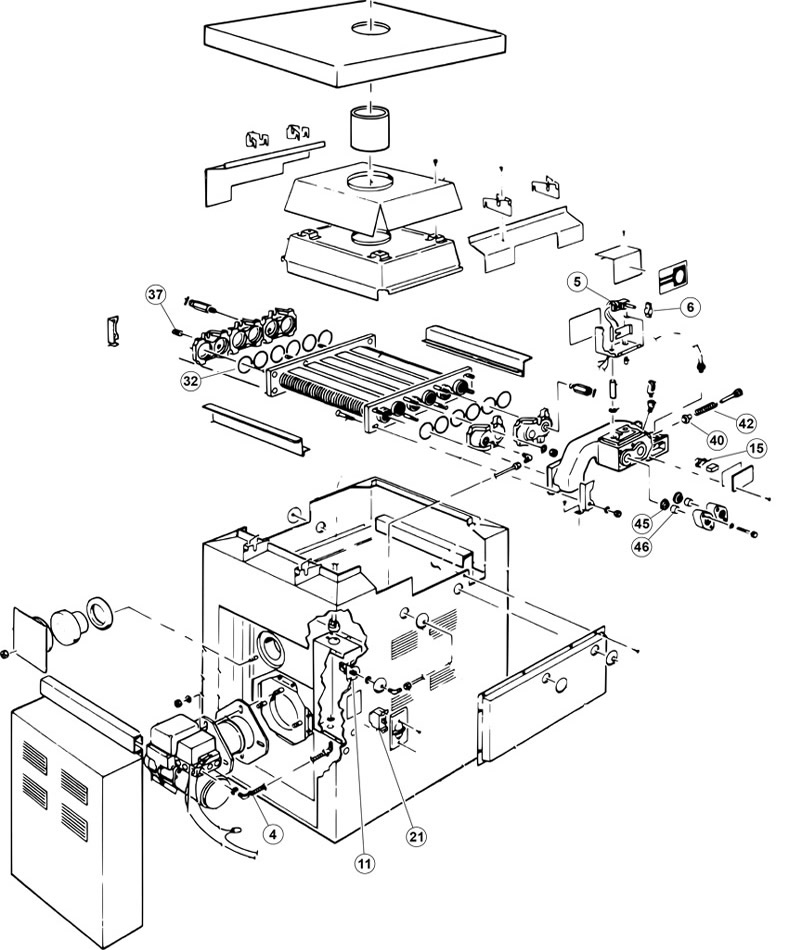

Waterpik Laars XL-2 (1974-1998) & Oil Fired XL-3 (1999-2007)

Product Description  ·  Fuel Systems  ·  Electrical Systems  ·  Water Systems  ·  Fire Box & Jacket Components  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Fuel Systems

Key Horizon # Description Qty
Key 4 Horizon # 47-295-1812 Description Oil Line, Zodiac Laars XL-2, Pump to Filter Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Oil Filter, Zodiac Laars XL-2 Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Oil Filter Cartridge, Zodiac Laars XL-2 Price Qty RecItem

Electrical Systems

Key Horizon # Description Qty
Key 5 Horizon # Discontinued Description Temperature Control Kit, Zodiac Laars Elecktra/EPC/Telestar Price Qty RecItem View recommended items
Key 6 Horizon # 47-295-1118 Description Temperature Control Knob, Zodiac Jandy Laars Elecktra II/EPC Price Qty RecItem View recommended items
Key 11 Horizon # 47-319-1063 Description Pressure Switch 3035, 25A, Tecmark, 1/8"mpt, SPNO, 1-10 PSI Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Hi Limit Switch, Jandy XL-3 Heater, 150 Degree Price Qty RecItem
Key 15 Horizon # 47-295-1268 Description Hi-Limit, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E, 135degF Price Qty RecItem View recommended items
Key 15 Horizon # 47-295-1270 Description Hi-Limit, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E, 150degF Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description On/Off Switch Kit, Zodiac Laars XL-2 Price Qty RecItem View recommended items

Water Systems

Key Horizon # Description Qty
Key 32 Horizon # 47-295-1832 Description O-Ring, Zodiac Laars XL-2, Heat Exchanger, Quantity 12 Price Qty RecItem View recommended items
Key 37 Horizon # 47-295-1624 Description Brass Plug, Zodiac Jandy Laars EPC/ESC/ESG/EPH/Lite, 1/4"mpt Price Qty RecItem View recommended items
Key 40 Horizon # 47-295-1834 Description Bypass Valve, Zodiac Laars Telestar/XL-2 Price Qty RecItem View recommended items
Key 41 Horizon # Discontinued Description Retainer Shaft, Zodiac Laars Telestar/XL-2 Price Qty RecItem
Key 42 Horizon # Discontinued Description Bypass Spring, Zodiac Jandy Laars EPC/ESC/EPG, 250 btu Price Qty RecItem View recommended items
Key 42 Horizon # Discontinued Description Bypass Spring, Zodiac Laars EG/XL-2, Brown Price Qty RecItem View recommended items
Key 45 Horizon # 47-295-1100 Description Gasket, Zodiac Laars Elecktra/EPC/EPG/Telestar/EG/ES, Flange Price Qty RecItem View recommended items
Key 46 Horizon # 47-295-1102 Description Sleeve, Zodiac Jandy Telestar, 1-5/8" Price Qty RecItem

Not Pictured

Key Horizon # Description Qty
Key Horizon # Discontinued Description Oil Filter Cartridge, Jandy XL-3 Heater Price Qty RecItem
Key Horizon # Discontinued Description Cad Cell, Jandy Pro Series XL-3/2000/3000, Flame Detector Price Qty RecItem
