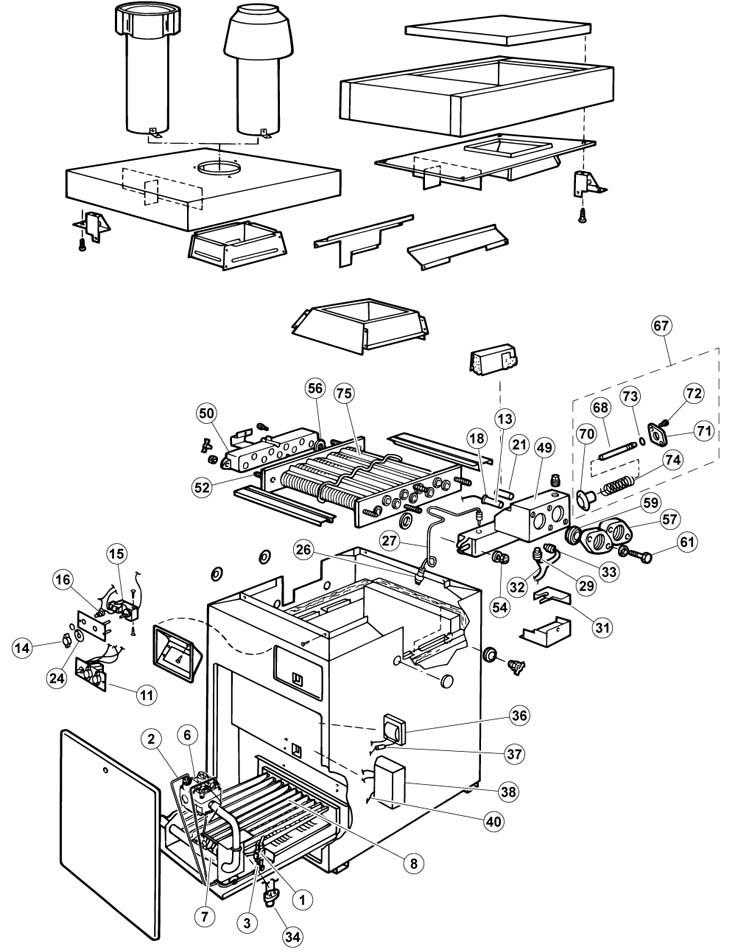

Waterpik Laars XE Series ES, ES II, EC Heaters (1984-89)

Product Description  ·  Parts  ·  Main Gas System  ·  Electrical System  ·  Water System
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Original top assemblies are no longer available. The Flue collector and top assemblies must be replaced by the Indoor/Outdoor convertible top and Flue Collector. Both items must be replaced at the same time.

Parts

Key Horizon # Description Qty
Key 1 Horizon # 47-295-1600 Description Pilot Generator, Zodiac Laars EPC/ESC/ES, Nat., IID Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Pilot Tubing, Zodiac Jandy Laars EPC/ESC/EPG/ESG/Lite/EG/ES Price Qty RecItem View recommended items
Key 3 Horizon # 47-295-1430 Description Ceramic Insulator, Zodiac Laars EPC/ESC/Lite/ES Price Qty RecItem View recommended items

Main Gas System

Key Horizon # Description Qty
Key 6 Horizon # Discontinued Description Gas Valve, Zodiac Laars EPC/ESC/Telestar/ES 125-175, Nat. Price Qty RecItem
Key 6 Horizon # 47-295-1708 Description Gas Valve, Zodiac Laars ESC/ES, Nat. Price Qty RecItem View recommended items
Key 7 Horizon # 47-295-1522 Description Orifice, Zodiac Jandy Laars EPC/ESC/EPG/ESG, Nat., 0-5K foot Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Burner Tube, Zodiac Laars EPC/ESC/ESG/Lite/ES, with Bracket Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Main Burner, Zodiac Laars EPC/ESC/EPG/ESG/Lite/LX/LT/EG/ES Price Qty RecItem View recommended items

Electrical System

Key Horizon # Description Qty
Key 11 Horizon # 47-295-1412 Description Temperature Control Panel, Zodiac Laars EPG/ESG/Lite/EG Price Qty RecItem View recommended items
Key 13 Horizon # 47-295-1414 Description Sensor, Temperature, Zodiac Laars EPC/ESC/EPG/ESG/HI-E2 Price Qty RecItem View recommended items
Key 14 Horizon # 47-295-1118 Description Temperature Control Knob, Zodiac Jandy Laars Elecktra II/EPC Price Qty RecItem View recommended items
Key 14 Horizon # 47-295-1418 Description Knob, Zodiac Laars ESC/EPG/HI-E2/Lite/ES Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Temperature Control Kit, Zodiac Laars Elecktra/EPC/Telestar Price Qty RecItem View recommended items
Key 16 Horizon # 47-295-1654 Description On/Off Switch, Zodiac Laars EPC/EPG/ESG/EG/ES Price Qty RecItem
Key 18 Horizon # Discontinued Description Square Ring, Zodiac Laars EPC/ESC/EPG/ESG/HI-E2, Temp Sensor Price Qty RecItem View recommended items
Key 18 Horizon # 90-423-7205 Description O-Ring, Buna-N, 7/16" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 21 Horizon # 47-295-1120 Description Thermostat Sleeve,Zodiac Laars Elecktra II/EPC/EPG/ESG/HI-E2 Price Qty RecItem View recommended items
Key 24 Horizon # Discontinued Description Temp Control Stop Plate,Zodiac LaarsEPC/EPG/HI-E2/Ht Shot/ES Price Qty RecItem View recommended items
Key 26 Horizon # 47-319-1027 Description Pressure Switch 3064, 25A, Tecmark, 3/16"Comp, SPNO Price Qty RecItem View recommended items
Key 26 Horizon # 47-319-1063 Description Pressure Switch 3035, 25A, Tecmark, 1/8"mpt, SPNO, 1-10 PSI Price Qty RecItem View recommended items
Key 26 Horizon # 47-319-1201 Description Pressure Switch 3925,25A, Tecmark, Universal, SPNO, w/Brass Price Qty RecItem View recommended items
Key 27 Horizon # 47-295-1454 Description Siphon Loop Assy, Zodiac Jandy Laars EPC/ESC/EPG/ESG/Lite Price Qty RecItem View recommended items
Key 29 Horizon # 47-295-1268 Description Hi-Limit, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E, 135degF Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description Hi-Limit Retainer Clip, Zodiac Laars EPC/ESC/ESG/EG/ES Price Qty RecItem
Key 32 Horizon # 47-295-1460 Description Hi-Limit Retainer Boot, Zodiac Laars EPC/ESC/EPG/ESG/EG/ES Price Qty RecItem
Key 33 Horizon # 47-295-1270 Description Hi-Limit, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E, 150degF Price Qty RecItem View recommended items
Key 34 Horizon # 47-295-1316 Description Fusable Link, Zodiac Jandy Laars EPC/ESC/EPG/ESG/EPH/LX-LT Price Qty RecItem View recommended items
Key 36 Horizon # 47-295-1318 Description Transformer, Zodiac Jandy Laars EPC/ESC/EPH/HI-E2/Lite/LX/LT Price Qty RecItem View recommended items
Key 37 Horizon # Discontinued Description Fuse Kit, Zodiac Laars EPC/Hi-E/XE Price Qty RecItem
Key 38 Horizon # Discontinued Description Ignition Control, Zodiac Laars EPC/ESC/Telestar/ES Price Qty RecItem
Key 40 Horizon # 47-295-1740 Description High Voltage Lead Assembly, Zodiac Laars EX Price Qty RecItem
Key 40 Horizon # Discontinued Description High Voltage Lead Assembly, Zodiac Laars ESG Price Qty RecItem

Water System

Key Horizon # Description Qty
Key 49 Horizon # Discontinued Description Inlet/Outlet Header, Zodiac Laars EPC/EPG/EG/ES Price Qty RecItem
Key 50 Horizon # Discontinued Description Return Header, Zodiac Jandy Laars EPC/ESC/EPG/ESG/Lite Price Qty RecItem View recommended items
Key 50 Horizon # Discontinued Description Return Header, Zodiac Jandy Laars EPC/ESC/EPG/ESG, Bronze Price Qty RecItem
Key 52 Horizon # 47-295-1478 Description Header Bolt Kit, Zodiac Jandy Laars EPC/ESC/EPG/ESG/Lite Price Qty RecItem View recommended items
Key 52 Horizon # Discontinued Description Dome Bolt, Zodiac Jandy Laars EPC/ESC/EPG/ESG,2-1/2",Bronze Price Qty RecItem
Key 54 Horizon # 47-295-1482 Description Washer, Zodiac Jandy Laars EPC/ESC/EPG/ESG/Lite/EG/ES, 3/8" Price Qty RecItem View recommended items
Key 54 Horizon # 47-295-1484 Description Nut, Zodiac Jandy Laars EPC/ESC/EPG/ESG/Lite/EG/ES, 3/8"-16 Price Qty RecItem View recommended items
Key 56 Horizon # 47-295-1488 Description Gasket, Zodiac EPC/ESC/EPG/ESG, 3/4"ID, 1-5/16"OD,qty 18 Price Qty RecItem View recommended items
Key 57 Horizon # Discontinued Description Flange, Zodiac Laars EPG/EG/ES, 1-1/2", with Bolt Price Qty RecItem
Key 57 Horizon # Discontinued Description Flange Kit, Zodiac Laars EPG/EG/ES/XL-2 Price Qty RecItem
Key 59 Horizon # 47-295-1100 Description Gasket, Zodiac Laars Elecktra/EPC/EPG/Telestar/EG/ES, Flange Price Qty RecItem View recommended items
Key 59 Horizon # 47-295-1356 Description Gasket, Laars EPC/ESC/EPG/ESG/HI-E2 Flange,2-1/8"ID,2-3/4"OD Price Qty RecItem View recommended items
Key 61 Horizon # Discontinued Description Flange Bolt, Zodiac Jandy Laars ESC/EPG/ESG/Hi-E2/Lite/Lite2 Price Qty RecItem
Key 67 Horizon # 47-295-1660 Description Bypass Assembly, Zodiac Jandy Laars EPG/ESG/EG/ES/Lite2 Price Qty RecItem View recommended items
Key 68 Horizon # Discontinued Description Bypass Valve Rod, Zodiac Jandy Laars EPC/EPG/EG/ES/Lite2 Price Qty RecItem View recommended items
Key 70 Horizon # 47-295-1276 Description Bypass Valve, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E/HI-E2 Price Qty RecItem View recommended items
Key 71 Horizon # 47-295-1494 Description Bypass Valve Cap, Zodiac Laars EPC/ESC/EPG/ESG/EG/ES Price Qty RecItem
Key 72 Horizon # Discontinued Description Bolt, Zodiac Jandy XE/Lite2 Price Qty RecItem View recommended items
Key 73 Horizon # 47-295-1282 Description Gasket, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E,Bypass Valve Price Qty RecItem View recommended items
Key 74 Horizon # Discontinued Description Bypass Spring, Zodiac Jandy Laars EPC/ESC/EPG, 175 btu Price Qty RecItem View recommended items
Key 74 Horizon # Discontinued Description Bypass Spring, Zodiac Jandy Laars EPC/ESC/EPG, 250 btu Price Qty RecItem View recommended items
Key 74 Horizon # Discontinued Description Bypass Spring, Zodiac Jandy Laars EPC/ESC/EPG, 325 btu Price Qty RecItem
Key 74 Horizon # Discontinued Description Bypass Spring, Zodiac Jandy Laars EPC/ESC/EPG, 400 btu Price Qty RecItem View recommended items
Key 75 Horizon # 47-295-1506 Description Heat Exchanger Tube Assy, Zodiac Jandy Laars 125 EPC/ESC/EPG Price Qty RecItem View recommended items
Key 75 Horizon # 47-295-1508 Description Heat Exchanger Tube Assy, Zodiac Jandy Laars 175 EPC/ESC/EPG Price Qty RecItem View recommended items
Key 75 Horizon # 47-295-1510 Description Heat Exchanger Tube Assy, Zodiac Jandy Laars 250 EPC/ESC/EPG Price Qty RecItem View recommended items
Key 75 Horizon # 47-295-1512 Description Heat Exchanger Tube Assy, Zodiac Jandy Laars 325 EPC/ESC/EPG Price Qty RecItem View recommended items
Key 75 Horizon # Discontinued Description Heat Exchanger Tube Assy, Zodiac Jandy Laars 400 EPC/ESC/EPG Price Qty RecItem View recommended items
