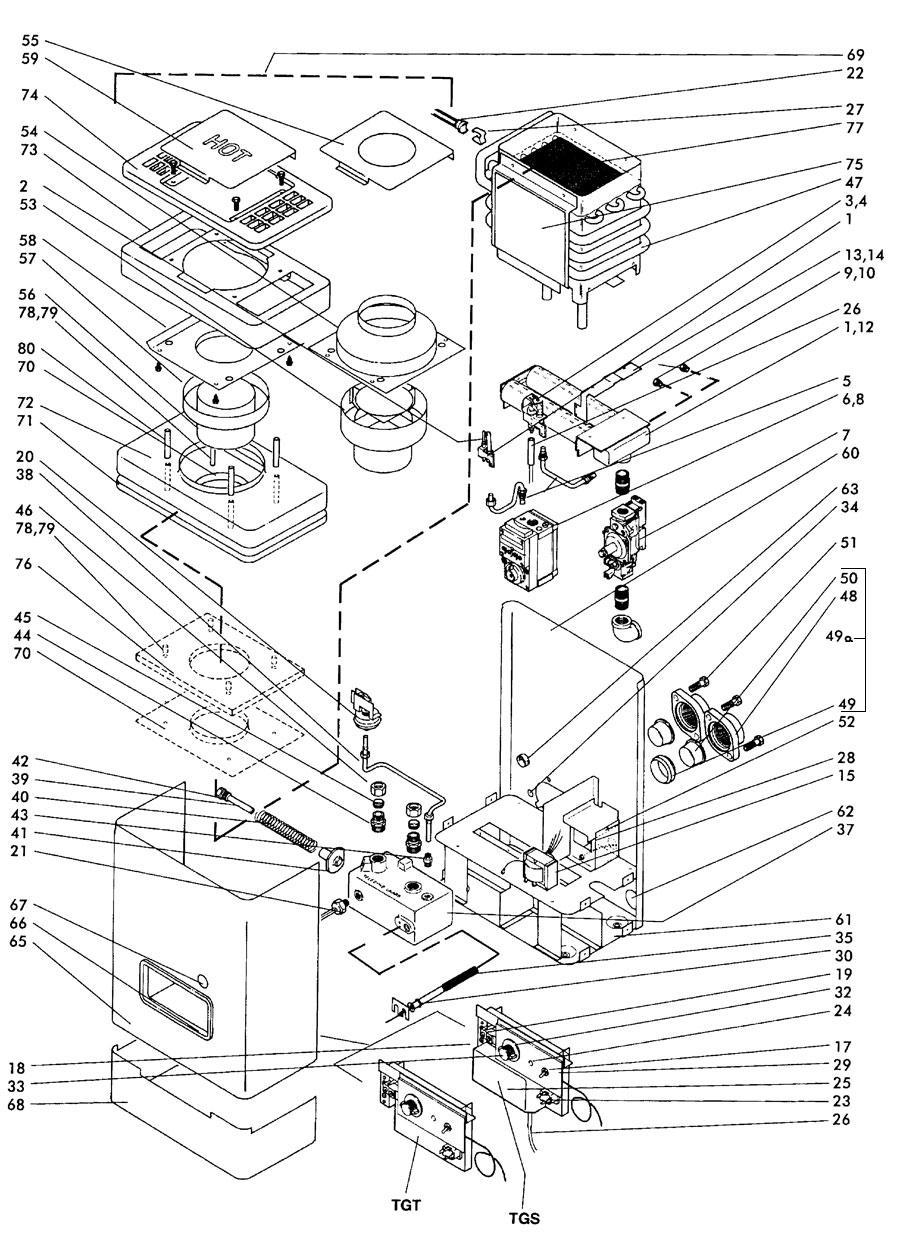

Waterpik Laars Telestar Spa Heater (mfg 1985-1999)

Product Description  ·  Pilot Gas System  ·  Main Gas System  ·  Electrical System  ·  Water System
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Pilot Gas System

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Pilot Burner, Zodiac Laars Telestar TGT, Nat. Price Qty RecItem
Key 2 Horizon # Discontinued Description Thermocouple, Zodiac Laars Telestar Price Qty RecItem
Key 3 Horizon # Discontinued Description Pilot Burner, Zodiac Laars Telestar TGS, Nat. Price Qty RecItem
Key 4 Horizon # Discontinued Description Pilot Burner, Zodiac Laars Telestar TGT, LP Price Qty RecItem
Key 5 Horizon # Discontinued Description Pilot Tube, Zodiac Laars Telestar Price Qty RecItem
Key 5 Horizon # Discontinued Description Pilot Tube, Zodiac Laars Telestar, 55 btu Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Pilot Tube, Zodiac Laars Telestar, 50 btu Price Qty RecItem View recommended items

Main Gas System

Key Horizon # Description Qty
Key 6 Horizon # Discontinued Description Gas Valve, Zodiac Laars Telestar, Nat. Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Gas Valve, Zodiac Laars EPC/ESC/Telestar/ES 125-175, Nat. Price Qty RecItem
Key 8 Horizon # Discontinued Description Gas Valve, Zodiac Laars Telestar, LP Price Qty RecItem
Key 9 Horizon # Discontinued Description Burner Orifice, Zodiac Laars Telestar, Nat. Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Burner Orifice, Zodiac Laars Telestar, LP Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Burner Assembly, Zodiac Laars Telestar Price Qty RecItem

Electrical System

Key Horizon # Description Qty
Key 15 Horizon # 47-295-1318 Description Transformer, Zodiac Jandy Laars EPC/ESC/EPH/HI-E2/Lite/LX/LT Price Qty RecItem View recommended items
Key 16 Horizon # 47-295-1316 Description Fusable Link, Zodiac Jandy Laars EPC/ESC/EPG/ESG/EPH/LX-LT Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Toggle Switch, Zodiac Laars Telestar Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Terminal Strip, Zodiac Laars Telestar Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Temperature Control Kit, Zodiac Laars Elecktra/EPC/Telestar Price Qty RecItem View recommended items
Key 20 Horizon # 47-319-1027 Description Pressure Switch 3064, 25A, Tecmark, 3/16"Comp, SPNO Price Qty RecItem View recommended items
Key 20 Horizon # 47-319-1063 Description Pressure Switch 3035, 25A, Tecmark, 1/8"mpt, SPNO, 1-10 PSI Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Hi-Limit Switch, Zodiac Laars Telestar, 120°f Price Qty RecItem
Key 21 Horizon # Discontinued Description Hi-Limit Switch, Zodiac Laars Telestar, 120°f, 55 btu Price Qty RecItem
Key 22 Horizon # Discontinued Description Hi-Limit Switch, Zodiac Laars Telestar, 150°f Price Qty RecItem
Key 22 Horizon # Discontinued Description Hi-Limit Switch, Zodiac Laars Telestar, 120°f, 55 btu Price Qty RecItem
Key 23 Horizon # Discontinued Description Time Delay Relay, Zodiac Laars Telestar Price Qty RecItem View recommended items
Key 24 Horizon # Discontinued Description Indicator Light, Zodiac Laars Telestar, Red Price Qty RecItem
Key 25 Horizon # Discontinued Description Ignition Control, Zodiac Laars EPC/ESC/Telestar/ES Price Qty RecItem
Key 26 Horizon # Discontinued Description High Voltage Lead Assembly, Zodiac Laars Telestar Price Qty RecItem
Key 26 Horizon # Discontinued Description High Tension Lead Assembly, Zodiac Laars Telestar Price Qty RecItem
Key 27 Horizon # Discontinued Description Hi-Limit Retainer Clip, Zodiac Telestar Price Qty RecItem View recommended items
Key 30 Horizon # 90-423-7205 Description O-Ring, Buna-N, 7/16" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 33 Horizon # 47-295-1118 Description Temperature Control Knob, Zodiac Jandy Laars Elecktra II/EPC Price Qty RecItem View recommended items
Key 35 Horizon # 47-295-1120 Description Thermostat Sleeve,Zodiac Laars Elecktra II/EPC/EPG/ESG/HI-E2 Price Qty RecItem View recommended items
Key 38 Horizon # Discontinued Description Siphon Loop, Zodiac Laars Telestar Price Qty RecItem

Water System

Key Horizon # Description Qty
Key 37 Horizon # Discontinued Description Header, Jandy Telestar, Inlet/Outlet, Bronze Price Qty RecItem View recommended items
Key 39 Horizon # Discontinued Description Bypass Valve Kit, Zodiac Laars ESC/ESG/Lite/Telestar/XL-2 Price Qty RecItem
Key 40 Horizon # Discontinued Description Bypass Spring, Zodiac Jandy Laars EPC/ESC/EPG, 325 btu Price Qty RecItem
Key 41 Horizon # 47-295-1834 Description Bypass Valve, Zodiac Laars Telestar/XL-2 Price Qty RecItem View recommended items
Key 42 Horizon # Discontinued Description Retainer Shaft, Zodiac Laars Telestar/XL-2 Price Qty RecItem
Key 43 Horizon # 47-295-1108 Description Connecter Body, Zodiac Jandy Laars Elecktra/Telestar/Lite2 Price Qty RecItem View recommended items
Key 44 Horizon # Discontinued Description Connecter, Zodiac Laars Telestar, 5/8" Price Qty RecItem
Key 45 Horizon # Discontinued Description Compression Sleeve, Zodiac Laars Telestar, 5/8" Price Qty RecItem
Key 46 Horizon # Discontinued Description Compression Nut, Zodiac Laars Telestar, 5/8" Price Qty RecItem View recommended items
Key 47 Horizon # Discontinued Description Heat Exchanger, Zodiac Jandy Laars Telestar Price Qty RecItem
Key 48 Horizon # Discontinued Description Flange, Zodiac Laars Telestar, 1-1/2", Bronze Price Qty RecItem
Key 49 Horizon # 47-295-1100 Description Gasket, Zodiac Laars Elecktra/EPC/EPG/Telestar/EG/ES, Flange Price Qty RecItem View recommended items
Key 50 Horizon # 47-295-1102 Description Sleeve, Zodiac Jandy Telestar, 1-5/8" Price Qty RecItem
Key 51 Horizon # 47-295-2072 Description Flange Bolt, Zodiac Laars Telestar, 3/8" Price Qty RecItem
Key 52 Horizon # 47-295-1624 Description Brass Plug, Zodiac Jandy Laars EPC/ESC/ESG/EPH/Lite, 1/4"mpt Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Bypass Assembly, Zodiac Laars Telestar Price Qty RecItem View recommended items
Key 49A Horizon # Discontinued Description Flange Kit, Zodiac Laars Telestar Price Qty RecItem
