Waterpik Laars HI-E2 Heater (Mfg 1997-pres)

Product Description · Jacket Components · Water System · Combustion System Assembly · Exhaust Assembly · Electrical Components and Controls · Optional Components · Complete Heater

Product Description

Note:

All hardware sets contain all pieces necessary for assembly, including gaskets.

Jacket Components

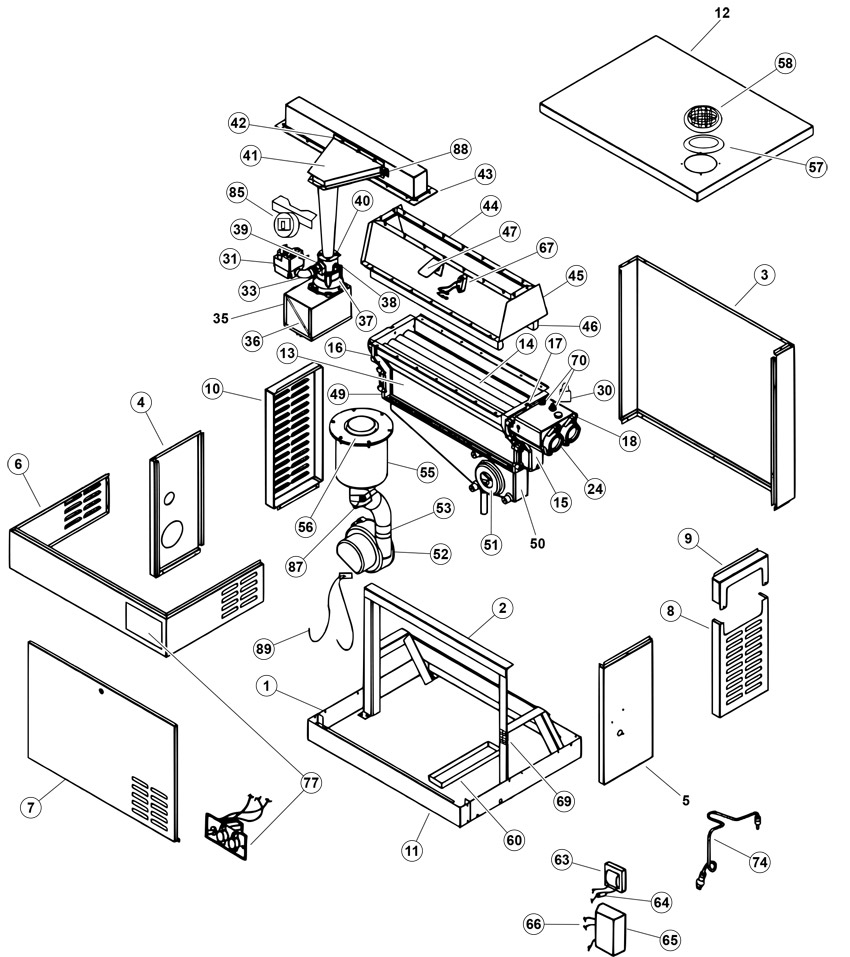

Key	Horizon #	Description		Qty
Key 1	Horizon # 47-295-2326	Description Base Shield, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 2	Horizon # Discontinued	Description Support Assembly, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key 2	Horizon # 47-295-2328	Description Support Assembly, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key 3	Horizon # 47-295-2329	Description Baffle, Jandy/Laars/Zodiac Model 130A	Price	Qty	RecItem
Key 4	Horizon # 47-295-2330	Description Side Panel, Zodiac Laars HI-E2, Left	Price	Qty	RecItem
Key 6	Horizon # Discontinued	Description Front Panel Assembly, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key 6	Horizon # 47-295-2333	Description Front Panel Assembly, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key 7	Horizon # Discontinued	Description Door, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key 7	Horizon # 47-295-2336	Description Door, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key 8	Horizon # 47-295-2338	Description Header Panel, Zodiac Laars HI-E	Price	Qty	RecItem
Key 9	Horizon # 47-295-2339	Description Side Panel, Zodiac Laars HI-E2, Top Right	Price	Qty	RecItem
Key 10	Horizon # 47-295-2340	Description Return Header Panel, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 11	Horizon # Discontinued	Description Front Panel, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key 11	Horizon # Discontinued	Description Front Panel, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key	Horizon # 47-295-2345	Description Jacket Hardware Kit, Zodiac Laars HI-E2	Price	Qty	RecItem
Key	Horizon # 47-295-2346	Description Internal Hardware Kit, Zodiac Laars HI-E2	Price	Qty	RecItem

Water System

Key	Horizon #	Description		Qty
Key 13	Horizon # 47-295-1672	Description Heat Exchanger, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key 14	Horizon # Discontinued	Description Heat Exchanger Tube Assembly, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key 14	Horizon # 47-295-1674	Description Heat Exchanger Tube Assembly, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key 15	Horizon # 47-295-2353	Description Inlet/Outlet Header, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 16	Horizon # Discontinued	Description Return Header, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 17	Horizon # 47-295-2355	Description Gasket Kit, Zodiac Laars HI-E2, Header	Price	Qty	RecItem
Key 18	Horizon # 47-295-1276	Description Bypass Valve, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E/HI-E2	Price	Qty	RecItem
Key 18	Horizon # 47-295-1282	Description Gasket, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E,Bypass Valve	Price	Qty	RecItem
Key 18	Horizon # Discontinued	Description Bypass Valve Assy, Zodiac Jandy Laars ESC/HI-E/HI-E2/Lite2	Price	Qty	RecItem
Key 18	Horizon # 47-295-1350	Description Bypass Valve Spring, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 18	Horizon # Discontinued	Description Bypass Valve Rod, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 18	Horizon # 47-295-1682	Description Bypass Assembly, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 24	Horizon # 47-295-1200	Description Flange, Zodiac Jandy Laars EPC/ESC/EPG/ESG/EPH/HI-E2, 2"	Price	Qty	RecItem
Key 24	Horizon # 47-295-1292	Description Flange Sleeve, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E/HI-E2	Price	Qty	RecItem
Key 24	Horizon # 47-295-1354	Description Flange Kit, Zodiac Jandy Laars ESC/EPG/ESG/Hi-E2/Lite/Lite2	Price	Qty	RecItem
Key 24	Horizon # 47-295-1356	Description Gasket, Laars EPC/ESC/EPG/ESG/HI-E2 Flange,2-1/8"ID,2-3/4"OD	Price	Qty	RecItem
Key 24	Horizon # Discontinued	Description Flange Bolt, Zodiac Jandy Laars ESC/EPG/ESG/Hi-E2/Lite/Lite2	Price	Qty	RecItem
Key 24	Horizon # 47-295-1360	Description Gasket, Laars EPC/ESC/EPG/ESG/HI-E2 Flange,1-5/8"ID,2-3/4"OD	Price	Qty	RecItem
Key 30	Horizon # 26-295-2000	Description Pressure Relief Valve,Jandy/Zodiac, 3/4" x 3/4", 75psi,Brass	Price	Qty	RecItem
Key 30	Horizon # 26-295-2001	Description Pressure Relief Valve,Jandy/Zodiac,3/4" x 3/4",75psi,polymer	Price	Qty	RecItem
Key	Horizon # Discontinued	Description Tube Assembly, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key	Horizon # Discontinued	Description Tube Assembly, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key	Horizon # 47-295-2352	Description Heat Exchanger, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key	Horizon # 47-295-2358	Description Heat Exchanger Hardware Kit, Zodiac Laars HI-E2	Price	Qty	RecItem
Key	Horizon # 47-295-2359	Description Header Hardware Kit, Zodiac Laars HI-E2	Price	Qty	RecItem
Key	Horizon # 47-295-2360	Description Return Header Hardware Kit, Zodiac Laars HI-E2	Price	Qty	RecItem
Key	Horizon # _R0523705	Description Jandy Pro Series Heat Exchanger Assembly, Complete, Hi-E2, C	Price	Qty	RecItem

Combustion System Assembly

Key	Horizon #	Description		Qty
Key 31	Horizon # 47-295-1206	Description Gas Valve, Zodiac Laars HI-E/HI-E2	Price	Qty	RecItem
Key 33	Horizon # Discontinued	Description Gas Valve, Zodiac Jandy HI-E2 220, Nat.	Price	Qty	RecItem
Key 33	Horizon # Discontinued	Description Natural Gas Oriface, Zodiac, Hi-E2 Heater, w/Holder	Price	Qty	RecItem
Key 33	Horizon # Discontinued	Description Orifice, Zodiac Laars HI-E2 220, LP	Price	Qty	RecItem
Key 33	Horizon # 47-295-1368	Description Orifice, Zodiac Laars HI-E2 350, LP	Price	Qty	RecItem
Key 33	Horizon # 47-295-2363	Description Orifice Holder, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 36	Horizon # 47-295-1370	Description Combustion Air Filter, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 37	Horizon # Discontinued	Description Venturi Inlet, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key 38	Horizon # 47-295-1372	Description O-Ring, Zodiac Laars HI-E2, Venturi	Price	Qty	RecItem
Key 39	Horizon # 47-295-1371	Description Venturi Plenum, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 40	Horizon # 47-295-1374	Description Venturi Hardware Kit, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 41	Horizon # 47-295-1375	Description Mixing Chamber Tailpipe Assembly, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 42	Horizon # 47-295-1376	Description Gasket Kit, Zodiac Laars HI-E2 Mixing Chamber	Price	Qty	RecItem
Key 43	Horizon # Discontinued	Description Burner Assembly, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key 43	Horizon # 47-295-1380	Description Burner Assembly, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key 44	Horizon # 47-295-1382	Description Gasket Kit, Zodiac Jandy Laars HI-E2 350, Combustion Chamber	Price	Qty	RecItem
Key 44	Horizon # 47-295-1384	Description Gasket Kit, Zodiac Jandy Laars HI-E2 220, Combustion Chamber	Price	Qty	RecItem
Key 45	Horizon # Discontinued	Description Combustion Chamber, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 45	Horizon # Discontinued	Description Combustion Chamber Gasket, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key 46	Horizon # 47-295-1397	Description Refractory Tile Set, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key 46	Horizon # 47-295-1398	Description Refractory Tile Set, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key 47	Horizon # 47-295-1399	Description Sight Glass Assembly, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 49	Horizon # Discontinued	Description Combustion Chamber Gasket, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key 49	Horizon # Discontinued	Description Gasket, Zodiac Laars HI-E2, 350, Combustion Chamber	Price	Qty	RecItem
Key 49	Horizon # 47-295-1389	Description Gasket, Zodiac Laars HI-E2 220, Combustion Chamber	Price	Qty	RecItem
Key	Horizon # 47-295-1676	Description Venturi Hardware Kit, Zodiac Laars HI-E2	Price	Qty	RecItem
Key	Horizon # 47-295-1677	Description Mixing Chamber Hardware Kit, Zodiac Laars HI-E2	Price	Qty	RecItem
Key	Horizon # Discontinued	Description Burner Hardware Kit, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key	Horizon # Discontinued	Description Burner Hardware Kit, Zodiac Laars HI-E2 350	Price	Qty	RecItem
Key	Horizon # 47-295-2362	Description Anti-Rotation Bracket, Zodiac Laars HI-E2	Price	Qty	RecItem
Key	Horizon # Discontinued	Description Combustion Chamber Strip Set, Zodiac Laars HI-E2 220	Price	Qty	RecItem
Key	Horizon # 47-295-1391	Description Combustion Chamber Strip Set, Zodiac Laars HI-E2 350	Price	Qty	RecItem

Exhaust Assembly

Key	Horizon #	Description		Qty
Key 51	Horizon # 47-295-1394	Description Gasket, Zodiac HI-E2, Blower Collector, 2-1/2"ID, 3-3/4"OD	Price	Qty	RecItem
Key 52	Horizon # 47-295-1396	Description Blower, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 53	Horizon # 47-295-1406	Description Blower Sleeve, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 53	Horizon # 47-295-1407	Description Blower Clamp, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 55	Horizon # 47-295-1408	Description Vent Duct Assembly, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 56	Horizon # 47-295-1409	Description Gasket, Zodiac Laars HI-E2, Vent Duct	Price	Qty	RecItem
Key 57	Horizon # 47-295-2365	Description Gasket,Zodiac HI-E2,Exhaust,3-7/8"x4-1/8"ID,5-7/16"x5-1/8"OD	Price	Qty	RecItem
Key 58	Horizon # 47-295-2366	Description Exhaust Grill, Zodiac Laars HI-E2, Outdoor	Price	Qty	RecItem
Key 60	Horizon # 47-295-1392	Description Collector, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 60	Horizon # 47-295-2368	Description Limestone Gravel, Zodiac Laars HI-E2	Price	Qty	RecItem
Key	Horizon # 47-295-2367	Description Indoor Vent Collar, Zodiac Laars HI-E2	Price	Qty	RecItem

Electrical Components and Controls

Key	Horizon #	Description		Qty
Key 63	Horizon # 47-295-1318	Description Transformer, Zodiac Jandy Laars EPC/ESC/EPH/HI-E2/Lite/LX/LT	Price	Qty	RecItem
Key 64	Horizon # 47-295-1319	Description Fuse Holder Assembly, Zodiac Laars HI-E2, In-Line	Price	Qty	RecItem
Key 65	Horizon # 47-295-1400	Description Ignition Control, Zodiac Laars HI-E2/LX-LT	Price	Qty	RecItem
Key 66	Horizon # 47-295-1320	Description Wire Harness, Zodiac Laars HI-E2, Ignition Control	Price	Qty	RecItem
Key 67	Horizon # Discontinued	Description Igniter, Zodiac Laars HI-E/HI-E2	Price	Qty	RecItem
Key 67	Horizon # 47-295-1218	Description Gasket, Zodiac Laars HI-E/HI-E2, Igniter	Price	Qty	RecItem
Key 70	Horizon # 47-295-1404	Description Hi-Limit Set, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 74	Horizon # 47-295-1027	Description Pressure Switch, Zodiac Laars Hot Shot, 2psi	Price	Qty	RecItem
Key 74	Horizon # 47-295-1321	Description Pressure Switch, Zodiac Laars HI-E2, with Siphon Loop	Price	Qty	RecItem
Key 77	Horizon # 47-295-1118	Description Temperature Control Knob, Zodiac Jandy Laars Elecktra II/EPC	Price	Qty	RecItem
Key 77	Horizon # 47-295-1120	Description Thermostat Sleeve,Zodiac Laars Elecktra II/EPC/EPG/ESG/HI-E2	Price	Qty	RecItem
Key 77	Horizon # 47-295-1412	Description Temperature Control Panel, Zodiac Laars EPG/ESG/Lite/EG	Price	Qty	RecItem
Key 77	Horizon # Discontinued	Description Square Ring, Zodiac Laars EPC/ESC/EPG/ESG/HI-E2, Temp Sensor	Price	Qty	RecItem
Key 77	Horizon # 47-295-1418	Description Knob, Zodiac Laars ESC/EPG/HI-E2/Lite/ES	Price	Qty	RecItem
Key 77	Horizon # Discontinued	Description Temp Control Stop Plate,Zodiac LaarsEPC/EPG/HI-E2/Ht Shot/ES	Price	Qty	RecItem
Key 85	Horizon # 47-295-1161	Description Air Pressure Switch, Zodiac Laars HI-E2/LX/LT	Price	Qty	RecItem
Key 85	Horizon # Discontinued	Description Pressure Switch Bracket, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 88	Horizon # 47-295-1422	Description Hi-Limit, Zodiac Laars HI-E2	Price	Qty	RecItem
Key 89	Horizon # 47-295-1423	Description Wire Harness, Zodiac Laars HI-E2, Blower	Price	Qty	RecItem
Key	Horizon # 47-295-1414	Description Sensor, Temperature, Zodiac Laars EPC/ESC/EPG/ESG/HI-E2	Price	Qty	RecItem
Key 87	Horizon # _R0461600	Description Jandy Pro Series Switch, Hi-Limit, 180 Degree	Price	Qty	RecItem
Key 87	Horizon # 47-295-1420	Description Vent Limit Switch, Zodiac Laars HI-E2	Price	Qty	RecItem
Key	Horizon # Discontinued	Description Temperature Sensor Retainer Clip, Zodiac Laars HI-E2	Price	Qty	RecItem

Optional Components

Key	Horizon #	Description		Qty
Key	Horizon # 47-295-1901	Description High Temp Silicon, Zodiac Jandy Laars HI-E2/LXi	Price	Qty	RecItem
Key	Horizon # 47-295-2368	Description Limestone Gravel, Zodiac Laars HI-E2	Price	Qty	RecItem
Key	Horizon # Discontinued	Description Wire Harness, Zodiac Laars HI-E2/Lite2, Remote Control	Price	Qty	RecItem
Key	Horizon # Discontinued	Description Vent Connecter, Laars HI-E2, 4"	Price	Qty	RecItem
Key	Horizon # 47-295-2373	Description Regulator Stepdown, Zodiac Laars HI-E2	Price	Qty	RecItem

Complete Heater

Key	Horizon #	Description		Qty
Key	Horizon # 46-100-1100	Description Gas Heater, NG, Zodiac Jandy Hi-E2, 350K BTU, ASME	Price	Qty	RecItem
Key	Horizon # 46-100-1105	Description Gas Heater, LP, Zodiac Jandy Hi-E2, 350K BTU, ASME	Price	Qty	RecItem
Key	Horizon # 46-100-1110	Description Gas Heater, NG, Zodiac Jandy Hi-E2,350K BTU,ASME,Salt Water	Price	Qty	RecItem
