Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Heaters  >  46-197-W045

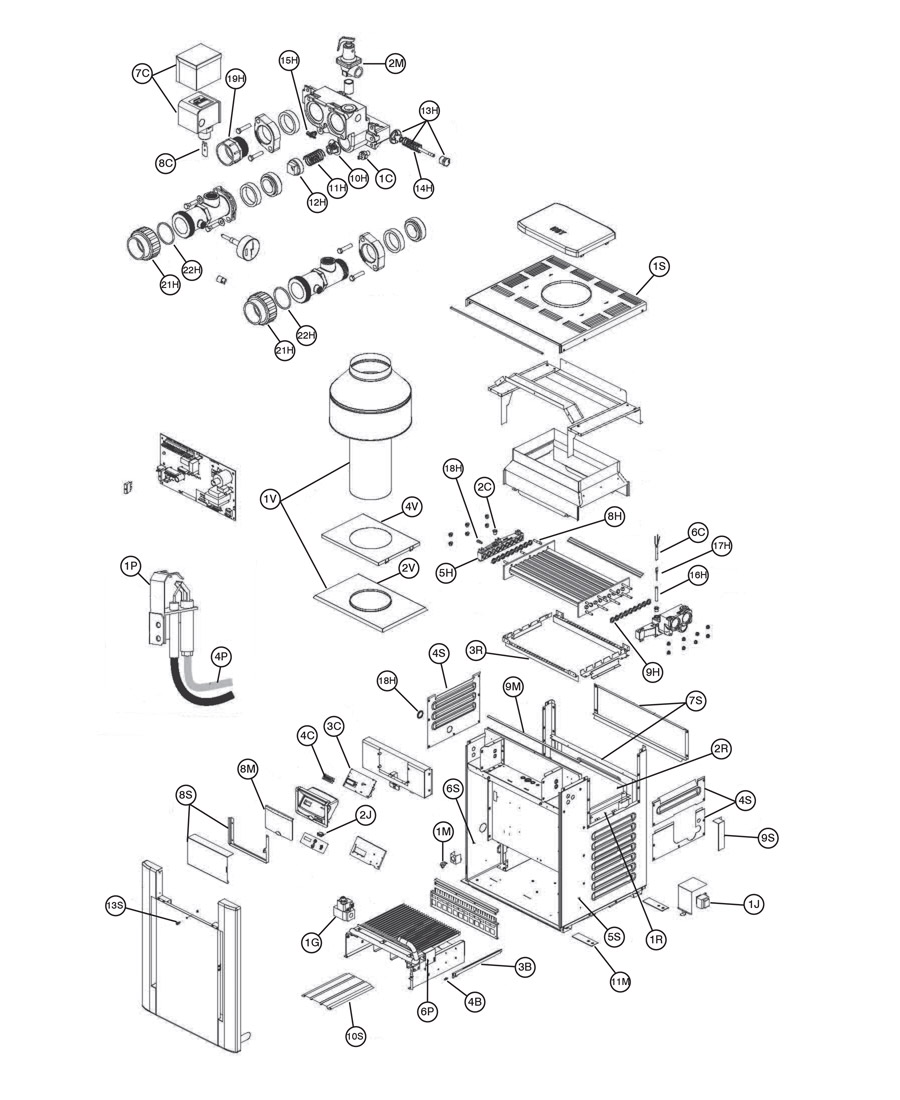

Raypak Pro Series 268A/408A Gas Heater Replacement Parts

Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger  ·  Control Box  ·  Miscellaneous Components  ·  Pilot  ·  Refractory  ·  Sheetmetal  ·  Venting
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Burner Tray

Key Horizon # Description Qty
Key 3B Horizon # 47-197-3200 Description SRV Burner Kit, Raypak, 10 Pack Price Qty RecItem
Key 4B Horizon # 47-197-1469 Description Burner Orifice, Raypak Model 206A/266A/336A, Nat., Sea Level Price Qty RecItem View recommended items
Key 4B Horizon # 47-197-1470 Description Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III,LP,SL,5ea Price Qty RecItem View recommended items

Controls

Key Horizon # Description Qty
Key 1C Horizon # 47-197-1444 Description T-Stat Auto Reset 13, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 2C Horizon # 47-197-1446 Description T-Stat Auto Reset 14, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 3C Horizon # 47-197-1705 Description PCB Control, Raypak 185B-405B/206A-406,3 Wire,2004-2022 Price Qty RecItem View recommended items
Key 4C Horizon # Discontinued Description LCD Display Poolstat Kit Price Qty RecItem
Key 6C Horizon # 47-197-1703 Description Sensor, Temp, Raypak 207A/206A/R185A/R185B, 3 Wire, IID Price Qty RecItem View recommended items
Key 7C Horizon # 47-197-1015 Description Flow Switch, Raypak Hi Delta Heaters Price Qty RecItem View recommended items
Key 8C Horizon # _010026F Description Flow Switch Paddle-Kit Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1G Horizon # 47-197-1278 Description Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID Price Qty RecItem View recommended items
Key 1G Horizon # 47-197-1368 Description Gas Valve, Raypak 55A/105A/105B/155A/185A/R185/185, LP, IID Price Qty RecItem View recommended items

Heat Exchanger

Key Horizon # Description Qty
Key 5H Horizon # 47-197-1658 Description Return Header, Raypak 183A, Bronze Price Qty RecItem View recommended items
Key 8H Horizon # 47-197-1842 Description Bolt Kit, Raypak 207A/206A/R185A/R185B Heat Exchanger Price Qty RecItem View recommended items
Key 9H Horizon # 47-197-1414 Description Gasket, Raypak 105A/105B/183A,Heat Xchg,3/4"ID,1-1/8"OD,qty9 Price Qty RecItem View recommended items
Key 9H Horizon # 90-423-6147 Description Gasket, Tube, Raypak 105A/105B/183A Replacement, Generic Price Qty RecItem View recommended items
Key 10H Horizon # 47-197-1416 Description Unitherm Governor, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 11H Horizon # 47-197-1418 Description Unitherm Governor Spring, Raypak 105A/105B/155A/185A/R185 Price Qty RecItem View recommended items
Key 12H Horizon # 47-197-1006 Description Unitherm Governor Plug, Raypak 206A/266A/336A/406A Price Qty RecItem View recommended items
Key 13H Horizon # 47-197-1421 Description Bypass Valve Kit, Raypak 206A - 408A, Plastic Price Qty RecItem
Key 14H Horizon # 47-197-1615 Description Bypass Spring, Raypak 185A/R185/207A/206A Price Qty RecItem View recommended items
Key 15H Horizon # 47-197-1232 Description Drain Valve, Raypak 53/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 16H Horizon # 47-197-1424 Description Sensor Well, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 17H Horizon # Discontinued Description Sensor Clip, Raypak ELS/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 18H Horizon # 47-197-1680 Description Header Drain Plug, Raypak R185/185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 19H Horizon # 47-197-1692 Description Adapter Kit, Raypak R185/R265/R335/R405 Price Qty RecItem View recommended items
Key 21H Horizon # 47-197-1748 Description Heater Flange Kit, Raypak, 2" PVC, with Nut Price Qty RecItem View recommended items
Key 21H Horizon # 89-605-2000 Description Half Union, Heater, Raypak, 2" Slip, w/O-Ring, Gen, Qty 2 Price Qty RecItem View recommended items
Key 22H Horizon # 47-197-1750 Description O-Ring Kit, Qty 2, Raypak 185/R185A/R185B, PVC Connecter Price Qty RecItem View recommended items
Key 26H Horizon # 47-197-1434 Description Gasket, Raypak 105A/105B/155A/185A,Flange,1-5/8"ID,2-5/8"OD Price Qty RecItem View recommended items

Control Box

Key Horizon # Description Qty
Key 1J Horizon # 47-197-1768 Description Transformer, Raypak 55A/R185/185/207A/206A/R185A, 115v/230v Price Qty RecItem View recommended items
Key 2J Horizon # 47-197-1093 Description Rocker Switch, Raypak 130A/207A/206A Price Qty RecItem View recommended items

Miscellaneous Components

Key Horizon # Description Qty
Key 1M Horizon # 47-197-1384 Description Thermal Cut-Off Fuse Kit, Raypak 55A/105A/155A, 130 degree Price Qty RecItem View recommended items
Key 2M Horizon # 47-197-1180 Description Pressure Relief Valve, Raypak 207A/206A/R185A/R185B, 125 psi Price Qty RecItem View recommended items
Key 3M Horizon # 47-197-1101 Description Deliming Kit, Raypak 130A/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 8M Horizon # 47-197-1856 Description Control Bezel Cover, Raypak 206A/207A/R185B Price Qty RecItem View recommended items
Key 9M Horizon # 47-197-1183 Description Gasket, Raypak 207A/206A, Insulation Price Qty RecItem View recommended items
Key 11M Horizon # Discontinued Description Tie Down Bracket, Raypak 207A/206A Price Qty RecItem
Key Horizon # 47-197-2202 Description Protek Shield, Raypak 206A-406A Price Qty RecItem

Pilot

Key Horizon # Description Qty
Key 1P Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 2P Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 2P Horizon # 47-197-1386 Description Pilot Orifice, Raypak 55A/105A/155A/185A/R185/185/206A, IID Price Qty RecItem View recommended items
Key 4P Horizon # 47-197-1318 Description Pilot Tube Assembly, Raypak 53A/55A/105A/155A/185A/R185/185 Price Qty RecItem View recommended items
Key 6P Horizon # 47-197-1249 Description Pilot Shield, Raypak 206A Price Qty RecItem View recommended items

Refractory

Key Horizon # Description Qty
Key 1R Horizon # 47-197-1320 Description Refractory Kit, Raypak 206A, Common Price Qty RecItem View recommended items
Key 2R Horizon # 47-197-1327 Description Refractory Kit, Raypak 266A, Uncommon Price Qty RecItem View recommended items
Key 2R Horizon # 47-197-1329 Description Refractory Kit, Raypak 406A, Uncommon Price Qty RecItem View recommended items
Key 3R Horizon # 47-197-1333 Description Refractory Retainer Kit, Raypak 266A Price Qty RecItem View recommended items
Key 3R Horizon # 47-197-1335 Description Refractory Retainer Kit, Raypak 406A Price Qty RecItem View recommended items

Sheetmetal

Key Horizon # Description Qty
Key 1S Horizon # 47-197-1339 Description Jacket Top, Raypak 266A/267A, Louvered Price Qty RecItem View recommended items
Key 1S Horizon # 47-197-1341 Description Jacket Top, Raypak 406A/407A, Louvered Price Qty RecItem View recommended items
Key 4S Horizon # 47-197-2031 Description Access Panel, Raypak Low NOx/Atmospheric Gas, Metal Header Price Qty RecItem View recommended items
Key 5S Horizon # 47-197-2035 Description Side Panel Jacket, Raypak 206A, Right Price Qty RecItem View recommended items
Key 6S Horizon # 47-197-2036 Description Side Panel Jacket, Raypak 206A, Left Price Qty RecItem View recommended items
Key 7S Horizon # 47-197-2038 Description Rear Panel Jacket, Raypak 266A Price Qty RecItem View recommended items
Key 7S Horizon # 47-197-2040 Description Rear Panel Jacket, Raypak 406A Price Qty RecItem View recommended items
Key 8S Horizon # Discontinued Description Poolstat Lock Box, Raypak 206A/207A/R185A/R185B Price Qty RecItem
Key 9S Horizon # 47-197-2052 Description Hi-Limit Cover, Raypak 207A/206A Price Qty RecItem View recommended items
Key 10S Horizon # 47-197-2054 Description Base Shield, Raypak 207A/206A Price Qty RecItem View recommended items
Key 13S Horizon # 47-197-1894 Description Retainer Kit, Raypak R185A/R185B Price Qty RecItem View recommended items

Venting

Key Horizon # Description Qty
Key 1V Horizon # 47-197-2069 Description Indoor Stack Kit, Raypak 266A/267A Price Qty RecItem
Key 1V Horizon # 47-197-2071 Description Indoor Stack Kit, Raypak 406A/407A Price Qty RecItem View recommended items
Key 1V Horizon # 47-197-2075 Description Outdoor Stack Assembly, Raypak 266A/267A Price Qty RecItem
Key 1V Horizon # 47-197-2077 Description Outdoor Stack Assembly, Raypak 406A/407A Price Qty RecItem
Key 2V Horizon # 47-197-1237 Description Stack Adapter, Raypak 266A/267A Price Qty RecItem View recommended items
Key 2V Horizon # 47-197-1239 Description Stack Adapter, Raypak 406A/407A Price Qty RecItem View recommended items
Key 4V Horizon # 47-197-1194 Description Outer Stack Adapter, Raypak 266A/267A Price Qty RecItem View recommended items
Key 4V Horizon # 47-197-1196 Description Outer Stack Adapter, Raypak 406A/407A Price Qty RecItem View recommended items
