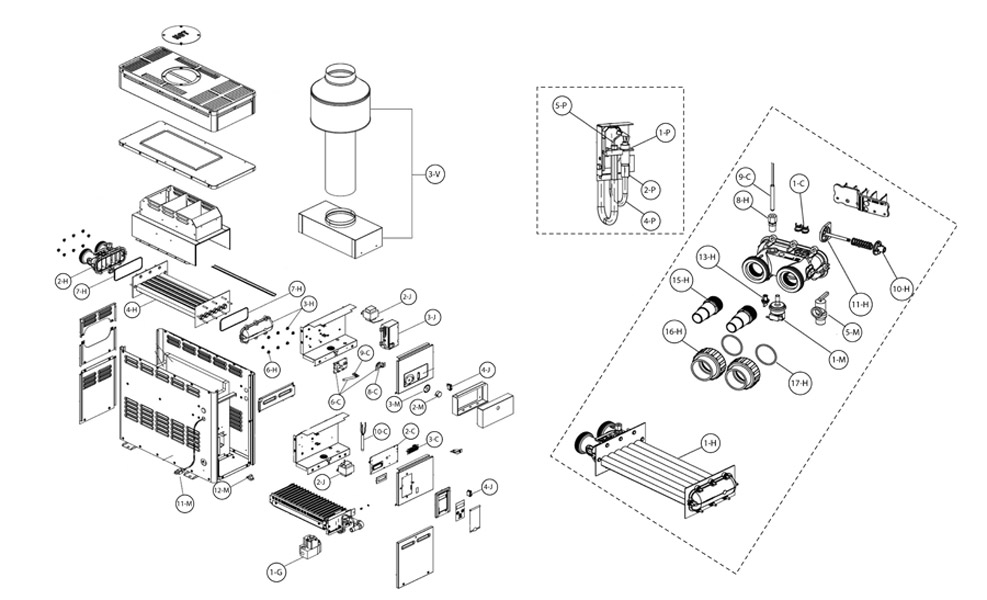

Raypak 106A, 156A Gas Heater

Product Description  ·  Controls  ·  Gas Valve  ·  Heat Exchanger  ·  Control Box  ·  Miscellaneous Components  ·  Pilot  ·  Not Pictured  ·  Venting  ·  Complete Heater
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Controls

Key Horizon # Description Qty
Key 1C Horizon # 47-197-1448 Description Thermostat Auto Reset, Raypak 105B/185/R185A/R185B Price Qty RecItem View recommended items
Key 2C Horizon # 47-197-1705 Description PCB Control, Raypak 185B-405B/206A-406,3 Wire,2004-2022 Price Qty RecItem View recommended items
Key 3C Horizon # Discontinued Description LCD Display Poolstat Kit Price Qty RecItem
Key 6C Horizon # 47-197-1054 Description Thermostat, Raypak 130A, Solid State Price Qty RecItem View recommended items
Key 8C Horizon # 47-197-1056 Description Potentiometer, Raypak 130A Price Qty RecItem View recommended items
Key 9C Horizon # 47-197-1057 Description Sensor, Temperature, Raypak 130A Price Qty RecItem View recommended items
Key 10C Horizon # 47-197-1703 Description Sensor, Temp, Raypak 207A/206A/R185A/R185B, 3 Wire, IID Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1G Horizon # 47-197-2184 Description Combination Gas Valve, Raypak 106A/156A, Propane Price Qty RecItem

Heat Exchanger

Key Horizon # Description Qty
Key 1H Horizon # _014870F Description Heat Exchanger 014870F Raypak Price Qty RecItem
Key 1H Horizon # 47-197-1073 Description Heat Exchanger, Raypak 106A, Polymer Price Qty RecItem
Key 2H Horizon # Discontinued Description Inlet/Outlet Header, Raypak 130A Price Qty RecItem View recommended items
Key 3H Horizon # 47-197-1069 Description Return Header, Raypak 130A Price Qty RecItem View recommended items
Key 4H Horizon # _014875F Description Tube Bundle, Raypak, 156A, Polymer Kit Price Qty RecItem
Key 4H Horizon # 47-197-1576 Description Tube Bundle, Raypak, 106A, Polymer Kit Price Qty RecItem
Key 6H Horizon # 47-197-1841 Description Flange Nut, Raypak 207A/206A/R185A/R185B, 12 each Price Qty RecItem View recommended items
Key 7H Horizon # 47-197-1074 Description O-Ring, Raypak 130A, Header, Quantity 2 Price Qty RecItem View recommended items
Key 8H Horizon # 47-197-1730 Description Sensor Adapter, Raypak 185/130A/R185A/R185B Price Qty RecItem View recommended items
Key 10H Horizon # 47-197-1460 Description Bypass Valve, Raypak 105AB/185/R185A/R185B Price Qty RecItem View recommended items
Key 11H Horizon # 47-197-1736 Description Bypass Shaft, Raypak 185/R185A/R185B Price Qty RecItem View recommended items
Key 13H Horizon # 47-197-1744 Description Drain Plug, Raypak 185/R185A/R185B/Avia, w/ O-Ring Price Qty RecItem View recommended items
Key 15H Horizon # 47-197-1083 Description Hose Adapter, Raypak 130A, 1-1/2"mpt x 1-1/2"Hose Price Qty RecItem View recommended items
Key 16H Horizon # 47-197-1748 Description Heater Flange Kit, Raypak, 2" PVC, with Nut Price Qty RecItem View recommended items
Key 17H Horizon # 47-197-1750 Description O-Ring Kit, Qty 2, Raypak 185/R185A/R185B, PVC Connecter Price Qty RecItem View recommended items

Control Box

Key Horizon # Description Qty
Key 2J Horizon # 47-197-1091 Description Transformer, Raypak, 130A, 115v/230v, 24v Price Qty RecItem View recommended items
Key 2J Horizon # 47-197-1768 Description Transformer, Raypak 55A/R185/185/207A/206A/R185A, 115v/230v Price Qty RecItem View recommended items
Key 3J Horizon # 47-197-1388 Description Ignition Control, Raypak 53A/55A/105A/151/153, with out Lock Price Qty RecItem View recommended items
Key 3J Horizon # 47-197-1390 Description Ignition Control, Raypak 55A/105A/155A/185A/R185, with Lock Price Qty RecItem View recommended items
Key 4J Horizon # 47-197-1093 Description Rocker Switch, Raypak 130A/207A/206A Price Qty RecItem View recommended items

Miscellaneous Components

Key Horizon # Description Qty
Key 1M Horizon # 47-197-1096 Description Pressure Switch, Raypak 130A/207A/206A/R185A/R185B, 11 psi Price Qty RecItem View recommended items
Key 1M Horizon # 47-197-1462 Description Pressure Switch, Raypak 105B/185/130A/207A/R185A, 1.75psi Price Qty RecItem View recommended items
Key 2M Horizon # 47-197-1684 Description Thermostat Knob, Raypak R185/185/R185A/R185B, Black Price Qty RecItem View recommended items
Key 3M Horizon # 47-197-1032 Description Knob Stop, Raypak ELS/53A/55A/105A/105B/153/155A/183A/185A Price Qty RecItem View recommended items
Key 5M Horizon # 47-197-1100 Description Pressure Relief Valve, Raypak 130A/207A/206A/R185A, 125 psi Price Qty RecItem View recommended items
Key 11M Horizon # 47-197-1104 Description Line Cord, Raypak 130A Price Qty RecItem View recommended items
Key 12M Horizon # 47-197-1384 Description Thermal Cut-Off Fuse Kit, Raypak 55A/105A/155A, 130 degree Price Qty RecItem View recommended items

Pilot

Key Horizon # Description Qty
Key 1P Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 2P Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 2P Horizon # 47-197-1386 Description Pilot Orifice, Raypak 55A/105A/155A/185A/R185/185/206A, IID Price Qty RecItem View recommended items
Key 4P Horizon # 47-197-1318 Description Pilot Tube Assembly, Raypak 53A/55A/105A/155A/185A/R185/185 Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # 47-197-1101 Description Deliming Kit, Raypak 130A/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key Horizon # 47-197-2186 Description Wire Harness, Raypak 156A, Digital Price Qty RecItem

Venting

Key Horizon # Description Qty
Key 3V Horizon # 47-197-2181 Description Drafthood, Raypak 106A, Indoor Price Qty RecItem
Key 3V Horizon # 47-197-2182 Description Drafthood, Raypak 156A, Indoor, w/ Adapter Price Qty RecItem

Complete Heater

Key Horizon # Description Qty
Key Horizon # 46-197-2018 Description Heater, LP, Raypak P-R106A-AP-C, 105K BTU, Elec Ignition Price Qty RecItem View recommended items
Key Horizon # 46-197-2020 Description Heater, LP, Raypak P-R156A-EP-C, 150K BTU, Elec Ignition Price Qty RecItem View recommended items
Key Horizon # 46-197-2000 Description Heater, NG, Raypak, P-R106A-AP-C, 105K Btu, 120v, Complete Price Qty RecItem View recommended items
Key Horizon # 46-197-2002 Description Heater, NG, Raypak, P-R156A-EN-C, 150K Btu, 120v, Complete Price Qty RecItem View recommended items
