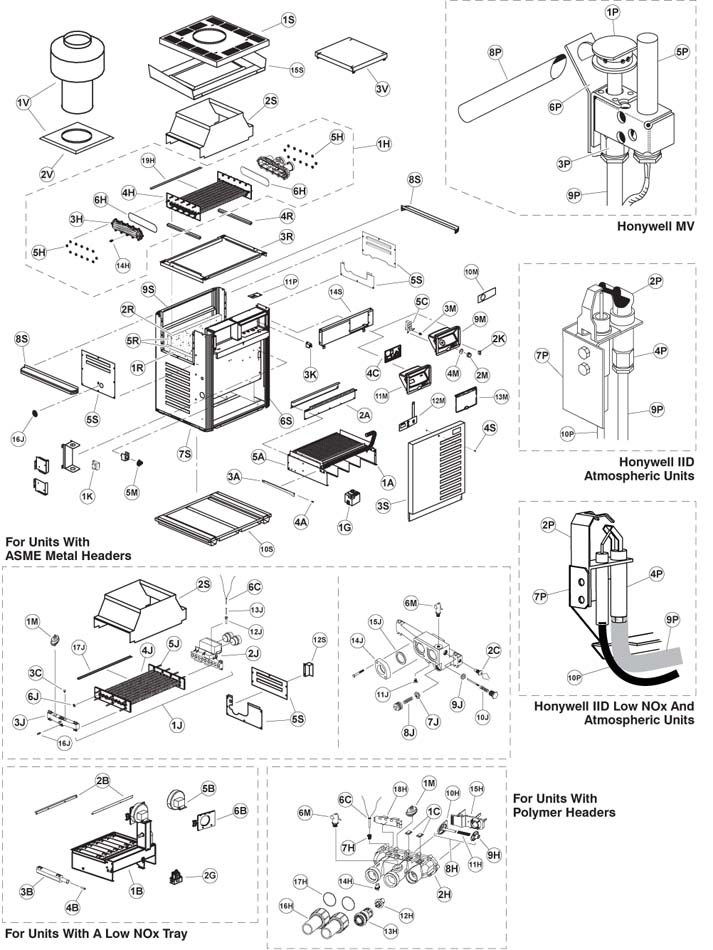

Raypak RP2100 Digital Gas Models R185B, R265B, R335B, R405B

Product Description  ·  Burner Tray (Atmospheric)*  ·  Burner Tray (Fan Assisted Lo NOx)*  ·  Controls  ·  Gas Valve  ·  Heat Exchanger - Polymer  ·  Heat Exchanger - Metal  ·  Control Box  ·  Miscellaneous Components  ·  Pilot  ·  Refractory  ·  Sheet Metal  ·  Venting  ·  Conversion Kits**  ·  Tools
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

For altitudes over 5,000 feet above sea level, consult the factory

Key 4H (excluding the cupro nickel) & 4J - The Hydraulic conditions or water chemistry that caused the tube bundle to fail are also likely to damage the bypass valve and Unitherm Governor. We recommend you replace the Unitherm Governor and inspect the bypass assembly.  Failure to do so could cause premature failure of this replacement part.

* - Replacement burner trays are built for sea level, natural gas applications unless otherwise specified when the order is placed

** - Gas conversions are to be done by a qualified agency

Burner Tray (Atmospheric)*

Key Horizon # Description Qty
Key 1a Horizon # 47-197-1770 Description Burner Tray, Raypak Model R185, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1771 Description Burner Tray, Raypak Model R265, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1772 Description Burner Tray, Raypak Model R335, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1773 Description Burner Tray, Raypak Model R405, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1774 Description Burner Tray, Raypak Model R185, with out Burner, Sea Level Price Qty RecItem View recommended items
Key 1a Horizon # Discontinued Description Burner Tray, Raypak Model R265, with out Burner, Sea Level Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1776 Description Burner Tray, Raypak Model R335, with out Burner, Sea Level Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1777 Description Burner Tray, Raypak Model R405, with out Burner, Sea Level Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1778 Description Burner Tray, Raypak Model R185, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1779 Description Burner Tray, Raypak Model R265, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1780 Description Burner Tray, Raypak Model R335, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1781 Description Burner Tray, Raypak Model R405, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1782 Description Burner Tray, Raypak Model R185, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1783 Description Burner Tray, Raypak Model R265, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1784 Description Burner Tray, Raypak Model R335, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1785 Description Burner Tray, Raypak Model R405, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1786 Description Burner Tray, Raypak Model R185, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1787 Description Burner Tray, Raypak Model R265, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1788 Description Burner Tray, Raypak Model R335, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1789 Description Burner Tray, Raypak Model R405, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1790 Description Burner Tray, Raypak Model R185, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1791 Description Burner Tray, Raypak Model R265, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1792 Description Burner Tray, Raypak Model R335, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 1a Horizon # 47-197-1793 Description Burner Tray, Raypak Model R405, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 2a Horizon # 47-197-1794 Description Burner Spacer/Retainer, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 2a Horizon # Discontinued Description Burner Spacer/Retainer, Raypak R265A/R265B Price Qty RecItem View recommended items
Key 2a Horizon # 47-197-1796 Description Burner Spacer/Retainer, Raypak R335A/R335B Price Qty RecItem View recommended items
Key 2a Horizon # 47-197-1797 Description Burner Spacer/Retainer, Raypak R405A/R405B Price Qty RecItem View recommended items
Key 3a Horizon # 47-197-3200 Description SRV Burner Kit, Raypak, 10 Pack Price Qty RecItem
Key 4a Horizon # Discontinued Description Burner Orifice,Raypak Gemini/Versa/RP2100/Cal III,#51,NG,SL Price Qty RecItem
Key 4a Horizon # 47-197-1470 Description Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III,LP,SL,5ea Price Qty RecItem View recommended items
Key 5a Horizon # 47-197-1800 Description Burner Tray, Raypak Model R185, with out Burner Price Qty RecItem View recommended items
Key 5a Horizon # 47-197-1801 Description Burner Tray, Raypak Model R265, with out Burner Price Qty RecItem View recommended items
Key 5a Horizon # 47-197-1802 Description Burner Tray, Raypak Model R335, with out Burner Price Qty RecItem View recommended items
Key 5a Horizon # 47-197-1803 Description Burner Tray, Raypak Model R405, with out Burner Price Qty RecItem View recommended items
Key 5a Horizon # 47-197-1849 Description Pressure Relief Valve, Raypak R185A/R185B 125 psi Price Qty RecItem

Burner Tray (Fan Assisted Lo NOx)*

Key Horizon # Description Qty
Key 1b Horizon # 47-197-1805 Description Burner Tray, Raypak Model R185, with Burner, 0-5000 foot Price Qty RecItem View recommended items
Key 1b Horizon # Discontinued Description Burner Tray, Raypak Model R265, with Burner, 0-5000 foot Price Qty RecItem
Key 1b Horizon # 47-197-1807 Description Burner Tray, Raypak Model R335, with Burner, 0-5000 foot Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1808 Description Burner Tray, Raypak Model R405, with Burner, 0-5000 foot Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1809 Description Burner Tray, Raypak Model R185, with out Burner, 0-5000 foot Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1810 Description Burner Tray, Raypak Model R265, with out Burner, 0-5000 foot Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1811 Description Burner Tray, Raypak Model R335, with out Burner, 0-5000 foot Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1812 Description Burner Tray, Raypak Model R405, with out Burner, 0-5000 foot Price Qty RecItem View recommended items
Key 2b Horizon # 47-197-1815 Description Burner Retainer, Raypak Model R185 Price Qty RecItem View recommended items
Key 2b Horizon # 47-197-1816 Description Burner Retainer, Raypak Model R265 Price Qty RecItem View recommended items
Key 2b Horizon # 47-197-1817 Description Burner Retainer, Raypak Model R335 Price Qty RecItem View recommended items
Key 2b Horizon # 47-197-1818 Description Burner Retainer, Raypak Model R405 Price Qty RecItem View recommended items
Key 4b Horizon # 47-197-1820 Description Burner Orifice, Raypak 185A/185B/207A, Nat., 0-5000 foot. Price Qty RecItem View recommended items
Key 4b Horizon # Discontinued Description Burner Orifice, Raypak 185A/185B/207A, Nat., Above 5000ft. Price Qty RecItem View recommended items
Key 5b Horizon # 47-197-1823 Description Blower, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 6b Horizon # 47-197-1824 Description Air Shutter, Raypak RP2100 R185A/R185B Price Qty RecItem View recommended items
Key 6b Horizon # 47-197-1825 Description Air Shutter, Raypak RP2100 R265A/R265B/R335A/R335B Price Qty RecItem View recommended items
Key 6b Horizon # 47-197-1826 Description Control Panel, Raypak 2100, R185-R405, IID, w/ Decal Price Qty RecItem View recommended items
Key 6b Horizon # 47-197-1827 Description Air Shutter, Raypak RP2100 R405A/R405B Price Qty RecItem View recommended items

Controls

Key Horizon # Description Qty
Key 1c Horizon # 47-197-1448 Description Thermostat Auto Reset, Raypak 105B/185/R185A/R185B Price Qty RecItem View recommended items
Key 2c Horizon # 47-197-1444 Description T-Stat Auto Reset 13, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 3c Horizon # 47-197-1446 Description T-Stat Auto Reset 14, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 4c Horizon # 47-197-1705 Description PCB Control, Raypak 185B-405B/206A-406,3 Wire,2004-2022 Price Qty RecItem View recommended items
Key 5c Horizon # 47-197-1024 Description Thermostat,Raypak ELS/53/105A/105B/153/155A/183A/185B/RP2100 Price Qty RecItem View recommended items
Key 6c Horizon # 47-197-1703 Description Sensor, Temp, Raypak 207A/206A/R185A/R185B, 3 Wire, IID Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1g Horizon # 47-197-1210 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, Nat., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1212 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, LP., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1278 Description Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1368 Description Gas Valve, Raypak 55A/105A/105B/155A/185A/R185/185, LP, IID Price Qty RecItem View recommended items
Key 2g Horizon # 47-197-1830 Description Combination Gas Valve, Raypak R185B, On/Off, Nat., Low NOx Price Qty RecItem View recommended items

Heat Exchanger - Polymer

Key Horizon # Description Qty
Key 1h Horizon # 47-197-1832 Description Heat Exchanger, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 1h Horizon # 47-197-1833 Description Heat Exchanger, Raypak R265A/R265B Price Qty RecItem View recommended items
Key 1h Horizon # 47-197-1834 Description Heat Exchanger, Raypak R335A/R335B Price Qty RecItem View recommended items
Key 1h Horizon # Discontinued Description Heat Exchanger, Raypak R405A/R405B Price Qty RecItem View recommended items
Key 2h Horizon # 47-197-1710 Description Inlet/Outlet Header, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 2h Horizon # 47-197-1712 Description Inlet/Outlet Header, Raypak 185/207A/206A/R185A/R185B,Capron Price Qty RecItem View recommended items
Key 3h Horizon # 47-197-1714 Description Return Header, Raypak 185/207A/206A/R185A/R185B, Capron Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1716 Description Tube Bundle, Raypak 185/R185A/R185B, Capron Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1718 Description Tube Bundle, Raypak 265/R265A/R265B, Capron Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1720 Description Tube Bundle, Raypak 335/R335A/R335B, Capron Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1724 Description Tube Bundle, Raypak 405/R405A/R405B, Capron Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1837 Description Tube Bundle, Raypak R185A, CuNi, Upgrade Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1839 Description Tube Bundle, Raypak R335A/R336A, CuNi, Upgrade Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1840 Description Tube Bundle, Raypak R405A/R406A, CuNi, Upgrade Price Qty RecItem View recommended items
Key 5h Horizon # 47-197-1726 Description Header Bolt Kit, Raypak 185/R185A/R185B Price Qty RecItem View recommended items
Key 5h Horizon # 47-197-1841 Description Flange Nut, Raypak 207A/206A/R185A/R185B, 12 each Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1728 Description O-Ring Kit, Raypak 185/207A/206A/R185A/R185B, Quantity 2 Price Qty RecItem View recommended items
Key 7h Horizon # 47-197-1730 Description Sensor Adapter, Raypak 185/130A/R185A/R185B Price Qty RecItem View recommended items
Key 7h Horizon # 47-197-1732 Description Sensor Well, Raypak 185/R185A/R185B Price Qty RecItem View recommended items
Key 8h Horizon # 47-197-1734 Description Bypass Assembly, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 9h Horizon # 47-197-1460 Description Bypass Valve, Raypak 105AB/185/R185A/R185B Price Qty RecItem View recommended items
Key 10h Horizon # 47-197-1736 Description Bypass Shaft, Raypak 185/R185A/R185B Price Qty RecItem View recommended items
Key 11h Horizon # 47-197-1738 Description Bypass Spring, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 12h Horizon # 47-197-1740 Description Unitherm Governor, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 13h Horizon # 47-197-1742 Description Unitherm Governor Plug, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 14h Horizon # 47-197-1744 Description Drain Plug, Raypak 185/R185A/R185B/Avia, w/ O-Ring Price Qty RecItem View recommended items
Key 16h Horizon # 47-197-1748 Description Heater Flange Kit, Raypak, 2" PVC, with Nut Price Qty RecItem View recommended items
Key 17h Horizon # 47-197-1750 Description O-Ring, Raypak 185/R185A/R185B, PVC Connecter, Quantity 4 Price Qty RecItem View recommended items
Key 18h Horizon # 47-197-1752 Description Header Baffle, Raypak 206A,266A,366A,406A Price Qty RecItem View recommended items
Key 19h Horizon # 47-197-1670 Description Baffle, Raypak R185/R185A/R185B Price Qty RecItem View recommended items
Key 19h Horizon # 47-197-1672 Description Baffle, Raypak R265/R265A/R265B, Before 6/2013 Price Qty RecItem View recommended items
Key 19h Horizon # 47-197-1674 Description Baffle, Raypak R335/R335A/R335B Price Qty RecItem View recommended items
Key 19h Horizon # 47-197-1676 Description Baffle, Raypak R405/R405A/R405B Price Qty RecItem View recommended items

Heat Exchanger - Metal

Key Horizon # Description Qty
Key 1j Horizon # 47-197-1843 Description Heat Exchanger, Raypak RP2100 R185A/R185B, ASME CI Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-1844 Description Heat Exchanger, Raypak Model 266A/267A/R265A/R265B, ASME CI Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-1845 Description Heat Exchanger, Raypak RP2100 R335A/R335B, ASME CI Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-1846 Description Heat Exchanger, Raypak RP2100 R405A/R405B, ASME CI Price Qty RecItem View recommended items
Key 2j Horizon # 47-197-1754 Description Inlet/Outlet Header, Raypak 185/207A/206A/R185A/R185B, CI Price Qty RecItem View recommended items
Key 2j Horizon # 47-197-1755 Description Inlet/Outlet Header, Raypak 207A/206A/R185A/R185B, Cast Iron Price Qty RecItem View recommended items
Key 3j Horizon # 47-197-1756 Description Return Header, Raypak 185/207A/206A/R185A/R185B, ASME Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1758 Description Tube Bundle, Raypak 185/R185A/R185B, ASME Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1760 Description Tube Bundle, Raypak 265/266A/267A/R265A/R265B Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1762 Description Tube Bundle, Raypak 335/R335A/R335B, ASME Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1764 Description Tube Bundle, Raypak 405/R405A/R405B Price Qty RecItem View recommended items
Key 5j Horizon # 47-197-1842 Description Bolt Kit, Raypak 207A/206A/R185A/R185B Heat Exchanger Price Qty RecItem View recommended items
Key 6j Horizon # 47-197-1414 Description Gasket, Raypak 105A/105B/183A,Heat Xchg,3/4"ID,1-1/8"OD,qty9 Price Qty RecItem View recommended items
Key 7j Horizon # 47-197-1416 Description Unitherm Governor, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 8j Horizon # 47-197-1418 Description Unitherm Governor Spring, Raypak 105A/105B/155A/185A/R185 Price Qty RecItem View recommended items
Key 9J Horizon # 47-197-1420 Description Bypass Valve, Raypak, Versa, Gemini, RP2100, Low Nox Price Qty RecItem
Key 9J Horizon # 47-197-1421 Description Bypass Valve Kit, Raypak 206A - 408A, Plastic Price Qty RecItem
Key 10J Horizon # Discontinued Description Bypass Spring, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem View recommended items
Key 10J Horizon # 47-197-3422 Description Bypass Spring Kit, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem
Key 11j Horizon # 47-197-1232 Description Drain Valve, Raypak 53/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 12j Horizon # 47-197-1424 Description Sensor Well, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 13j Horizon # Discontinued Description Sensor Clip, Raypak ELS/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 14j Horizon # 47-197-1430 Description Flange Kit, Raypak 105A/105B/155A/185A/R185/207A, In/Out Price Qty RecItem View recommended items
Key 15j Horizon # 47-197-1434 Description Gasket, Raypak 105A/105B/155A/185A,Flange,1-5/8"ID,2-5/8"OD Price Qty RecItem View recommended items
Key 15j Horizon # 47-197-1436 Description Gasket, Raypak 105A/105B/155A/185, 2-1/8"ID, 2-3/4"OD, qty 2 Price Qty RecItem View recommended items
Key 16j Horizon # 47-197-1680 Description Header Drain Plug, Raypak R185/185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 17j Horizon # 47-197-1670 Description Baffle, Raypak R185/R185A/R185B Price Qty RecItem View recommended items
Key 17j Horizon # 47-197-1672 Description Baffle, Raypak R265/R265A/R265B, Before 6/2013 Price Qty RecItem View recommended items
Key 17j Horizon # 47-197-1674 Description Baffle, Raypak R335/R335A/R335B Price Qty RecItem View recommended items
Key 17j Horizon # 47-197-1676 Description Baffle, Raypak R405/R405A/R405B Price Qty RecItem View recommended items

Control Box

Key Horizon # Description Qty
Key 1k Horizon # 47-197-1768 Description Transformer, Raypak 55A/R185/185/207A/206A/R185A, 115v/230v Price Qty RecItem View recommended items
Key 2k Horizon # 47-197-1464 Description Rocker Switch, Raypak 105B/R185/185/R185A/R185B Price Qty RecItem View recommended items
Key 3k Horizon # 47-197-1155 Description Relay, Raypak 207A/D-2/R185A/R185B, 24vac, DPDT Price Qty RecItem View recommended items

Miscellaneous Components

Key Horizon # Description Qty
Key 1m Horizon # 47-197-1096 Description Pressure Switch, Raypak 130A/207A/206A/R185A/R185B, 11 psi Price Qty RecItem View recommended items
Key 1m Horizon # 47-197-1462 Description Pressure Switch, Raypak 105B/185/130A/207A/R185A, 1.75psi Price Qty RecItem View recommended items
Key 2m Horizon # 47-197-1684 Description Thermostat Knob, Raypak R185/185/R185A/R185B, Black Price Qty RecItem View recommended items
Key 3m Horizon # Discontinued Description Shaft Extension, Raypak R185/185/206A/R185A/R185B Price Qty RecItem
Key 4m Horizon # 47-197-1032 Description Knob Stop, Raypak ELS/53A/55A/105A/105B/153/155A/183A/185A Price Qty RecItem View recommended items
Key 5m Horizon # 47-197-1384 Description Thermal Cut-Off Fuse Kit, Raypak 55A/105A/155A, 130 degree Price Qty RecItem View recommended items
Key 5m Horizon # 47-197-1848 Description Roll Out Switch, Raypak 207A/R185A/R185B Price Qty RecItem View recommended items
Key 6m Horizon # 47-197-1100 Description Pressure Relief Valve, Raypak 130A/207A/206A/R185A, 125 psi Price Qty RecItem View recommended items
Key 6m Horizon # 47-197-1180 Description Pressure Relief Valve, Raypak 207A/206A/R185A/R185B, 125 psi Price Qty RecItem View recommended items
Key 6m Horizon # 47-197-1849 Description Pressure Relief Valve, Raypak R185A/R185B 125 psi Price Qty RecItem
Key 9m Horizon # 47-197-1852 Description Control Panel, Raypak 206A/R185B, with Decal, MV Price Qty RecItem View recommended items
Key 10m Horizon # 47-197-1853 Description Dial Decal, Raypak R185B Price Qty RecItem View recommended items
Key 11m Horizon # 47-197-1854 Description Ctrl Panel, Raypak 207A/206A/R185B,w/ Decal,IID,Before5/2011 Price Qty RecItem View recommended items
Key 12m Horizon # 47-197-1855 Description Touchpad, Raypak 207A/206A/R185B, Before 5/2011 Price Qty RecItem View recommended items
Key 13m Horizon # 47-197-1856 Description Control Bezel Cover, Raypak 206A/207A/R185B Price Qty RecItem View recommended items
Key Horizon # 47-197-1101 Description Deliming Kit, Raypak 130A/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key Horizon # 47-197-1850 Description Wire Harness, Raypak R185A/R185B, MV Price Qty RecItem View recommended items
Key Horizon # 47-197-1851 Description Wire Harness, Raypak R185B/206A, IID Price Qty RecItem View recommended items
Key Horizon # 47-197-1857 Description Control Dial, Raypak 206A/R185B Price Qty RecItem View recommended items

Pilot

Key Horizon # Description Qty
Key 1p Horizon # 47-197-1242 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, Nat., MV Price Qty RecItem View recommended items
Key 1p Horizon # 47-197-1244 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, LP, MV Price Qty RecItem View recommended items
Key 2p Horizon # 47-197-1247 Description Pilot, Raypak R185A/R185B, Nat., IID Price Qty RecItem View recommended items
Key 2p Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1246 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, Nat., MV Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1248 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, LP, MV Price Qty RecItem View recommended items
Key 4p Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 4p Horizon # 47-197-1386 Description Pilot Orifice, Raypak 55A/105A/155A/185A/R185/185/206A, IID Price Qty RecItem View recommended items
Key 5p Horizon # 47-197-1250 Description Thermocouple, Raypak 53/53A/55A/105A/151/153/155A, MV Price Qty RecItem View recommended items
Key 6P Horizon # Discontinued Description Pilot Mounting Bracket, Raypak Gemini/Versa/RP2100 Price Qty RecItem View recommended items
Key 6P Horizon # 47-197-3628 Description Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100 Price Qty RecItem
Key 7p Horizon # Discontinued Description Pilot Mounting Bracket, Raypak Gemini/Versa/RP2100, IID Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-1633 Description Pilot Mounting Bracket, Raypak R185A/R185B, Low NOx, IID Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-3232 Description Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100, IID Price Qty RecItem
Key 8P Horizon # 47-197-1636 Description Lighter Tube, Raypak 185A/R185/185/206A/R185A/R185B Price Qty RecItem View recommended items
Key 9p Horizon # 47-197-1318 Description Pilot Tube Assembly, Raypak 53A/55A/105A/155A/185A/R185/185 Price Qty RecItem View recommended items
Key 10p Horizon # 47-197-1564 Description Electrode,Raypak 55A/155A/R185/185,IID,w/High Tension Wire Price Qty RecItem
Key 11p Horizon # 47-197-1642 Description Pilot Shield, Raypak R185/185/R185A/R185B Price Qty RecItem View recommended items

Refractory

Key Horizon # Description Qty
Key 1r Horizon # 47-197-1860 Description Refractory Kit, Raypak R185A/R185B, Common Price Qty RecItem View recommended items
Key 2r Horizon # 47-197-1861 Description Refractory Kit, Raypak R185A/R185B, Uncommon Price Qty RecItem View recommended items
Key 2r Horizon # Discontinued Description Refractory Kit, Raypak R265A/R265B, Uncommon Price Qty RecItem View recommended items
Key 2r Horizon # 47-197-1863 Description Refractory Kit, Raypak R335A/R335B, Uncommon Price Qty RecItem View recommended items
Key 2r Horizon # 47-197-1864 Description Refractory Kit, Raypak R405A/R405B, Uncommon Price Qty RecItem View recommended items
Key 3r Horizon # 47-197-1865 Description Refractory Retainer Kit, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 3r Horizon # 47-197-1866 Description Refractory Retainer Kit, Raypak R265A/R265B Price Qty RecItem View recommended items
Key 3r Horizon # 47-197-1867 Description Refractory Retainer Kit, Raypak R335A/R335B Price Qty RecItem View recommended items
Key 3r Horizon # 47-197-1868 Description Refractory Retainer Kit, Raypak R405A/R405B Price Qty RecItem View recommended items
Key 4r Horizon # 47-197-1869 Description Insulation Strips, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 5r Horizon # 47-197-1870 Description Refractory, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 5r Horizon # 47-197-1871 Description Refractory, Raypak R265A/R265B Price Qty RecItem View recommended items
Key 5r Horizon # 47-197-1872 Description Refractory, Raypak R335A/R335B Price Qty RecItem View recommended items
Key 5r Horizon # 47-197-1873 Description Refractory, Raypak R405A/R405B Price Qty RecItem View recommended items

Sheet Metal

Key Horizon # Description Qty
Key 1s Horizon # Discontinued Description Jacket Top, Raypak R185A/R185B, Louvered Price Qty RecItem View recommended items
Key 1s Horizon # Discontinued Description Jacket Top, Raypak R265A/R265B, Louvered Price Qty RecItem View recommended items
Key 1s Horizon # 47-197-1877 Description Jacket Top, Raypak R335A/R335B, Louvered Price Qty RecItem View recommended items
Key 1s Horizon # 47-197-1878 Description Jacket Top, Raypak R405A/R405B, Louvered Price Qty RecItem View recommended items
Key 2s Horizon # Discontinued Description Flue Collector, Raypak R185A/185B, Capron Head Price Qty RecItem
Key 2s Horizon # Discontinued Description Flue Collector, Raypak R265A/265B, Capron Head Price Qty RecItem
Key 2s Horizon # Discontinued Description Flue Collector, Raypak R335A/335B, Capron Head Price Qty RecItem
Key 2s Horizon # Discontinued Description Flue Collector, Raypak R405A/405B, Capron Head Price Qty RecItem
Key 2s Horizon # 47-197-1884 Description Flue Collector, Raypak R185A/185B, Metal Head Price Qty RecItem View recommended items
Key 2s Horizon # 47-197-1885 Description Flue Collector, Raypak R265A/265B, Metal Head Price Qty RecItem View recommended items
Key 2s Horizon # 47-197-1886 Description Flue Collector, Raypak R335A/335B, Metal Head Price Qty RecItem View recommended items
Key 2s Horizon # 47-197-1887 Description Flue Collector, Raypak R405A/405B, Metal Head Price Qty RecItem View recommended items
Key 3s Horizon # Discontinued Description Door Assembly, Raypak R185B Price Qty RecItem
Key 3s Horizon # Discontinued Description Door Assembly, Raypak R265B Price Qty RecItem
Key 3s Horizon # Discontinued Description Door Assembly, Raypak R335B Price Qty RecItem
Key 3s Horizon # Discontinued Description Door Assembly, Raypak R405B Price Qty RecItem
Key 4s Horizon # 47-197-1894 Description Retainer Kit, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 5s Horizon # 47-197-1895 Description Access Panel, Raypak RP2100 Digital, Capron Header Price Qty RecItem View recommended items
Key 5s Horizon # Discontinued Description Access Panel, Raypak RP2100 Digital, Metal Header Price Qty RecItem
Key 6s Horizon # Discontinued Description Side Panel, Raypak R185A/R185B, Right Price Qty RecItem
Key 7s Horizon # Discontinued Description Side Panel, Raypak R185A/R185B, Left Price Qty RecItem
Key 8s Horizon # 47-197-1899 Description Side Panel, Raypak R185A/R185B, Cap Price Qty RecItem View recommended items
Key 9s Horizon # 47-197-1900 Description Rear Panel Kit, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 9s Horizon # 47-197-1901 Description Rear Panel Kit, Raypak R265A/R265B Price Qty RecItem View recommended items
Key 9s Horizon # 47-197-1902 Description Rear Panel Kit, Raypak R335A/R335B Price Qty RecItem View recommended items
Key 9s Horizon # 47-197-1903 Description Rear Panel Kit, Raypak R405A/R405B Price Qty RecItem View recommended items
Key 10s Horizon # Discontinued Description Combustible Flooring Sub-Base, Raypak R185A/R185B Price Qty RecItem
Key 10s Horizon # Discontinued Description Combustible Flooring Sub-Base, Raypak R265A/R265B Price Qty RecItem
Key 10s Horizon # Discontinued Description Combustible Flooring Sub-Base, Raypak R335A/R335B Price Qty RecItem
Key 10s Horizon # Discontinued Description Combustible Flooring Sub-Base, Raypak R405A/R405B Price Qty RecItem
Key 12s Horizon # 47-197-1909 Description Hi-Limit Cover, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 14s Horizon # Discontinued Description Front Control Panel, Raypak R185B Price Qty RecItem
Key 14s Horizon # Discontinued Description Front Control Panel, Raypak R265B Price Qty RecItem
Key 14s Horizon # Discontinued Description Front Control Panel, Raypak R335B Price Qty RecItem
Key 14s Horizon # Discontinued Description Front Control Panel, Raypak R405B Price Qty RecItem
Key 15s Horizon # 47-197-1918 Description Weather Shield, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 15s Horizon # 47-197-1919 Description Weather Shield, Raypak R265A/R265B Price Qty RecItem View recommended items
Key 15s Horizon # 47-197-1920 Description Weather Shield, Raypak R335A/R335B Price Qty RecItem View recommended items
Key 15s Horizon # 47-197-1921 Description Weather Shield, Raypak R405A/R405B Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Poolstat Lock Box, Raypak 206A/207A/R185A/R185B Price Qty RecItem
Key Horizon # 47-197-1910 Description Base Shield, Raypak R185A/R185B Price Qty RecItem View recommended items
Key Horizon # 47-197-1911 Description Base Shield, Raypak R265A/R265B Price Qty RecItem View recommended items
Key Horizon # 47-197-1912 Description Base Shield, Raypak R335A/R335B Price Qty RecItem View recommended items
Key Horizon # 47-197-1913 Description Base Shield, Raypak R405A/R405B Price Qty RecItem View recommended items

Venting

Key Horizon # Description Qty
Key 1v Horizon # 47-197-1925 Description Indoor Stack Kit, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 1v Horizon # 47-197-1926 Description Indoor Stack Kit, Raypak R165A/R265B Price Qty RecItem View recommended items
Key 1v Horizon # 47-197-1927 Description Indoor Stack Kit, Raypak R335A/R335B Price Qty RecItem View recommended items
Key 1v Horizon # 47-197-1928 Description Indoor Stack Kit, Raypak R405A/R405B Price Qty RecItem View recommended items
Key 2v Horizon # 47-197-1929 Description Stack Adapter, Raypak R185A/R185B Price Qty RecItem View recommended items
Key 2v Horizon # 47-197-1930 Description Stack Adapter, Raypak R265A/R265B Price Qty RecItem View recommended items
Key 2v Horizon # 47-197-1931 Description Stack Adapter, Raypak R335A/R335B Price Qty RecItem View recommended items
Key 2v Horizon # 47-197-1932 Description Stack Adapter, Raypak R405A/R405B Price Qty RecItem View recommended items
Key 3v Horizon # 47-197-1933 Description Heater Top, Raypak RP2100 Digital, R185 Price Qty RecItem View recommended items
Key 3v Horizon # 47-197-1934 Description Heater Top, Raypak RP2100 Digital, R265 Price Qty RecItem View recommended items
Key 3v Horizon # Discontinued Description Heater Top, Raypak RP2100 Digital, R335 Price Qty RecItem
Key 3v Horizon # Discontinued Description Heater Top, Raypak RP2100 Digital, R405 Price Qty RecItem

Conversion Kits**

Key Horizon # Description Qty
Key Horizon # Discontinued Description Conversion Kit, Raypak R185A/R185B/R265A/R265B, Nat. to LP Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Conversion Kit, Raypak R335A/R335B/R405A/R405B, Nat. to LP Price Qty RecItem View recommended items
Key Horizon # 47-197-1940 Description Conversion Kit, Raypak R185A/R185B/R265A/R265B, LP to Nat. Price Qty RecItem View recommended items
Key Horizon # 47-197-1941 Description Conversion Kit, Raypak R335A/R335B/R405A/R405B, LP to Nat. Price Qty RecItem View recommended items

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1010 Description Tool, Socket for Governor Plug, Raypak/Sta-Rite Price Qty RecItem View recommended items
 Print
Back to Top  ·  Product Description  ·  Burner Tray (Atmospheric)*  ·  Burner Tray (Fan Assisted Lo NOx)*  ·  Controls  ·  Gas Valve  ·  Heat Exchanger - Polymer  ·  Heat Exchanger - Metal  ·  Control Box  ·  Miscellaneous Components  ·  Pilot  ·  Refractory  ·  Sheet Metal  ·  Venting  ·  Conversion Kits**  ·  Tools
X

Recommended Items

Tech Tip:
Product Description here
Add
X

The item you selected has comparable choices of varying qualities

X

Looking for manufacturer information, stock status and pricing? Log in now to access to all this information and more!


Quantity:    Add  View recommended items
Details

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add
X Cart Updated
