Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Heaters  >  46-197-W032

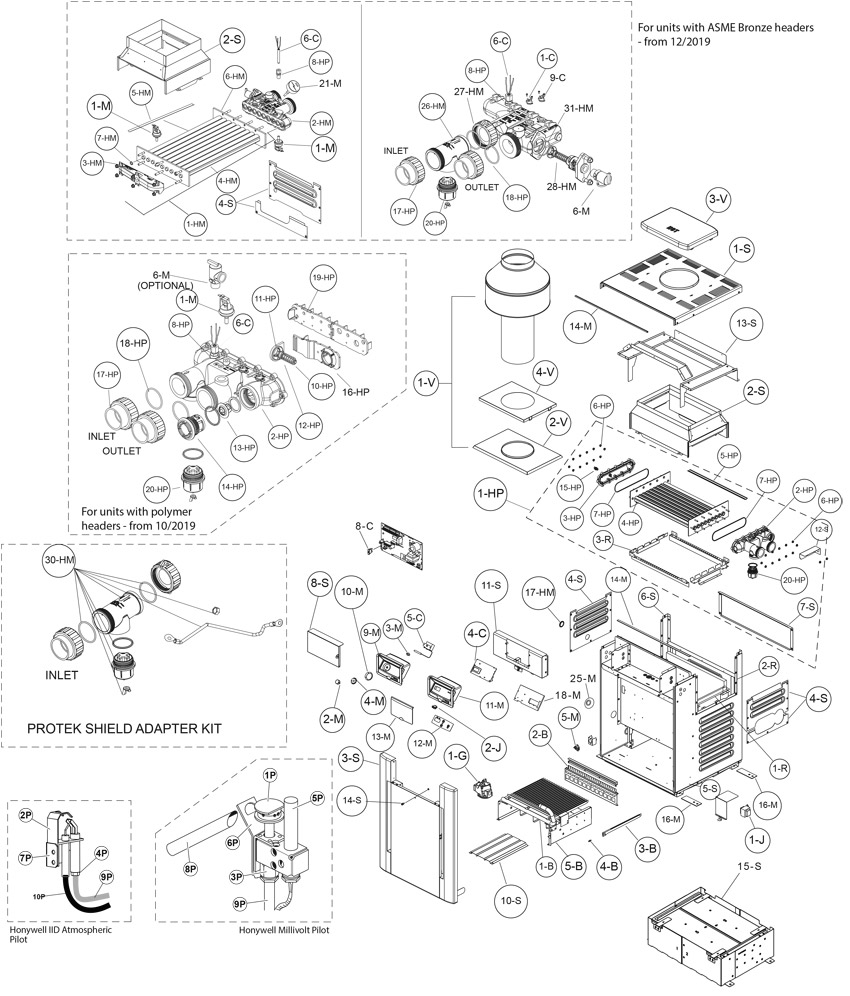

Raypak 206A-406A Digital Atmos, Bronze ASME Polymer, 2023 +

Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger - Polymer  ·  Heat Exchanger - Metal (ASME)  ·  Control Box  ·  Miscellaneous Components  ·  Pilot  ·  Refractory  ·  Sheet Metal  ·  Venting  ·  Complete Heater  ·  Not Pictured  ·  Atmospheric Conversion Kits
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

For altitudes over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level.



Key 4HP - The Hydraulic conditions or water chemistry that caused the tube bundle to fail are also likely to damage the bypass valve and Unitherm Governor. We recommend you replace the Unitherm Governor and inspect the bypass assembly.  Failure to do so could cause premature failure of this replacement part.

**Copper and Cupronickel heat exchangers and tube bundles are not interchangeable. Units with suffix "C" must use copper replacement parts and units with suffix "X" must use Cupronickel replacement parts.



* - Gas conversions are to be done only by a qualified agency

Burner Tray

Key Horizon # Description Qty
Key 1B Horizon # 47-197-1965 Description Burner Tray, Raypak Model 206A, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1966 Description Burner Tray, Raypak Model 266A, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1967 Description Burner Tray, Raypak Model 336A, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1968 Description Burner Tray, Raypak Model 406A, w/Natural Burner, Sea Level Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1975 Description Burner Tray, Raypak Model 206A, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1976 Description Burner Tray, Raypak Model 266A, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1977 Description Burner Tray, Raypak Model 336A, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1978 Description Burner Tray, Raypak Model 406A, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1979 Description Burner Tray, Raypak Model 206A, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1980 Description Burner Tray, Raypak Model 266A, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1981 Description Burner Tray, Raypak Model 336A, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1982 Description Burner Tray, Raypak Model 406A, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1985 Description Burner Tray, Raypak Model 206A, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1986 Description Burner Tray, Raypak Model 266A, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1987 Description Burner Tray, Raypak Model 336A, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1988 Description Burner Tray, Raypak Model 406A, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1989 Description Burner Tray, Raypak Model 206A, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1990 Description Burner Tray, Raypak Model 266A, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1991 Description Burner Tray, Raypak Model 336A, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-1992 Description Burner Tray, Raypak Model 406A, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 2B Horizon # 47-197-1993 Description Burner Spacer, Raypak 206A Price Qty RecItem View recommended items
Key 2B Horizon # 47-197-1994 Description Burner Spacer, Raypak 266A Price Qty RecItem View recommended items
Key 2B Horizon # 47-197-1995 Description Burner Spacer, Raypak 336A Price Qty RecItem View recommended items
Key 2B Horizon # 47-197-1996 Description Burner Spacer, Raypak 406A Price Qty RecItem View recommended items
Key 3B Horizon # 47-197-3200 Description SRV Burner Kit, Raypak, 10 Pack Price Qty RecItem
Key 4B Horizon # 47-197-1048 Description Burner Orifice, Raypak Model 130A, Nat., Sea Level Price Qty RecItem View recommended items
Key 4B Horizon # 47-197-1049 Description Burner Orifice, Raypak Model 130A, LP, Sea Level Price Qty RecItem View recommended items
Key 4B Horizon # 47-197-1350 Description Burner Orifice, 5 Pk, Raypak Model 53A/55A, Nat., Sea Level Price Qty RecItem View recommended items
Key 4B Horizon # 47-197-1469 Description Burner Orifice, Raypak Model 206A/266A/336A, Nat., Sea Level Price Qty RecItem View recommended items
Key 4B Horizon # 47-197-1470 Description Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III,LP,SL,5ea Price Qty RecItem View recommended items
Key 5B Horizon # 47-197-1471 Description Burner Tray, Raypak Model 206A, with out Burner Price Qty RecItem View recommended items
Key 5B Horizon # 47-197-1472 Description Burner Tray, Raypak Model 266A, without Burner Price Qty RecItem View recommended items
Key 5B Horizon # 47-197-1473 Description Burner Tray, Raypak Model 336A, with out Burner Price Qty RecItem View recommended items
Key 5B Horizon # 47-197-1474 Description Burner Tray, Raypak Model 406A, with out Burner Price Qty RecItem View recommended items

Controls

Key Horizon # Description Qty
Key 1C Horizon # 47-197-1448 Description Thermostat Auto Reset, Raypak 105B/185/R185A/R185B Price Qty RecItem View recommended items
Key 4C Horizon # 47-197-1707 Description PCB Controller IID Kit, Raypak 206A-408A, 3-Wire, Current Price Qty RecItem
Key 5C Horizon # 47-197-1024 Description Thermostat,Raypak ELS/53/105A/105B/153/155A/183A/185B/RP2100 Price Qty RecItem View recommended items
Key 6C Horizon # 47-197-1703 Description Sensor, Temp, Raypak 207A/206A/R185A/R185B, 3 Wire, IID Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1G Horizon # 47-197-1210 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, Nat., MV Price Qty RecItem View recommended items
Key 1G Horizon # 47-197-1212 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, LP., MV Price Qty RecItem View recommended items
Key 1G Horizon # 47-197-1278 Description Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID Price Qty RecItem View recommended items
Key 1G Horizon # 47-197-1368 Description Gas Valve, Raypak 55A/105A/105B/155A/185A/R185/185, LP, IID Price Qty RecItem View recommended items

Heat Exchanger - Polymer

Key Horizon # Description Qty
Key 1HP Horizon # 47-197-1528 Description Heat Exchanger, Raypak Model 206A/207A, Polymer Price Qty RecItem View recommended items
Key 1HP Horizon # 47-197-1529 Description Heat Exchanger, Raypak Model 266A/267A, Polymer Price Qty RecItem View recommended items
Key 1HP Horizon # 47-197-1530 Description Heat Exchanger, Raypak Model 336A/337A, Polymer Price Qty RecItem View recommended items
Key 1HP Horizon # 47-197-1532 Description Heat Exchanger, Raypak Model 206A/207A, CuNi, Before 7/2013 Price Qty RecItem View recommended items
Key 1HP Horizon # 47-197-1533 Description Heat Exchanger, Raypak Model 266A/267A, CuNi, Before 7/2013 Price Qty RecItem View recommended items
Key 1HP Horizon # 47-197-1534 Description Heat Exchanger, Raypak Model 336A/337A, CuNi, Before 7/2013 Price Qty RecItem View recommended items
Key 1HP Horizon # 47-197-1535 Description Heat Exchanger, Raypak Model 406A/407A, CuNi, Before 7/2013 Price Qty RecItem View recommended items
Key 1HP Horizon # 47-197-2003 Description Heat Exchanger Kit, Raypak 266/267 Price Qty RecItem View recommended items
Key 2HP Horizon # 47-197-1710 Description Inlet/Outlet Header, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 2HP Horizon # 47-197-2004 Description Inlet/Outlet Header Kit, Raypak 206-407, Polymer, w/ Anode Price Qty RecItem
Key 3HP Horizon # 47-197-1002 Description Return Header, Raypak 206A - 407A, w/ Flange Nut Kit Price Qty RecItem View recommended items
Key 4HP Horizon # 47-197-1538 Description Tube Bundle, Raypak 206A/207A, Copper/Polymer Price Qty RecItem View recommended items
Key 4HP Horizon # 47-197-1539 Description Tube Bundle, Raypak 266A/267A, Copper/Polymer Price Qty RecItem View recommended items
Key 4HP Horizon # 47-197-1540 Description Tube Bundle, Raypak 336A/337A, Copper/Polymer Price Qty RecItem View recommended items
Key 4HP Horizon # 47-197-1541 Description Tube Bundle, Raypak 406A/407A, Copper/Polymer Price Qty RecItem View recommended items
Key 5HP Horizon # 47-197-1667 Description Baffle, Raypak 206A/207A, Before 6/2013 Price Qty RecItem View recommended items
Key 5HP Horizon # 47-197-1668 Description Baffle, Raypak 336A/337A, Before 6/2013 Price Qty RecItem View recommended items
Key 5HP Horizon # 47-197-1669 Description Baffle, Raypak 406A/407A, Before 6/2013 Price Qty RecItem View recommended items
Key 5HP Horizon # 47-197-1672 Description Baffle, Raypak R265/R265A/R265B, Before 6/2013 Price Qty RecItem View recommended items
Key 6HP Horizon # 47-197-1841 Description Flange Nut, Raypak 207A/206A/R185A/R185B, 12 each Price Qty RecItem View recommended items
Key 7HP Horizon # 47-197-1728 Description O-Ring Kit, Raypak 185/207A/206A/R185A/R185B, Quantity 2 Price Qty RecItem View recommended items
Key 8HP Horizon # 47-197-1730 Description Sensor Adapter, Raypak 185/130A/R185A/R185B Price Qty RecItem View recommended items
Key 8HP Horizon # 47-197-1732 Description Sensor Well, Raypak 185/R185A/R185B Price Qty RecItem View recommended items
Key 10HP Horizon # 47-197-1460 Description Bypass Valve, Raypak 105AB/185/R185A/R185B Price Qty RecItem View recommended items
Key 11HP Horizon # 47-197-1736 Description Bypass Shaft, Raypak 185/R185A/R185B Price Qty RecItem View recommended items
Key 12HP Horizon # 47-197-1738 Description Bypass Spring, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 13HP Horizon # 47-197-1740 Description Unitherm Governor, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 14HP Horizon # 47-197-1742 Description Unitherm Governor Plug, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 15HP Horizon # 47-197-1744 Description Drain Plug, Raypak 185/R185A/R185B/Avia, w/ O-Ring Price Qty RecItem View recommended items
Key 17HP Horizon # 47-197-1748 Description Heater Flange Kit, Raypak, 2" PVC, with Nut Price Qty RecItem View recommended items
Key 18HP Horizon # 47-197-1750 Description O-Ring, Raypak 185/R185A/R185B, PVC Connecter, Quantity 4 Price Qty RecItem View recommended items
Key 19HP Horizon # 47-197-1752 Description Header Baffle, Raypak 206A,266A,366A,406A Price Qty RecItem View recommended items
Key 20HP Horizon # 47-197-2202 Description Protek Shield, Raypak 206A-406A Price Qty RecItem
Key Horizon # 47-197-1734 Description Bypass Assembly, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items

Heat Exchanger - Metal (ASME)

Key Horizon # Description Qty
Key 1HM Horizon # 47-197-2000 Description Heat Exchanger, Raypak 206A/207A, Copper Price Qty RecItem View recommended items
Key 1HM Horizon # 47-197-2001 Description Heat Exchanger, Raypak 336A/337A, Copper Price Qty RecItem View recommended items
Key 1HM Horizon # 47-197-2002 Description Heat Exchanger, Raypak 406A/407A, Copper Price Qty RecItem View recommended items
Key 1HM Horizon # 47-197-2005 Description Heat Exchanger, Raypak 206A/207A, CuNi Price Qty RecItem View recommended items
Key 1HM Horizon # 47-197-2006 Description Heat Exchanger, Raypak 266A/267A, CuNi Price Qty RecItem View recommended items
Key 1HM Horizon # 47-197-2007 Description Heat Exchanger, Raypak 336A/337A, CuNi Price Qty RecItem View recommended items
Key 1HM Horizon # 47-197-2008 Description Heat Exchanger, Raypak 406A/407A, CuNi Price Qty RecItem View recommended items
Key 2HM Horizon # 47-197-1754 Description Inlet/Outlet Header, Raypak 185/207A/206A/R185A/R185B, CI Price Qty RecItem View recommended items
Key 2HM Horizon # 47-197-1755 Description Inlet/Outlet Header, Raypak 207A/206A/R185A/R185B, Cast Iron Price Qty RecItem View recommended items
Key 2HM Horizon # 47-197-1757 Description Inlet/Outlet Header, Raypak 206-267 ASME Bronze Price Qty RecItem
Key 3HM Horizon # 47-197-1715 Description Return Header, Raypak 206A - 407A, Bronze, 7/2020-Present Price Qty RecItem
Key 3HM Horizon # 47-197-1756 Description Return Header, Raypak 185/207A/206A/R185A/R185B, ASME Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-1546 Description Tube Bundle, Raypak 206A/207A, CuNi/Metal Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-1547 Description Tube Bundle, Raypak 266A/267A, CuNi/Metal Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-1548 Description Tube Bundle, Raypak 336A/337A, CuNi/Metal Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-1549 Description Tube Bundle, Raypak 406A/407A, CuNi/Metal Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-1759 Description Tube Bundle, Raypak 206A/207A, ASME Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-1760 Description Tube Bundle, Raypak 265/266A/267A/R265A/R265B Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-1761 Description Tube Bundle, Raypak 336A/337A, ASME Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-1763 Description Tube Bundle, Raypak 406A/407A, ASME Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-2260 Description Tube Bundle, Raypak 206A/207A, Copper ASME, After 12/2019 Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-2262 Description Tube Bundle, Raypak 266A/267A, Copper ASME, After 12/2019 Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-2264 Description Tube Bundle, Raypak 336A/337A, Copper ASME, After 12/2019 Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-2266 Description Tube Bundle, Raypak 406A/407A, Copper ASME, After 12/2019 Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-2268 Description Tube Bundle, Raypak 206A/207A,Cupronickel ASME,After 12/2019 Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-2270 Description Tube Bundle, Raypak 266A/267A,Cupronickel ASME,After 12/2019 Price Qty RecItem View recommended items
Key 4HM Horizon # 47-197-2272 Description Tube Bundle, Raypak 336A/337A,Cupronickel ASME,After 12/2019 Price Qty RecItem View recommended items
Key 5HM Horizon # 47-197-1667 Description Baffle, Raypak 206A/207A, Before 6/2013 Price Qty RecItem View recommended items
Key 5HM Horizon # 47-197-1668 Description Baffle, Raypak 336A/337A, Before 6/2013 Price Qty RecItem View recommended items
Key 5HM Horizon # 47-197-1669 Description Baffle, Raypak 406A/407A, Before 6/2013 Price Qty RecItem View recommended items
Key 5HM Horizon # 47-197-1672 Description Baffle, Raypak R265/R265A/R265B, Before 6/2013 Price Qty RecItem View recommended items
Key 6HM Horizon # 47-197-1842 Description Bolt Kit, Raypak 207A/206A/R185A/R185B Heat Exchanger Price Qty RecItem View recommended items
Key 7HM Horizon # 47-197-1414 Description Gasket, Raypak 105A/105B/183A,Heat Xchg,3/4"ID,1-1/8"OD,qty9 Price Qty RecItem View recommended items
Key 17HM Horizon # 47-197-1680 Description Header Drain Plug, Raypak R185/185/207A/206A/R185A/R185B Price Qty RecItem View recommended items

Control Box

Key Horizon # Description Qty
Key 1J Horizon # 47-197-1768 Description Transformer, Raypak 55A/R185/185/207A/206A/R185A, 115v/230v Price Qty RecItem View recommended items
Key 2J Horizon # 47-197-1093 Description Rocker Switch, Raypak 130A/207A/206A Price Qty RecItem View recommended items

Miscellaneous Components

Key Horizon # Description Qty
Key 1M Horizon # 47-197-1096 Description Pressure Switch, Raypak 130A/207A/206A/R185A/R185B, 11 psi Price Qty RecItem View recommended items
Key 1M Horizon # 47-197-1462 Description Pressure Switch, Raypak 105B/185/130A/207A/R185A, 1.75psi Price Qty RecItem View recommended items
Key 2M Horizon # 47-197-1684 Description Thermostat Knob, Raypak R185/185/R185A/R185B, Black Price Qty RecItem View recommended items
Key 3M Horizon # Discontinued Description Shaft Extension, Raypak R185/185/206A/R185A/R185B Price Qty RecItem
Key 4M Horizon # 47-197-1032 Description Knob Stop, Raypak ELS/53A/55A/105A/105B/153/155A/183A/185A Price Qty RecItem View recommended items
Key 5M Horizon # 47-197-1384 Description Thermal Cut-Off Fuse Kit, Raypak 55A/105A/155A, 130 degree Price Qty RecItem View recommended items
Key 7M Horizon # 47-197-1101 Description Deliming Kit, Raypak 130A/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 8M Horizon # Discontinued Description Wire Harness, Raypak 206A, MV Price Qty RecItem View recommended items
Key Horizon # 47-197-1851 Description Wire Harness, Raypak R185B/206A, IID Price Qty RecItem View recommended items
Key 9M Horizon # 47-197-1852 Description Control Panel, Raypak 206A/R185B, with Decal, MV Price Qty RecItem View recommended items
Key 10M Horizon # 47-197-1857 Description Control Dial, Raypak 206A/R185B Price Qty RecItem View recommended items
Key 11M Horizon # 47-197-1854 Description Ctrl Panel, Raypak 207A/206A/R185B,w/ Decal,IID,Before5/2011 Price Qty RecItem View recommended items
Key 12M Horizon # 47-197-1855 Description Touchpad, Raypak 207A/206A/R185B, Before 5/2011 Price Qty RecItem View recommended items
Key 13M Horizon # 47-197-1856 Description Control Bezel Cover, Raypak 206A/207A/R185B Price Qty RecItem View recommended items
Key 14M Horizon # 47-197-1183 Description Gasket, Raypak 207A/206A, Insulation Price Qty RecItem View recommended items
Key Horizon # 47-197-3206 Description Touch-Up Paint Kit, Raypak 130A/207A/206A, Forest Green Price Qty RecItem
Key Horizon # Discontinued Description Touch-up Paint, Raypak 130A/207A/206A, Gray Price Qty RecItem
Key 16M Horizon # Discontinued Description Tie Down Bracket, Raypak 207A/206A Price Qty RecItem
Key 19M Horizon # 47-197-1015 Description Flow Switch, Raypak Hi Delta Heaters Price Qty RecItem View recommended items
Key 20M Horizon # _010026F Description Flow Switch Paddle-Kit Price Qty RecItem View recommended items

Pilot

Key Horizon # Description Qty
Key 1P Horizon # 47-197-1242 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, Nat., MV Price Qty RecItem View recommended items
Key 1P Horizon # 47-197-1244 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, LP, MV Price Qty RecItem View recommended items
Key 2P Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 3P Horizon # 47-197-1246 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, Nat., MV Price Qty RecItem View recommended items
Key 3P Horizon # 47-197-1248 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, LP, MV Price Qty RecItem View recommended items
Key 4P Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 4P Horizon # 47-197-1386 Description Pilot Orifice, Raypak 55A/105A/155A/185A/R185/185/206A, IID Price Qty RecItem View recommended items
Key 5P Horizon # 47-197-1250 Description Thermocouple, Raypak 53/53A/55A/105A/151/153/155A, MV Price Qty RecItem View recommended items
Key 7P Horizon # 47-197-3232 Description Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100, IID Price Qty RecItem
Key 6P Horizon # 47-197-1251 Description Pilot Mounting Bracket, Raypak 206A Price Qty RecItem View recommended items
Key 8P Horizon # 47-197-1636 Description Lighter Tube, Raypak 185A/R185/185/206A/R185A/R185B Price Qty RecItem View recommended items
Key 9P Horizon # 47-197-1117 Description Pilot Tube, Raypak 130A/206A, MV Price Qty RecItem View recommended items

Refractory

Key Horizon # Description Qty
Key 1R Horizon # 47-197-1320 Description Refractory Kit, Raypak 206A, Common Price Qty RecItem View recommended items
Key 2R Horizon # 47-197-1326 Description Refractory Kit, Raypak 206A, Uncommon Price Qty RecItem View recommended items
Key 2R Horizon # 47-197-1327 Description Refractory Kit, Raypak 266A, Uncommon Price Qty RecItem View recommended items
Key 2R Horizon # 47-197-1328 Description Refractory Kit, Raypak 336A, Uncommon Price Qty RecItem View recommended items
Key 2R Horizon # 47-197-1329 Description Refractory Kit, Raypak 406A, Uncommon Price Qty RecItem View recommended items
Key 3R Horizon # Discontinued Description Refractory Retainer Kit, Raypak 206A Price Qty RecItem View recommended items
Key 3R Horizon # 47-197-1333 Description Refractory Retainer Kit, Raypak 266A Price Qty RecItem View recommended items
Key 3R Horizon # 47-197-1334 Description Refractory Retainer Kit, Raypak 336A Price Qty RecItem View recommended items
Key 3R Horizon # 47-197-1335 Description Refractory Retainer Kit, Raypak 406A Price Qty RecItem View recommended items

Sheet Metal

Key Horizon # Description Qty
Key 1S Horizon # 47-197-1338 Description Jacket Top, Raypak 206A/207A, Louvered Price Qty RecItem View recommended items
Key 1S Horizon # 47-197-1339 Description Jacket Top, Raypak 266A/267A, Louvered Price Qty RecItem View recommended items
Key 1S Horizon # 47-197-1340 Description Jacket Top, Raypak 336A/337A, Louvered Price Qty RecItem View recommended items
Key 1S Horizon # 47-197-1341 Description Jacket Top, Raypak 406A/407A, Louvered Price Qty RecItem View recommended items
Key 2S Horizon # 47-197-2010 Description Flue Collector, Raypak 206A, Polymer Head Price Qty RecItem View recommended items
Key 2S Horizon # 47-197-2011 Description Flue Collector, Raypak 266A, Polymer Head Price Qty RecItem View recommended items
Key 2S Horizon # 47-197-2012 Description Flue Collector, Raypak 336A, Polymer Head Price Qty RecItem View recommended items
Key 2S Horizon # 47-197-2013 Description Flue Collector, Raypak 406A, Polymer Head Price Qty RecItem View recommended items
Key 2S Horizon # 47-197-2014 Description Flue Collector, Raypak 206A, Metal Head Price Qty RecItem View recommended items
Key 2S Horizon # 47-197-2015 Description Flue Collector, Raypak 266A, Metal Head Price Qty RecItem View recommended items
Key 2S Horizon # 47-197-2016 Description Flue Collector, Raypak 336A, Metal Head Price Qty RecItem View recommended items
Key 2S Horizon # 47-197-2017 Description Flue Collector, Raypak 406A, Metal Head Price Qty RecItem View recommended items
Key 3S Horizon # 47-197-2020 Description Door Assembly, Raypak 206A Price Qty RecItem View recommended items
Key 3S Horizon # 47-197-2021 Description Door Assembly, Raypak 266A Price Qty RecItem View recommended items
Key 3S Horizon # 47-197-2022 Description Door Assembly, Raypak 336A Price Qty RecItem View recommended items
Key 3S Horizon # 47-197-2023 Description Door Assembly, Raypak 406A Price Qty RecItem View recommended items
Key 3S Horizon # 47-197-2024 Description Door Assembly, Raypak Rheem 206A Price Qty RecItem View recommended items
Key 3S Horizon # 47-197-2025 Description Door Assembly, Raypak Rheem 266A Price Qty RecItem View recommended items
Key 3S Horizon # 47-197-2026 Description Door Assembly, Raypak Rheem 336A Price Qty RecItem View recommended items
Key 3S Horizon # 47-197-2027 Description Door Assembly, Raypak Rheem 406A Price Qty RecItem View recommended items
Key 4S Horizon # 47-197-2031 Description Access Panel, Raypak Low NOx/Atmospheric Gas, Metal Header Price Qty RecItem View recommended items
Key 4S Horizon # 47-197-2035 Description Side Panel Jacket, Raypak 206A, Right Price Qty RecItem View recommended items
Key 5S Horizon # 47-197-2035 Description Side Panel Jacket, Raypak 206A, Right Price Qty RecItem View recommended items
Key 6S Horizon # 47-197-2036 Description Side Panel Jacket, Raypak 206A, Left Price Qty RecItem View recommended items
Key 7S Horizon # 47-197-2037 Description Rear Panel Jacket, Raypak 206A Price Qty RecItem View recommended items
Key 7S Horizon # 47-197-2038 Description Rear Panel Jacket, Raypak 266A Price Qty RecItem View recommended items
Key 7S Horizon # 47-197-2039 Description Rear Panel Jacket, Raypak 267A Price Qty RecItem View recommended items
Key 7S Horizon # 47-197-2040 Description Rear Panel Jacket, Raypak 406A Price Qty RecItem View recommended items
Key 8S Horizon # Discontinued Description Poolstat Lock Box, Raypak 206A/207A/R185A/R185B Price Qty RecItem
Key 9S Horizon # 47-197-2052 Description Hi-Limit Cover, Raypak 207A/206A Price Qty RecItem View recommended items
Key 10S Horizon # 47-197-2054 Description Base Shield, Raypak 207A/206A Price Qty RecItem View recommended items
Key 11S Horizon # 47-197-2056 Description Front Control Panel, Raypak 206A/207A Price Qty RecItem View recommended items
Key 11S Horizon # 47-197-2057 Description Front Control Panel, Raypak 266A/267A Price Qty RecItem View recommended items
Key 11S Horizon # 47-197-2058 Description Front Control Panel, Raypak 336A/337A Price Qty RecItem View recommended items
Key 11S Horizon # 47-197-2059 Description Front Control Panel, Raypak 406A/407A Price Qty RecItem View recommended items
Key 12S Horizon # 47-197-2053 Description Hi-Limit Shield, Raypak 207A/206A Price Qty RecItem View recommended items
Key 13S Horizon # 47-197-2062 Description Weather Shield, Raypak 206A/207A Price Qty RecItem View recommended items
Key 13S Horizon # 47-197-2063 Description Weather Shield, Raypak 266A/267A Price Qty RecItem View recommended items
Key 13S Horizon # 47-197-2064 Description Weather Shield, Raypak 336A/337A Price Qty RecItem View recommended items
Key 13S Horizon # 47-197-2065 Description Weather Shield, Raypak 406A/407A Price Qty RecItem View recommended items

Venting

Key Horizon # Description Qty
Key 1V Horizon # Discontinued Description Indoor Stack Kit, Raypak 206A/207A Price Qty RecItem
Key 1V Horizon # Discontinued Description Indoor Stack Kit, Raypak 266A/267A Price Qty RecItem
Key 1V Horizon # Discontinued Description Indoor Stack Kit, Raypak 336A/337A Price Qty RecItem
Key 1V Horizon # 47-197-2071 Description Indoor Stack Kit, Raypak 406A/407A Price Qty RecItem View recommended items
Key 1V Horizon # Discontinued Description Outdoor Stack Assembly, Raypak 206A/207A Price Qty RecItem
Key 1V Horizon # 47-197-2075 Description Outdoor Stack Assembly, Raypak 266A/267A Price Qty RecItem
Key 1V Horizon # Discontinued Description Outdoor Stack Assembly, Raypak 336A/337A Price Qty RecItem
Key 1V Horizon # 47-197-2077 Description Outdoor Stack Assembly, Raypak 406A/407A Price Qty RecItem
Key 2V Horizon # 47-197-1236 Description Stack Adapter, Raypak 206A/207A Price Qty RecItem View recommended items
Key 2V Horizon # 47-197-1237 Description Stack Adapter, Raypak 266A/267A Price Qty RecItem View recommended items
Key 2V Horizon # 47-197-1238 Description Stack Adapter, Raypak 336A/337A Price Qty RecItem View recommended items
Key 2V Horizon # 47-197-1239 Description Stack Adapter, Raypak 406A/407A Price Qty RecItem View recommended items
Key 3V Horizon # 47-197-1143 Description Heater Top, Raypak 130A/207A/206A, Green Price Qty RecItem View recommended items
Key 3V Horizon # 47-197-1188 Description Heater Top, Dark Gray, Raypak Low NOx/Atmospheric Gas, 336A Price Qty RecItem
Key 3V Horizon # 47-197-1189 Description Heater Top, Raypak Low NOx/Atmospheric Gas, 267A Price Qty RecItem View recommended items
Key 3V Horizon # 47-197-1190 Description Heater Top, Green, Raypak Low NOx/Atmospheric Gas, 336A Price Qty RecItem View recommended items
Key 3V Horizon # 47-197-1191 Description Heater Top, Raypak Low NOx/Atmospheric Gas, 406A Price Qty RecItem View recommended items

Atmospheric Conversion Kits

Key Horizon # Description Qty
Key Horizon # Discontinued Description Conversion Kit, Raypak R185A/R185B/R265A/R265B, Nat. to LP Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Conversion Kit, Raypak R335A/R335B/R405A/R405B, Nat. to LP Price Qty RecItem View recommended items
Key Horizon # 47-197-1942 Description Conversion Kit, Raypak 206A/266A, LP to Nat. Price Qty RecItem View recommended items
Key Horizon # 47-197-1943 Description Conversion Kit, Raypak 336a/406aA, LP to Nat. Price Qty RecItem View recommended items
 Print
Back to Top  ·  Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger - Polymer  ·  Heat Exchanger - Metal (ASME)  ·  Control Box  ·  Miscellaneous Components  ·  Pilot  ·  Refractory  ·  Sheet Metal  ·  Venting  ·  Complete Heater  ·  Not Pictured  ·  Atmospheric Conversion Kits
X

Recommended Items

Tech Tip:
Product Description here
Add
X

The item you selected has comparable choices of varying qualities

X

Looking for manufacturer information, stock status and pricing? Log in now to access to all this information and more!


Quantity:    Add  View recommended items
Details

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add
X Cart Updated
