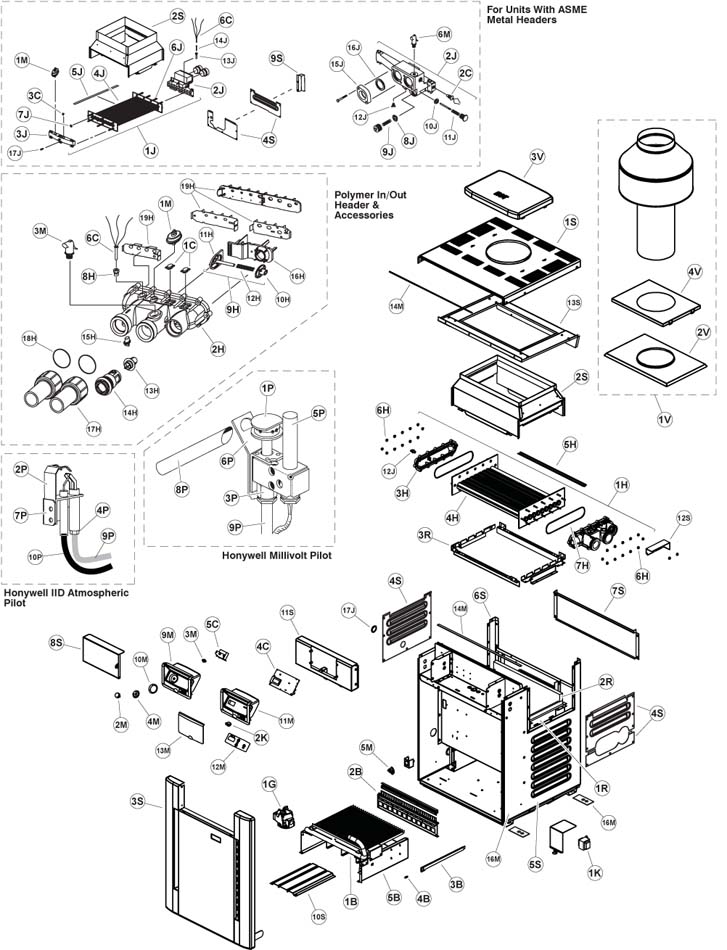

Raypak 206A, 266A, 336A, 406A Digital,Atmospheric Gas Heater

Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger - Polymer  ·  Heat Exchanger - Metal  ·  Control Box  ·  Miscellaneous Components  ·  Pilot  ·  Refractory  ·  Sheetmetal  ·  Venting  ·  Gas Conversions (Atmospheric)*  ·  Tools  ·  Complete Heater - Digital Copper  ·  Complete Heater - Digital Cupro-Nickel  ·  Complete Heater - Millivolt Copper  ·  Complete Heater - Digital Bronze ASME Copper  ·  Complete Heater - Digital Bronze ASME Cupro-Nickel  ·  Complete Heater - Millivolt Bronze ASME Copper
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

For altitudes over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level.



Key 4H & 4J - The Hydraulic conditions or water chemistry that caused the tube bundle to fail are also likely to damage the bypass valve and Unitherm Governor. We recommend you replace the Unitherm Governor and inspect the bypass assembly.  Failure to do so could cause premature failure of this replacement part.



* - Gas conversions are to be done only by a qualified agency

Burner Tray

Key Horizon # Description Qty
Key 1b Horizon # 47-197-1965 Description Burner Tray, Raypak Model 206A, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1966 Description Burner Tray, Raypak Model 266A, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1967 Description Burner Tray, Raypak Model 336A, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1968 Description Burner Tray, Raypak Model 406A, w/Natural Burner, Sea Level Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1969 Description Burner Tray, Raypak Model 206A, with out Burner, Sea Level Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1970 Description Burner Tray, Raypak Model 266A, with out Burner, Sea Level Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1971 Description Burner Tray, Raypak Model 336A, with out Burner, Sea Level Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1972 Description Burner Tray, Raypak Model 406A, with out Burner, Sea Level Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1975 Description Burner Tray, Raypak Model 206A, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1976 Description Burner Tray, Raypak Model 266A, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1977 Description Burner Tray, Raypak Model 336A, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1978 Description Burner Tray, Raypak Model 406A, w/Nat. Gas Valve, MV Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1979 Description Burner Tray, Raypak Model 206A, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1980 Description Burner Tray, Raypak Model 266A, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1981 Description Burner Tray, Raypak Model 336A, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1982 Description Burner Tray, Raypak Model 406A, with LP Gas Valve, MV Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1985 Description Burner Tray, Raypak Model 206A, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1986 Description Burner Tray, Raypak Model 266A, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1987 Description Burner Tray, Raypak Model 336A, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1988 Description Burner Tray, Raypak Model 406A, with Nat. Gas Valve, IID Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1989 Description Burner Tray, Raypak Model 206A, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1990 Description Burner Tray, Raypak Model 266A, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1991 Description Burner Tray, Raypak Model 336A, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 1b Horizon # 47-197-1992 Description Burner Tray, Raypak Model 406A, with LP Gas Valve, IID Price Qty RecItem View recommended items
Key 2b Horizon # 47-197-1993 Description Burner Spacer, Raypak 206A Price Qty RecItem View recommended items
Key 2b Horizon # 47-197-1994 Description Burner Spacer, Raypak 266A Price Qty RecItem View recommended items
Key 2b Horizon # 47-197-1995 Description Burner Spacer, Raypak 336A Price Qty RecItem View recommended items
Key 2b Horizon # 47-197-1996 Description Burner Spacer, Raypak 406A Price Qty RecItem View recommended items
Key 3b Horizon # 47-197-3200 Description SRV Burner Kit, Raypak, 10 Pack Price Qty RecItem
Key 4b Horizon # 47-197-1469 Description Burner Orifice, Raypak Model 206A/266A/336A, Nat., Sea Level Price Qty RecItem View recommended items
Key 4b Horizon # 47-197-1470 Description Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III,LP,SL,5ea Price Qty RecItem View recommended items
Key 5b Horizon # 47-197-1471 Description Burner Tray, Raypak Model 206A, with out Burner Price Qty RecItem View recommended items
Key 5b Horizon # 47-197-1472 Description Burner Tray, Raypak Model 266A, without Burner Price Qty RecItem View recommended items
Key 5b Horizon # 47-197-1473 Description Burner Tray, Raypak Model 336A, with out Burner Price Qty RecItem View recommended items
Key 5b Horizon # 47-197-1474 Description Burner Tray, Raypak Model 406A, with out Burner Price Qty RecItem View recommended items

Controls

Key Horizon # Description Qty
Key 1c Horizon # 47-197-1052 Description Thermostat, Raypak 130A/207A/206A, Surface Mount Price Qty RecItem View recommended items
Key 2c Horizon # 47-197-1444 Description T-Stat Auto Reset 13, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 3c Horizon # 47-197-1446 Description T-Stat Auto Reset 14, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 4c Horizon # Discontinued Description PCB, Raypak 185/207A/206A/R185A, IID Price Qty RecItem
Key 4c Horizon # 47-197-1705 Description PCB Control, Raypak 185B-405B/206A-406,3 Wire,2004-2022 Price Qty RecItem View recommended items
Key 4c Horizon # 47-197-1707 Description PCB Controller IID Kit, Raypak 206A-408A, 3-Wire, Current Price Qty RecItem
Key 5c Horizon # 47-197-1024 Description Thermostat,Raypak ELS/53/105A/105B/153/155A/183A/185B/RP2100 Price Qty RecItem View recommended items
Key 6c Horizon # 47-197-1703 Description Sensor, Temp, Raypak 207A/206A/R185A/R185B, 3 Wire, IID Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1g Horizon # 47-197-1210 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, Nat., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1212 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, LP., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1278 Description Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1368 Description Gas Valve, Raypak 55A/105A/105B/155A/185A/R185/185, LP, IID Price Qty RecItem View recommended items

Heat Exchanger - Polymer

Key Horizon # Description Qty
Key 1h Horizon # 47-197-1528 Description Heat Exchanger, Raypak Model 206A/207A, Polymer Price Qty RecItem View recommended items
Key 1h Horizon # 47-197-1529 Description Heat Exchanger, Raypak Model 266A/267A, Polymer Price Qty RecItem View recommended items
Key 1h Horizon # 47-197-1530 Description Heat Exchanger, Raypak Model 336A/337A, Polymer Price Qty RecItem View recommended items
Key 1h Horizon # 47-197-1531 Description Heat Exchanger, Raypak Model 406A/407A, Polymer Price Qty RecItem View recommended items
Key 1h Horizon # 47-197-1532 Description Heat Exchanger, Raypak Model 206A/207A, CuNi, Before 7/2013 Price Qty RecItem View recommended items
Key 1h Horizon # 47-197-1533 Description Heat Exchanger, Raypak Model 266A/267A, CuNi, Before 7/2013 Price Qty RecItem View recommended items
Key 1h Horizon # 47-197-1534 Description Heat Exchanger, Raypak Model 336A/337A, CuNi, Before 7/2013 Price Qty RecItem View recommended items
Key 1h Horizon # 47-197-1535 Description Heat Exchanger, Raypak Model 406A/407A, CuNi, Before 7/2013 Price Qty RecItem View recommended items
Key 1h Horizon # 47-197-2003 Description Heat Exchanger Kit, Raypak 266/267 Price Qty RecItem View recommended items
Key 2h Horizon # 47-197-1710 Description Inlet/Outlet Header, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 2h Horizon # 47-197-1712 Description Inlet/Outlet Header, Raypak 185/207A/206A/R185A/R185B,Capron Price Qty RecItem View recommended items
Key 3h Horizon # 47-197-1002 Description Return Header, Raypak 206A - 407A, w/ Flange Nut Kit Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1538 Description Tube Bundle, Raypak 206A/207A, Copper/Polymer Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1539 Description Tube Bundle, Raypak 266A/267A, Copper/Polymer Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1540 Description Tube Bundle, Raypak 336A/337A, Copper/Polymer Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1541 Description Tube Bundle, Raypak 406A/407A, Copper/Polymer Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1542 Description Tube Bundle, Raypak 206A/207A, CuNi/Polymer, Before 7/2013 Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1543 Description Tube Bundle, Raypak 266A/267A, CuNi/Polymer, Before 7/2013 Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1544 Description Tube Bundle, Raypak 336A/337A, CuNi/Polymer, Before 7/2013 Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1545 Description Tube Bundle, Raypak 406A/407A, CuNi/Polymer, Before 7/2013 Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1551 Description Tube Bundle, Raypak 206A, CuNi/Polymer, After 7/2013 Price Qty RecItem View recommended items
Key 5h Horizon # 47-197-1667 Description Baffle, Raypak 206A/207A, Before 6/2013 Price Qty RecItem View recommended items
Key 5h Horizon # 47-197-1668 Description Baffle, Raypak 336A/337A, Before 6/2013 Price Qty RecItem View recommended items
Key 5h Horizon # 47-197-1669 Description Baffle, Raypak 406A/407A, Before 6/2013 Price Qty RecItem View recommended items
Key 5h Horizon # 47-197-1672 Description Baffle, Raypak R265/R265A/R265B, Before 6/2013 Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1841 Description Flange Nut, Raypak 207A/206A/R185A/R185B, 12 each Price Qty RecItem View recommended items
Key 7h Horizon # 47-197-1728 Description O-Ring Kit, Raypak 185/207A/206A/R185A/R185B, Quantity 2 Price Qty RecItem View recommended items
Key 8h Horizon # 47-197-1075 Description Sensor Adapter, Raypak 130A/207A/206A Price Qty RecItem View recommended items
Key 9h Horizon # 47-197-1734 Description Bypass Assembly, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 10h Horizon # 47-197-1078 Description Bypass Valve, Raypak 130A/207A/206A Price Qty RecItem View recommended items
Key 11h Horizon # 47-197-1079 Description Bypass Shaft, Raypak 130A/207A/206A Price Qty RecItem View recommended items
Key 12h Horizon # 47-197-1738 Description Bypass Spring, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 13h Horizon # 47-197-1740 Description Unitherm Governor, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 14h Horizon # 47-197-1742 Description Unitherm Governor Plug, Raypak 185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key 16H Horizon # 47-197-1082 Description Header Dam, Raypak 130/130A Price Qty RecItem View recommended items
Key 17h Horizon # 47-197-1084 Description Heater Flange Kit, Raypak, 2" PVC, with Nut Price Qty RecItem
Key 18h Horizon # 47-197-1085 Description O-Ring, Raypak 130A/207A/206A, Header, Quantity 2 Price Qty RecItem View recommended items
Key 19h Horizon # 47-197-1752 Description Header Baffle, Raypak 206A,266A,366A,406A Price Qty RecItem View recommended items

Heat Exchanger - Metal

Key Horizon # Description Qty
Key 1j Horizon # 46-197-2010 Description Heater, Raypak Digital Cupro-Nickel, P-R206A-EN-X #51, Nat. Price Qty RecItem View recommended items
Key 1j Horizon # 46-197-2012 Description Heater, Raypak Digital Cupro-Nickel, P-R266A-EN-X #51, Nat. Price Qty RecItem View recommended items
Key 1j Horizon # 46-197-2014 Description Heater, Raypak Digital Cupro-Nickel, P-R336A-EN-X #51, Nat. Price Qty RecItem View recommended items
Key 1j Horizon # 46-197-2016 Description Heater, Raypak Digital Cupro-Nickel, P-R406A-EN-X #51, Nat. Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-1844 Description Heat Exchanger, Raypak Model 266A/267A/R265A/R265B, ASME CI Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-2000 Description Heat Exchanger, Raypak 206A/207A, Copper Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-2001 Description Heat Exchanger, Raypak 336A/337A, Copper Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-2002 Description Heat Exchanger, Raypak 406A/407A, Copper Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-2005 Description Heat Exchanger, Raypak 206A/207A, CuNi Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-2006 Description Heat Exchanger, Raypak 266A/267A, CuNi Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-2007 Description Heat Exchanger, Raypak 336A/337A, CuNi Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-2008 Description Heat Exchanger, Raypak 406A/407A, CuNi Price Qty RecItem View recommended items
Key 2j Horizon # 47-197-1754 Description Inlet/Outlet Header, Raypak 185/207A/206A/R185A/R185B, CI Price Qty RecItem View recommended items
Key 2j Horizon # 47-197-1755 Description Inlet/Outlet Header, Raypak 207A/206A/R185A/R185B, Cast Iron Price Qty RecItem View recommended items
Key 3j Horizon # 47-197-1715 Description Return Header, Raypak 206A - 407A, Bronze, 7/2020-Present Price Qty RecItem
Key 3j Horizon # 47-197-1756 Description Return Header, Raypak 185/207A/206A/R185A/R185B, ASME Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1546 Description Tube Bundle, Raypak 206A/207A, CuNi/Metal Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1547 Description Tube Bundle, Raypak 266A/267A, CuNi/Metal Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1548 Description Tube Bundle, Raypak 336A/337A, CuNi/Metal Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1549 Description Tube Bundle, Raypak 406A/407A, CuNi/Metal Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1759 Description Tube Bundle, Raypak 206A/207A, ASME Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1760 Description Tube Bundle, Raypak 265/266A/267A/R265A/R265B Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1761 Description Tube Bundle, Raypak 336A/337A, ASME Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-1763 Description Tube Bundle, Raypak 406A/407A, ASME Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-2260 Description Tube Bundle, Raypak 206A/207A, Copper ASME, After 12/2019 Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-2262 Description Tube Bundle, Raypak 266A/267A, Copper ASME, After 12/2019 Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-2264 Description Tube Bundle, Raypak 336A/337A, Copper ASME, After 12/2019 Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-2266 Description Tube Bundle, Raypak 406A/407A, Copper ASME, After 12/2019 Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-2268 Description Tube Bundle, Raypak 206A/207A,Cupronickel ASME,After 12/2019 Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-2270 Description Tube Bundle, Raypak 266A/267A,Cupronickel ASME,After 12/2019 Price Qty RecItem View recommended items
Key 4j Horizon # 47-197-2272 Description Tube Bundle, Raypak 336A/337A,Cupronickel ASME,After 12/2019 Price Qty RecItem View recommended items
Key 5j Horizon # 47-197-1667 Description Baffle, Raypak 206A/207A, Before 6/2013 Price Qty RecItem View recommended items
Key 5j Horizon # 47-197-1668 Description Baffle, Raypak 336A/337A, Before 6/2013 Price Qty RecItem View recommended items
Key 5j Horizon # 47-197-1669 Description Baffle, Raypak 406A/407A, Before 6/2013 Price Qty RecItem View recommended items
Key 5j Horizon # 47-197-1672 Description Baffle, Raypak R265/R265A/R265B, Before 6/2013 Price Qty RecItem View recommended items
Key 6j Horizon # 47-197-1842 Description Bolt Kit, Raypak 207A/206A/R185A/R185B Heat Exchanger Price Qty RecItem View recommended items
Key 7j Horizon # 47-197-1414 Description Gasket, Raypak 105A/105B/183A,Heat Xchg,3/4"ID,1-1/8"OD,qty9 Price Qty RecItem View recommended items
Key 8j Horizon # 47-197-1416 Description Unitherm Governor, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 9j Horizon # 47-197-1418 Description Unitherm Governor Spring, Raypak 105A/105B/155A/185A/R185 Price Qty RecItem View recommended items
Key 10j Horizon # 47-197-1420 Description Bypass Valve, Raypak, Versa, Gemini, RP2100, Low Nox Price Qty RecItem
Key 10j Horizon # 47-197-1421 Description Bypass Valve Kit, Raypak 206A - 408A, Plastic Price Qty RecItem
Key 11j Horizon # Discontinued Description Bypass Spring, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem View recommended items
Key 11j Horizon # 47-197-1615 Description Bypass Spring, Raypak 185A/R185/207A/206A Price Qty RecItem View recommended items
Key 11j Horizon # 47-197-3422 Description Bypass Spring Kit, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem
Key 12j Horizon # 47-197-1232 Description Drain Valve, Raypak 53/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 13j Horizon # 47-197-1424 Description Sensor Well, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 14j Horizon # Discontinued Description Sensor Clip, Raypak ELS/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 15j Horizon # 47-197-1430 Description Flange Kit, Raypak 105A/105B/155A/185A/R185/207A, In/Out Price Qty RecItem View recommended items
Key 16j Horizon # 47-197-1434 Description Gasket, Raypak 105A/105B/155A/185A,Flange,1-5/8"ID,2-5/8"OD Price Qty RecItem View recommended items
Key 16j Horizon # 47-197-1436 Description Gasket, Raypak 105A/105B/155A/185, 2-1/8"ID, 2-3/4"OD, qty 2 Price Qty RecItem View recommended items
Key 17j Horizon # 47-197-1680 Description Header Drain Plug, Raypak R185/185/207A/206A/R185A/R185B Price Qty RecItem View recommended items

Control Box

Key Horizon # Description Qty
Key 1k Horizon # 47-197-1768 Description Transformer, Raypak 55A/R185/185/207A/206A/R185A, 115v/230v Price Qty RecItem View recommended items
Key 2k Horizon # 47-197-1093 Description Rocker Switch, Raypak 130A/207A/206A Price Qty RecItem View recommended items

Miscellaneous Components

Key Horizon # Description Qty
Key 1m Horizon # 47-197-1095 Description Pressure Switch, Raypak 130A/207A/206A, 1.75 psi Price Qty RecItem View recommended items
Key 1m Horizon # 47-197-1096 Description Pressure Switch, Raypak 130A/207A/206A/R185A/R185B, 11 psi Price Qty RecItem View recommended items
Key 2m Horizon # 47-197-1097 Description Thermostat Knob, Raypak 130A/206A, Black Price Qty RecItem View recommended items
Key 3m Horizon # Discontinued Description Shaft Extension, Raypak R185/185/206A/R185A/R185B Price Qty RecItem
Key 4m Horizon # 47-197-1032 Description Knob Stop, Raypak ELS/53A/55A/105A/105B/153/155A/183A/185A Price Qty RecItem View recommended items
Key 5m Horizon # 47-197-1384 Description Thermal Cut-Off Fuse Kit, Raypak 55A/105A/155A, 130 degree Price Qty RecItem View recommended items
Key 6m Horizon # 47-197-1100 Description Pressure Relief Valve, Raypak 130A/207A/206A/R185A, 125 psi Price Qty RecItem View recommended items
Key 6m Horizon # 47-197-1180 Description Pressure Relief Valve, Raypak 207A/206A/R185A/R185B, 125 psi Price Qty RecItem View recommended items
Key 9m Horizon # 47-197-1852 Description Control Panel, Raypak 206A/R185B, with Decal, MV Price Qty RecItem View recommended items
Key 10m Horizon # 47-197-1857 Description Control Dial, Raypak 206A/R185B Price Qty RecItem View recommended items
Key 11m Horizon # 47-197-1854 Description Ctrl Panel, Raypak 207A/206A/R185B,w/ Decal,IID,Before5/2011 Price Qty RecItem View recommended items
Key 12m Horizon # 47-197-1855 Description Touchpad, Raypak 207A/206A/R185B, Before 5/2011 Price Qty RecItem View recommended items
Key 13m Horizon # 47-197-1856 Description Control Bezel Cover, Raypak 206A/207A/R185B Price Qty RecItem View recommended items
Key 14m Horizon # 47-197-1183 Description Gasket, Raypak 207A/206A, Insulation Price Qty RecItem View recommended items
Key 16m Horizon # Discontinued Description Tie Down Bracket, Raypak 207A/206A Price Qty RecItem
Key Horizon # 47-197-1101 Description Deliming Kit, Raypak 130A/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Wire Harness, Raypak 206A, MV Price Qty RecItem View recommended items
Key Horizon # 47-197-1851 Description Wire Harness, Raypak R185B/206A, IID Price Qty RecItem View recommended items
Key Horizon # 47-197-1106 Description Touch-up Paint, Raypak 130A/207A/206A, Green Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Touch-up Paint, Raypak 130A/207A/206A, Gray Price Qty RecItem
Key Horizon # Discontinued Description Add On Kit, Raypak 207A/206A, ASME only, Texas Code Price Qty RecItem
Key Horizon # 47-197-2202 Description Protek Shield, Raypak 206A-406A Price Qty RecItem
Key Horizon # 47-197-2204 Description Protek Shield Adapter Kit, Raypak 206A-406A,207A-407A, ASME Price Qty RecItem

Pilot

Key Horizon # Description Qty
Key 1p Horizon # 47-197-1110 Description Pilot, Raypak 130A/206A, Nat., MV Price Qty RecItem View recommended items
Key 1p Horizon # 47-197-1111 Description Pilot, Raypak 130A/206A, LP, MV Price Qty RecItem View recommended items
Key 1p Horizon # 47-197-1242 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, Nat., MV Price Qty RecItem View recommended items
Key 1p Horizon # 47-197-1244 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, LP, MV Price Qty RecItem View recommended items
Key 2p Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1112 Description Orifice, Raypak 130A/206A, Nat., MV Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1113 Description Orifice, Raypak 130A/206A, LP, MV Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1246 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, Nat., MV Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1248 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, LP, MV Price Qty RecItem View recommended items
Key 4p Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 4p Horizon # 47-197-1386 Description Pilot Orifice, Raypak 55A/105A/155A/185A/R185/185/206A, IID Price Qty RecItem View recommended items
Key 5P Horizon # 47-197-1114 Description Pilot Generator, Raypak 130A/206A, MV Price Qty RecItem View recommended items
Key 6p Horizon # 47-197-1251 Description Pilot Mounting Bracket, Raypak 206A Price Qty RecItem View recommended items
Key 7p Horizon # Discontinued Description Pilot Mounting Bracket, Raypak Gemini/Versa/RP2100, IID Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-3232 Description Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100, IID Price Qty RecItem
Key 8p Horizon # 47-197-1636 Description Lighter Tube, Raypak 185A/R185/185/206A/R185A/R185B Price Qty RecItem View recommended items
Key 9p Horizon # 47-197-1117 Description Pilot Tube, Raypak 130A/206A, MV Price Qty RecItem View recommended items
Key 10p Horizon # 47-197-1564 Description Electrode,Raypak 55A/155A/R185/185,IID,w/High Tension Wire Price Qty RecItem
Key Horizon # 47-197-1249 Description Pilot Shield, Raypak 206A Price Qty RecItem View recommended items

Refractory

Key Horizon # Description Qty
Key 1r Horizon # 47-197-1320 Description Refractory Kit, Raypak 206A, Common Price Qty RecItem View recommended items
Key 2r Horizon # 47-197-1326 Description Refractory Kit, Raypak 206A, Uncommon Price Qty RecItem View recommended items
Key 2r Horizon # 47-197-1327 Description Refractory Kit, Raypak 266A, Uncommon Price Qty RecItem View recommended items
Key 2r Horizon # 47-197-1328 Description Refractory Kit, Raypak 336A, Uncommon Price Qty RecItem View recommended items
Key 2r Horizon # 47-197-1329 Description Refractory Kit, Raypak 406A, Uncommon Price Qty RecItem View recommended items
Key 3r Horizon # Discontinued Description Refractory Retainer Kit, Raypak 206A Price Qty RecItem View recommended items
Key 3r Horizon # 47-197-1333 Description Refractory Retainer Kit, Raypak 266A Price Qty RecItem View recommended items
Key 3r Horizon # 47-197-1334 Description Refractory Retainer Kit, Raypak 336A Price Qty RecItem View recommended items
Key 3r Horizon # 47-197-1335 Description Refractory Retainer Kit, Raypak 406A Price Qty RecItem View recommended items

Sheetmetal

Key Horizon # Description Qty
Key 1s Horizon # 47-197-1338 Description Jacket Top, Raypak 206A/207A, Louvered Price Qty RecItem View recommended items
Key 1s Horizon # 47-197-1339 Description Jacket Top, Raypak 266A/267A, Louvered Price Qty RecItem View recommended items
Key 1s Horizon # 47-197-1340 Description Jacket Top, Raypak 336A/337A, Louvered Price Qty RecItem View recommended items
Key 1s Horizon # 47-197-1341 Description Jacket Top, Raypak 406A/407A, Louvered Price Qty RecItem View recommended items
Key 2s Horizon # 47-197-2010 Description Flue Collector, Raypak 206A, Polymer Head Price Qty RecItem View recommended items
Key 2s Horizon # 47-197-2011 Description Flue Collector, Raypak 266A, Polymer Head Price Qty RecItem View recommended items
Key 2s Horizon # 47-197-2012 Description Flue Collector, Raypak 336A, Polymer Head Price Qty RecItem View recommended items
Key 2s Horizon # 47-197-2013 Description Flue Collector, Raypak 406A, Polymer Head Price Qty RecItem View recommended items
Key 2s Horizon # 47-197-2014 Description Flue Collector, Raypak 206A, Metal Head Price Qty RecItem View recommended items
Key 2s Horizon # 47-197-2015 Description Flue Collector, Raypak 266A, Metal Head Price Qty RecItem View recommended items
Key 2s Horizon # 47-197-2016 Description Flue Collector, Raypak 336A, Metal Head Price Qty RecItem View recommended items
Key 2s Horizon # 47-197-2017 Description Flue Collector, Raypak 406A, Metal Head Price Qty RecItem View recommended items
Key 3s Horizon # 47-197-2020 Description Door Assembly, Raypak 206A Price Qty RecItem View recommended items
Key 3s Horizon # 47-197-2021 Description Door Assembly, Raypak 266A Price Qty RecItem View recommended items
Key 3s Horizon # 47-197-2022 Description Door Assembly, Raypak 336A Price Qty RecItem View recommended items
Key 3s Horizon # 47-197-2023 Description Door Assembly, Raypak 406A Price Qty RecItem View recommended items
Key 3s Horizon # 47-197-2024 Description Door Assembly, Raypak Rheem 206A Price Qty RecItem View recommended items
Key 3s Horizon # 47-197-2025 Description Door Assembly, Raypak Rheem 266A Price Qty RecItem View recommended items
Key 3s Horizon # 47-197-2026 Description Door Assembly, Raypak Rheem 336A Price Qty RecItem View recommended items
Key 3s Horizon # 47-197-2027 Description Door Assembly, Raypak Rheem 406A Price Qty RecItem View recommended items
Key 4s Horizon # 47-197-2030 Description Access Panel, Raypak Low NOx/Atmospheric Gas, Polymer Header Price Qty RecItem View recommended items
Key 4s Horizon # 47-197-2031 Description Access Panel, Raypak Low NOx/Atmospheric Gas, Metal Header Price Qty RecItem View recommended items
Key 5s Horizon # 47-197-2035 Description Side Panel Jacket, Raypak 206A, Right Price Qty RecItem View recommended items
Key 6s Horizon # 47-197-2036 Description Side Panel Jacket, Raypak 206A, Left Price Qty RecItem View recommended items
Key 7s Horizon # 47-197-2037 Description Rear Panel Jacket, Raypak 206A Price Qty RecItem View recommended items
Key 7s Horizon # 47-197-2038 Description Rear Panel Jacket, Raypak 266A Price Qty RecItem View recommended items
Key 7s Horizon # 47-197-2039 Description Rear Panel Jacket, Raypak 267A Price Qty RecItem View recommended items
Key 7s Horizon # 47-197-2040 Description Rear Panel Jacket, Raypak 406A Price Qty RecItem View recommended items
Key 8s Horizon # Discontinued Description Poolstat Lock Box, Raypak 206A/207A/R185A/R185B Price Qty RecItem
Key 9s Horizon # 47-197-2052 Description Hi-Limit Cover, Raypak 207A/206A Price Qty RecItem View recommended items
Key 10s Horizon # 47-197-2054 Description Base Shield, Raypak 207A/206A Price Qty RecItem View recommended items
Key 11s Horizon # 47-197-2056 Description Front Control Panel, Raypak 206A/207A Price Qty RecItem View recommended items
Key 11s Horizon # 47-197-2057 Description Front Control Panel, Raypak 266A/267A Price Qty RecItem View recommended items
Key 11s Horizon # 47-197-2058 Description Front Control Panel, Raypak 336A/337A Price Qty RecItem View recommended items
Key 11s Horizon # 47-197-2059 Description Front Control Panel, Raypak 406A/407A Price Qty RecItem View recommended items
Key 12s Horizon # 47-197-2053 Description Hi-Limit Shield, Raypak 207A/206A Price Qty RecItem View recommended items
Key 13s Horizon # 47-197-2062 Description Weather Shield, Raypak 206A/207A Price Qty RecItem View recommended items
Key 13s Horizon # 47-197-2063 Description Weather Shield, Raypak 266A/267A Price Qty RecItem View recommended items
Key 13s Horizon # 47-197-2064 Description Weather Shield, Raypak 336A/337A Price Qty RecItem View recommended items
Key 13s Horizon # 47-197-2065 Description Weather Shield, Raypak 406A/407A Price Qty RecItem View recommended items

Venting

Key Horizon # Description Qty
Key 1v Horizon # Discontinued Description Indoor Stack Kit, Raypak 206A/207A Price Qty RecItem
Key 1v Horizon # Discontinued Description Indoor Stack Kit, Raypak 266A/267A Price Qty RecItem
Key 1v Horizon # Discontinued Description Indoor Stack Kit, Raypak 336A/337A Price Qty RecItem
Key 1v Horizon # 47-197-2071 Description Indoor Stack Kit, Raypak 406A/407A Price Qty RecItem View recommended items
Key 1v Horizon # Discontinued Description Outdoor Stack Assembly, Raypak 206A/207A Price Qty RecItem
Key 1v Horizon # 47-197-2075 Description Outdoor Stack Assembly, Raypak 266A/267A Price Qty RecItem
Key 1v Horizon # Discontinued Description Outdoor Stack Assembly, Raypak 336A/337A Price Qty RecItem
Key 1v Horizon # 47-197-2077 Description Outdoor Stack Assembly, Raypak 406A/407A Price Qty RecItem
Key 2v Horizon # 47-197-1236 Description Stack Adapter, Raypak 206A/207A Price Qty RecItem View recommended items
Key 2v Horizon # 47-197-1237 Description Stack Adapter, Raypak 266A/267A Price Qty RecItem View recommended items
Key 2v Horizon # 47-197-1238 Description Stack Adapter, Raypak 336A/337A Price Qty RecItem View recommended items
Key 2v Horizon # 47-197-1239 Description Stack Adapter, Raypak 406A/407A Price Qty RecItem View recommended items
Key 3v Horizon # 47-197-1143 Description Heater Top, Raypak 130A/207A/206A, Green Price Qty RecItem View recommended items
Key 3v Horizon # 47-197-1188 Description Heater Top, Dark Gray, Raypak Low NOx/Atmospheric Gas, 336A Price Qty RecItem
Key 3v Horizon # 47-197-1189 Description Heater Top, Raypak Low NOx/Atmospheric Gas, 267A Price Qty RecItem View recommended items
Key 3v Horizon # 47-197-1190 Description Heater Top, Green, Raypak Low NOx/Atmospheric Gas, 336A Price Qty RecItem View recommended items
Key 3v Horizon # 47-197-1191 Description Heater Top, Raypak Low NOx/Atmospheric Gas, 406A Price Qty RecItem View recommended items
Key 4v Horizon # 47-197-1193 Description Outer Stack Adapter, Raypak 206A/207A Price Qty RecItem View recommended items
Key 4v Horizon # 47-197-1194 Description Outer Stack Adapter, Raypak 266A/267A Price Qty RecItem View recommended items
Key 4v Horizon # 47-197-1195 Description Outer Stack Adapter, Raypak 336A/337A Price Qty RecItem View recommended items
Key 4v Horizon # 47-197-1196 Description Outer Stack Adapter, Raypak 406A/407A Price Qty RecItem View recommended items

Gas Conversions (Atmospheric)*

Key Horizon # Description Qty
Key Horizon # Discontinued Description Conversion Kit, Raypak R185A/R185B/R265A/R265B, Nat. to LP Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Conversion Kit, Raypak R335A/R335B/R405A/R405B, Nat. to LP Price Qty RecItem View recommended items
Key Horizon # 47-197-1942 Description Conversion Kit, Raypak 206A/266A, LP to Nat. Price Qty RecItem View recommended items
Key Horizon # 47-197-1943 Description Conversion Kit, Raypak 336a/406aA, LP to Nat. Price Qty RecItem View recommended items

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1010 Description Tool, Socket for Governor Plug, Raypak/Sta-Rite Price Qty RecItem View recommended items

Complete Heater - Digital Copper

Key Horizon # Description Qty
Key Horizon # 46-197-2006 Description Heater, Raypak Digital P-R336A-EN-C #50, Nat. Price Qty RecItem View recommended items
Key Horizon # 46-197-2008 Description Heater, Raypak Digital P-R406A-EN-C #50, Nat. Price Qty RecItem View recommended items
Key Horizon # 46-197-2022 Description Heater, NG, Raypak P-R266A-EN-C, 266K BTU, Elec Ig Price Qty RecItem View recommended items
Key Horizon # 46-197-2032 Description Heater, LP, Raypak P-R206A-EP-C, 200K BTU, Elec Ignition Price Qty RecItem View recommended items
Key Horizon # 46-197-2004 Description Heater, NG, Raypak, P-R206A-EN-C, 200K Btu, 115v/230v, Dgtl Price Qty RecItem View recommended items
Key Horizon # 46-197-2034 Description Heater, LP, Raypak P-R266A-EP-C, 266K BTU, Elec Ignition Price Qty RecItem View recommended items
Key Horizon # 46-197-2042 Description Gas Heater, NG,Raypak Digital P-R406A-EN-C,399K BTU,Copr,#51 Price Qty RecItem View recommended items
Key Horizon # 46-197-2046 Description Gas Heater, NG,Raypak Digital P-R266A-EN-C,266K BTU,Copr,#51 Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Gas Heater, LP,Raypak Digital P-R336A-EP-C,332K BTU,Copr,#57 Price Qty RecItem
Key Horizon # 46-197-2054 Description Gas Heater, NG,Raypak Digital P-R206A-EN-C,199K BTU,Copr,#51 Price Qty RecItem
Key Horizon # Discontinued Description Gas Heater, NG,Raypak Digital P-R336A-EN-C,332K BTU,Copr,#51 Price Qty RecItem
Key Horizon # 46-197-2064 Description Gas Heater, LP,Raypak Digital P-R406A-EP-C,399K BTU,Copr,#57 Price Qty RecItem View recommended items
Key Horizon # 46-197-2070 Description Gas Heater, NG,Raypak Digital P-R266A-EN-C,266K BTU,Copr,#52 Price Qty RecItem View recommended items
Key Horizon # 46-197-2072 Description Gas Heater, NG,Raypak Digital P-R406A-EN-C,399K BTU,Copr,#52 Price Qty RecItem View recommended items

Complete Heater - Digital Cupro-Nickel

Key Horizon # Description Qty
Key Horizon # 46-197-2038 Description Heater, NG, Raypak P-R206A-EN-X, 199K BTU, Cupro Nickel Price Qty RecItem View recommended items
Key Horizon # 46-197-2040 Description Gas Heater, LP, Raypak Digital C/P, P-R266A-EP-X, 240K BTU Price Qty RecItem View recommended items
Key Horizon # 46-197-2044 Description Gas Heater, LP,Raypak Digital P-R336A-EP-X,300K BTU,CuNi,#58 Price Qty RecItem View recommended items
Key Horizon # 46-197-2062 Description Gas Heater, LP,Raypak Digital P-R406A-EP-X,360K BTU,CuNi,#58 Price Qty RecItem View recommended items

Complete Heater - Millivolt Copper

Key Horizon # Description Qty
Key Horizon # Discontinued Description Gas Heater, NG,Raypak MV, P-R206A-MN-C,199K BTU,Copper,#50 Price Qty RecItem
Key Horizon # Discontinued Description Gas Heater, NG, Raypak MV, P-R406A-MN-C, 399K BTU,Copr,#50 Price Qty RecItem
Key Horizon # Discontinued Description Gas Heater, LP, Raypak MV, P-R266A-MP-C, 266K BTU, Copr, #57 Price Qty RecItem

Complete Heater - Digital Bronze ASME Copper

Key Horizon # Description Qty
Key Horizon # 46-197-2028 Description Heater, NG, Raypak B-R336A-EN-C,333K BTU,ASME Cast Iron Price Qty RecItem View recommended items
Key Horizon # 46-197-2048 Description Gas Heater, NG, Raypak Digi B-R266A-EN-C, 266K BTU, ASME,#50 Price Qty RecItem View recommended items
Key Horizon # 46-197-2060 Description Gas Heater, NG, Raypak Dig 206A,199K BTU,Brz,Copper,ASME,#50 Price Qty RecItem View recommended items
Key Horizon # 46-197-2074 Description Gas Heater, NG,Raypak Digital B-R406A-EN-C,399K BTU,ASME,#50 Price Qty RecItem View recommended items
Key Horizon # 46-197-2076 Description Gas Heater, NG,Raypak Digital B-R406A-EN-C,399K BTU,ASME,#51 Price Qty RecItem View recommended items
Key Horizon # 46-197-2078 Description Gas Heater, NG,Raypak Digital B-R406A-EN-C,399K BTU,ASME,#52 Price Qty RecItem View recommended items
Key Horizon # 46-197-2080 Description Gas Heater, LP,Raypak Digital B-R266A-EP-C,266K BTU,ASME,#57 Price Qty RecItem View recommended items
Key Horizon # 46-197-2082 Description Gas Heater, LP,Raypak Digital B-R406A-EP-C,399K BTU,ASME,#57 Price Qty RecItem View recommended items

Complete Heater - Digital Bronze ASME Cupro-Nickel

Key Horizon # Description Qty
Key Horizon # 46-197-2024 Description Heater, NG, Raypak B-R206A-EN-X, 200K BTU, ASME Cupro Nickel Price Qty RecItem View recommended items
Key Horizon # 46-197-2026 Description Heater, NG, Raypak B-R266A-EN-X,266K BTU,ASME Cupro Nickel Price Qty RecItem View recommended items
Key Horizon # 46-197-2030 Description Heater, NG, Raypak B-R406A-EN-X #50, 399K BTU, ASME C/P Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Heater, NG, Raypak B-R406A-EN-X #51, 399K BTU, ASME C/P Price Qty RecItem View recommended items
Key Horizon # 46-197-2090 Description Gas Heater, NG,Raypak Digital B-R406A-EN-X,399K BTU,ASME,#52 Price Qty RecItem View recommended items
Key Horizon # 46-197-2092 Description Gas Heater, LP,Raypak Digital B-R406A-EP-X,399K BTU,ASME,#57 Price Qty RecItem View recommended items
 Print
Back to Top  ·  Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger - Polymer  ·  Heat Exchanger - Metal  ·  Control Box  ·  Miscellaneous Components  ·  Pilot  ·  Refractory  ·  Sheetmetal  ·  Venting  ·  Gas Conversions (Atmospheric)*  ·  Tools  ·  Complete Heater - Digital Copper  ·  Complete Heater - Digital Cupro-Nickel  ·  Complete Heater - Millivolt Copper  ·  Complete Heater - Digital Bronze ASME Copper  ·  Complete Heater - Digital Bronze ASME Cupro-Nickel  ·  Complete Heater - Millivolt Bronze ASME Copper
X

Recommended Items

Tech Tip:
Product Description here
Add
X

The item you selected has comparable choices of varying qualities

X

Looking for manufacturer information, stock status and pricing? Log in now to access to all this information and more!


Quantity:    Add  View recommended items
Details

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add
X Cart Updated
