Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Heaters  >  46-197-W023

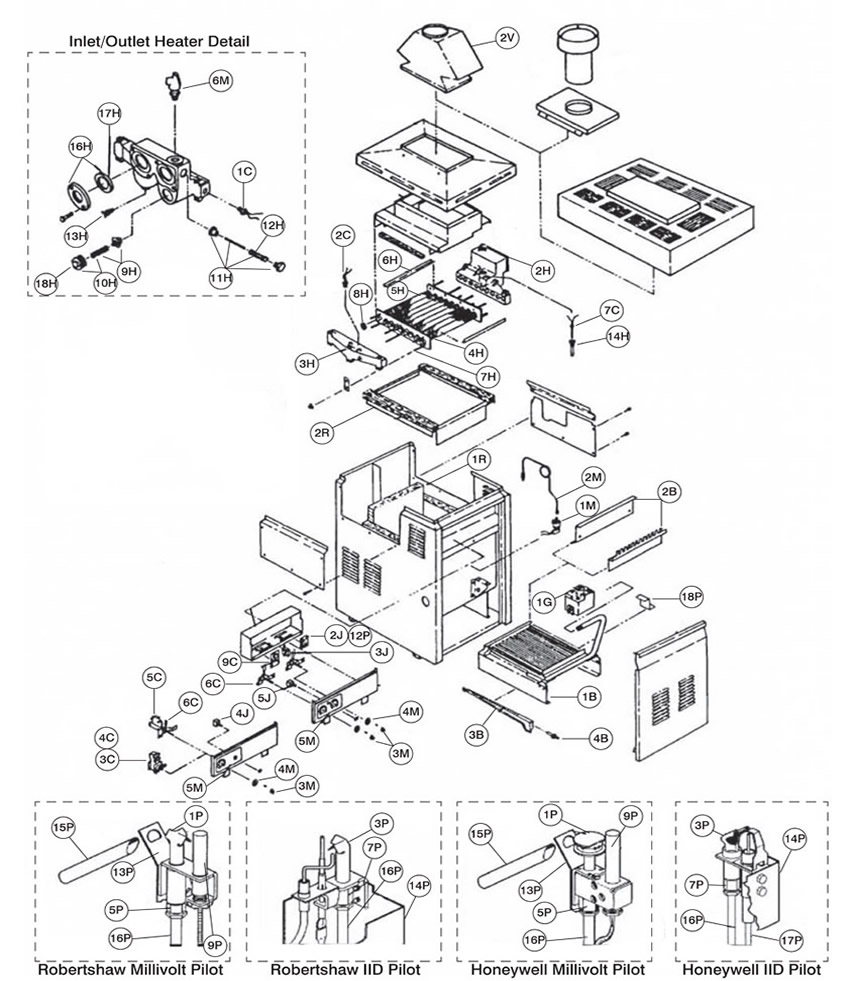

Raypak 185B, 265B, 335B, 405B, (10-16-88 thru 11-09-92)

Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger  ·  J Box/Control Box  ·  Miscellaneous Components  ·  Pilot  ·  Refractory  ·  Venting  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Burner Tray

Key Horizon # Description Qty
Key 1B Horizon # 47-197-1008 Description Burner Tray, Raypak Versa 265B Price Qty RecItem View recommended items
Key 1B Horizon # Discontinued Description Burner Tray, Raypak Versa 405B, w/Burners Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-2304 Description Burner Tray, Raypak, Model 183B/185B, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-2306 Description Burner Tray, Raypak, Model 263B/265B, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-2308 Description Burner Tray, Raypak, Model 333B/335B, with Burner, Sea Level Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-2310 Description Burner Tray, Raypak, Model 183B/185B, w/o Burner, Sea Level Price Qty RecItem View recommended items
Key 1B Horizon # 47-197-2312 Description Burner Tray, Raypak, Model 333B/335B, w/o Burner, Sea Level Price Qty RecItem View recommended items
Key 2B Horizon # 47-197-2314 Description Burner Hold Down, Raypak, Model 183B/185B Price Qty RecItem View recommended items
Key 2B Horizon # 47-197-2316 Description Burner Hold Down, Raypak, Model 263B/265B Price Qty RecItem View recommended items
Key 2B Horizon # 47-197-2318 Description Burner Hold Down, Raypak, Model 333B/335B Price Qty RecItem View recommended items
Key 2B Horizon # 47-197-2320 Description Burner Hold Down, Raypak, Model 403B/405B Price Qty RecItem View recommended items
Key 3B Horizon # 47-197-3200 Description SRV Burner Kit, Raypak, 10 Pack Price Qty RecItem
Key 4B Horizon # 47-197-1470 Description Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III,LP,SL,5ea Price Qty RecItem View recommended items
Key 4B Horizon # 47-197-1550 Description Burner Orifice, Raypak Gemini/Versa/RP2100/CAL III, SL, Nat. Price Qty RecItem

Controls

Key Horizon # Description Qty
Key 1C Horizon # 47-197-1444 Description T-Stat Auto Reset 13, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 2C Horizon # 47-197-1446 Description T-Stat Auto Reset 14, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 3C Horizon # 47-197-1024 Description Thermostat,Raypak ELS/53/105A/105B/153/155A/183A/185B/RP2100 Price Qty RecItem View recommended items
Key 4C Horizon # 47-197-1364 Description Thermostat, Raypak 55A/155A/185A, MV Price Qty RecItem View recommended items
Key 5C Horizon # 47-197-1358 Description PCB, Raypak 55A/155A/185A, MV Price Qty RecItem View recommended items
Key 6C Horizon # Discontinued Description Potentiometer, Raypak 55A/105A/155A/185A Price Qty RecItem View recommended items
Key 7C Horizon # Discontinued Description Sensor, Temperature, Raypak 55A/105A/155A/185A Price Qty RecItem View recommended items
Key 9C Horizon # 47-197-1356 Description PCB, Raypak 55A/105A/155A/185A, IID Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1G Horizon # 47-197-1210 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, Nat., MV Price Qty RecItem View recommended items
Key 1G Horizon # 47-197-1212 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, LP., MV Price Qty RecItem View recommended items
Key 1G Horizon # 47-197-1278 Description Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID Price Qty RecItem View recommended items
Key 1G Horizon # 47-197-1368 Description Gas Valve, Raypak 55A/105A/105B/155A/185A/R185/185, LP, IID Price Qty RecItem View recommended items

Heat Exchanger

Key Horizon # Description Qty
Key 2H Horizon # 47-197-1654 Description Header, Inlet/Outlet,Raypak 185-405/185B/C-405B/C,Cast Iron Price Qty RecItem View recommended items
Key 3H Horizon # 47-197-1574 Description Return Header, Raypak 183A, Cast Iron Price Qty RecItem View recommended items
Key 3H Horizon # 47-197-1658 Description Return Header, Raypak 183A, Bronze Price Qty RecItem View recommended items
Key 4H Horizon # Discontinued Description Tube Bundle, Raypak 183A/185A Price Qty RecItem View recommended items
Key 4H Horizon # 47-197-1580 Description Tube Bundle, Raypak 263A/265A Price Qty RecItem View recommended items
Key 4H Horizon # Discontinued Description Tube Bundle, Raypak 333A/335A Price Qty RecItem View recommended items
Key 4H Horizon # 47-197-1584 Description Tube Bundle, Raypak 403A/405A Price Qty RecItem View recommended items
Key 5H Horizon # Discontinued Description Heat Exchanger Tube, Raypak Model 183/183A/185, Copper Price Qty RecItem View recommended items
Key 6H Horizon # 47-197-1586 Description Baffle, Raypak 183A/185A Price Qty RecItem View recommended items
Key 6H Horizon # 47-197-1588 Description Baffle, Raypak 263A/265A Price Qty RecItem View recommended items
Key 6H Horizon # 47-197-1590 Description Baffle, Raypak 333A/335A Price Qty RecItem View recommended items
Key 6H Horizon # 47-197-1592 Description Baffle, Raypak 403A/405A Price Qty RecItem View recommended items
Key 7H Horizon # Discontinued Description Bolt Kit, Raypak 183A/185A/R185/185/R185A Heat Exchanger Price Qty RecItem
Key 8H Horizon # 47-197-1414 Description Gasket, Raypak 105A/105B/183A,Heat Xchg,3/4"ID,1-1/8"OD,qty9 Price Qty RecItem View recommended items
Key 9H Horizon # 47-197-1416 Description Unitherm Governor, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 10 Horizon # 47-197-1418 Description Unitherm Governor Spring, Raypak 105A/105B/155A/185A/R185 Price Qty RecItem View recommended items
Key 10H Horizon # 47-197-1418 Description Unitherm Governor Spring, Raypak 105A/105B/155A/185A/R185 Price Qty RecItem View recommended items
Key 11H Horizon # 47-197-1420 Description Bypass Valve, Raypak, Versa, Gemini, RP2100, Low Nox Price Qty RecItem
Key 11H Horizon # 47-197-1421 Description Bypass Valve Kit, Raypak 206A - 408A, Plastic Price Qty RecItem
Key 12H Horizon # Discontinued Description Bypass Spring, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem View recommended items
Key 12H Horizon # 47-197-1615 Description Bypass Spring, Raypak 185A/R185/207A/206A Price Qty RecItem View recommended items
Key 12H Horizon # 47-197-3422 Description Bypass Spring Kit, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem
Key 13H Horizon # 47-197-1232 Description Drain Valve, Raypak 53/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 14H Horizon # 47-197-1424 Description Sensor Well, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 16H Horizon # 47-197-1430 Description Flange Kit, Raypak 105A/105B/155A/185A/R185/207A, In/Out Price Qty RecItem View recommended items
Key 17H Horizon # 47-197-1434 Description Gasket, Raypak 105A/105B/155A/185A,Flange,1-5/8"ID,2-5/8"OD Price Qty RecItem View recommended items
Key 17H Horizon # 47-197-1436 Description Gasket, Raypak 105A/105B/155A/185, 2-1/8"ID, 2-3/4"OD, qty 2 Price Qty RecItem View recommended items
Key 18H Horizon # 47-197-1006 Description Unitherm Governor Plug, Raypak 206A/266A/336A/406A Price Qty RecItem View recommended items

J Box/Control Box

Key Horizon # Description Qty
Key 2J Horizon # 47-197-1388 Description Ignition Control, Raypak 53A/55A/105A/151/153, with out Lock Price Qty RecItem View recommended items
Key 2J Horizon # 47-197-1390 Description Ignition Control, Raypak 55A/105A/155A/185A/R185, with Lock Price Qty RecItem View recommended items
Key 3J Horizon # 47-197-1768 Description Transformer, Raypak 55A/R185/185/207A/206A/R185A, 115v/230v Price Qty RecItem View recommended items
Key 4J Horizon # Discontinued Description Toggle Switch, Raypak ELS/53A/151/153/155A/183A/185A, SPST Price Qty RecItem View recommended items
Key 5J Horizon # Discontinued Description Toggle Switch, Raypak 185A, 15A/10A, SPDT Price Qty RecItem

Miscellaneous Components

Key Horizon # Description Qty
Key 1M Horizon # 47-197-1000 Description Pressure Switch, Raypak Versa/Gemini/RP2100 Price Qty RecItem View recommended items
Key 2M Horizon # 47-197-1598 Description Pressure Switch Tube, Raypak 183A/185A Price Qty RecItem View recommended items
Key 3M Horizon # 47-197-1030 Description Thermostat Knob,Raypak 53/ELS/53A/55A/105A/105B/151/153,Blk Price Qty RecItem View recommended items
Key 4M Horizon # 47-197-1032 Description Knob Stop, Raypak ELS/53A/55A/105A/105B/153/155A/183A/185A Price Qty RecItem View recommended items
Key 5M Horizon # 47-197-1298 Description Dial Plate, Raypak 55A, Millivolt Price Qty RecItem View recommended items
Key 6M Horizon # 47-197-1100 Description Pressure Relief Valve, Raypak 130A/207A/206A/R185A, 125 psi Price Qty RecItem View recommended items
Key 6M Horizon # 47-197-1849 Description Pressure Relief Valve, Raypak R185A/R185B 125 psi Price Qty RecItem

Pilot

Key Horizon # Description Qty
Key 1P Horizon # 47-197-1242 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, Nat., MV Price Qty RecItem View recommended items
Key 1P Horizon # 47-197-1244 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, LP, MV Price Qty RecItem View recommended items
Key 3P Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 5P Horizon # 47-197-1246 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, Nat., MV Price Qty RecItem View recommended items
Key 5P Horizon # 47-197-1248 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, LP, MV Price Qty RecItem View recommended items
Key 7P Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 7P Horizon # 47-197-1386 Description Pilot Orifice, Raypak 55A/105A/155A/185A/R185/185/206A, IID Price Qty RecItem View recommended items
Key 9P Horizon # 47-197-1250 Description Thermocouple, Raypak 53/53A/55A/105A/151/153/155A, MV Price Qty RecItem View recommended items
Key 12P Horizon # 47-197-1388 Description Ignition Control, Raypak 53A/55A/105A/151/153, with out Lock Price Qty RecItem View recommended items
Key 12P Horizon # 47-197-1390 Description Ignition Control, Raypak 55A/105A/155A/185A/R185, with Lock Price Qty RecItem View recommended items
Key 13P Horizon # Discontinued Description Pilot Mounting Bracket, Raypak Gemini/Versa/RP2100 Price Qty RecItem View recommended items
Key 13P Horizon # 47-197-3628 Description Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100 Price Qty RecItem
Key 14P Horizon # Discontinued Description Pilot Mounting Bracket, Raypak Gemini/Versa/RP2100, IID Price Qty RecItem View recommended items
Key 14P Horizon # 47-197-3232 Description Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100, IID Price Qty RecItem
Key 15P Horizon # 47-197-1636 Description Lighter Tube, Raypak 185A/R185/185/206A/R185A/R185B Price Qty RecItem View recommended items
Key 16P Horizon # 47-197-1318 Description Pilot Tube Assembly, Raypak 53A/55A/105A/155A/185A/R185/185 Price Qty RecItem View recommended items
Key 17P Horizon # 47-197-1400 Description High Tension Wire, Raypak 53A/55A/105A/155A/183A/185A/R185 Price Qty RecItem View recommended items
Key 18P Horizon # Discontinued Description Pilot Shield, Raypak 185A Price Qty RecItem View recommended items

Refractory

Key Horizon # Description Qty
Key 1R Horizon # 47-197-2294 Description Refractory Kit, Raypak, Model 333B/335B Price Qty RecItem View recommended items
Key 1R Horizon # 47-197-2296 Description Refractory Kit, Raypak, Model 263B/265B Price Qty RecItem View recommended items
Key 1R Horizon # 47-197-2298 Description Refractory Kit, Raypak, Model 183B/185B Price Qty RecItem View recommended items
Key 1R Horizon # 47-197-2300 Description Refractory Kit, Raypak, 403B/405B Price Qty RecItem View recommended items
Key 2R Horizon # 47-197-2340 Description Refractory Retainer Kit, Raypak, Models 183/183A/185A Price Qty RecItem View recommended items
Key 2R Horizon # 47-197-2426 Description Refractory Retainer Kit, Raypak, Models 403/405 Price Qty RecItem View recommended items

Venting

Key Horizon # Description Qty
Key 2V Horizon # 47-197-1013 Description Drafthood, Raypak Gemini/Versa 335B, Indoor Price Qty RecItem View recommended items
Key 2V Horizon # 47-197-1123 Description Drafthood, Raypak Gemini/Versa 185B, Indoor Price Qty RecItem View recommended items
Key 2V Horizon # 47-197-2332 Description Drafthood, Raypak, Model 265B, Indoor Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # 47-197-1610 Description Thermostat Kit, Raypak 55A/185A, IID, 10A Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Heat Exchanger, Raypak, Model 185, Cast Iron, Complete Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Heat Exchanger, Raypak, Model 265, Cast Iron, Complete Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Heat Exchanger, Raypak, Model 335, Cast Iron, Complete Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Heat Exchanger, Raypak, Model 405, Cast Iron, Complete Price Qty RecItem View recommended items
Key Horizon # 47-197-1101 Description Deliming Kit, Raypak 130A/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Sensor Clip, Raypak ELS/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Wiring Harnes, Raypak, Models 185-405, IID Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Conversion Kit, Raypak R185A/R185B/R265A/R265B, Nat. to LP Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Conversion Kit, Raypak R335A/R335B/R405A/R405B, Nat. to LP Price Qty RecItem View recommended items
Key Horizon # _004691F Description Convert Pro To Nat151-265-Kit Price Qty RecItem
Key Horizon # 47-197-2420 Description Conversion Kit, Raypak, Models 335/405, LP to NG, Millivolt Price Qty RecItem View recommended items
