Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Heaters  >  46-197-W019

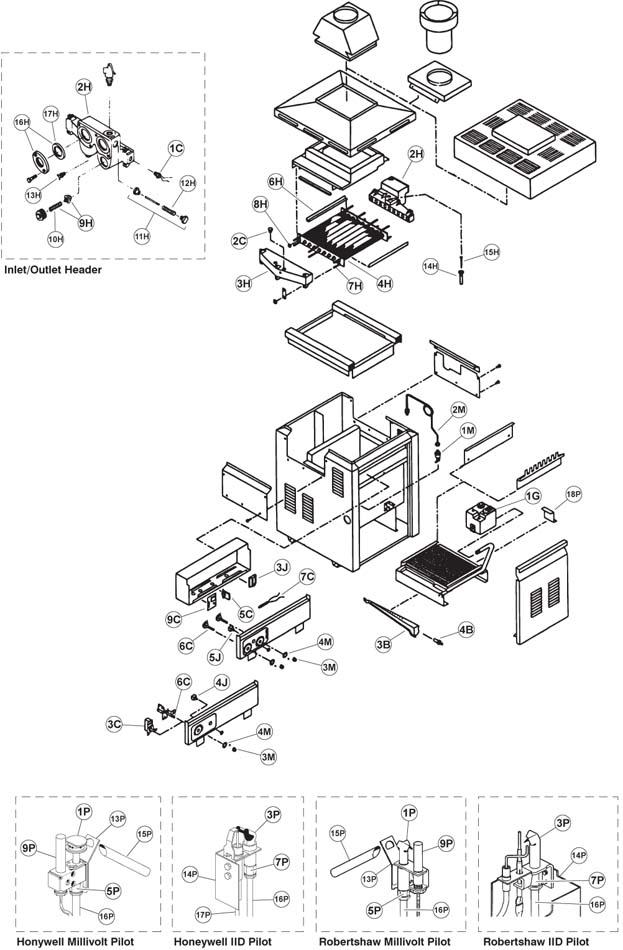

Raypak 185B/C,265B/C,335B/C,405B/C (10-16-88 thru 11-01-93)

Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger  ·  J Box/Control Box  ·  Miscellaneous Components  ·  Pilot
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Key #4b - For altitudes over 2,000 feet above sea level, consult the factory

Burner Tray

Key Horizon # Description Qty
Key 3b Horizon # 47-197-3200 Description SRV Burner Kit, Raypak, 10 Pack Price Qty RecItem
Key 4b Horizon # 47-197-1470 Description Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III,LP,SL,5ea Price Qty RecItem View recommended items
Key 4b Horizon # 47-197-1550 Description Burner Orifice, Raypak Gemini/Versa/RP2100/CAL III, SL, Nat. Price Qty RecItem

Controls

Key Horizon # Description Qty
Key 1c Horizon # 47-197-1444 Description T-Stat Auto Reset 13, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 2c Horizon # 47-197-1446 Description T-Stat Auto Reset 14, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 3c Horizon # 47-197-1024 Description Thermostat,Raypak ELS/53/105A/105B/153/155A/183A/185B/RP2100 Price Qty RecItem View recommended items
Key 4c Horizon # 47-197-1364 Description Thermostat, Raypak 55A/155A/185A, MV Price Qty RecItem View recommended items
Key 5c Horizon # 47-197-1610 Description Thermostat Kit, Raypak 55A/185A, IID, 10A Price Qty RecItem View recommended items
Key 6c Horizon # Discontinued Description Potentiometer, Raypak 55A/105A/155A/185A Price Qty RecItem View recommended items
Key 7c Horizon # Discontinued Description Sensor, Temperature, Raypak 55A/105A/155A/185A Price Qty RecItem View recommended items
Key 9c Horizon # 47-197-1356 Description PCB, Raypak 55A/105A/155A/185A, IID Price Qty RecItem View recommended items
Key 9c Horizon # 47-197-1358 Description PCB, Raypak 55A/155A/185A, MV Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1g Horizon # 47-197-1210 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, Nat., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1212 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, LP., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1278 Description Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1368 Description Gas Valve, Raypak 55A/105A/105B/155A/185A/R185/185, LP, IID Price Qty RecItem View recommended items

Heat Exchanger

Key Horizon # Description Qty
Key 2h Horizon # 47-197-1654 Description Header, Inlet/Outlet,Raypak 185-405/185B/C-405B/C,Cast Iron Price Qty RecItem View recommended items
Key 2h Horizon # Discontinued Description Inlet/Outlet Header, Raypak 185A/R185, Bronze Price Qty RecItem View recommended items
Key 3h Horizon # 47-197-1574 Description Return Header, Raypak 183A, Cast Iron Price Qty RecItem View recommended items
Key 3h Horizon # 47-197-1658 Description Return Header, Raypak 183A, Bronze Price Qty RecItem View recommended items
Key 4h Horizon # Discontinued Description Tube Bundle, Raypak 183A/185A Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1580 Description Tube Bundle, Raypak 263A/265A Price Qty RecItem View recommended items
Key 4h Horizon # Discontinued Description Tube Bundle, Raypak 333A/335A Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1584 Description Tube Bundle, Raypak 403A/405A Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1586 Description Baffle, Raypak 183A/185A Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1588 Description Baffle, Raypak 263A/265A Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1590 Description Baffle, Raypak 333A/335A Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1592 Description Baffle, Raypak 403A/405A Price Qty RecItem View recommended items
Key 7h Horizon # Discontinued Description Bolt Kit, Raypak 183A/185A/R185/185/R185A Heat Exchanger Price Qty RecItem
Key 8h Horizon # 47-197-1414 Description Gasket, Raypak 105A/105B/183A,Heat Xchg,3/4"ID,1-1/8"OD,qty9 Price Qty RecItem View recommended items
Key 9h Horizon # 47-197-1416 Description Unitherm Governor, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 10h Horizon # 47-197-1418 Description Unitherm Governor Spring, Raypak 105A/105B/155A/185A/R185 Price Qty RecItem View recommended items
Key 11h Horizon # 47-197-1420 Description Bypass Valve, Raypak, Versa, Gemini, RP2100, Low Nox Price Qty RecItem
Key 11h Horizon # 47-197-1421 Description Bypass Valve Kit, Raypak 206A - 408A, Plastic Price Qty RecItem
Key 12h Horizon # Discontinued Description Bypass Spring, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem View recommended items
Key 12h Horizon # 47-197-1615 Description Bypass Spring, Raypak 185A/R185/207A/206A Price Qty RecItem View recommended items
Key 12h Horizon # 47-197-3422 Description Bypass Spring Kit, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem
Key 13h Horizon # 47-197-1232 Description Drain Valve, Raypak 53/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 14h Horizon # 47-197-1424 Description Sensor Well, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 15h Horizon # Discontinued Description Sensor Clip, Raypak ELS/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 15h Horizon # 47-197-3218 Description Temp Sensor Retainer Kit, Qty 5, Raypak ELS/53A/55A/105A/B Price Qty RecItem
Key 16h Horizon # 47-197-1430 Description Flange Kit, Raypak 105A/105B/155A/185A/R185/207A, In/Out Price Qty RecItem View recommended items
Key 17h Horizon # 47-197-1434 Description Gasket, Raypak 105A/105B/155A/185A,Flange,1-5/8"ID,2-5/8"OD Price Qty RecItem View recommended items
Key 17h Horizon # 47-197-1436 Description Gasket, Raypak 105A/105B/155A/185, 2-1/8"ID, 2-3/4"OD, qty 2 Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Header, In/Outlet,Raypak 185-405/185B/C-405B/C,CI, 2 Well Price Qty RecItem View recommended items

J Box/Control Box

Key Horizon # Description Qty
Key 3j Horizon # 47-197-1302 Description Transformer, Raypak 53A/55A/105A/105B/151/153/155A/185A Price Qty RecItem
Key 4j Horizon # Discontinued Description Toggle Switch, Raypak ELS/53A/151/153/155A/183A/185A, SPST Price Qty RecItem View recommended items
Key 5j Horizon # Discontinued Description Toggle Switch, Raypak 185A, 15A/10A, SPDT Price Qty RecItem

Miscellaneous Components

Key Horizon # Description Qty
Key 1m Horizon # 47-319-1201 Description Pressure Switch 3925,25A, Tecmark, Universal, SPNO, w/Brass Price Qty RecItem View recommended items
Key 2m Horizon # 47-197-1598 Description Pressure Switch Tube, Raypak 183A/185A Price Qty RecItem View recommended items
Key 3m Horizon # 47-197-1030 Description Thermostat Knob,Raypak 53/ELS/53A/55A/105A/105B/151/153,Blk Price Qty RecItem View recommended items
Key 4m Horizon # 47-197-1032 Description Knob Stop, Raypak ELS/53A/55A/105A/105B/153/155A/183A/185A Price Qty RecItem View recommended items
Key Horizon # 47-197-1626 Description Indicator Light, Raypak 185A Price Qty RecItem View recommended items

Pilot

Key Horizon # Description Qty
Key 1p Horizon # 47-197-1242 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, Nat., MV Price Qty RecItem View recommended items
Key 1p Horizon # 47-197-1244 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, LP, MV Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 5p Horizon # 47-197-1246 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, Nat., MV Price Qty RecItem View recommended items
Key 5p Horizon # 47-197-1248 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, LP, MV Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-1386 Description Pilot Orifice, Raypak 55A/105A/155A/185A/R185/185/206A, IID Price Qty RecItem View recommended items
Key 9p Horizon # 47-197-1250 Description Thermocouple, Raypak 53/53A/55A/105A/151/153/155A, MV Price Qty RecItem View recommended items
Key 13p Horizon # 47-197-1600 Description Pilot Mounting Bracket, Raypak Gemini, Standing Price Qty RecItem View recommended items
Key 13p Horizon # Discontinued Description Pilot Mounting Bracket, Raypak Gemini/Versa/RP2100 Price Qty RecItem View recommended items
Key 13p Horizon # 47-197-3628 Description Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100 Price Qty RecItem
Key 14p Horizon # 47-197-1602 Description Pilot Mounting Bracket, Raypak Gemini, IID Price Qty RecItem View recommended items
Key 14p Horizon # Discontinued Description Pilot Mounting Bracket, Raypak Gemini/Versa/RP2100, IID Price Qty RecItem View recommended items
Key 14p Horizon # 47-197-3232 Description Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100, IID Price Qty RecItem
Key 15p Horizon # Discontinued Description Lighter Tube, Raypak 151/153/155A/183A/185A, MV Price Qty RecItem View recommended items
Key 15p Horizon # 47-197-1636 Description Lighter Tube, Raypak 185A/R185/185/206A/R185A/R185B Price Qty RecItem View recommended items
Key 15p Horizon # 47-197-1638 Description Lighter Tube, Raypak 185A, MV Only Price Qty RecItem View recommended items
Key 15p Horizon # 47-197-3502 Description Lighter Tube Group, Raypak 151/153/155A/183A/185A, MV Price Qty RecItem
Key 16p Horizon # 47-197-1318 Description Pilot Tube Assembly, Raypak 53A/55A/105A/155A/185A/R185/185 Price Qty RecItem View recommended items
Key 16p Horizon # Discontinued Description Aluminum Tubing, Raypak 155A/185A Price Qty RecItem View recommended items
Key 17p Horizon # 47-197-1400 Description High Tension Wire, Raypak 53A/55A/105A/155A/183A/185A/R185 Price Qty RecItem View recommended items
Key 18p Horizon # Discontinued Description Pilot Shield, Raypak 185A Price Qty RecItem View recommended items
Key Horizon # 47-197-1388 Description Ignition Control, Raypak 53A/55A/105A/151/153, with out Lock Price Qty RecItem View recommended items
Key Horizon # 47-197-1390 Description Ignition Control, Raypak 55A/105A/155A/185A/R185, with Lock Price Qty RecItem View recommended items
