Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Heaters  >  46-197-W017

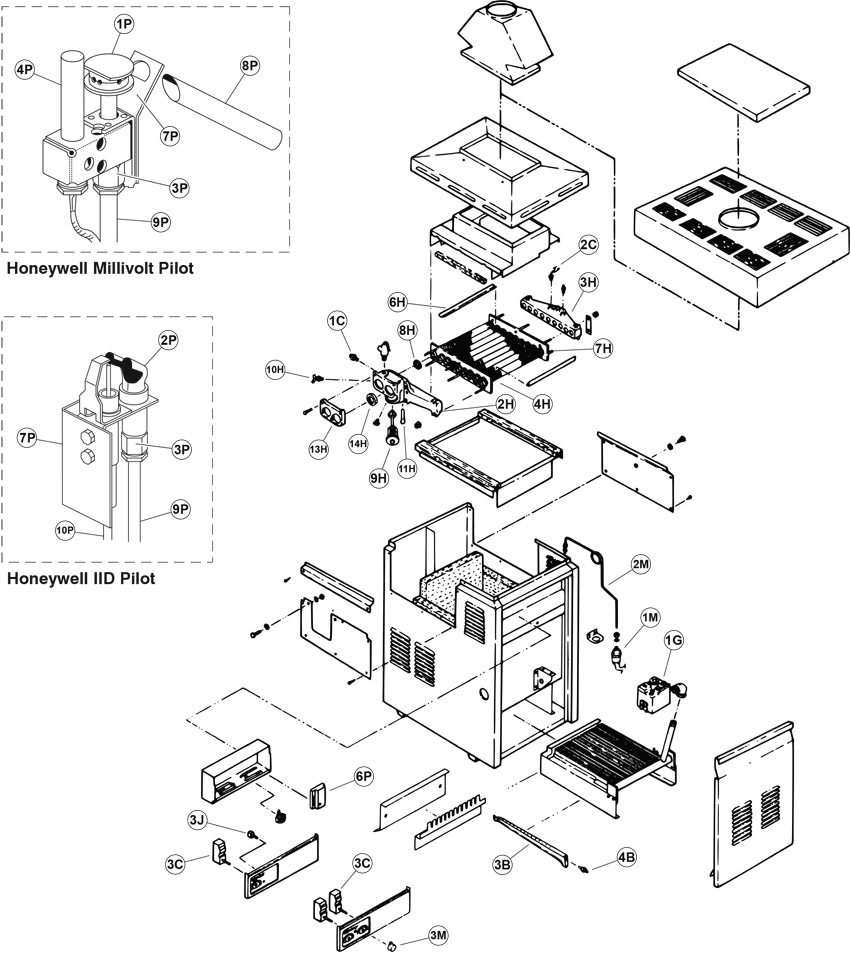

Raypak Versa 183A, 263A, 333A, 403A Heaters

Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger  ·  J-Box/Control Box  ·  Miscellaneous Components  ·  Pilot
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Key #4b - For altitudes over 2,000 feet above sea level, consult the factory

Burner Tray

Key Horizon # Description Qty
Key 3B Horizon # 47-197-3200 Description SRV Burner Kit, Raypak, 10 Pack Price Qty RecItem
Key 4b Horizon # Discontinued Description Burner Orifice,Raypak Gemini/Versa/RP2100/Cal III,#51,NG,SL Price Qty RecItem
Key 4b Horizon # 47-197-1470 Description Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III,LP,SL,5ea Price Qty RecItem View recommended items

Controls

Key Horizon # Description Qty
Key 1c Horizon # 47-197-1444 Description T-Stat Auto Reset 13, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 2c Horizon # 47-197-1446 Description T-Stat Auto Reset 14, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 3c Horizon # 47-197-1024 Description Thermostat,Raypak ELS/53/105A/105B/153/155A/183A/185B/RP2100 Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1g Horizon # 47-197-1210 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, Nat., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1212 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, LP., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1278 Description Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID Price Qty RecItem View recommended items

Heat Exchanger

Key Horizon # Description Qty
Key 2h Horizon # Discontinued Description Inlet/Outlet Header, Raypak 183A, Cast Iron Price Qty RecItem
Key 2h Horizon # Discontinued Description Inlet/Outlet Header, Raypak 183A, Bronze Price Qty RecItem View recommended items
Key 3h Horizon # 47-197-1574 Description Return Header, Raypak 183A, Cast Iron Price Qty RecItem View recommended items
Key 3h Horizon # 47-197-1658 Description Return Header, Raypak 183A, Bronze Price Qty RecItem View recommended items
Key 4h Horizon # Discontinued Description Tube Bundle, Raypak 183A/185A Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1580 Description Tube Bundle, Raypak 263A/265A Price Qty RecItem View recommended items
Key 4h Horizon # Discontinued Description Tube Bundle, Raypak 333A/335A Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1584 Description Tube Bundle, Raypak 403A/405A Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1586 Description Baffle, Raypak 183A/185A Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1588 Description Baffle, Raypak 263A/265A Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1590 Description Baffle, Raypak 333A/335A Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1592 Description Baffle, Raypak 403A/405A Price Qty RecItem View recommended items
Key 7h Horizon # Discontinued Description Bolt Kit, Raypak 183A/185A/R185/185/R185A Heat Exchanger Price Qty RecItem
Key 8h Horizon # 47-197-1414 Description Gasket, Raypak 105A/105B/183A,Heat Xchg,3/4"ID,1-1/8"OD,qty9 Price Qty RecItem View recommended items
Key 9h Horizon # Discontinued Description Unitherm Governor, Raypak 183A Price Qty RecItem
Key 10h Horizon # 47-197-1232 Description Drain Valve, Raypak 53/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 11h Horizon # 47-197-1222 Description Bulb Well, Raypak 53/53A/55A/151/153/155A/183A Price Qty RecItem View recommended items
Key 13h Horizon # 47-197-1224 Description Flange, Raypak 53/53A/55A/153/155A/183A/185, In/Out Price Qty RecItem View recommended items
Key 14h Horizon # 47-197-1226 Description Gasket, Raypak 53/53A/55A/105A/151,Flange,1-9/16"ID,2-1/8"OD Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Sensor Clip, Raypak ELS/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key Horizon # 47-197-3218 Description Temp Sensor Retainer Kit, Qty 5, Raypak ELS/53A/55A/105A/B Price Qty RecItem

J-Box/Control Box

Key Horizon # Description Qty
Key 3j Horizon # Discontinued Description Toggle Switch, Raypak ELS/53A/151/153/155A/183A/185A, SPST Price Qty RecItem View recommended items
Key 3j Horizon # Discontinued Description Toggle Switch, Raypak 153/183A, 15A/10A, SPDT Price Qty RecItem

Miscellaneous Components

Key Horizon # Description Qty
Key 1m Horizon # 47-319-1201 Description Pressure Switch 3925,25A, Tecmark, Universal, SPNO, w/Brass Price Qty RecItem View recommended items
Key 2m Horizon # 47-197-1598 Description Pressure Switch Tube, Raypak 183A/185A Price Qty RecItem View recommended items
Key 3m Horizon # 47-197-1030 Description Thermostat Knob,Raypak 53/ELS/53A/55A/105A/105B/151/153,Blk Price Qty RecItem View recommended items
Key Horizon # 47-197-1032 Description Knob Stop, Raypak ELS/53A/55A/105A/105B/153/155A/183A/185A Price Qty RecItem View recommended items

Pilot

Key Horizon # Description Qty
Key 1p Horizon # 47-197-1242 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, Nat., MV Price Qty RecItem View recommended items
Key 1p Horizon # 47-197-1244 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, LP, MV Price Qty RecItem View recommended items
Key 2p Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1246 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, Nat., MV Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1248 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, LP, MV Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 4p Horizon # 47-197-1250 Description Thermocouple, Raypak 53/53A/55A/105A/151/153/155A, MV Price Qty RecItem View recommended items
Key 6p Horizon # 47-197-1388 Description Ignition Control, Raypak 53A/55A/105A/151/153, with out Lock Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-1600 Description Pilot Mounting Bracket, Raypak Gemini, Standing Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-1602 Description Pilot Mounting Bracket, Raypak Gemini, IID Price Qty RecItem View recommended items
Key 8p Horizon # Discontinued Description Lighter Tube, Raypak 151/153/155A/183A/185A, MV Price Qty RecItem View recommended items
Key 8p Horizon # 47-197-3502 Description Lighter Tube Group, Raypak 151/153/155A/183A/185A, MV Price Qty RecItem
Key 9p Horizon # Discontinued Description Aluminum Tubing, Raypak 53/151/153/183A Price Qty RecItem View recommended items
Key 10p Horizon # 47-197-1400 Description High Tension Wire, Raypak 53A/55A/105A/155A/183A/185A/R185 Price Qty RecItem View recommended items
