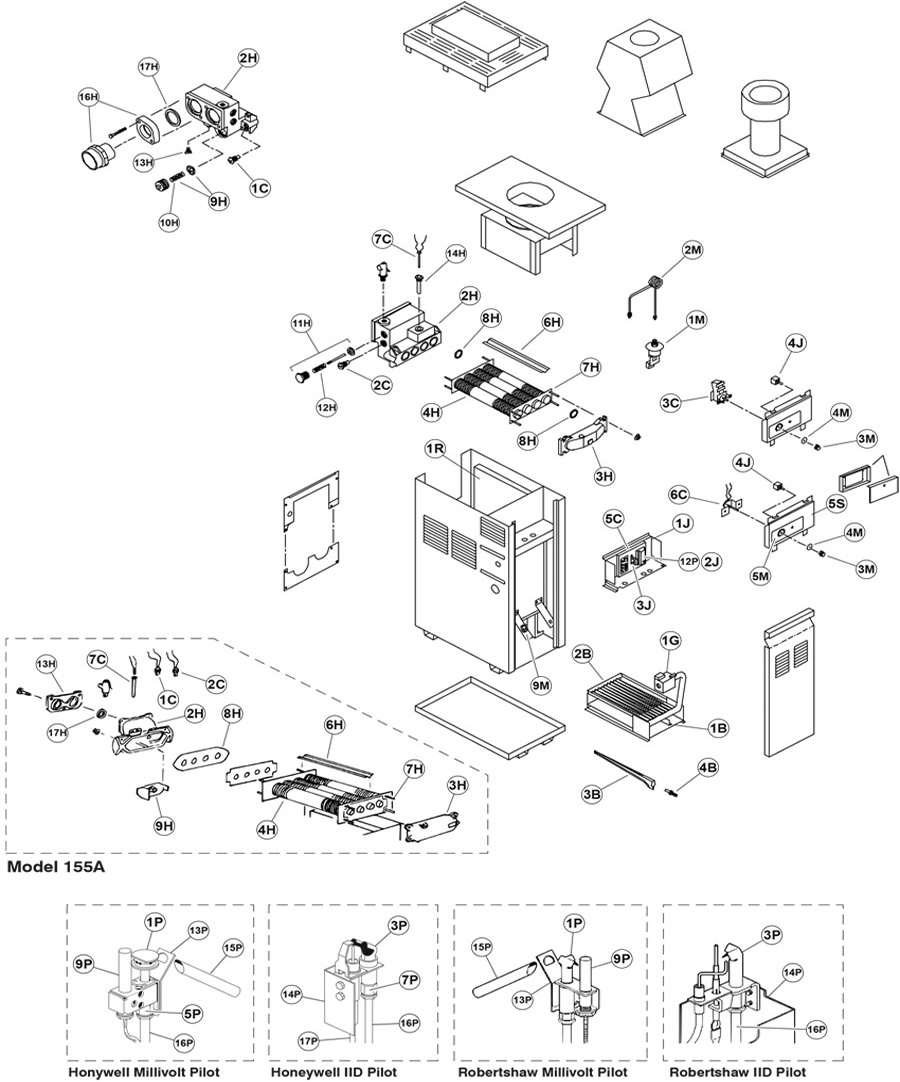

Raypak Versa 155A/155B/155C Heaters

Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger  ·  J-Box/Control Box  ·  Miscellaneous Components  ·  Pilot  ·  Refractory  ·  Sheetmetal
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Key #4b - For altitudes over 2,000 feet above sea level, consult the factory



-Part #47-197-1516 - For heaters built after 01/90 use kit #001622F

Burner Tray

Key Horizon # Description Qty
Key 1b Horizon # _001990F Description Burner Tray W/Burner Price Qty RecItem
Key 1b Horizon # 47-197-1007 Description Burner Tray, Raypak Gemini/Spa Pak 153 `81-`84, w/Burners Price Qty RecItem View recommended items
Key 1b Horizon # Discontinued Description Burner Tray, Raypak, Models 155A/B/C, w/Natural Gas Valve Price Qty RecItem View recommended items
Key 1b Horizon # Discontinued Description Burner Tray, Raypak, Model 155, Propane, w/Gas Valve, IID Price Qty RecItem View recommended items
Key 1b Horizon # Discontinued Description Burner Tray, Raypak, Model 155, Natural Gas, w/Gas Valve,IID Price Qty RecItem View recommended items
Key 1b Horizon # Discontinued Description Burner Tray, Raypak, Model 155, Propane, w/Gas Valve, STG Price Qty RecItem View recommended items
Key 2b Horizon # 47-197-1510 Description Burner Hold Down, Raypak 153/155A Price Qty RecItem View recommended items
Key 3b Horizon # 47-197-3200 Description SRV Burner Kit, Raypak, 10 Pack Price Qty RecItem
Key 4b Horizon # 47-197-1470 Description Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III,LP,SL,5ea Price Qty RecItem View recommended items
Key 4b Horizon # 47-197-1550 Description Burner Orifice, Raypak Gemini/Versa/RP2100/CAL III, SL, Nat. Price Qty RecItem

Controls

Key Horizon # Description Qty
Key 1c Horizon # 47-197-1444 Description T-Stat Auto Reset 13, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 2c Horizon # 47-197-1446 Description T-Stat Auto Reset 14, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 3c Horizon # 47-197-1024 Description Thermostat,Raypak ELS/53/105A/105B/153/155A/183A/185B/RP2100 Price Qty RecItem View recommended items
Key 3c Horizon # 47-197-1364 Description Thermostat, Raypak 55A/155A/185A, MV Price Qty RecItem View recommended items
Key 5c Horizon # 47-197-1356 Description PCB, Raypak 55A/105A/155A/185A, IID Price Qty RecItem View recommended items
Key 5c Horizon # 47-197-1358 Description PCB, Raypak 55A/155A/185A, MV Price Qty RecItem View recommended items
Key 5c Horizon # 47-197-1364 Description Thermostat, Raypak 55A/155A/185A, MV Price Qty RecItem View recommended items
Key 5c Horizon # Discontinued Description PCB, Raypak 105A/155A, IID, Thermostat Price Qty RecItem View recommended items
Key 6c Horizon # Discontinued Description Potentiometer, Raypak 55A/105A/155A/185A Price Qty RecItem View recommended items
Key 7c Horizon # Discontinued Description Sensor, Temperature, Raypak 55A/105A/155A/185A Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1g Horizon # 47-197-1210 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, Nat., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1212 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, LP., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1278 Description Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1368 Description Gas Valve, Raypak 55A/105A/105B/155A/185A/R185/185, LP, IID Price Qty RecItem View recommended items

Heat Exchanger

Key Horizon # Description Qty
Key 2h Horizon # Discontinued Description Inlet/Outlet Header, Raypak 153A/155A, Bronze Price Qty RecItem
Key 2h Horizon # Discontinued Description Inlet/Outlet Header, Raypak 153A/155A, Cast Iron Price Qty RecItem
Key 2h Horizon # 47-197-1554 Description Inlet/Outlet Header, Raypak 155B/155C, Bronze Price Qty RecItem View recommended items
Key 2h Horizon # 47-197-1558 Description Return Header, Raypak 155B/155C, Cast Iron Price Qty RecItem View recommended items
Key 2h Horizon # 47-197-1566 Description Inlet/Outlet Header, Raypak 155B/155C, Cast Iron Price Qty RecItem View recommended items
Key 3h Horizon # Discontinued Description Return Header, Raypak 151/153/155A Price Qty RecItem
Key 3h Horizon # Discontinued Description Return Header, Raypak 151/155A Price Qty RecItem
Key 3h Horizon # 47-197-1556 Description Return Header, Raypak 155B/155C, Bronze Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1484 Description Tube Bundle, Raypak 151/153/155A Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1568 Description Tube Bundle, Raypak 155B Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1516 Description Baffle, Raypak 153/155A Price Qty RecItem View recommended items
Key 6h Horizon # Discontinued Description Baffle, Raypak 155A Price Qty RecItem View recommended items
Key 7h Horizon # Discontinued Description Bolt Kit, Raypak 105A/105B/155A Heat Exchanger Price Qty RecItem View recommended items
Key 7h Horizon # Discontinued Description Bolt Kit, Raypak 151/153/155A Heat Exchanger Price Qty RecItem View recommended items
Key 8h Horizon # 47-197-1490 Description Gasket, Raypak 151/153/155A, Heat Exchanger Price Qty RecItem View recommended items
Key 8h Horizon # 47-197-1562 Description Gasket, Raypak 155A, Heat Exchanger, 1"ID, 1-1/2"OD, qty 9 Price Qty RecItem View recommended items
Key 9h Horizon # 47-197-1416 Description Unitherm Governor, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 9h Horizon # 47-197-1492 Description Unitherm Governor, Raypak 151/153/155A Price Qty RecItem View recommended items
Key 10h Horizon # 47-197-1418 Description Unitherm Governor Spring, Raypak 105A/105B/155A/185A/R185 Price Qty RecItem View recommended items
Key 11h Horizon # 47-197-1420 Description Bypass Valve, Raypak, Versa, Gemini, RP2100, Low Nox Price Qty RecItem
Key 11h Horizon # 47-197-1421 Description Bypass Valve Kit, Raypak 206A - 408A, Plastic Price Qty RecItem
Key 12h Horizon # Discontinued Description Bypass Spring, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem View recommended items
Key 12h Horizon # 47-197-3422 Description Bypass Spring Kit, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem
Key 13h Horizon # 47-197-1232 Description Drain Valve, Raypak 53/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 14h Horizon # Discontinued Description Bulb Well, Raypak 53/53A/55A/151/153/155A/183A Price Qty RecItem View recommended items
Key 14h Horizon # 47-197-1424 Description Sensor Well, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 16h Horizon # 47-197-1224 Description Flange, Raypak 53/53A/55A/153/155A/183A/185, In/Out Price Qty RecItem View recommended items
Key 16h Horizon # 47-197-1430 Description Flange Kit, Raypak 105A/105B/155A/185A/R185/207A, In/Out Price Qty RecItem View recommended items
Key 17h Horizon # 47-197-1226 Description Gasket, Raypak 53/53A/55A/105A/151,Flange,1-9/16"ID,2-1/8"OD Price Qty RecItem View recommended items
Key 17h Horizon # 47-197-1434 Description Gasket, Raypak 105A/105B/155A/185A,Flange,1-5/8"ID,2-5/8"OD Price Qty RecItem View recommended items
Key 17h Horizon # 47-197-1436 Description Gasket, Raypak 105A/105B/155A/185, 2-1/8"ID, 2-3/4"OD, qty 2 Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Sensor Clip, Raypak ELS/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Temp Sensor Retainer Kit, Qty 5, Raypak ELS/53A/55A/105A/B Price Qty RecItem

J-Box/Control Box

Key Horizon # Description Qty
Key 2j Horizon # 47-197-1388 Description Ignition Control, Raypak 53A/55A/105A/151/153, with out Lock Price Qty RecItem View recommended items
Key 2j Horizon # 47-197-1390 Description Ignition Control, Raypak 55A/105A/155A/185A/R185, with Lock Price Qty RecItem View recommended items
Key 3j Horizon # 47-197-1302 Description Transformer, Raypak 53A/55A/105A/105B/151/153/155A/185A Price Qty RecItem
Key 4j Horizon # Discontinued Description Toggle Switch, Raypak ELS/53A/151/153/155A/183A/185A, SPST Price Qty RecItem View recommended items
Key 1J Horizon # 47-197-2358 Description Control Box, Raypak, Model 155, NG, IID, w/o Thermostat Price Qty RecItem View recommended items
Key 1J Horizon # 47-197-2360 Description Control Box, Raypak, Model 155, LP, IID, w/o Thermostat Price Qty RecItem View recommended items

Miscellaneous Components

Key Horizon # Description Qty
Key 1m Horizon # 47-319-1201 Description Pressure Switch 3925,25A, Tecmark, Universal, SPNO, w/Brass Price Qty RecItem View recommended items
Key 2m Horizon # 47-197-1494 Description Pressure Switch Tube, Raypak 151/153/155A Price Qty RecItem View recommended items
Key 3m Horizon # 47-197-1030 Description Thermostat Knob,Raypak 53/ELS/53A/55A/105A/105B/151/153,Blk Price Qty RecItem View recommended items
Key 4m Horizon # 47-197-1032 Description Knob Stop, Raypak ELS/53A/55A/105A/105B/153/155A/183A/185A Price Qty RecItem View recommended items
Key 9m Horizon # 47-197-1384 Description Thermal Cut-Off Fuse Kit, Raypak 55A/105A/155A, 130 degree Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Wiring Harness, Raypak, Model 155, Millivolt Price Qty RecItem View recommended items
Key Horizon # 47-197-2364 Description Wiring Harness, Raypak, Model 155, IID Price Qty RecItem View recommended items
Key 5M Horizon # _RC6F Description Air Button For Gunite/Fiberglass Construction - 150 Ft. Rang Price Qty RecItem View recommended items
Key 5M Horizon # 47-197-1298 Description Dial Plate, Raypak 55A, Millivolt Price Qty RecItem View recommended items
Key 5M Horizon # 47-197-1300 Description Dial Plate, Raypak 55A, Electronic Ignition Price Qty RecItem View recommended items

Pilot

Key Horizon # Description Qty
Key 1p Horizon # 47-197-1242 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, Nat., MV Price Qty RecItem View recommended items
Key 1p Horizon # 47-197-1244 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, LP, MV Price Qty RecItem View recommended items
Key 15P Horizon # Discontinued Description Lighter Tube, Raypak 151/153/155A/183A/185A, MV Price Qty RecItem View recommended items
Key 15P Horizon # 47-197-3502 Description Lighter Tube Group, Raypak 151/153/155A/183A/185A, MV Price Qty RecItem
Key 3p Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 5p Horizon # 47-197-1246 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, Nat., MV Price Qty RecItem View recommended items
Key 5p Horizon # 47-197-1248 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, LP, MV Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-1386 Description Pilot Orifice, Raypak 55A/105A/155A/185A/R185/185/206A, IID Price Qty RecItem View recommended items
Key 9p Horizon # 47-197-1250 Description Thermocouple, Raypak 53/53A/55A/105A/151/153/155A, MV Price Qty RecItem View recommended items
Key 12p Horizon # 47-197-1388 Description Ignition Control, Raypak 53A/55A/105A/151/153, with out Lock Price Qty RecItem View recommended items
Key 12p Horizon # 47-197-1390 Description Ignition Control, Raypak 55A/105A/155A/185A/R185, with Lock Price Qty RecItem View recommended items
Key 13p Horizon # Discontinued Description Pilot Mounting Bracket, Raypak 151/Versa 155, Standing Price Qty RecItem
Key 13p Horizon # Discontinued Description Lighter Tube, Raypak 151/153/155A/183A/185A Price Qty RecItem View recommended items
Key 13p Horizon # 47-197-2386 Description Pilot Mounting Bracket, Raypak, Model 155A & 155B/C Plus, MV Price Qty RecItem View recommended items
Key 14p Horizon # Discontinued Description Pilot Mounting Bracket, Raypak 151/Versa 155, IID Price Qty RecItem
Key 14p Horizon # Discontinued Description Pilot Bracket, Raypak 153/155A, IID Price Qty RecItem View recommended items
Key 16p Horizon # 47-197-1318 Description Pilot Tube Assembly, Raypak 53A/55A/105A/155A/185A/R185/185 Price Qty RecItem View recommended items
Key 16p Horizon # Discontinued Description Aluminum Tubing, Raypak 155A/185A Price Qty RecItem View recommended items
Key 17p Horizon # 47-197-1400 Description High Tension Wire, Raypak 53A/55A/105A/155A/183A/185A/R185 Price Qty RecItem View recommended items
Key 17p Horizon # 47-197-1504 Description High Tension Wire, Raypak 151/153/155A Price Qty RecItem View recommended items
Key 17p Horizon # 47-197-1564 Description Electrode,Raypak 55A/155A/R185/185,IID,w/High Tension Wire Price Qty RecItem

Refractory

Key Horizon # Description Qty
Key 1r Horizon # Discontinued Description Raypak Ref Block 136-133 151-155-Kit Price Qty RecItem
Key 2r Horizon # _002006F Description Raypak Ref Retainer 133A/153A/15 Kit Price Qty RecItem

Sheetmetal

Key Horizon # Description Qty
Key 5S Horizon # 47-197-2356 Description Control Panel, Raypak, Model 155, IID Pilot Price Qty RecItem View recommended items
