Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Heaters  >  46-197-W011

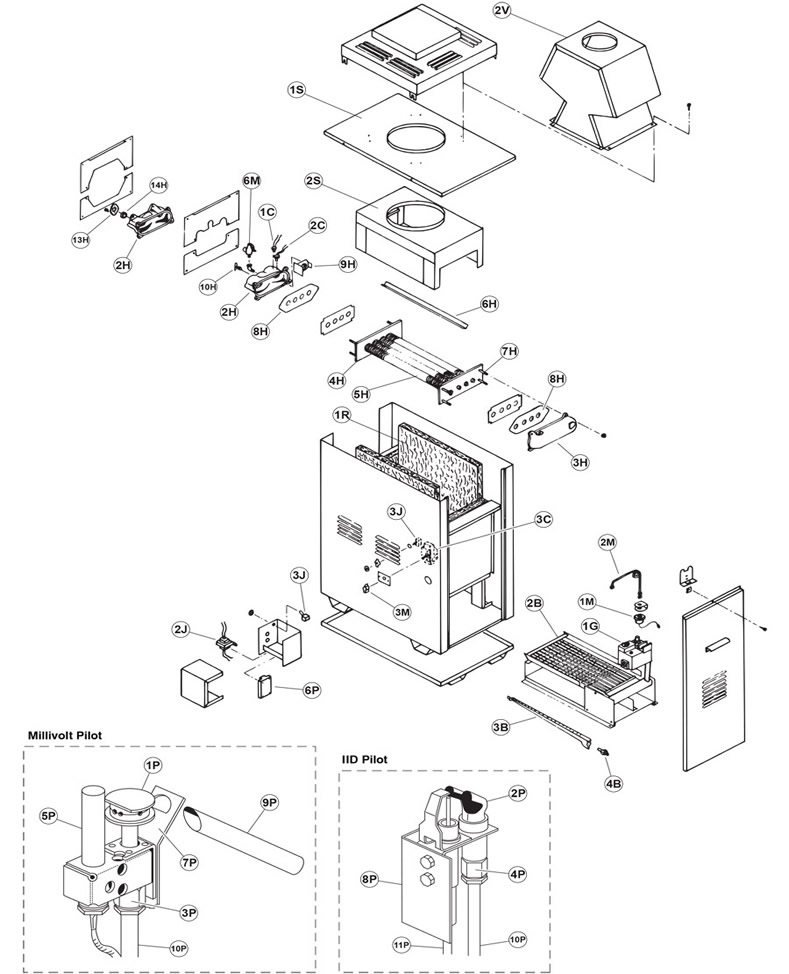

Raypak 151 CAL III & SPA PAK, (1974 -12/81 & 11/80 - 12/81)

Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger  ·  J-Box  ·  Miscellaneous Components  ·  Pilot
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

Key #4b - For altitudes over 2,000 feet above sea level, consult the factory

Burner Tray

Key Horizon # Description Qty
Key 3b Horizon # 47-197-3200 Description SRV Burner Kit, Raypak, 10 Pack Price Qty RecItem
Key 4b Horizon # Discontinued Description Burner Orifice,Raypak Gemini/Versa/RP2100/Cal III,#51,NG,SL Price Qty RecItem
Key 4b Horizon # 47-197-1470 Description Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III,LP,SL,5ea Price Qty RecItem View recommended items

Controls

Key Horizon # Description Qty
Key 1c Horizon # 47-197-1444 Description T-Stat Auto Reset 13, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 2c Horizon # 47-197-1446 Description T-Stat Auto Reset 14, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 3c Horizon # 47-197-1282 Description Thermostat, Raypak ELS/53A/151 Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1g Horizon # 47-197-1210 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, Nat., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1212 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, LP., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1278 Description Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID Price Qty RecItem View recommended items

Heat Exchanger

Key Horizon # Description Qty
Key 2h Horizon # Discontinued Description Inlet/Outlet Header, Raypak 105B, Bronze Price Qty RecItem
Key 3h Horizon # Discontinued Description Return Header, Raypak 151/153/155A Price Qty RecItem
Key 3h Horizon # Discontinued Description Return Header, Raypak 151/155A Price Qty RecItem
Key 4h Horizon # 47-197-1484 Description Tube Bundle, Raypak 151/153/155A Price Qty RecItem View recommended items
Key 6h Horizon # Discontinued Description Baffle, Raypak 151/153 Price Qty RecItem
Key 7h Horizon # Discontinued Description Bolt Kit, Raypak 151/153/155A Heat Exchanger Price Qty RecItem View recommended items
Key 8h Horizon # 47-197-1490 Description Gasket, Raypak 151/153/155A, Heat Exchanger Price Qty RecItem View recommended items
Key 9h Horizon # 47-197-1492 Description Unitherm Governor, Raypak 151/153/155A Price Qty RecItem View recommended items
Key 10h Horizon # 47-197-1232 Description Drain Valve, Raypak 53/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 13h Horizon # 47-197-1432 Description Flange, Raypak 105A/151, In/Out Price Qty RecItem View recommended items
Key 14h Horizon # 47-197-1226 Description Gasket, Raypak 53/53A/55A/105A/151,Flange,1-9/16"ID,2-1/8"OD Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Bulb Well, Raypak 53/53A/55A/151/153/155A/183A Price Qty RecItem View recommended items
Key 11h Horizon # Discontinued Description Bulb Well, Raypak 53/53A/55A/151/153/155A/183A Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Sensor Clip, Raypak ELS/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Temp Sensor Retainer Kit, Qty 5, Raypak ELS/53A/55A/105A/B Price Qty RecItem

J-Box

Key Horizon # Description Qty
Key 2j Horizon # 47-197-1768 Description Transformer, Raypak 55A/R185/185/207A/206A/R185A, 115v/230v Price Qty RecItem View recommended items

Miscellaneous Components

Key Horizon # Description Qty
Key 1m Horizon # 47-197-1000 Description Pressure Switch, Raypak Versa/Gemini/RP2100 Price Qty RecItem View recommended items
Key 2m Horizon # 47-197-1494 Description Pressure Switch Tube, Raypak 151/153/155A Price Qty RecItem View recommended items
Key 3m Horizon # 47-197-1030 Description Thermostat Knob,Raypak 53/ELS/53A/55A/105A/105B/151/153,Blk Price Qty RecItem View recommended items
Key 7m Horizon # 47-197-1037 Description Deliming Kit, Raypak Hi Delta/Raytherm Indoor/Outdoor Price Qty RecItem View recommended items

Pilot

Key Horizon # Description Qty
Key 1p Horizon # 47-197-1242 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, Nat., MV Price Qty RecItem View recommended items
Key 1p Horizon # 47-197-1244 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, LP, MV Price Qty RecItem View recommended items
Key 2p Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1246 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, Nat., MV Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1248 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, LP, MV Price Qty RecItem View recommended items
Key 4p Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 5p Horizon # 47-197-1250 Description Thermocouple, Raypak 53/53A/55A/105A/151/153/155A, MV Price Qty RecItem View recommended items
Key 6p Horizon # 47-197-1388 Description Ignition Control, Raypak 53A/55A/105A/151/153, with out Lock Price Qty RecItem View recommended items
Key 7p Horizon # Discontinued Description Pilot Mounting Bracket, Raypak 151/Versa 155, Standing Price Qty RecItem
Key 8p Horizon # Discontinued Description Pilot Mounting Bracket, Raypak 151/Versa 155, IID Price Qty RecItem
Key 9p Horizon # Discontinued Description Lighter Tube, Raypak 151/153/155A/183A/185A, MV Price Qty RecItem View recommended items
Key 9p Horizon # 47-197-3502 Description Lighter Tube Group, Raypak 151/153/155A/183A/185A, MV Price Qty RecItem
Key 10p Horizon # Discontinued Description Aluminum Tubing, Raypak 53/151/153/183A Price Qty RecItem View recommended items
Key 11p Horizon # 47-197-1504 Description High Tension Wire, Raypak 151/153/155A Price Qty RecItem View recommended items
