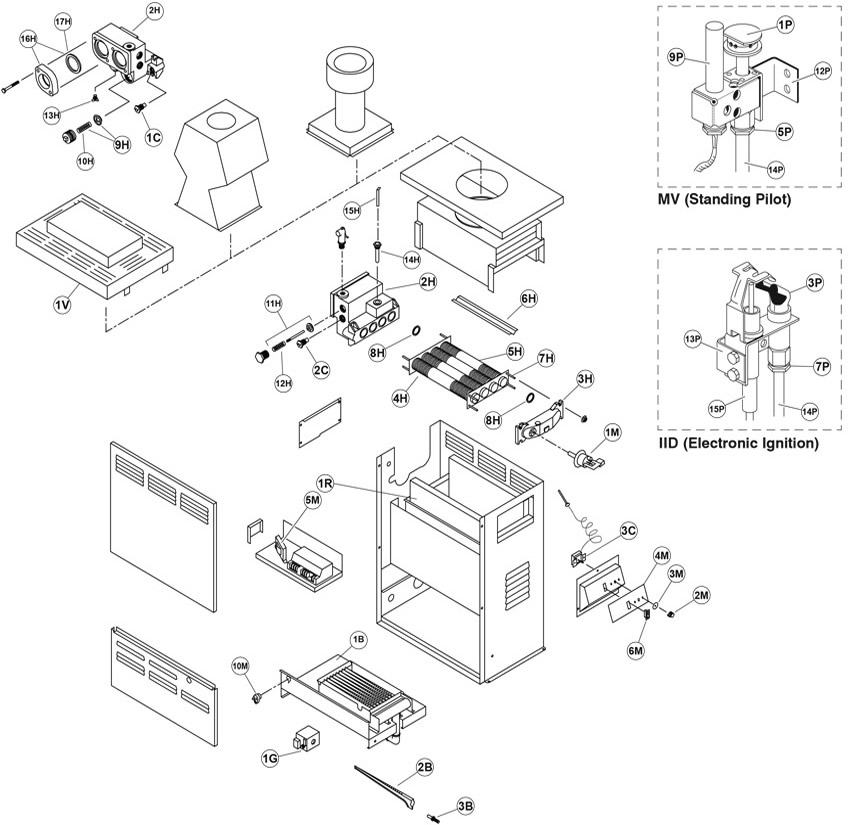

Raypak Versa 105B Bronze & Cast Iron Heater (6/1/99-pres)

Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger  ·  Miscellaneous Components  ·  Pilot  ·  Conversion Kit  ·  Refractory  ·  Venting
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

Key #3b - For altitudes over 2,000 feet above sea level, consult the factory

Burner Tray

Key Horizon # Description Qty
Key 1b Horizon # 47-197-2428 Description Burner Tray, Raypak, Model 105A, w/Burners, Sea Level Price Qty RecItem View recommended items
Key 2b Horizon # 47-197-3200 Description SRV Burner Kit, Raypak, 10 Pack Price Qty RecItem
Key 3b Horizon # Discontinued Description Burner Orifice,Raypak Gemini/Versa/RP2100/Cal III,#51,NG,SL Price Qty RecItem
Key 3b Horizon # 47-197-1204 Description Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III, LP, SL Price Qty RecItem

Controls

Key Horizon # Description Qty
Key 1c Horizon # 47-197-1444 Description T-Stat Auto Reset 13, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 1c Horizon # 47-197-1448 Description Thermostat Auto Reset, Raypak 105B/185/R185A/R185B Price Qty RecItem View recommended items
Key 2c Horizon # 47-197-1446 Description T-Stat Auto Reset 14, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 3c Horizon # 47-197-1024 Description Thermostat,Raypak ELS/53/105A/105B/153/155A/183A/185B/RP2100 Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1g Horizon # 47-197-1210 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, Nat., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1212 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, LP., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1278 Description Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1368 Description Gas Valve, Raypak 55A/105A/105B/155A/185A/R185/185, LP, IID Price Qty RecItem View recommended items

Heat Exchanger

Key Horizon # Description Qty
Key 2h Horizon # Discontinued Description Inlet/Outlet Header, Raypak 105A, Cast Iron Price Qty RecItem View recommended items
Key 2h Horizon # 47-197-1466 Description Inlet/Outlet Header, Raypak 105B, Cast Iron Price Qty RecItem View recommended items
Key 3h Horizon # 47-197-1406 Description Return Header, Raypak 105A, Bronze Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1410 Description Tube Bundle, Raypak 105A/105B Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1450 Description Tube Bundle, Raypak 105B Price Qty RecItem View recommended items
Key 5h Horizon # 47-197-1452 Description Tube Assembly, Raypak 105B, ASME Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1454 Description Baffle, Raypak 105B Price Qty RecItem View recommended items
Key 7h Horizon # Discontinued Description Bolt Kit, Raypak 105A/105B/155A Heat Exchanger Price Qty RecItem View recommended items
Key 7h Horizon # Discontinued Description Bolt Kit, Raypak 105B Heat Exchanger Price Qty RecItem
Key 8h Horizon # 47-197-1414 Description Gasket, Raypak 105A/105B/183A,Heat Xchg,3/4"ID,1-1/8"OD,qty9 Price Qty RecItem View recommended items
Key 8h Horizon # Discontinued Description Gasket, Raypak 105B, Heat Exchanger,3/4"ID,1-3/16"OD, qty 4 Price Qty RecItem View recommended items
Key 9h Horizon # 47-197-1416 Description Unitherm Governor, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 10h Horizon # 47-197-1418 Description Unitherm Governor Spring, Raypak 105A/105B/155A/185A/R185 Price Qty RecItem View recommended items
Key 11h Horizon # 47-197-1420 Description Bypass Valve, Raypak, Versa, Gemini, RP2100, Low Nox Price Qty RecItem
Key 11h Horizon # 47-197-1421 Description Bypass Valve Kit, Raypak 206A - 408A, Plastic Price Qty RecItem
Key 11h Horizon # 47-197-1460 Description Bypass Valve, Raypak 105AB/185/R185A/R185B Price Qty RecItem View recommended items
Key 12h Horizon # Discontinued Description Bypass Spring, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem View recommended items
Key 12h Horizon # 47-197-3422 Description Bypass Spring Kit, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem
Key 13h Horizon # 47-197-1232 Description Drain Valve, Raypak 53/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 14h Horizon # 47-197-1424 Description Sensor Well, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 15h Horizon # Discontinued Description Sensor Clip, Raypak ELS/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 15h Horizon # 47-197-3218 Description Temp Sensor Retainer Kit, Qty 5, Raypak ELS/53A/55A/105A/B Price Qty RecItem
Key 16h Horizon # 47-197-1430 Description Flange Kit, Raypak 105A/105B/155A/185A/R185/207A, In/Out Price Qty RecItem View recommended items
Key 17h Horizon # 47-197-1434 Description Gasket, Raypak 105A/105B/155A/185A,Flange,1-5/8"ID,2-5/8"OD Price Qty RecItem View recommended items
Key 17h Horizon # 47-197-1436 Description Gasket, Raypak 105A/105B/155A/185, 2-1/8"ID, 2-3/4"OD, qty 2 Price Qty RecItem View recommended items
Key Horizon # 47-197-2394 Description Heat Exchanger, Raypak, Model 105B-Cast Iron Price Qty RecItem View recommended items
Key Horizon # 47-197-2408 Description Bolt Kit, Raypak, Model 105B-Cast Iron, Heat Exchanger Price Qty RecItem View recommended items

Miscellaneous Components

Key Horizon # Description Qty
Key 1m Horizon # 47-197-1462 Description Pressure Switch, Raypak 105B/185/130A/207A/R185A, 1.75psi Price Qty RecItem View recommended items
Key 2m Horizon # 47-197-1030 Description Thermostat Knob,Raypak 53/ELS/53A/55A/105A/105B/151/153,Blk Price Qty RecItem View recommended items
Key 3m Horizon # 47-197-1032 Description Knob Stop, Raypak ELS/53A/55A/105A/105B/153/155A/183A/185A Price Qty RecItem View recommended items
Key 5m Horizon # 47-197-1302 Description Transformer, Raypak 53A/55A/105A/105B/151/153/155A/185A Price Qty RecItem
Key 6m Horizon # 47-197-1464 Description Rocker Switch, Raypak 105B/R185/185/R185A/R185B Price Qty RecItem View recommended items
Key 10m Horizon # 47-197-1385 Description Thermal Cut-Off Fuse Kit, Raypak 55A/105B, 190 degree Price Qty RecItem View recommended items
Key Horizon # 47-197-2404 Description Wiring Harness, Raypak, Model 105B, Millivolt Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Wire Harness, Raypak Versa Plus, 105B, IID Price Qty RecItem View recommended items
Key 4m Horizon # 47-197-2250 Description Dial Decal, Raypak, 105B, MV Price Qty RecItem View recommended items
Key 4m Horizon # 47-197-2406 Description Dial Decal, Raypak, Models 105B, IID Price Qty RecItem View recommended items

Pilot

Key Horizon # Description Qty
Key 1p Horizon # 47-197-1242 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, Nat., MV Price Qty RecItem View recommended items
Key 1p Horizon # 47-197-1244 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, LP, MV Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 5p Horizon # 47-197-1246 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, Nat., MV Price Qty RecItem View recommended items
Key 5p Horizon # 47-197-1248 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, LP, MV Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-1386 Description Pilot Orifice, Raypak 55A/105A/155A/185A/R185/185/206A, IID Price Qty RecItem View recommended items
Key 9p Horizon # 47-197-1250 Description Thermocouple, Raypak 53/53A/55A/105A/151/153/155A, MV Price Qty RecItem View recommended items
Key 12p Horizon # 47-197-1440 Description Pilot Bracket, Raypak 105A, MV Price Qty RecItem View recommended items
Key 13p Horizon # 47-197-1442 Description Pilot Bracket, Raypak 105A, IID Price Qty RecItem View recommended items
Key 14p Horizon # 47-197-1318 Description Pilot Tube Assembly, Raypak 53A/55A/105A/155A/185A/R185/185 Price Qty RecItem View recommended items
Key 15p Horizon # 47-197-1400 Description High Tension Wire, Raypak 53A/55A/105A/155A/183A/185A/R185 Price Qty RecItem View recommended items

Conversion Kit

Key Horizon # Description Qty
Key Horizon # Discontinued Description Conversion Kit, Raypak, Model 105, NG to LP, IID Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Conversion Kit, NG to LP, Raypak, 105A/105B, MV Units Only Price Qty RecItem View recommended items
Key Horizon # 47-197-2398 Description Conversion Kit, Raypak, Model 105, LP to NG, MV Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Conversion Kit, Raypak, Model 105, LP to NG, IID Price Qty RecItem

Refractory

Key Horizon # Description Qty
Key 1r Horizon # 47-197-2388 Description Refractory Block, Raypak, Model 105A Price Qty RecItem View recommended items

Venting

Key Horizon # Description Qty
Key 1v Horizon # 47-197-2430 Description Stackless Top, Raypak, Model 105B, Outdoor Price Qty RecItem View recommended items
