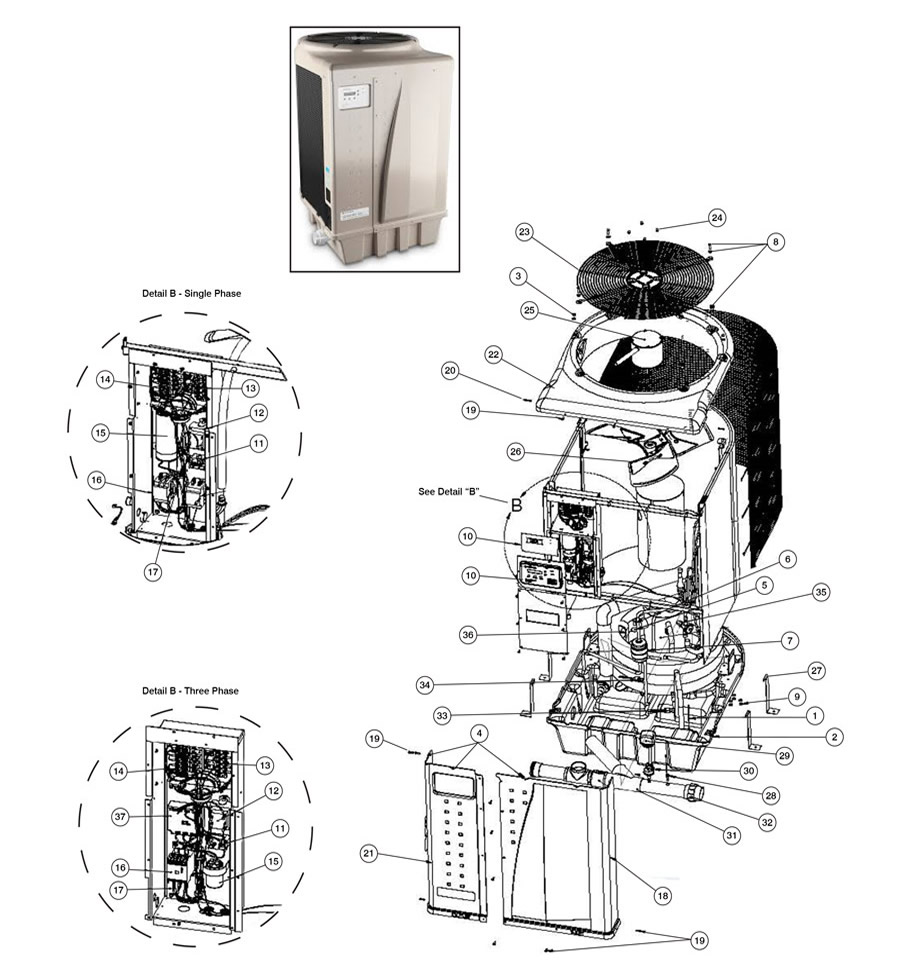

Pentair UltraTemp Heat Pump

Product Description  ·  Parts  ·  Not Pictured  ·  Complete Heat Pump
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # _473665 Description Probe Thermistor Defrost Sensor Price Qty RecItem
Key 2 Horizon # _470284 Description Nut J Clip Price Qty RecItem
Key 3 Horizon # _473285 Description Nut 1/4-20 Ss Acorn Price Qty RecItem
Key 4 Horizon # _470281 Description Nut U Clip D06437-10 Tinnerman Price Qty RecItem
Key 5 Horizon # _473295 Description Wshr 5/16 Id 1.25 Od Fender Price Qty RecItem
Key 6 Horizon # _98219800 Description Bolt 5/16-18X1" Hh 18-8 Ss Price Qty RecItem
Key 7 Horizon # _473121 Description Dryer Line 1/2In Price Qty RecItem
Key 7 Horizon # _473139 Description Drier Rvrsble 1/2"Solder Sporlan Hpc-164-S-Hh Price Qty RecItem
Key 8 Horizon # _470441 Description Kit Fastener Fan Guard Price Qty RecItem
Key 9 Horizon # 35-110-2098 Description Nut,Pentair Purex Whisperflo/IntelliFlo,Var. Filters, 1/4-20 Price Qty RecItem
Key 10 Horizon # _473777 Description Bezel/Touchpad Assembly, Pentair UltraTemp, w/ Label Price Qty RecItem
Key 10 Horizon # 47-102-1100 Description Control Board Assy, Pentair Ultratemp/Thermalflo Heat Pump Price Qty RecItem View recommended items
Key 11 Horizon # _473150 Description Relay Fan Evaporator Price Qty RecItem
Key 11 Horizon # Discontinued Description Relay Fan 3Ph Price Qty RecItem
Key 12 Horizon # _473155 Description Transformer, Pentair Heat Pump, 208/240v, 24v, 50va Price Qty RecItem
Key 12 Horizon # _473790 Description Transformer 380V Price Qty RecItem
Key 12 Horizon # 47-102-1808 Description Transformer, Pentair Heat Pumps, 208/240v, 24vac, 50va Price Qty RecItem
Key 13 Horizon # _473422 Description Harness Wire Fan Compr Term Block Price Qty RecItem
Key 14 Horizon # _473315 Description Harness Wire Sensor Term Block Price Qty RecItem
Key 15 Horizon # _470146 Description Capacitor, Pentair, 7.5/50 Mfd, 440 vac Price Qty RecItem
Key 15 Horizon # _473154 Description Cpctr 7.5Mfd 370V Price Qty RecItem
Key 15 Horizon # Discontinued Description Cpctr 80/7.5 Mfd 440V Price Qty RecItem
Key 16 Horizon # _473149 Description Contactor, Pentair Heat Pump, 24vac, 40amp Price Qty RecItem
Key 16 Horizon # _473778 Description Contactor 3 Phase Price Qty RecItem
Key 16 Horizon # 60-102-1010 Description Contactor, Pentair UltraTemp, 3 Phase/1 Phase Post 2014 Price Qty RecItem
Key 17 Horizon # _473423 Description Harness Wiring Main Price Qty RecItem
Key 17 Horizon # _474021 Description Harness Wiring Main 3Ph Price Qty RecItem
Key 17 Horizon # _474031 Description Harness Wiring Main 3Ph 50Hz Price Qty RecItem
Key 18 Horizon # _473412 Description Pnl Frnt Rt 24"Almnd Price Qty RecItem
Key 18 Horizon # _473431 Description Pnl Frnt Rt 32"Almnd Price Qty RecItem
Key 18 Horizon # _473742 Description Pnl Frnt Right 36"Almnd Price Qty RecItem
Key 18 Horizon # _474194 Description Pnl Frnt Rt 36"Blk Price Qty RecItem
Key 19 Horizon # _470159 Description Scr #10X.75"Panhead Phil Ss Almnd Head Price Qty RecItem
Key 19 Horizon # Discontinued Description Scr 10X.75"Panhead Phil Ss Black Head Price Qty RecItem
Key 20 Horizon # _470161 Description Scr #10X1"Butn Head Torx Zinc Plt Almnd Head Price Qty RecItem
Key 20 Horizon # _474197 Description Scr 10X1"Butn Head Torx Zinc Plt Black Head Price Qty RecItem
Key 21 Horizon # Discontinued Description Pnl Asy Left 36"W/Decal Price Qty RecItem
Key 21 Horizon # _474196 Description Pnl Asy Left 36"W/Decal Blk Price Qty RecItem
Key 21 Horizon # _474202 Description Pnl Asy Left 32"W/Decal Price Qty RecItem
Key 21 Horizon # _474203 Description Pnl Asy Left 24"W/Decal Price Qty RecItem
Key 21 Horizon # _474267 Description Pnl Asy Left 24" W/Decal Blk Price Qty RecItem
Key 22 Horizon # _473773 Description Top Hp Almnd Price Qty RecItem
Key 22 Horizon # _474193 Description Top Hp Blk Price Qty RecItem
Key 23 Horizon # _473786 Description Guard Fan Grill 24In Dia Price Qty RecItem
Key 24 Horizon # _470439 Description Nut Acorn 10-32 Tall Ss Price Qty RecItem
Key 25 Horizon # _473785 Description Fan Mtr W/Acorn Nut Kit Price Qty RecItem
Key 25 Horizon # _474030Z Description Mtr Fan W/Acorn Nut Kit 3Ph 50Hz Price Qty RecItem
Key 26 Horizon # _473783 Description Blade Fan Revcor Price Qty RecItem
Key 26 Horizon # _474230 Description Blade Fan Revcor 50Hz Price Qty RecItem
Key 26 Horizon # 47-102-1804 Description Fan Blade, Pentair UltraTemp Heat Pump, 50Hz Price Qty RecItem
Key 27 Horizon # _470137 Description Bracket Tie Down Price Qty RecItem
Key 28 Horizon # 47-102-1802 Description Thermistor Probe, Pentair Minimax NT Price Qty RecItem
Key 28 Horizon # 47-110-1616 Description Thermistor Probe, Pentair Minimax NT Price Qty RecItem View recommended items
Key 29 Horizon # _473606 Description Boot Swtch Press Wtr Hp Price Qty RecItem
Key 30 Horizon # 47-110-1622 Description Pressure Switch, Pentair Minimax NT/Minimax CH,1/4"mpt,SPNO Price Qty RecItem View recommended items
Key 31 Horizon # _473774Z Description Kit Bypass Rplcmnt Price Qty RecItem
Key 32 Horizon # _473381 Description Union Pvc 2"X2" Price Qty RecItem View recommended items
Key 33 Horizon # _473656 Description Swtch 70/120 Low Press Price Qty RecItem
Key 34 Horizon # Discontinued Description Swtch 600/380 High Press Price Qty RecItem
Key 35 Horizon # _473787 Description Txv 8Ton Ultratemp 97 Psig Price Qty RecItem
Key 35 Horizon # _473999 Description Txv 8Ton Ultratemp 98 Psig Price Qty RecItem
Key 35 Horizon # _474248 Description Txv 8Ton Ultratemp 87 Psig Price Qty RecItem
Key 36 Horizon # Discontinued Description Strap Titanium Wtr Coil Price Qty RecItem
Key 36 Horizon # _473772 Description Strap Titanium Wtr Coil Long Price Qty RecItem
Key 36 Horizon # _473789 Description Strap Titanium Wtr Coil Extra Tall Price Qty RecItem
Key 37 Horizon # _474089 Description Monitor Phase Price Qty RecItem
Key Horizon # 47-102-1102 Description Fan Motor, Pentair UltraTemp Heat Pump 140/140HC, w/ Nut Price Qty RecItem

Not Pictured

Key Horizon # Description Qty
Key Horizon # _473135 Description Vlv Rvrsng Price Qty RecItem
Key Horizon # _473432 Description Coil Rvrsng Vlv Price Qty RecItem
Key Horizon # _474270Z Description Kit Turbotec Repair Price Qty RecItem
Key Horizon # _474237 Description Clip Retention Comp Pwr Price Qty RecItem
Key Horizon # _473054Z Description Coil Guard Replacement Price Qty RecItem
Key Horizon # 27-110-1708 Description O-Ring, Pentair SM and SMBW Backwash Valve, Rotor, O-64 Price Qty RecItem View recommended items
Key Horizon # _473732 Description Harn Wire Compressor Price Qty RecItem
Key Horizon # _474009 Description Harn Wire 50Hz 1Ph Compr Price Qty RecItem
Key Horizon # _474010 Description Harn Wire 3Ph Compressor Price Qty RecItem
Key Horizon # _473736 Description Compr Kit Isolation Grom Scroll Price Qty RecItem
Key Horizon # _473745 Description Blt 5/16 18X2In Ss Price Qty RecItem
Key Horizon # 47-102-7000 Description Reversing Valve Kit, Pentair Price Qty RecItem

Complete Heat Pump

Key Horizon # Description Qty
Key Horizon # 46-102-1300 Description Heat Pump, Pentair UltraTemp 70, 1 Phase, Almond Price Qty RecItem View recommended items
Key Horizon # 46-102-1302 Description Heat Pump, Pentair UltraTemp 70, 1 Phase, Black Price Qty RecItem View recommended items
Key Horizon # 46-102-1305 Description Heat Pump, Pentair UltraTemp 90, 1 Phase, Almond Price Qty RecItem View recommended items
Key Horizon # 46-102-1307 Description Heat Pump, Pentair UltraTemp 90, 1 Phase, Black Price Qty RecItem View recommended items
Key Horizon # 46-102-1310 Description Heat Pump, Pentair UltraTemp 110, 1 Phase, Almond Price Qty RecItem View recommended items
Key Horizon # 46-102-1312 Description Heat Pump, Pentair UltraTemp 110, 1 Phase, Black Price Qty RecItem View recommended items
Key Horizon # 46-102-1315 Description Heat Pump, Pentair UltraTemp 120Q, 1 Phase, Almond, Quiet Price Qty RecItem View recommended items
Key Horizon # 46-102-1317 Description Heat Pump, Pentair UltraTemp 120Q, 1 Phase, Black, Quiet Price Qty RecItem View recommended items
Key Horizon # 46-102-1320 Description Heat Pump, Pentair UltraTemp 140, 1 Phase, Almond Price Qty RecItem View recommended items
Key Horizon # 46-102-1322 Description Heat Pump, Pentair UltraTemp 140, 1 Phase, Black Price Qty RecItem View recommended items
Key Horizon # 46-102-1325 Description Heat Pump, Pentair UltraTemp 120 H/C, 1 Phase, Almond Price Qty RecItem View recommended items
Key Horizon # 46-102-1327 Description Heat Pump, Pentair UltraTemp 120 H/C, 1 Phase, Black Price Qty RecItem View recommended items
Key Horizon # 46-102-1330 Description Heat Pump, Pentair UltraTemp 140 H/C, 1 Phase, Almond Price Qty RecItem View recommended items
Key Horizon # 46-102-1332 Description Heat Pump, Pentair UltraTemp 140 H/C, 1 Phase, Black Price Qty RecItem View recommended items
Key Horizon # 46-102-1335 Description Heat Pump, Pentair UltraTemp 120C, 3 Phase, Almond Price Qty RecItem View recommended items
Key Horizon # 46-102-1337 Description Heat Pump, Pentair UltraTemp 120C, 3 Phase, Black Price Qty RecItem View recommended items
Key Horizon # 46-102-1340 Description Heat Pump, Pentair UltraTemp 140C, 3 Phase, Almond Price Qty RecItem View recommended items
Key Horizon # 46-102-1342 Description Heat Pump, Pentair UltraTemp 140C, 3 Phase, Black Price Qty RecItem View recommended items
