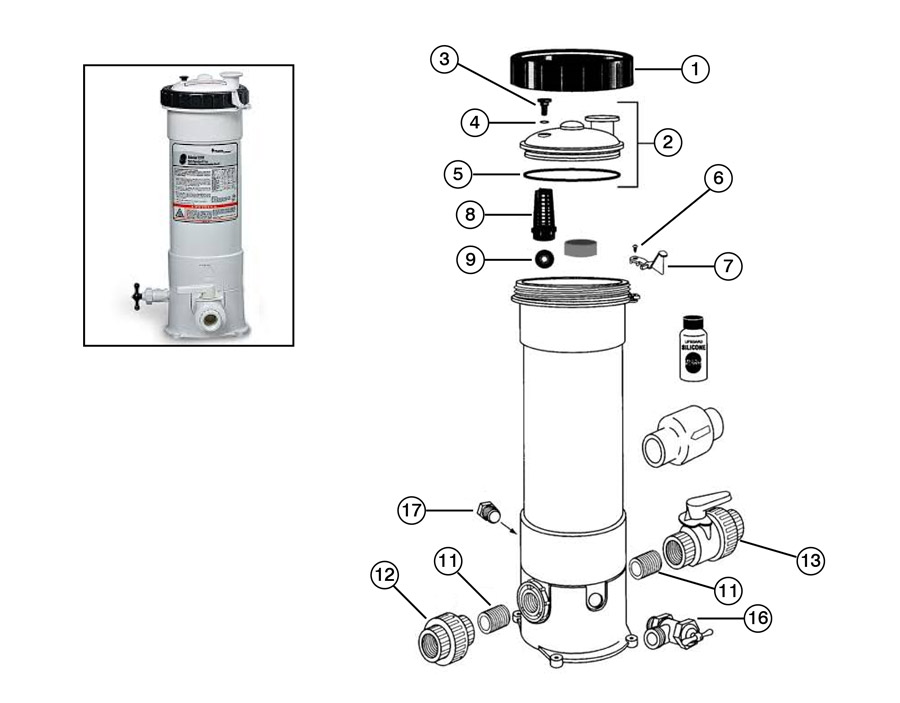

Pentair High Capacity Automatic Feeder, HC-3315/3330/3340

Product Description  ·  Parts  ·  Not Pictured  ·  Complete Feeder
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 17-196-1050 Description Lock Ring, Pentair Rainbow RDC/RTL/Leaf Traps Price Qty RecItem View recommended items
Key 2 Horizon # 43-102-1046 Description Lid Assy, Pentair, HC-3315/3330/3340 Automatic Feeders Price Qty RecItem View recommended items
Key 3 Horizon # 17-196-1010 Description Air Bleed Valve, Pentair Rainbow RDC/RTL/Bromine Price Qty RecItem View recommended items
Key 4 Horizon # 90-423-7012 Description O-Ring, 3/8" ID, 1/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 5 Horizon # 43-102-1044 Description Lid O-Ring,Viton,Pentair HC-3315/3330/3340 Automatic Feeders Price Qty RecItem View recommended items
Key 6 Horizon # 17-196-1158 Description Safety Latch Screw, Pentair Rainbow RTL Price Qty RecItem View recommended items
Key 7 Horizon # 17-196-1157 Description Push Down Lever, Pentair Rainbow RTL Price Qty RecItem View recommended items
Key 8 Horizon # _R175251 Description 1" Suction/Overflow Strainer Price Qty RecItem View recommended items
Key 9 Horizon # _R172435 Description Ball 1" Poly Check Price Qty RecItem View recommended items
Key 11 Horizon # _R270484 Description Nipple 1" X Close Price Qty RecItem View recommended items
Key 12 Horizon # _R270531 Description Union, Pantair Rainbow Chlorinator, 1"fpt Price Qty RecItem View recommended items
Key 13 Horizon # 43-102-1048 Description Control Valve, Pentair, HC-3315/3330/3340 Automatic Feeders Price Qty RecItem View recommended items
Key 16 Horizon # 26-102-1570 Description Hose Bib, Pentair 1/2" PVC, w/ T Handle Price Qty RecItem View recommended items
Key 17 Horizon # 43-196-1070 Description Plug, Pentair Rainbow Automatic Feeder 320, 1/2 NPT Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # 43-102-1070 Description Flow Rate Indicator, Pentair Automatic Feeders, 1",High Rate Price Qty RecItem View recommended items

Complete Feeder

Key Horizon # Description Qty
Key Horizon # 42-196-2008 Description High Capacity Automatic Feeder, Pentair HC-3315 Price Qty RecItem View recommended items
