Impeller, CMP Wet End, 3.0 Horsepower

Impeller, CMP Wet End, 3.0 Horsepower 35-605-1000

Multiple Views:

main 1-reverse 4-side

Horizon # 35-605-1000

Looking for identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Add To Cart
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add


Detailed Product Info

Back To Top ^

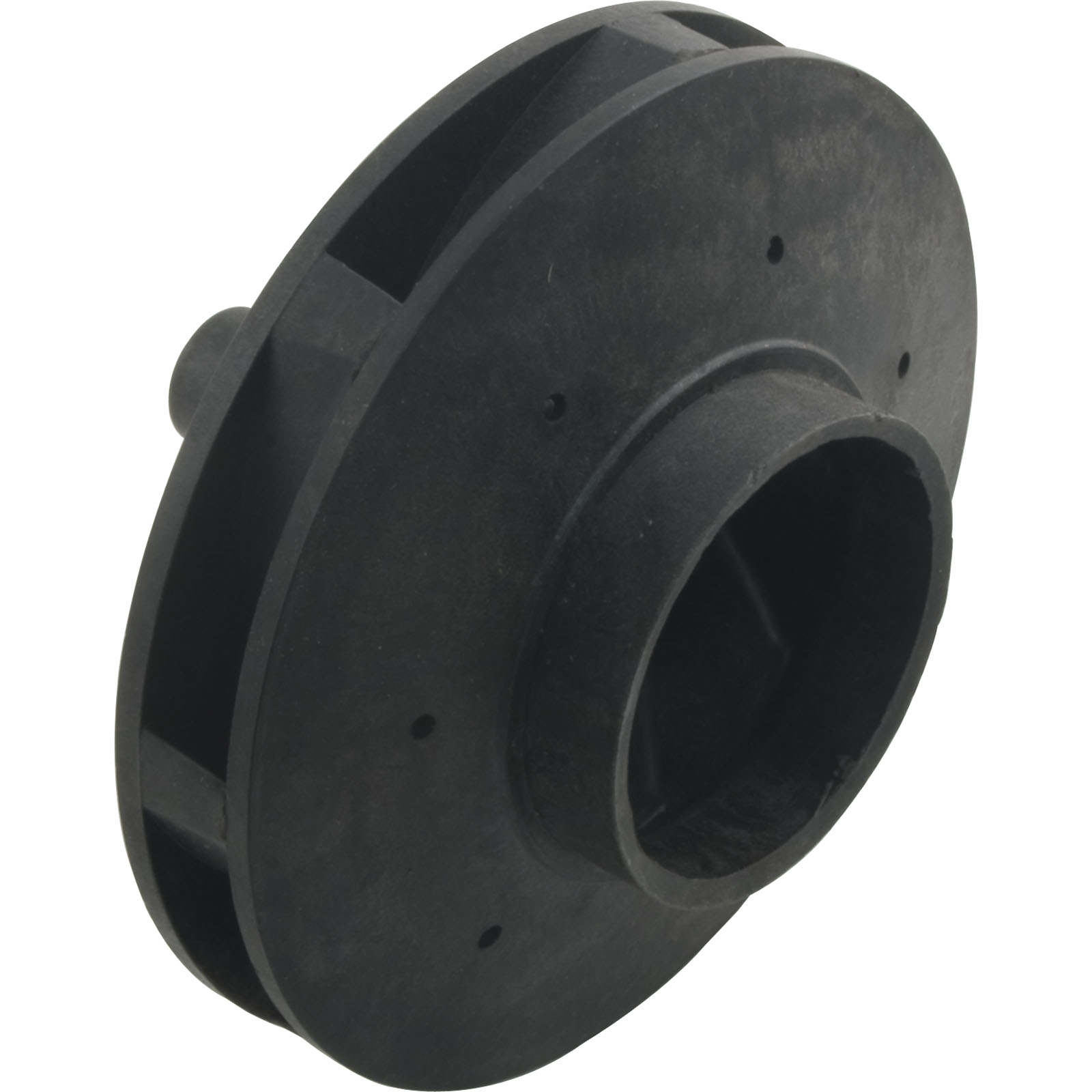

Custom Molded Products Pump Impeller

Closed face impeller made for the AquaStorm spa pump by CMP. Rated at 3.0hp, it is used in an AquaStorm wetend, and must be installed on a 3.0hp (or greater) thru bolt motor. Shaft seal sold separately

This impeller may also have any of the following manufacturer part numbers stamped on the back: 27203-300-300, 27203-000-300, or 27203-000-000
Search Using These Specs Partsology ©
Impeller Type Closed Face
Impeller Diameter OD 4-7/16"
Vane Width ID 7/16"
Eye Diameter OD 2-1/16"
Eye Length 7/16"
Impeller Width OD 11/16"
Seal Seat Depth 1/8"
Shaft Length 1-1/2"
Shaft Diameter OD 5/8"
Seal Seat Diameter OD 1-1/4"
Manufacturer Custom Molded Products
Pump Application CMP Pump
