Impeller, Waterco HydroStorm, 1.0 Horsepower

Impeller, Waterco HydroStorm, 1.0 Horsepower 35-252-1159

Multiple Views:

main 1-reverse 4-side

Horizon # 35-252-1159 - Replaced By 35-252-1160

Looking for alternate/substitute items, identical information, stock status and pricing? Log in now to access to all this information and more!

X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add


Detailed Product Info

Back To Top ^

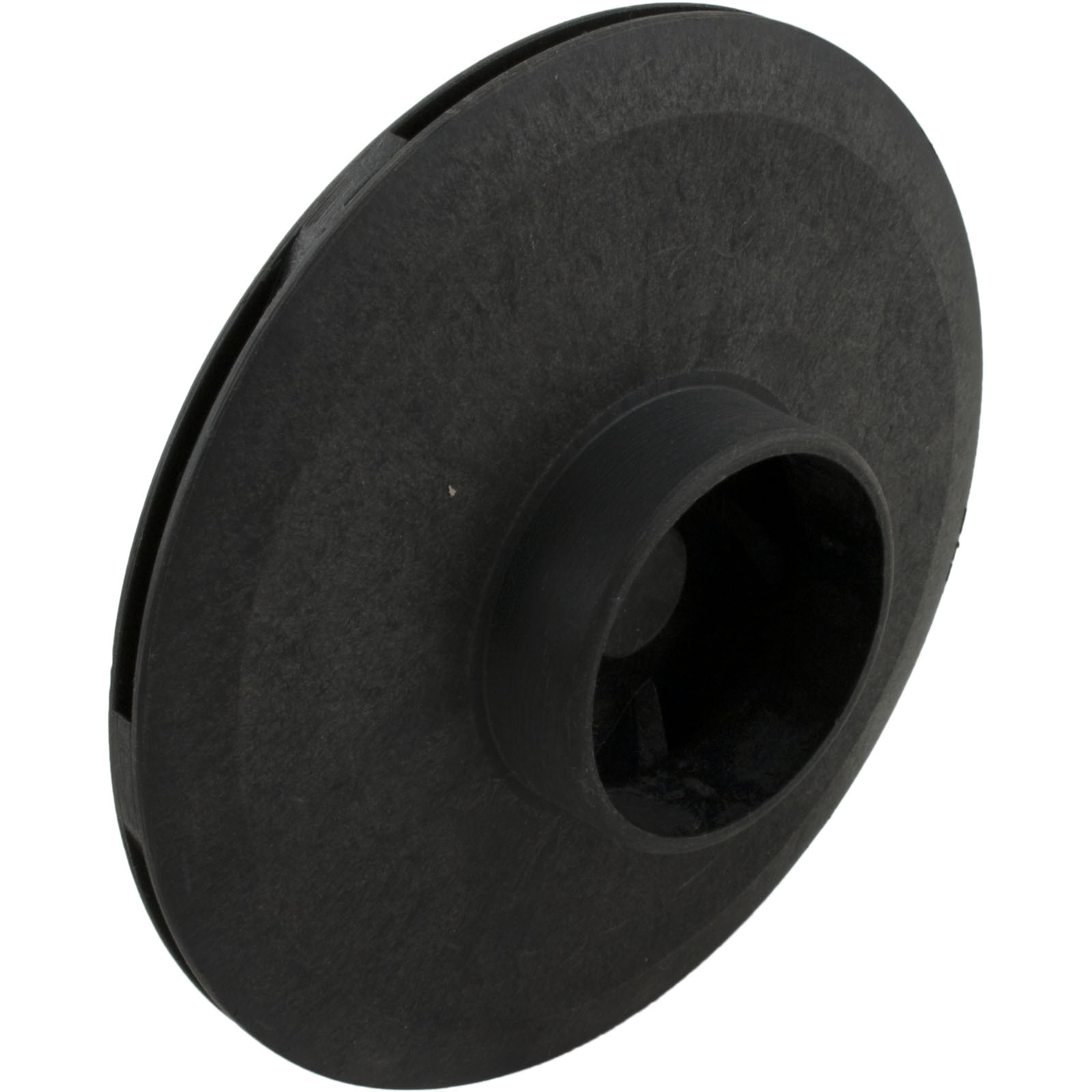

Waterco HydroStorm Pump Impeller

Closed face impeller made for the HydroStorm/HydroStorm Plus pool pump by Waterco. Rated at 1.0hp, it is used in a HydroStorm/HydroStorm Plus pool pump body, and must be installed on a 1.0hp (or greater) C-face motor with a threaded shaft. Shaft seal sold separately
Horizon #Description Exploded Diagram
Horizon # 34-252-W005 Product Waterco HydroStar (2-1/2") Self Priming Semi-Commercial Pump   Exploded Diagram EXPLODED DIAGRAM
Horizon #Product Description Qty
Horizon # 35-252-1162 Product Impeller, Waterco HydroStorm, 1.5 Horsepower Price Qty List Order
Horizon # 35-252-1156 Product Impeller, Waterco HydroStorm, 0.75 Horsepower Price Qty List Order
Horizon # 35-252-1157 Product Impeller, Waterco HydroStorm/Plus/Star, 0.75hp Price Qty List Order
Horizon # 35-252-1159 Product Impeller, Waterco HydroStorm, 1.0 Horsepower Price Qty List Order
Horizon # 35-252-1165 Product Impeller, Waterco HydroStorm/Plus/Star, 2.0hp Price Qty List Order
Horizon # 35-252-1168 Product Impeller, Waterco HydroStorm, 3.0 Horsepower Price Qty List Order
Search Using These Specs Partsology ©
Impeller Type Closed Face
Impeller Diameter OD 5-1/4"
Vane Width ID 1/8"
Eye Diameter OD 2"
Eye Length 11/16"
Impeller Width OD 1/4"
Seal Seat Depth 1/2"
Shaft Length 7/8"
Shaft Diameter OD 3/4"
Seal Seat Diameter OD 1-5/8"
Manufacturer Waterco
Pump Application HydroStorm
