Home  >  Pumps  >  Commercial Pumps and Parts

Impeller, Hayward EcoStar C/Tristar SP3200/EE/SP3600, 2.0hp

Impeller,Hayward EcoStar C/Tristar SP3200/EE/SP3600, 2.0hp 35-150-3536

Multiple Views:

main 1-reverse 4-side

Horizon # 35-150-3536

Looking for identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Add To Cart
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.


Detailed Product Info

Back To Top ^

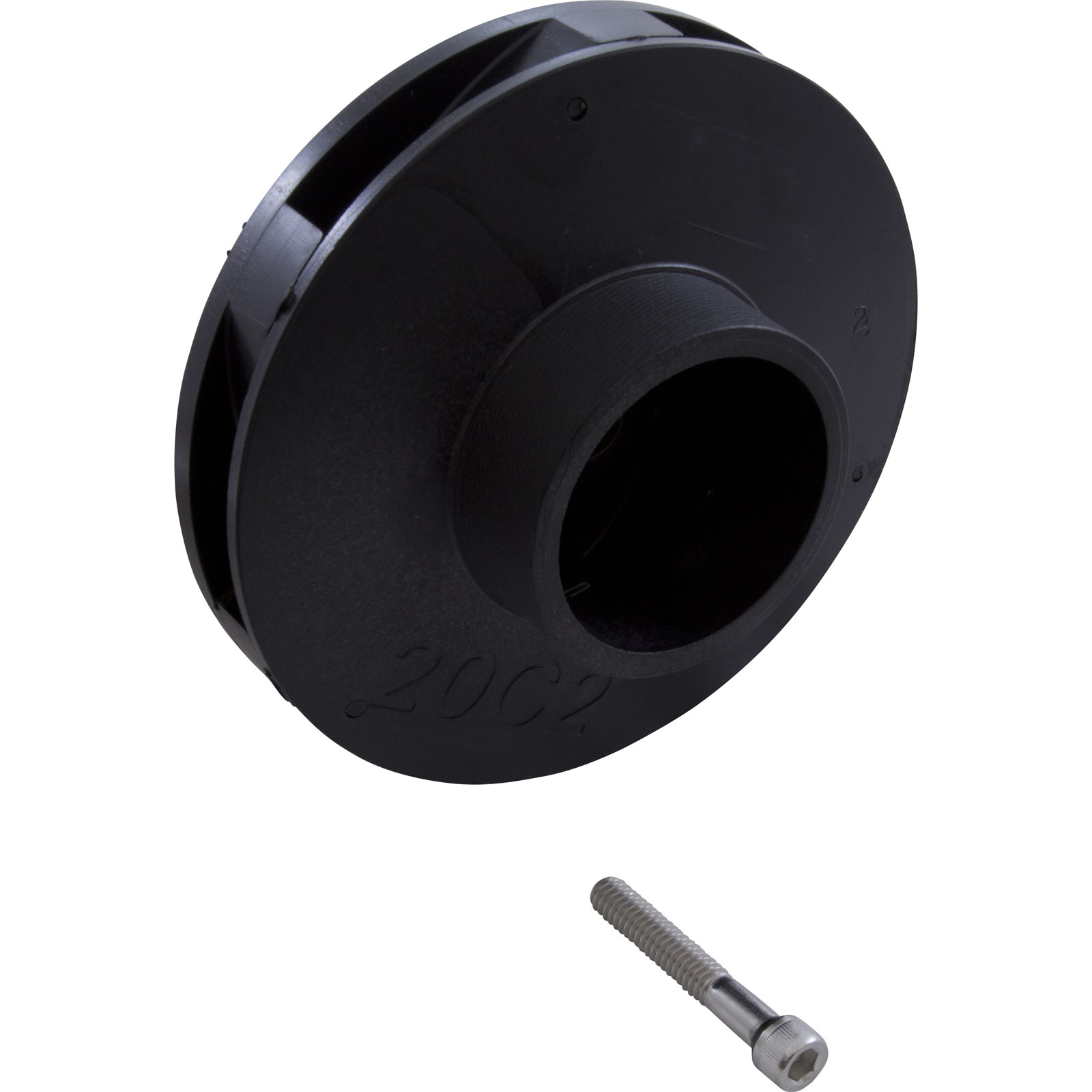

Hayward Pump Impeller

Closed face impeller made for the TriStar SP3200/SP3200EE/SP3600 pool pump by Hayward. Rated at 2.0hp, it is used in a SP3200 and or SP3600 pump body, and must be installed on a 2.0hp (or greater) square flange motor. Shaft seal sold separately
Horizon #Description Exploded Diagram
Horizon # 34-150-W031 Product Hayward TriStar Pump Models SP3200, SP3200EE, SP3600   Exploded Diagram EXPLODED DIAGRAM
Horizon # 34-150-W041 Product Hayward TriStar VS Pump Replacement Parts   Exploded Diagram EXPLODED DIAGRAM
Horizon # 34-150-W042 Product Hayward TriStar VS 900/950 Pump Replacement Parts   Exploded Diagram EXPLODED DIAGRAM
Horizon # 34-150-W051 Product Hayward EcoStar C Commercial Pool Pump   Exploded Diagram EXPLODED DIAGRAM
Horizon #Product Description Qty
Horizon # 35-150-3533 Product Impeller,Hayward Tristar, 1.5ohp/2.0thp, w/Screw Price Qty List Order
Horizon # _SPX3207C Product Impeller-3/4Hp W/Screw Price Qty List Order
Horizon # _SPX3230C5 Product Impeller-5Hp W/Screw Price Qty List Order
Horizon # 35-150-3530 Product Impeller,Hayward Tristar, 0.5ohp/0.75thp, w/Screw Price Qty List Order
Horizon # 35-150-3531 Product Impeller,Hayward Tristar, 0.75ohp/1.0thp, w/Screw Price Qty List Order
Horizon # 35-150-3532 Product Impeller,Hayward Tristar, 1.0ohp/1.5thp, w/Screw Price Qty List Order
Horizon # 35-150-3534 Product Impeller,Hayward Tristar SP3200X, 2.5thp, w/Screw Price Qty List Order
Horizon # 35-150-3535 Product Impeller, Hayward Tristar, 3.0 Horsepower, with Screw Price Qty List Order
Horizon # 35-150-3536 Product Impeller,Hayward EcoStar C/Tristar SP3200/EE/SP3600, 2.0hp Price Qty List Order
Horizon # Discontinued Product Impeller, Hayward Tristar SP3601, 0.75GPM, with Screw Price Qty List Order
Search Using These Specs Partsology ©
Complete Pump Complete Pump
Impeller Type Closed Face
Impeller Diameter OD 4-3/4"
Pump Part Type Impeller
Vane Width ID 7/16"
Eye Diameter OD 2-3/16"
Eye Length 3/4"
Impeller Width OD 13/16"
Seal Seat Depth 5/8"
Horsepower 2.0hp
Shaft Length n/a
Shaft Diameter OD n/a
Seal Seat Diameter OD 1-1/8"
Manufacturer Hayward
Pump Application SP3200, SP3200EE, SP3600, Tristar
Model EcoStar C

Looking for the description, tech tips, exploded diagram, available styles, documentation, specifications, kit components, and other information? Log in now to access to all this information and more!
