Home  >  Pumps  >  Pump Parts  >  Impellers

Impeller, Pentair Purex Whisperflo, 2.0 Horsepower

Impeller, Pentair Purex Whisperflo, 2.0 Horsepower 35-110-2116

Multiple Views:

main 1-reverse 4-side

Horizon # 35-110-2116

Looking for alternate/substitute items, identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Add To Cart
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add


Detailed Product Info

Back To Top ^

California Residents WARNING: Cancer and Reproductive Harm

 www.P65Warnings.ca.gov

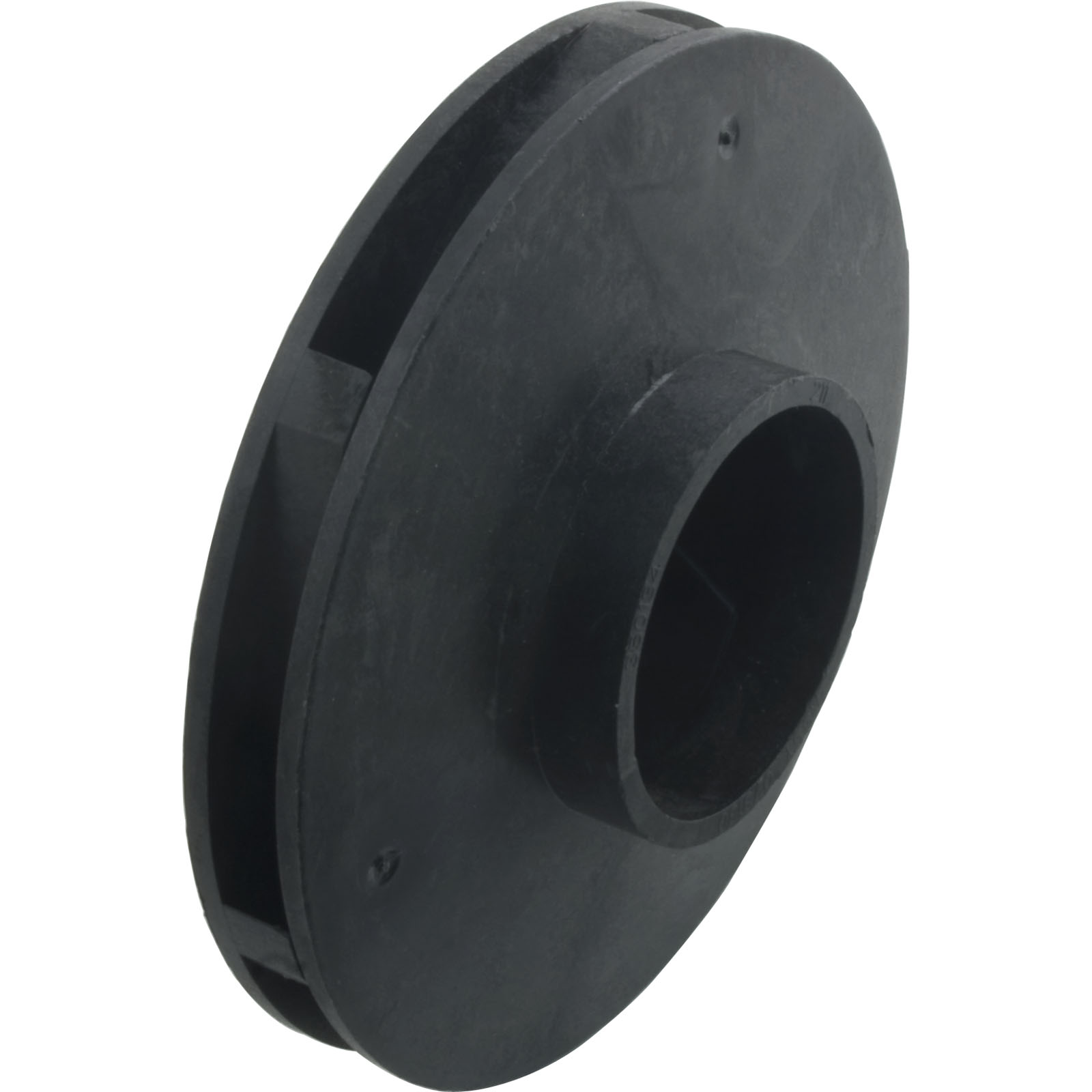

Purex/Pentair Pump Impeller

Closed face impeller made for the Triton Whisterflo Pool Pump by Purex/Pentair. Rated at 2.0hp, this impeller is used in a Whisperflo pump body and must be installed on a 2.0hp (or greater) square flange motor. Shaft seal sold separately
Horizon #Description Exploded Diagram
Horizon # 34-102-W050 Product Pentair WhisperFlo VST Pump Replacement Parts   Exploded Diagram EXPLODED DIAGRAM
Horizon # 34-110-W017 Product Pentair WhisperFlo® High Performance Pool Pump   Exploded Diagram EXPLODED DIAGRAM
Horizon #Product Description Qty
Horizon # 35-110-2118 Product Impeller, Pentair Purex Whisperflo, 3.0 Horsepower Price Qty List Order
Horizon # 35-102-1710 Product Impeller, Pentair IF VS/VSF/2 VST/IP VS+SVRS, After 10/2020 Price Qty List Order
Horizon # 35-102-2408 Product Impeller, Pentair Whisperflo, 1.0 Horsepower Price Qty List Order
Horizon # 35-102-2412 Product Impeller, Pentair Whisperflo WFE-8, 2.0 Horsepower Price Qty List Order
Horizon # 35-110-2108 Product Impeller, Pentair Purex Whisperflo, 0.5 Horsepower Price Qty List Order
Horizon # 35-110-2110 Product Impeller, Pentair Purex Whisperflo, 0.75 Horsepower Price Qty List Order
Horizon # 35-110-2112 Product Impeller, Pentair Purex Whisperflo, 1.0 Horsepower Price Qty List Order
Horizon # 35-110-2114 Product Impeller, Pentair Purex Whisperflo, 1.5 Horsepower Price Qty List Order
Horizon # 35-110-2116 Product Impeller, Pentair Purex Whisperflo, 2.0 Horsepower Price Qty List Order
Search Using These Specs Partsology ©
Impeller Type Closed Face
Impeller Diameter OD 4-7/8"
Vane Width ID 5/16"
Eye Diameter OD 2-3/16"
Eye Length 7/16"
Impeller Width OD 5/8"
Seal Seat Depth 1"
Shaft Length n/a
Shaft Diameter OD 5/8"
Seal Seat Diameter OD 1-7/16"
Manufacturer Purex/Pentair
Pump Application Whisperflo

Looking for the description, tech tips, exploded diagram, available styles, documentation, specifications, kit components, and other information? Log in now to access to all this information and more!

Print
close

Horizon's Return & Warranty Policies:

Horizon offers you a 90 day window from the date of your invoice to return purchases for any reason with no restocking fee! And, we honor the manufacturer’s warranty from the date of your invoice, not from the date of manufacture! For more details, click one of the following: Return Policy, Warranty Policy.

close

New To HorizonParts.com?

Whether you're brand new to Horizon or just visiting our website for the first time, we have resources to get you started! Check out the options below for more information.

I'm New To Horizon I'm new to Horizon »
Fill out this form to register as a Horizon dealer. We'll process your application within the next hour (of the current business day) so you can start ordering parts!
I'd Like To Register To Login I'm already a Horizon dealer but would like to buy online »
Fill out this form to set up a username and password and purchase parts online.
I'd Like To Register To Login Take the tour »
Tour Horizonparts.com to learn about all the exciting tools and features at your disposal.
More Resources »
close Substitute Horizon Item
A Substitute is a Direct Replacement for Original Item

Alternate Horizon Item
An Alternate is a Replacement for Original Item, but may require minor modifications

Recommended Items

35-423-1060 Shaft Seal, 1000, 5/8" Shaft, Buna
35-423-1048 Shaft Seal, PS-3865, 5/8" Shaft, Viton PS-1000
35-423-1061 Shaft Seal, PS-1905, 5/8" Shaft, Silicon Carbide PS-1000
88-426-1001 Lube, U.S. Seal, 4oz Bottle
