Impeller, Carvin J-Series, 2.0 Horsepower

Impeller, Carvin J-Series, 2.0 Horsepower 35-105-1864

Multiple Views:

main 1-reverse 2-front 3-back 4-side

Horizon # 35-105-1864

Looking for identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Add To Cart
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add


Detailed Product Info

Back To Top ^

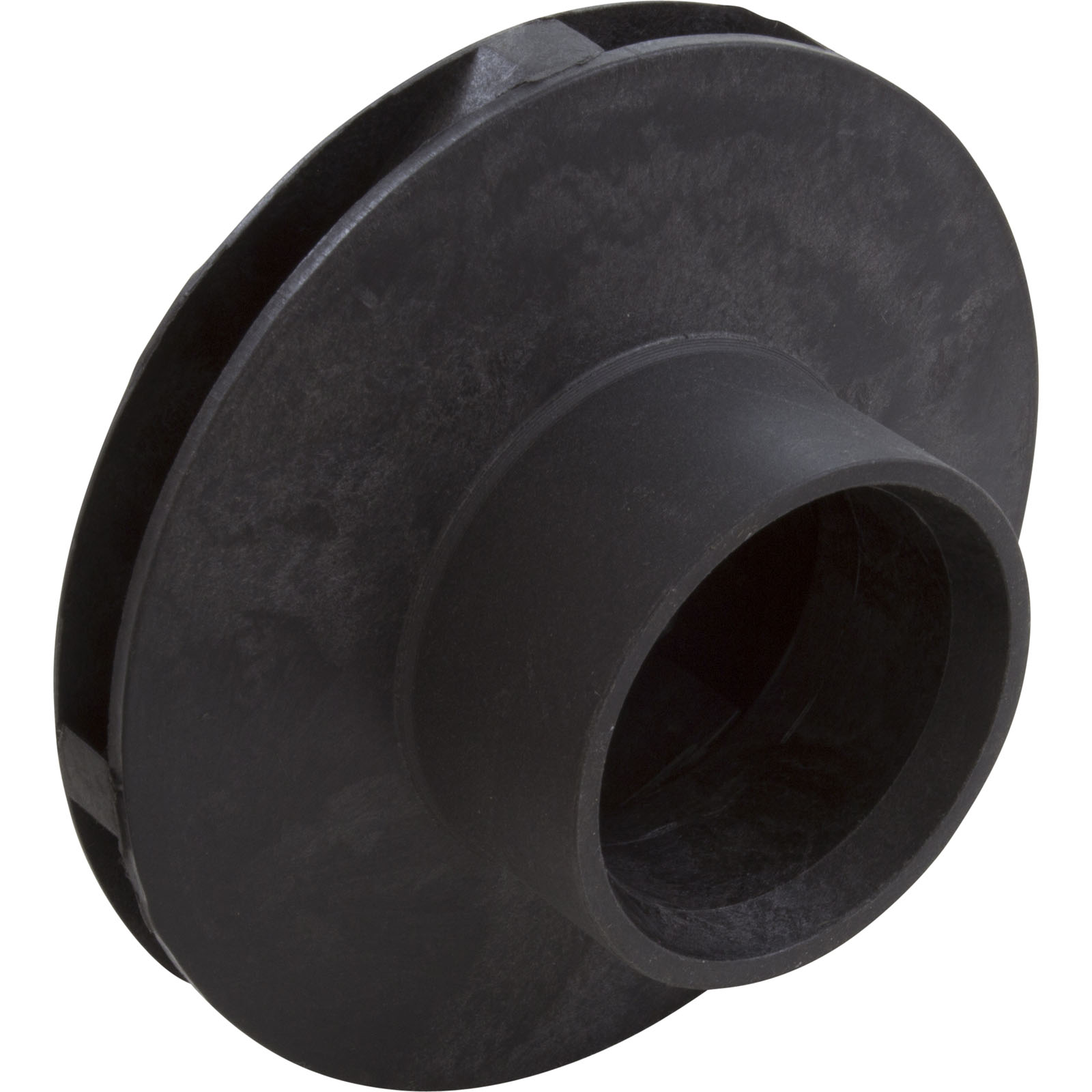

Jacuzzi/Carvin Pump Impeller

Closed face impeller made for the J series spa pump by Jacuzzi. Rated at 2.0hp, it is used in a J series pump wet end, and must be installed on a 2.0hp (or greater) thru bolt motor. Also used in the JCM, K, and KM series pumps. Shaft seal sold separately
Horizon #Description Exploded Diagram
Horizon # 34-105-W003 Product Jacuzzi J, JCM, K, KM Series Pumps   Exploded Diagram EXPLODED DIAGRAM
Horizon #Product Description Qty
Horizon # 35-105-1862 Product Impeller, Carvin J-Series, 1.5 Horsepower, Uprated Price Qty List Order
Horizon # 35-105-1858 Product Impeller, Carvin J-Series, 0.75 Horsepower Price Qty List Order
Horizon # 35-105-1860 Product Impeller, Carvin J-Series, 1.0 Horsepower Price Qty List Order
Horizon # 35-105-1864 Product Impeller, Carvin J-Series, 2.0 Horsepower Price Qty List Order
Horizon # Discontinued Product Impeller, Jacuzzi, J Pump/K Pump, 3.0hp Price Qty List Order
Search Using These Specs Partsology ©
Impeller Type Closed Face
Impeller Diameter OD 4-3/16"
Vane Width ID 5/16"
Eye Diameter OD 2"
Eye Length 1"
Impeller Width OD 1/2"
Seal Seat Depth n/a
Shaft Length 1-7/16"
Shaft Diameter OD 5/8"
Seal Seat Diameter OD n/a
Manufacturer Jacuzzi/Carvin
Pump Application J Series, JCM Series, K Series, KM Series
