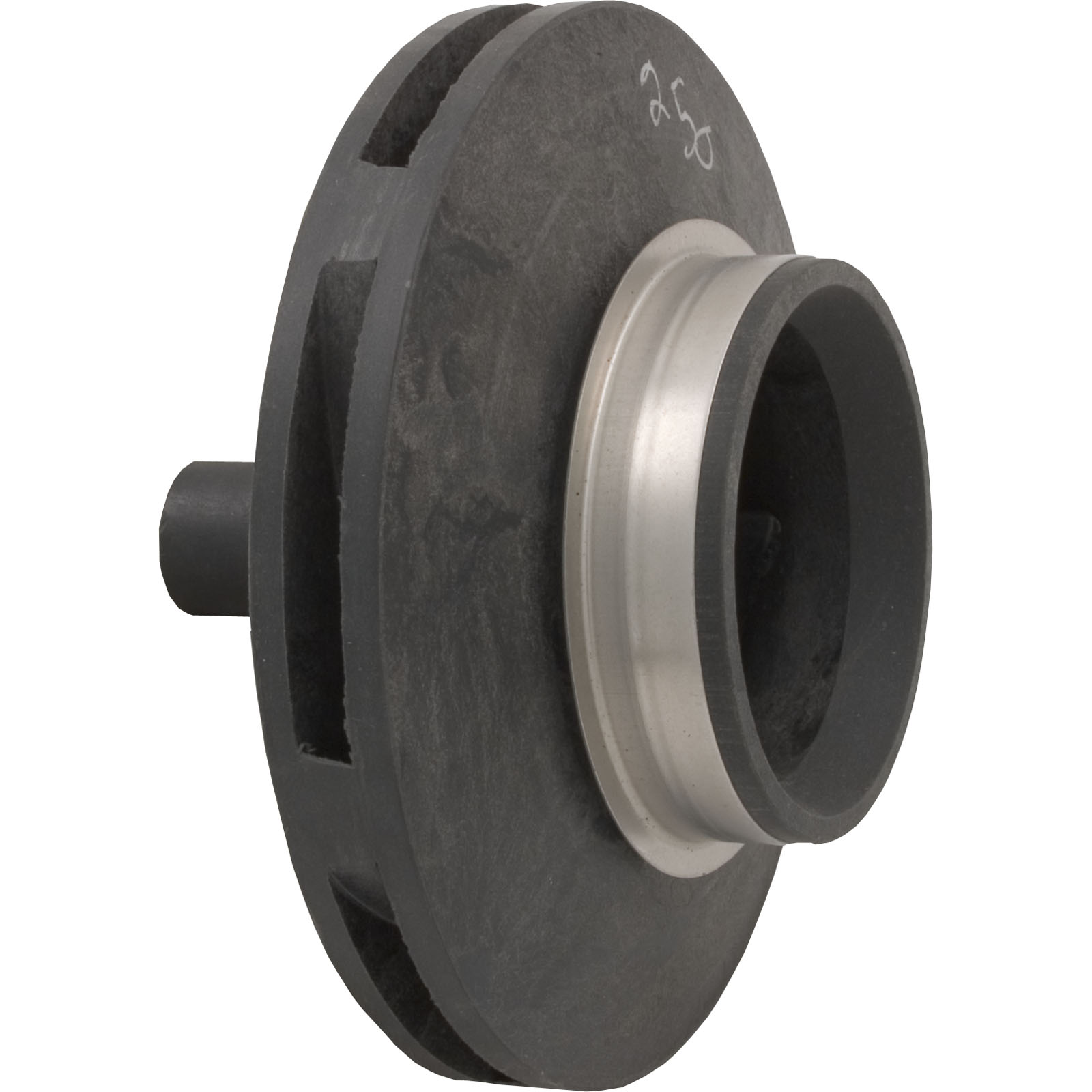

Impeller, Carvin Magnum HF, P, R, 2.0 Horsepower, Pre 1990

Impeller, Carvin Magnum HF, P, R, 2.0 Horsepower, Pre 1990 35-105-1220

Multiple Views:

main 1-reverse 4-side

Horizon # 35-105-1220

Looking for identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Add To Cart
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.


Detailed Product Info

Back To Top ^
Jacuzzi/Carvin Pump Impeller

Closed face impeller made for the Magnum High Flow pool pump by Jacuzzi. Rated at 1.5hp, it is used in a Magnum pump body, and must be installed on a 1.5hp (or greater) C-face motor with a threaded shaft. Also fits Jacuzzi, P, and R series pumps. Shaft seal sold separately
Horizon #Description Exploded Diagram
Horizon # 34-105-W018 Product Jacuzzi P, PC , EP Model Pumps   Exploded Diagram EXPLODED DIAGRAM
Horizon # 34-105-W019 Product Jacuzzi PH & UPH Model Pumps   Exploded Diagram EXPLODED DIAGRAM
Horizon # 34-105-W023 Product Jacuzzi Ring-Lok R, P, PC, UP Model Pumps   Exploded Diagram EXPLODED DIAGRAM
Horizon # 34-105-W025 Product Jacuzzi RC Model Pump   Exploded Diagram EXPLODED DIAGRAM
Horizon #Product Description Qty
Horizon # 35-105-1210 Product Impeller Kit, Carvin Magnum HF, P, R, 1.0hp Price Qty List Order
Horizon # 35-105-1085 Product Impeller,Carvin Magnum, 0.5ohp/0.75thp, All Date Codes Price Qty List Order
Horizon # 35-105-1086 Product Impeller,Carvin Magnum, 1.0ohp/1.5thp, 04+ Price Qty List Order
Horizon # 35-105-1087 Product Impeller,Carvin Magnum, 1.5ohp/2.0thp, 04+ Price Qty List Order
Horizon # 35-105-1088 Product Impeller,Carvin Magnum, 2.0ohp/2.5thp, 04+ Price Qty List Order
Horizon # 35-105-1095 Product Impeller,Carvin Magnum, 1.5ohp/2.0thp, pre-04 Price Qty List Order
Horizon # 35-105-1105 Product Impeller,Carvin Magnum, 1.0ohp/1.5thp, pre-04 Price Qty List Order
Horizon # 35-105-1110 Product Impeller,Carvin Magnum, 0.75ohp/1.0thp, All Date Codes Price Qty List Order
Horizon # Discontinued Product Impeller,Carvin Magnum, 4.0thp, All Date Codes Price Qty List Order
Horizon # 35-105-1113 Product Impeller,Carvin Magnum, 5.0thp, All Date Codes Price Qty List Order
Horizon # 35-105-1205 Product Impeller, Carvin Magnum HF, P, R, 0.75 Horsepower Price Qty List Order
Horizon # 35-105-1212 Product Impeller, Carvin Magnum HF, P, R, 1.0hp Price Qty List Order
Horizon # 35-105-1215 Product Impeller, Carvin Magnum HF, P, R, 1.5 Horsepower Price Qty List Order
Horizon # 35-105-1220 Product Impeller, Carvin Magnum HF, P, R, 2.0 Horsepower, Pre 1990 Price Qty List Order
Horizon # 35-105-1225 Product Impeller, Carvin Magnum High Flow, P, R, 3.0 Horsepower Price Qty List Order
Horizon # 35-105-1227 Product Impeller, Carvin Magnum HF, P, R, 0.5 Horsepower Price Qty List Order
Horizon # 35-105-1229 Product Impeller, Carvin Magnum High Flow, P, R, 2.0 Horsepower Price Qty List Order
Horizon # 35-105-1246 Product Impeller,Jacuzzi Magnum, 3.0ohp, 3.0thp Price Qty List Order
Horizon # Discontinued Product Impeller Kit Carvin P, EP, PH, 0.5hp Price Qty List Order
Horizon # Discontinued Product Impeller Kit, Carvin P, PH, 0.5hp Price Qty List Order
Horizon # Discontinued Product Impeller Kit, Carvin P, PH, 0.75hp Price Qty List Order
Horizon # 35-105-1393 Product Impeller Kit, Jacuzzi P, PH, 1.0hp Price Qty List Order
Horizon # 35-105-1394 Product Impeller Kit, Carvin P, PH, 1.5hp Price Qty List Order
Horizon # Discontinued Product Impeller Kit, Jacuzzi P, PH, 2.0hp Price Qty List Order
Horizon # Discontinued Product Impeller Kit, Carvin P, PH, 3.0hp Price Qty List Order
Search Using These Specs Partsology ©
Impeller Type Closed Face
Impeller Diameter OD 4-3/4"
Vane Width ID 1/4"
Eye Diameter OD 2-1/2"
Eye Length 5/8"
Impeller Width OD 9/16"
Seal Seat Depth 1/16"
Shaft Length 1-9/16"
Shaft Diameter OD 3/4"
Seal Seat Diameter OD 1-3/8"
Manufacturer Jacuzzi/Carvin
Pump Application EP Series, P Series, PC Series, R Series, RC Series, UP Series
