Home  >  Pumps  >  Pump Parts  >  Impellers

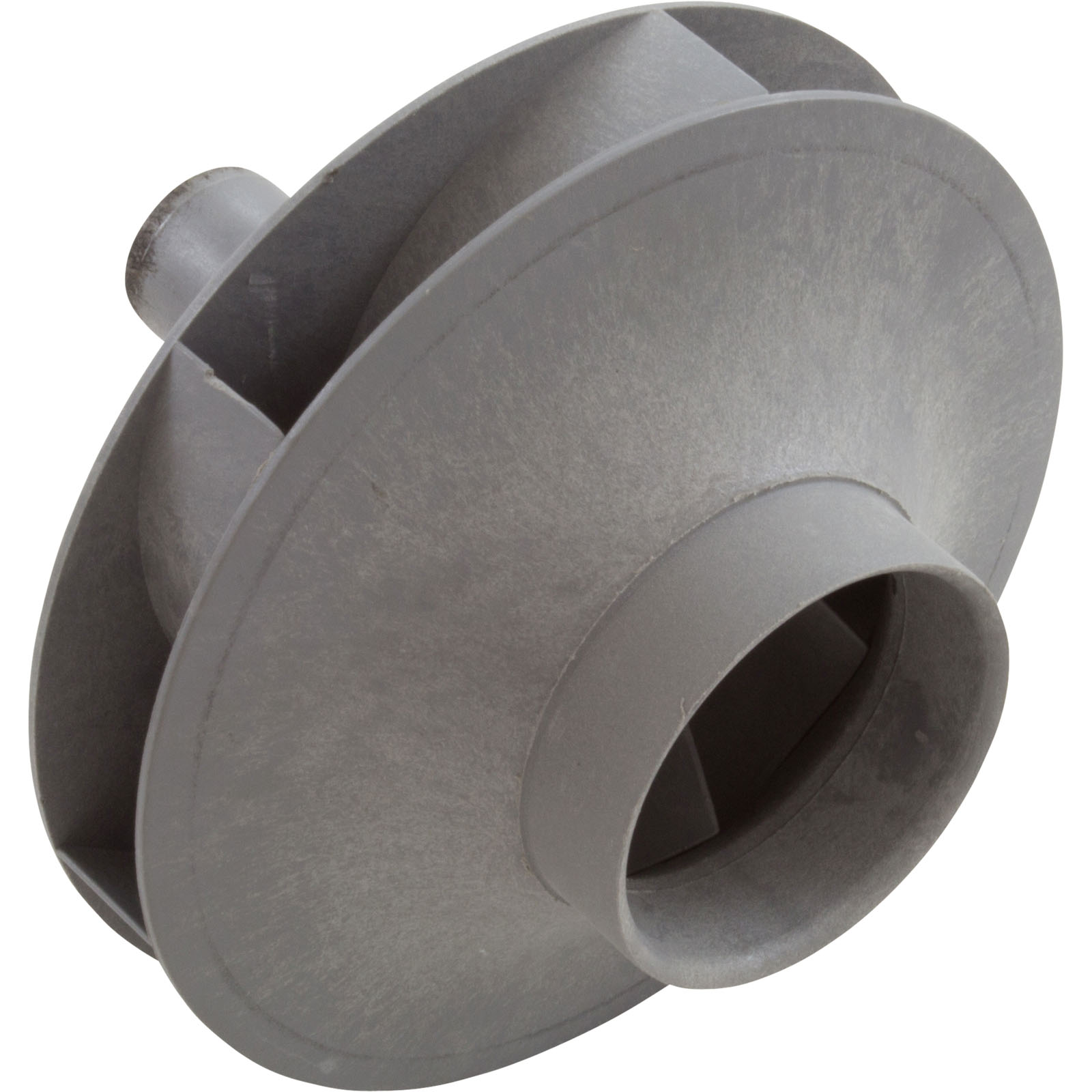

Impeller, BWG, DuraJet DJ, 4.0 Horsepower

Impeller, BWG, DuraJet DJ, 4.0 Horsepower 35-102-1451

Multiple Views:

main 1-reverse 2-front 3-back 4-side

Discontinued by manufacturer

Looking for identical information, stock status and pricing? Log in now to access to all this information and more!

X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.


Detailed Product Info

Back To Top ^

To properly match the impeller to motor on Balboa Water Groups DuraJet DJ series pumps, match impeller number to amperage on motor.


ImpellerVolts/AmpsVolts/Amps
1 hp - 17400-0120115 volt - 11Amps or larger230 volt - 6 Amps or larger
1-1/2 hp - 17400-0121115 volt - 16 Amps or larger230 volt - 8 Amps or larger
2 hp - 17400-0122N/A230 volt - 8 Amps or larger
2.5 hp - 17400-0123N/A230 volt - 10 Amps or larger
3 hp - 17400-0135N/A230 volt - 12 Amps or larger
4 hp - 17400-0136N/A230 volt - 12 Amps or larger
Horizon #Description Exploded Diagram
Horizon # 34-102-W030 Product Balboa Water Group Dura-Jet DJ Series Pumps   Exploded Diagram EXPLODED DIAGRAM
Horizon #Product Description Qty
Horizon # 35-102-1446 Product Impeller, BWG, DuraJet DJ, 1.5 Horsepower Price Qty List Order
Horizon # 35-102-1444 Product Impeller, BWG, DuraJet DJ, 1.0 Horsepower Price Qty List Order
Horizon # 35-102-1448 Product Impeller, BWG, DuraJet DJ, 2.0 Horsepower Price Qty List Order
Horizon # 35-102-1449 Product Impeller, BWG, DuraJet DJ, 3.0 Horsepower Price Qty List Order
Horizon # 35-102-1450 Product Impeller, BWG, DuraJet DJ, 2.5 Horsepower Price Qty List Order
Horizon # Discontinued Product Impeller, BWG, DuraJet DJ, 4.0 Horsepower Price Qty List Order
Search Using These Specs Partsology ©
Impeller Type Closed Face
Impeller Diameter OD 4-1/8"
Vane Width ID 5/8"
Eye Diameter OD 1-3/4"
Eye Length 1/2"
Impeller Width OD 5/8"
Seal Seat Depth n/a
Shaft Length 1-3/4"
Shaft Diameter OD 3/4"
Seal Seat Diameter OD n/a
Manufacturer Balboa Water Group
Pump Application Dura-Jet
