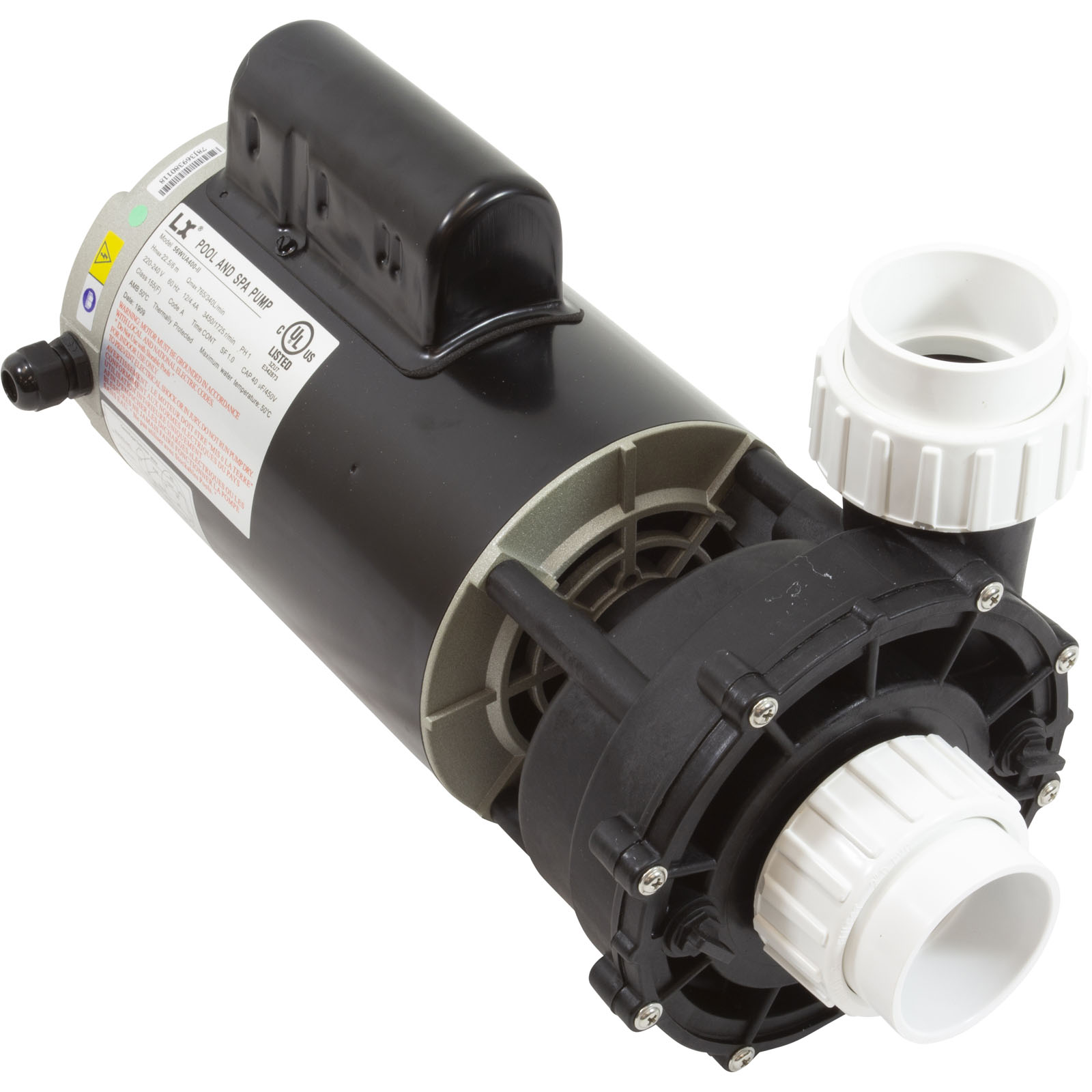

Pump, LX 56WUA, 4.0hp, 230v, 2-Spd, 56Fr, 2", SD, Bracketless

Pump, LX 56WUA, 4.0hp, 230v, 2-Spd, 56Fr, 2",SD, Bracketless 34-343-3045

Multiple Views:

main 1-reverse 2-manlabel 3-mfulabel 4-shaft 5-shaft-reverse 6-top

Horizon # 34-343-3045

Looking for identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Add To Cart
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add


Detailed Product Info

Back To Top ^
This model LX pump is commonly used to replace Sundance 2.5 HP 56 frame pump - 2 speed, 2" inlet, 2" discharge pumps

Dimension: 16-7/16"L x 8-3/4"W x 8-7/8"H

California Residents WARNING: Cancer and Reproductive Harm

  www.P65Warnings.ca.gov

Search Using These Specs Partsology ©
Motor Voltage 230v
Speed 2 Speed (2-Spd)
Motor Amperage/Wattage 12.0A/4.4A
Horsepower 4.0hp
Manufacturer Lingxiao (LX) Pump
Pump Model 56WUA
Suction Pipe Size 2"
Suction Connection Type Male Buttress Thread (mbt)
Suction Style Center
Discharge Pipe Size 2"
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Style Side
Motor Frame 56 Frame Thru-Bolt
Drain Plug Location 3,6,9 o`clock
The motor serial # label is required for all warranty replacements. It is located on the outside of the motor, next to the red arrow.
34-343-2045 Wet End, LX 56WUA, 4.0hp, 1-Spd/2-Spd, 2", 56 Frame
Add
60-555-1225 Strain Relief, Heyco, 1/2mpt
Add
90-343-1020 O-Ring, LX, 2-1/2" ID, 11/64" Cross Section, for 2" Union
Add
35-343-1014 Impeller, LX, 4.0hp, 56 Frame
Add
35-343-1020 Pump Seal, LX, 56WUA500 Silicone Carbide/Graphite/Viton
Add
90-423-5256 O-Ring, 5-3/4" ID, 1/8" Cross Section, Generic, O-108
Add
