Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Pumps  >  34-102-W071

Pentair CSPH/CCSPH Series Pump Replacement Parts

Product Description  ·  Parts  ·  Complete Pump  ·  Not Shown
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

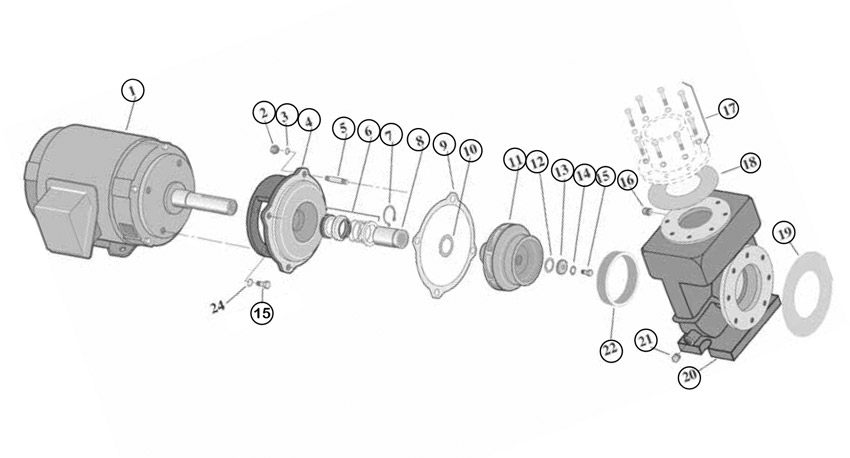

Parts

Key Horizon # Description Qty
Key 1 Horizon # _S22353BD Description Mtr 7.5Hp 3600/60/3 184Jm Odp Price Qty RecItem
Key 2 Horizon # _S23488 Description Nut Hex 1/2-13Nc 304Ss Price Qty RecItem View recommended items
Key 3 Horizon # 35-102-1242 Description Lock Washer, Pentair Sta-Rite, 3/8" Price Qty RecItem View recommended items
Key 4 Horizon # _16830-2201 Description Mtr Brkt Ccsp Pmp Epoxy Coat Price Qty RecItem
Key 4 Horizon # Discontinued Description Mtr Brkt Epoxy Coat Ccsp Pmp Price Qty RecItem
Key 4 Horizon # _16830-2203 Description Mtr Brkt Epoxy Coat Ccsp Pmp Price Qty RecItem View recommended items
Key 4 Horizon # _L05328 Description Bracket B_Tp__ 7/8U 8-1/2Ak Ci 1-7/32 Bo Price Qty RecItem View recommended items
Key 4 Horizon # _L05329 Description Bracket B_Tp_S 7/8U 4-1/2Ak Ci 1-9/16 Bo Price Qty RecItem View recommended items
Key 4 Horizon # _L05779 Description Bracket B_Tp__ 1-1/4U 8-1/2Ak Ci 2-1/8 B Price Qty RecItem
Key 5 Horizon # _30747-0152 Description Stud 1/2-13X11/2 Lg 303Ss Price Qty RecItem
Key 6 Horizon # 35-102-3000 Description Shaft Seal, Pentair CSPH/CCSPH Series, Buna Price Qty RecItem View recommended items
Key 6 Horizon # 35-102-3002 Description Shaft Seal, Pentair CSPH/CCSPH Series, Buna Price Qty RecItem View recommended items
Key 7 Horizon # _S11207 Description Snap Ring, Retaining, Pentair CSPH/CCSPH Pump Price Qty RecItem
Key 7 Horizon # _S16767 Description Rng Rtng External 1-3/4 Ph15-7Moss Price Qty RecItem
Key 8 Horizon # Discontinued Description Shaft Sleeve, Pentair CSPH/CCSPH Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Shaft Sleeve, Pentair CSPH/CCSPH Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Gasket, Pentair, CSPH/CCSPH Series Pump Volute Price Qty RecItem
Key 10 Horizon # _33455-8044 Description Gasket, Impeller To Shafts Price Qty RecItem
Key 10 Horizon # _33455-8046 Description Gskt Imp To Shaft Sleeve Price Qty RecItem
Key 11 Horizon # 35-102-3010 Description Impeller, Pentair CSPH/CCSPH, 7-1/2 Horsepower Price Qty RecItem View recommended items
Key 11 Horizon # 35-102-3012 Description Impeller, Pentair CSPH/CCSPH, 10 Horsepower Price Qty RecItem View recommended items
Key 11 Horizon # 35-102-3014 Description Impeller, Pentair CSPH/CCSPH, 15 Horsepower Price Qty RecItem View recommended items
Key 11 Horizon # 35-102-3016 Description Impeller, Pentair CSPH/CCSPH, 20 Horsepower Price Qty RecItem View recommended items
Key 12 Horizon # _33455-8043 Description Gasket Imp To Lkwshr Price Qty RecItem
Key 12 Horizon # _33455-8045 Description Gskt Imp To Lkwshr Price Qty RecItem
Key 13 Horizon # _38917-0203 Description Wshr Imp For Csp Pump Price Qty RecItem
Key 13 Horizon # _38917-0204 Description Wshr Imp For Csp Pump Price Qty RecItem
Key 14 Horizon # _C43-46SS Description 1.365.00 Wshr Stat-O- Seal 3/8" Price Qty RecItem
Key 14 Horizon # _C43-46SSA Description Wshr Stat-O-Seal 1/2" Price Qty RecItem
Key 15 Horizon # _S23619 Description Capscr Hex Hd 1/2-13Nc X 1Lg 303Ss (Pu Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Drain Plug, Pentair Sta-Rite CF6, 1/4" Price Qty RecItem View recommended items
Key 17 Horizon # _16830-0400 Description Hdwr Kit 5/8 Helical Sprng Lkwshr Price Qty RecItem
Key 18 Horizon # _33450-8042 Description Gasket Volute Discharge Price Qty RecItem
Key 19 Horizon # _33450-8041 Description Gskt 6" Pipe Flange Price Qty RecItem View recommended items
Key 20 Horizon # 35-102-3020 Description Volute, Pentair CSPH/CSPH2 Price Qty RecItem View recommended items
Key 20 Horizon # 35-102-3024 Description Volute, Pentair CCSPH, 7-1/2 & 10 Horsepower, Epoxy Coat Price Qty RecItem View recommended items
Key 20 Horizon # 35-102-3026 Description Volute, Pentair CCSPH, 7.5-1ph/15/20 hp, Epoxy Coat Price Qty RecItem View recommended items
Key 21 Horizon # _U78-59D Description Plg Pipe 1/2" Sq Hd Brs Price Qty RecItem
Key 22 Horizon # _16830-0120 Description Wear Rng Csp Pmp Vlt Price Qty RecItem View recommended items

Complete Pump

Key Horizon # Description Qty
Key Horizon # 34-102-2040 Description Pump, Pentair CSP, 10.0hp, 3Ph, 230V/460V, Cast Iron Price Qty RecItem View recommended items
Key Horizon # 34-102-2056 Description Pump, Pentair CCSP,10.0hp,3Ph,230V/460V,Epxy Coat Cast Iron Price Qty RecItem View recommended items

Not Shown

Key Horizon # Description Qty
Key Horizon # 34-102-2000 Description Trap Body Cmplt, Pentair C/CC/D Series, Cast Iron, Pkg 184 Price Qty RecItem View recommended items
Key Horizon # 34-102-2010 Description Trap Body, Pentair C/CC/D Series, Cast Iron, Pkg 184C Price Qty RecItem View recommended items
Key Horizon # 35-102-2090 Description Trap Body Only, Pentair C/CC/D Series, Cast Iron, Pkg 184 Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Trap Body Only, Pentair C/CC/D Series, Cast Iron, Pkg 184C Price Qty RecItem View recommended items
Key Horizon # 35-102-2094 Description Lid, Pentair PKG184C/PKG184CE, Epoxy Coated Price Qty RecItem View recommended items
Key Horizon # 35-110-3194 Description Flange Assy, Pentair EQ Series, Hair & Lint Strainer, 4" Price Qty RecItem View recommended items
Key Horizon # 35-110-3196 Description Flange Assy, Pentair EQ Series, Hair & Lint Strainer, 6" Price Qty RecItem View recommended items
