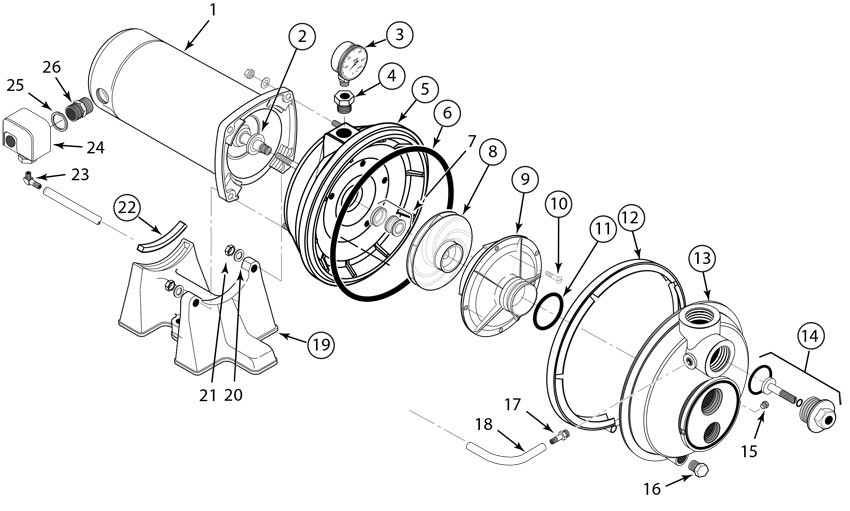

Pentair Berkeley Convertible Jet Pump Parts, PL/PLS Series

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 2 Horizon # 35-102-1010 Description Water Slinger, Pentair Sta-Rite, Black Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Pressure Gauge, Pentair Sta-Rite HRP, 1/4", Bottom Mount Price Qty RecItem
Key 4 Horizon # Discontinued Description Rdcr 1/2X1/8 Npt Tapd Price Qty RecItem
Key 4 Horizon # 89-575-2495 Description Reducer, 1/2" Male Pipe Thread x 1/8" Female Pipe Thread Price Qty RecItem View recommended items
Key 5 Horizon # _L176-47P Description Sealplate Mach 1.75In Bolt 5 Inserts Price Qty RecItem
Key 6 Horizon # Discontinued Description Orng Sq Cut Buna Price Qty RecItem View recommended items
Key 8 Horizon # _J105-22PA Description Impeller, Sta-Rite, Berkeley 1Hp/1-1/2Hp Pump Price Qty RecItem
Key 8 Horizon # _J105-40PE Description Impeller, Pentair Berkeley 3PL, 1/3 Horsepower Price Qty RecItem View recommended items
Key 8 Horizon # _J105-42PT Description Impeller, Pentair Berkeley 5PL Price Qty RecItem
Key 8 Horizon # _J105-8PAN Description Impeller Price Qty RecItem
Key 9 Horizon # _J1-39P Description Diff Plstc Jet Pmp Price Qty RecItem
Key 9 Horizon # _J1-40P Description Diff Plstc Jet Pmp Price Qty RecItem
Key 10 Horizon # 35-102-1100 Description Screw, Pentair Sta-Rite, 8-32 x 7/8" Price Qty RecItem View recommended items
Key 11 Horizon # _U9-199 Description Orng 1-5/8Id 1-7/8Od 1/8W Price Qty RecItem View recommended items
Key 12 Horizon # _C19-54SS Description Band Clamp, Pentair Berkley PL/PlS Pump Price Qty RecItem
Key 13 Horizon # _L76-37P Description Pump Half Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Kit Cntrl Vlv Asy Svc Price Qty RecItem
Key 14 Horizon # _L20-40 Description Gasket, Pentair PLBC Series Pump, Front Tank Body Price Qty RecItem View recommended items
Key 14 Horizon # _L23-4P1 Description Large Bushing Price Qty RecItem View recommended items
Key 19 Horizon # _C4-42P Description Mtr Base Price Qty RecItem
Key 22 Horizon # 35-102-1120 Description Motor Support, Pentair Sta-Rite IntelliPro Price Qty RecItem View recommended items
