Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Pumps  >  34-102-W053

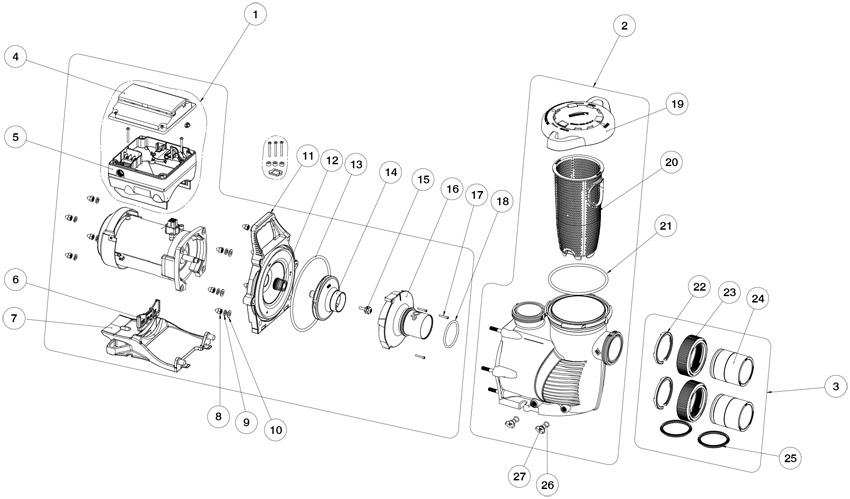

Pentair IntelliFloXF VSF/VS Rpl Parts (After 8/2015)

Product Description  ·  Parts  ·  Not Pictured  ·  Complete Pump
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 35-102-3040 Description Drive Kit, Pentair Sta-Rite IntelliPro, Black, w/ Keypad Price Qty RecItem View recommended items
Key 1 Horizon # 35-110-2036 Description Drive Kit, Pentair IntelliFlo VS/i1/2VST, w/ Keypad Price Qty RecItem View recommended items
Key 2 Horizon # 35-102-7142 Description Wet End, Pentair WhisperFloXF VS/IntelliFloXF VS Price Qty RecItem View recommended items
Key 2 Horizon # 35-110-2142 Description Trap Body Assembly, Pentair IntelliFlo XF Price Qty RecItem View recommended items
Key 3 Horizon # 35-110-2170 Description Union Assembly, Pentair IntelliFloXF, 2-1/2" Slip Price Qty RecItem View recommended items
Key 4 Horizon # 35-110-2130 Description Keypad Assy Kit, Pentair IntelliFlo XF/2 VST, Almond Price Qty RecItem View recommended items
Key 5 Horizon # 35-110-2034 Description Drive Kit, Pentair IntelliFlo XF VS/i1/2VST, w/o Keypad Price Qty RecItem View recommended items
Key 6 Horizon # 35-110-2094 Description Motor Support, Pentair Purex Whisperflo/IntelliFlo Price Qty RecItem View recommended items
Key 7 Horizon # 35-110-2144 Description Motor Base, Pentair IntelliFloXF Price Qty RecItem
Key 8 Horizon # 35-110-2132 Description Wetend Assembly Nut, Pentair IntelliFlo XF, 3/8-16, Acorn Price Qty RecItem View recommended items
Key 9 Horizon # 35-102-1242 Description Lock Washer, Pentair Sta-Rite, 3/8" Price Qty RecItem View recommended items
Key 10 Horizon # 35-110-1346 Description Washer,Pent IntelliFlo XF/EQ Series,Flat,3/8 I.D. x 7/8 O.D. Price Qty RecItem View recommended items
Key 11 Horizon # 35-110-2156 Description Seal Plate Kit, Pentair IntelliFloXF Price Qty RecItem View recommended items
Key 12 Horizon # 35-102-1408 Description Shaft Seal, Pentair, 3/4" Shaft, Carbide, OEM Price Qty RecItem View recommended items
Key 12 Horizon # 35-423-1021 Description Shaft Seal, 201, 3/4" Shaft, Buna Price Qty RecItem View recommended items
Key 12 Horizon # 35-423-1023 Description Shaft Seal, PS-1902, 3/4" Shaft, Silicon Carbide PS-201 Price Qty RecItem View recommended items
Key 12 Horizon # 35-423-1025 Description Shaft Seal, 3/4" Shaft, Viton 201 Price Qty RecItem View recommended items
Key 12 Horizon # 35-426-1021US Description Shaft Seal, 201, 3/4" Shaft, Buna, US Seal Price Qty RecItem View recommended items
Key 13 Horizon # 35-110-2166 Description O-Ring, Pentair IntelliFloXF/IntelliProXF, Seal Plate Price Qty RecItem View recommended items
Key 14 Horizon # 35-102-3090 Description Impeller, Pentair IntelliFloXF, 3.0 Horsepower Price Qty RecItem View recommended items
Key 14 Horizon # 35-110-2154 Description Impeller, Pentair IntelliFloXF, 3.0 Horsepower Price Qty RecItem View recommended items
Key 15 Horizon # 35-102-1180 Description Screw, Pentair Sta-Rite, Impeller Price Qty RecItem View recommended items
Key 16 Horizon # 35-110-2150 Description Diffuser, Pentair IntelliFloXF, 3.0hp Price Qty RecItem View recommended items
Key 17 Horizon # 35-110-2138 Description Diffuser Screw, Pentair IntelliFlo XF, 8-32 x 1” Price Qty RecItem View recommended items
Key 18 Horizon # 35-110-2134 Description Diffuser O-Ring, Pentair IntelliFlo XF Price Qty RecItem View recommended items
Key 19 Horizon # 35-102-7146 Description Lid/Locking Ring Assy, Pentair WhisperFloXF/IntelliFloXF Price Qty RecItem View recommended items
Key 19 Horizon # 35-110-2146 Description Ring Locking Assembly, Pentair IntelliFloXF, Almond Price Qty RecItem View recommended items
Key 20 Horizon # 35-110-2148 Description Basket, Pump, OEM Pentair IntelliFloXF Price Qty RecItem View recommended items
Key 21 Horizon # 90-423-5438 Description O-Ring, 6-1/4" ID, 1/4" Cross Section, Generic Price Qty RecItem View recommended items
Key 22 Horizon # 35-110-2162 Description C-Clip Locking Ring, Pentair IntelliFloXF, 2-1/2" Price Qty RecItem View recommended items
Key 23 Horizon # 35-110-2172 Description Union Nut, Pentair IntelliFloXF, 2-1/2", Black Price Qty RecItem View recommended items
Key 24 Horizon # 35-110-2164 Description Adapter Union, Pentair IntelliFloXF, 2-1/2" Grooved Price Qty RecItem View recommended items
Key 25 Horizon # 35-110-2168 Description Union Seal, Pentair IntelliFloXF, 2-1/2", Quantity 2 Price Qty RecItem View recommended items
Key 26 Horizon # 90-423-7014 Description O-Ring, 1/2" ID, 1/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 27 Horizon # 35-102-3088 Description Drain Plug, Pentair Sta-Rite/Purex, 1/4" Price Qty RecItem View recommended items
Key 27 Horizon # Discontinued Description Drain Plug, Pentair Sta-Rite/Purex, 1/4" Price Qty RecItem View recommended items
Key Horizon # 35-102-2520 Description Motor, Pentair IntelliFlo 2 VS, 3.2kW, 10 pole Price Qty RecItem

Not Pictured

Key Horizon # Description Qty
Key Horizon # 35-102-2170 Description Keypad Wall Mount Kit, Pentair IntelliFlo, Almond Price Qty RecItem View recommended items
Key Horizon # 35-110-2156 Description Seal Plate Kit, Pentair IntelliFloXF Price Qty RecItem View recommended items
Key Horizon # 35-102-1117 Description Cable, Pentair Sta-Rite, IntelliFlo to IntelliTouch, 50 foot Price Qty RecItem View recommended items
Key Horizon # 35-110-2019 Description Fan Motor Assembly, Pentair Purex IntelliFlo VF/VS, Almond Price Qty RecItem View recommended items

Complete Pump

Key Horizon # Description Qty
Key Horizon # Discontinued Description Pump, Pentair IntelliFloXF VS, 3.0hp, 230v, Var-Spd, EE Price Qty RecItem View recommended items
Key Horizon # 34-102-1520 Description Pump, Pentair IntelliFloXF VSF,3.0hp,230v, Var-Spd, EE Price Qty RecItem View recommended items
