Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  30-295-W003

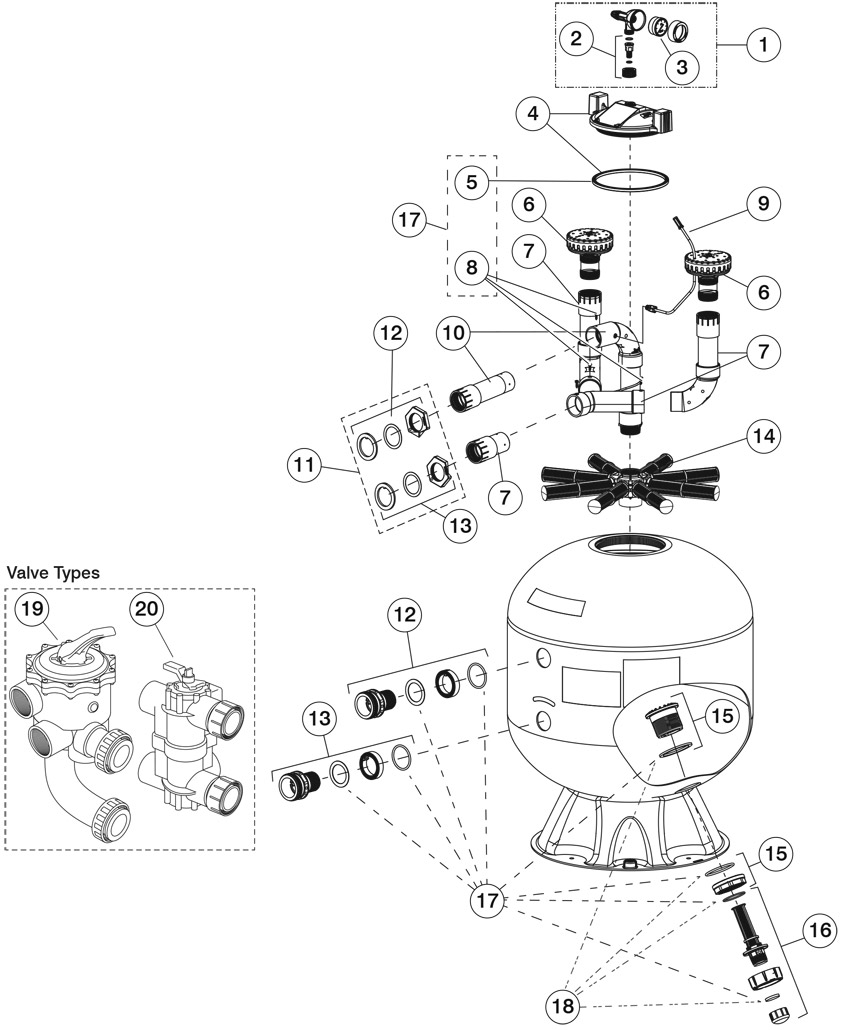

Sand Filter, Zodiac/Jandy, JS Series Model JS60/JS100-SM

Product Description  ·  Parts  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 17-295-1062 Description Air Relief Assembly, Jandy, w/Gauge & Tank Adapter Price Qty RecItem View recommended items
Key 2 Horizon # 17-295-1064 Description Tank Adapter, Zodiac Jandy CL/CV/JS/DEV, with O-Ring Price Qty RecItem View recommended items
Key 3 Horizon # 17-295-1063 Description Pressure Gauge, Zodiac Jandy, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 4 Horizon # 31-295-1113 Description Tank Lid, Zodiac Jandy JS60-SM/JS100-SM Price Qty RecItem View recommended items
Key 5 Horizon # 31-295-1114 Description Quad Ring, Zodiac Jandy JS60-SM/JS100-SM, Tank Lid Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Jandy Pro Series Diffuser, Js60-Sm Price Qty RecItem
Key 6 Horizon # 31-295-1118 Description Diffuser, Zodiac Jandy JS100-SM Price Qty RecItem View recommended items
Key 7 Horizon # _R0519901 Description Jandy Pro Series Inlet Piping Kit, Js60-Sm Price Qty RecItem
Key 7 Horizon # 31-295-1120 Description Inlet Piping Kit, Zodiac Jandy JS100-SM Price Qty RecItem View recommended items
Key 8 Horizon # 31-295-1124 Description Screw Set, Zodiac Jandy JS60-SM/JS100-SM Price Qty RecItem View recommended items
Key 9 Horizon # 31-295-1119 Description Air Relief Tube, Zodiac Jandy JS60-SM/JS100-SM Price Qty RecItem View recommended items
Key 10 Horizon # _R0520001 Description Jandy Pro Series Outlet Piping Kit, Js60-Sm Price Qty RecItem
Key 10 Horizon # 31-295-1121 Description Outlet Pipe Assembly, Zodiac Jandy JS100-SM Price Qty RecItem View recommended items
Key 11 Horizon # _R0520100 Description Jandy Pro Series Nut, Slip Ring & Inner Spacer Js60-Sm Price Qty RecItem
Key 11 Horizon # 31-295-1122 Description Spacer Kit, Zodiac Jandy JS100-SM Price Qty RecItem View recommended items
Key 12 Horizon # _R0520300 Description Jandy Pro Series Outlet Fitting, 24", Complete Js60-Sm Price Qty RecItem
Key 12 Horizon # 31-295-1128 Description Outlet Fitting, Zodiac Jandy JS100-SM, 30" Price Qty RecItem View recommended items
Key 13 Horizon # _R0520400 Description Jandy Pro Series Inlet Fitting, 24", Complete JS60-SM Price Qty RecItem
Key 13 Horizon # 31-295-1129 Description Inlet Fitting, Zodiac Jandy JS100-SM, 30" Price Qty RecItem View recommended items
Key 14 Horizon # _R0520200 Description Jandy Pro Series Hub Assembly With 24" Laterals Js60-Sm Price Qty RecItem
Key 14 Horizon # 31-295-1123 Description Hub Assembly, Zodiac Jandy JS100-SM, with 30" Laterals Price Qty RecItem View recommended items
Key 15 Horizon # 31-295-1125 Description Drain Plug, Zodiac Jandy JS60-SM/JS100-SM Price Qty RecItem View recommended items
Key 16 Horizon # 31-295-1126 Description Drain Screen Assembly, Zodiac Jandy JS60-SM/JS100-SM Price Qty RecItem View recommended items
Key 17 Horizon # 31-295-1130 Description O-Ring Kit, Zodiac Jandy JS Series Filter, with Screws Price Qty RecItem View recommended items
Key 18 Horizon # 31-295-1127 Description Seal Kit, Zodiac Jandy JS60-SM/JS100-SM, Drain Fitting Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Jandy Pro Series Side Mount Multiport Valve With Pre-Plumbed Price Qty RecItem View recommended items
Key 20 Horizon # 26-295-1600 Description MPV,Jandy DEV48/DEV60/JS60,2"s x 2-1/2"spg,w/2-1/2"fbt Union Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # Discontinued Description Sweep Elbow, Zodiac Jandy JS100-SM Price Qty RecItem
Key Horizon # 26-295-1606 Description Gate Valve, Jandy/Zodiac DEV48/DEV60/JS100, 2" Slip Price Qty RecItem View recommended items
Key Horizon # _R0443800 Description Jandy Pro Series 2"Multi-Port Valve Unions, 3 Pack Price Qty RecItem
