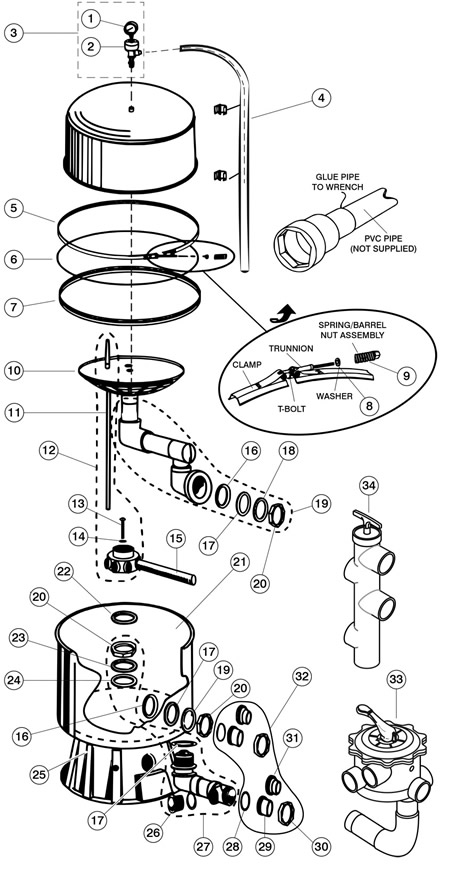

Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  30-110-W005

Sand Filter, Pentair/American Prod, Sandpiper 18" SS Tan

Product Description  ·  Parts  ·  Complete Valves  ·  Tools
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Individual stainless steel tank halves are not available on tanks manufactured before 11/94. When ordering a replacement for either a top or bottom tank half, you must purchase the new tank upgrade kit which includes both tank halves, tension control clamp, back-up ring. O-ring, bulkhead wrench and High Flow manual air relief valve

-Part #14-110-3030 - to upgrade filters manufactured before 07/93

-Part #14-110-3030 and 14-110-3037 - used on filters manufactured before 11/94

-Part #14-110-3034 and 14-110-3040 - used on filters manufactured after 11/94

Parts

Key Horizon # Description Qty
Key 1 Horizon # 17-102-2129 Description Pressure Gauge,Pentair,1/4"mpt,0-60psi,Bottom Mount,Adj Face Price Qty RecItem View recommended items
Key 1 Horizon # Discontinued Description Pressure Gauge,Pentair,1/4"mpt,0-60psi,Bottom Mount,Adj Face Price Qty RecItem View recommended items
Key 1 Horizon # 17-555-1010 Description Pressure Gauge, 1/4"mpt, 0-60psi, Bottom Mount, Generic Price Qty RecItem View recommended items
Key 2 Horizon # 14-102-2232 Description Air Relief Valve, Pentair American Product, Manual Price Qty RecItem
Key 2 Horizon # Discontinued Description Air Relief Valve, Pentair American Products Price Qty RecItem View recommended items
Key 2 Horizon # 17-110-1025 Description Air Relief, Pent Am Prod/Purex/PacFab, Manual, w/Gauge Price Qty RecItem View recommended items
Key 3 Horizon # 14-110-3004 Description Upgrade Kit, Pent Am Prod, High Flow Air Relief Valve Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Air Relief Hose, Pentair/American Products Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Clamp Ring, Pent Am Prod Titan DE/Sandpiper, 18" Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Clamp Ring, Pent Am Prod Titan DE/Sandpiper, 19-1/4" Price Qty RecItem View recommended items
Key 6 Horizon # 14-110-3037 Description O-Ring, Pent Am Prod Titan/Sandpiper, 18" Tank Body, O-87 Price Qty RecItem View recommended items
Key 6 Horizon # 90-423-1087 Description O-Ring, 17-7/8" ID, 5/16" Cross Section, Generic, O-87 Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Back Up Ring, Pent Am Prod Titan DE/Sandpiper/Quantum Price Qty RecItem View recommended items
Key 8 Horizon # 14-110-1528 Description Washer, Pentair American Products/PacFab Price Qty RecItem View recommended items
Key 9 Horizon # 14-102-1590 Description Barrel Nut/Spring Assembly, Pentair American Products/PacFab Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Barrel Nut/Spring Assembly, Pentair American Products/PacFab Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Overdrain, Pentair American Products Sandpiper, 18"/24" Price Qty RecItem
Key 11 Horizon # Discontinued Description Air Bleed Assy, Am Prod/Pent, Quantum CM Sandpiper Price Qty RecItem
Key 11 Horizon # Discontinued Description Air Relief Upgrade, Pentair American Products Sandpiper 18" Price Qty RecItem
Key 12 Horizon # Discontinued Description Standpipe Assembly, Pentair American Products Sandpiper, 18" Price Qty RecItem
Key 13 Horizon # Discontinued Description Screw, Pentair American Products Sandpiper, 1/4-20 x 3" Price Qty RecItem View recommended items
Key 14 Horizon # 35-110-2100 Description Washer, Pentair Purex Whisperflo/IntelliFlo, 1/4-20 Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Lateral, Pentair American Products Sandpiper, 18" Price Qty RecItem
Key 16 Horizon # 14-110-3079 Description Gasket, Titan/Sandpiper,Bulkhead,2-5/8"ID,3-9/16"OD,Notched Price Qty RecItem View recommended items
Key 17 Horizon # 14-110-3082 Description Gasket, Titan/Sandpiper, Bulkhead, 2-5/8"ID, 3-7/16"OD Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Bulkhead Spacer, Pentair American Products Titan/Sandpiper Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Bulkhead Assembly, Pentair American Products Sandpiper 18" Price Qty RecItem
Key 20 Horizon # Discontinued Description Bulkhead Nut, Pentair American Products Titan/Sandpiper Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Tank Body, Pent Am Prod Sandpiper, 18"/30", SS Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Gasket, Pentair American Products Sandpiper Price Qty RecItem
Key 23 Horizon # Discontinued Description Bulkhead Washer, Pentair American Products Titan/Sandpiper Price Qty RecItem View recommended items
Key 24 Horizon # Discontinued Description Gasket, Pentair American Products Titan/Sandpiper, Bulkhead Price Qty RecItem View recommended items
Key 25 Horizon # Discontinued Description Tank Base, Pentair American Products Titan/Sandpiper/Quantum Price Qty RecItem
Key 26 Horizon # 14-110-3118 Description Winterizing Plug, Pent Am Prod Titan/Quantum/Sandpiper Price Qty RecItem View recommended items
Key 27 Horizon # Discontinued Description Outlet Pipe Assy, Pent Am Prod Sandpiper, 18" Price Qty RecItem
Key 28 Horizon # 90-423-5138 Description O-Ring, 2-1/8" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 28 Horizon # 90-423-5227 Description O-Ring, 2-1/8"id, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 29 Horizon # 14-110-3087 Description Union, Pent Am Prod Titan/Sandpiper, 1-1/2"spg Price Qty RecItem View recommended items
Key 30 Horizon # 14-110-3092 Description Union Valve Nut, Pentair American Products Titan/Sandpiper Price Qty RecItem View recommended items
Key 31 Horizon # 14-110-3182 Description Union, Pent Am Prod Titan/Sandpiper, 1-1/2"s or 2"spg Price Qty RecItem View recommended items
Key 32 Horizon # 14-110-3094 Description Union Kit, Pent Am Prod Titan/Sandpiper, 1-1/2"spg Price Qty RecItem View recommended items
Key 32 Horizon # 14-110-3098 Description Union Kit, Pent Am Prod Titan/Sandpiper, 1-1/2"s x 2"spg Price Qty RecItem View recommended items

Complete Valves

Key Horizon # Description Qty
Key 33 Horizon # Discontinued Description MPV, American Products/Pentair Sand Filter, 2" Threaded Price Qty RecItem
Key 34 Horizon # Discontinued Description Push Pull Valve, American Products/Pentair DE Filter, 2" Price Qty RecItem View recommended items

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1002 Description Tool, Button-Hook, Drain Plug Wrench, Stainless Steel Price Qty RecItem View recommended items
Key Horizon # 99-615-1020 Description Tool, Socket, Double-Hex, 9/16 and 7/8, with 1.48well Price Qty RecItem View recommended items
