Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  30-110-W003

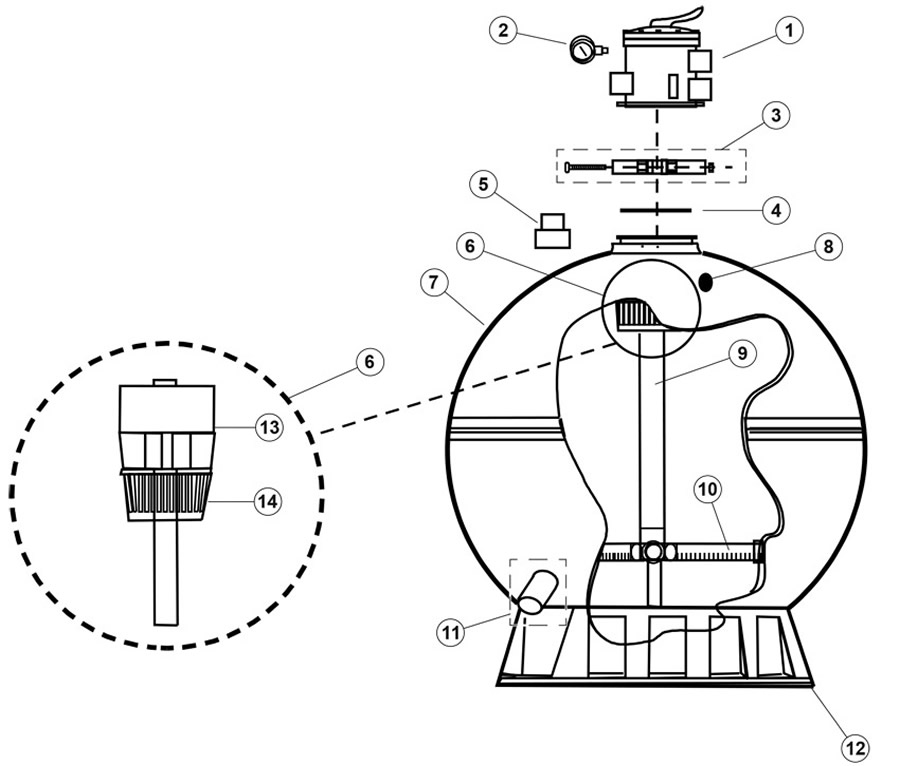

Sand Filter, Pentair/American Prod, Eclipse/Meteor Top Mt

Product Description  ·  Parts  ·  Not Pictured  ·  Tools
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Multiport Valve Upgrade Kit - for Eclipse filters manufactured before 12/95, this kit is not available-filter needs to be replaced



-Part #31-110-1080 - used on filters manufactured before 01/95



-Part #31-110-1082 and 31-110-1086 - used on filters manufactured after 01/95



-Part #31-110-1100, 31-110-1052, and 31-110-1054 - new laterals will fit hubs previously manufactured



-Part #26-110-1209, 26-110-1212, and 26-110-1215 - filter upgrade kit for Eclipse filters manufactured before 12/95



Part # _150055 is used on Meteor filters manufactured after 06/2004, and Sand Dollar filters manufactured after 10/2004

Parts

Key Horizon # Description Qty
Key 1 Horizon # 26-110-1209 Description Multiport Valve,Pentair 26" Eclipse,1-1/2",8 Pos,w/Upgrd Kit Price Qty RecItem View recommended items
Key 1 Horizon # 26-110-1212 Description Multiport Valve,Pentair 30" Eclipse,1-1/2",8 Pos,w/Upgrd Kit Price Qty RecItem View recommended items
Key 1 Horizon # 26-110-1215 Description Multiport Valve, Pentair 30" Eclipse,2",8 Pos, w/Upgrade Kit Price Qty RecItem View recommended items
Key 1 Horizon # 26-253-1000 Description Multiport Valve, Praher TM 12-A, 1-1/2"fpt, Fine Thread Price Qty RecItem View recommended items
Key 1 Horizon # 26-253-1015 Description Multiport Valve, Praher TM-12-S, 1-1/2" Female Pipe Thread Price Qty RecItem View recommended items
Key 1 Horizon # 26-253-1020 Description Multiport Valve, Praher TM-12-S8, 1-1/2" Female Pipe Thread Price Qty RecItem View recommended items
Key 1 Horizon # 26-253-1065 Description Multiport Valve, Praher TM-22-PB, 2" Female Pipe Thread Price Qty RecItem View recommended items
Key 2 Horizon # 14-102-1586 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 2 Horizon # 14-110-1002 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 2 Horizon # 17-555-1018 Description Pressure Gauge, 1/4"mpt, 0-60psi, Back Mount, Generic Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Clamp, Pentair American Products Eclipse 22", pre 1995 Price Qty RecItem
Key 3 Horizon # 31-110-1086 Description Clamp, Pentair American Products Eclipse 22", After 1995 Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Clamp Ring, Pentair American Products Eclipse Price Qty RecItem
Key 4 Horizon # Discontinued Description Gasket, Pentair Eclipse, Valve, 5-3/4"ID, 7"OD Price Qty RecItem View recommended items
Key 4 Horizon # 90-423-5359 Description O-Ring, Buna-N, 5-3/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 4 Horizon # 90-423-5438 Description O-Ring, 6-1/4" ID, 1/4" Cross Section, Generic Price Qty RecItem View recommended items
Key 4 Horizon # 90-423-5439 Description O-Ring, 6-1/2" ID, 1/4" Cross Section, Generic Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Adapter, Pentair American Products Eclipse, 2" x 1-1/2" Price Qty RecItem
Key 5 Horizon # Discontinued Description Adapter, Pentair American Products Eclipse, 2" Price Qty RecItem
Key 6 Horizon # Discontinued Description Upgrade Kit, Pentair American Products Eclipse 26", Valve Price Qty RecItem
Key 6 Horizon # Discontinued Description Upgrade Kit, Pentair American Products Eclipse 30", 2" Valve Price Qty RecItem
Key 6 Horizon # Discontinued Description Upgrade Kit, Pent Am Prod Eclipse 30", 1-1/2"Valve Price Qty RecItem View recommended items
Key 7 Horizon # _155655 Description Tnk Metr 18" Rplcmnt Price Qty RecItem
Key 7 Horizon # Discontinued Description Tank Body, Pentair American Products Eclipse 18" Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Tank Body, Pentair American Products Eclipse 20" Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Tank Body, Pentair American Products Eclipse 22" Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Winterizing Plug, Pentair American Products Eclipse Price Qty RecItem View recommended items
Key 9 Horizon # _152224 Description Asy Stndp Metr20 Price Qty RecItem
Key 9 Horizon # _152225 Description Asy Stndp Metr22 Price Qty RecItem View recommended items
Key 9 Horizon # _55027500 Description Pipe/Lateral Assy 18In Price Qty RecItem View recommended items
Key 9 Horizon # _55027600 Description Pipe/Lateral Assy. 20" Price Qty RecItem View recommended items
Key 9 Horizon # 31-102-1300 Description Standpipe Assy, Pentair Meteor 18 Price Qty RecItem View recommended items
Key 9 Horizon # 31-110-1090 Description Standpipe Assy, Pent Am Prod Eclipse TM, 22",w/Laterals Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Standpipe Assy, Pent Am Prod Eclipse TM, 26" Price Qty RecItem
Key 9 Horizon # Discontinued Description Standpipe Assy, Pent Am Prod Eclipse TM, 30" Price Qty RecItem
Key 10 Horizon # Discontinued Description Lateral, Pentair American Products Eclipse 26" Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Lateral, Pentair American Products Eclipse 30" Price Qty RecItem View recommended items
Key 10 Horizon # 31-110-1100 Description Lateral, Pentair American Products Eclipse 18"/20"/22" Price Qty RecItem View recommended items
Key 11 Horizon # _150055 Description Drain Assembly, Pentair Meteor/Cristal-Flo II/SD Price Qty RecItem View recommended items
Key 11 Horizon # 14-110-3260 Description Gasket, Warrior/CC, Drain Plug, 13/16"ID, 1-5/8"OD Price Qty RecItem View recommended items
Key 11 Horizon # 31-110-1058 Description Drain Assembly, Pentair American Products Eclipse Price Qty RecItem View recommended items
Key 11 Horizon # 31-110-1060 Description Drain Nozzle, Pentair American Products Eclipse Price Qty RecItem View recommended items
Key 11 Horizon # 31-110-1062 Description Drain Cap, Pentair American Products Eclipse Price Qty RecItem View recommended items
Key 11 Horizon # 90-423-5325 Description O-Ring, 1-1/2" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Tank Base, Pentair American Products Eclipse 22"/26" Price Qty RecItem
Key 12 Horizon # Discontinued Description Tank Base, Pentair American Products Eclipse 30"/36" Price Qty RecItem
Key 13 Horizon # Discontinued Description Overdrain Cup, Pent Am Prod Eclipse 26"/30", Large Price Qty RecItem
Key 14 Horizon # Discontinued Description Basket, Filter, OEM AmericanProducts/Pentair Eclipse Meteor Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Basket, Overdrain, OEM AmProd/Pentair Eclipse 26", Small Price Qty RecItem

Not Pictured

Key Horizon # Description Qty
Key Horizon # 31-110-1134 Description Backwash Sight Glass, Pent Am Prod Eclipse, 1.5"mpt Price Qty RecItem View recommended items
Key Horizon # 31-110-1136 Description Sand Guide, Pentair American Products Eclipse Price Qty RecItem View recommended items
Key Horizon # _79302100 Description Hose Assembly Meteor 18 Price Qty RecItem
Key Horizon # _79302300 Description Hose Assembly Meteor 22 Price Qty RecItem
Key Horizon # _86013090 Description Hose Kit Rplc 20" Metr Price Qty RecItem
Key Horizon # _86013100 Description Hose Kit Rplc 22" Metr Price Qty RecItem
Key Horizon # _155712 Description Conn Hse Asy Optfl/Dyn Vd To Meteor 18 Price Qty RecItem
Key Horizon # _155663 Description Hse Asy Qconn 22" Price Qty RecItem
Key Horizon # _155714 Description Conn Hse Asy Optfl/Dyn Vd To Meteor 22 Price Qty RecItem View recommended items
Key Horizon # _55024900 Description Hub Meteor Flt Cntr Pipe Price Qty RecItem

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1002 Description Tool, Button-Hook, Drain Plug Wrench, Stainless Steel Price Qty RecItem View recommended items
